Booster Pro 2-8 DMX/RDM 2 ingressi 8 uscite XLR 3 poli - Showtec 50788

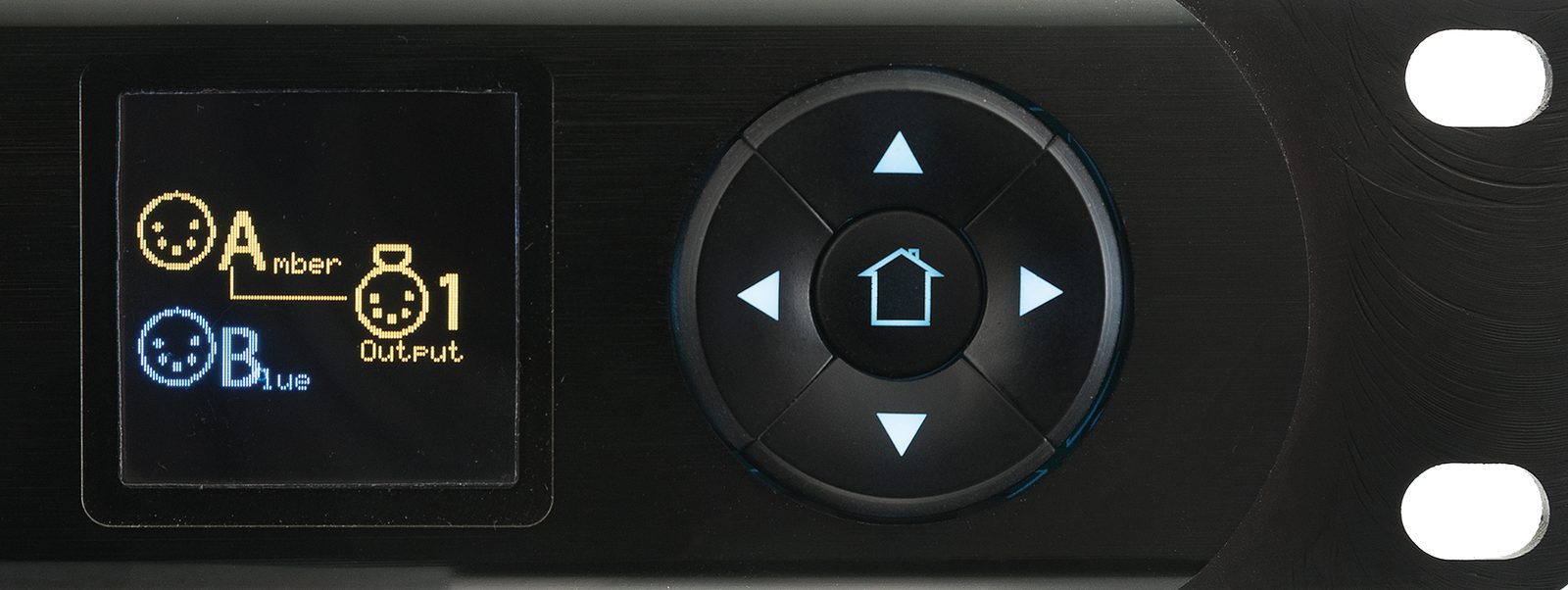

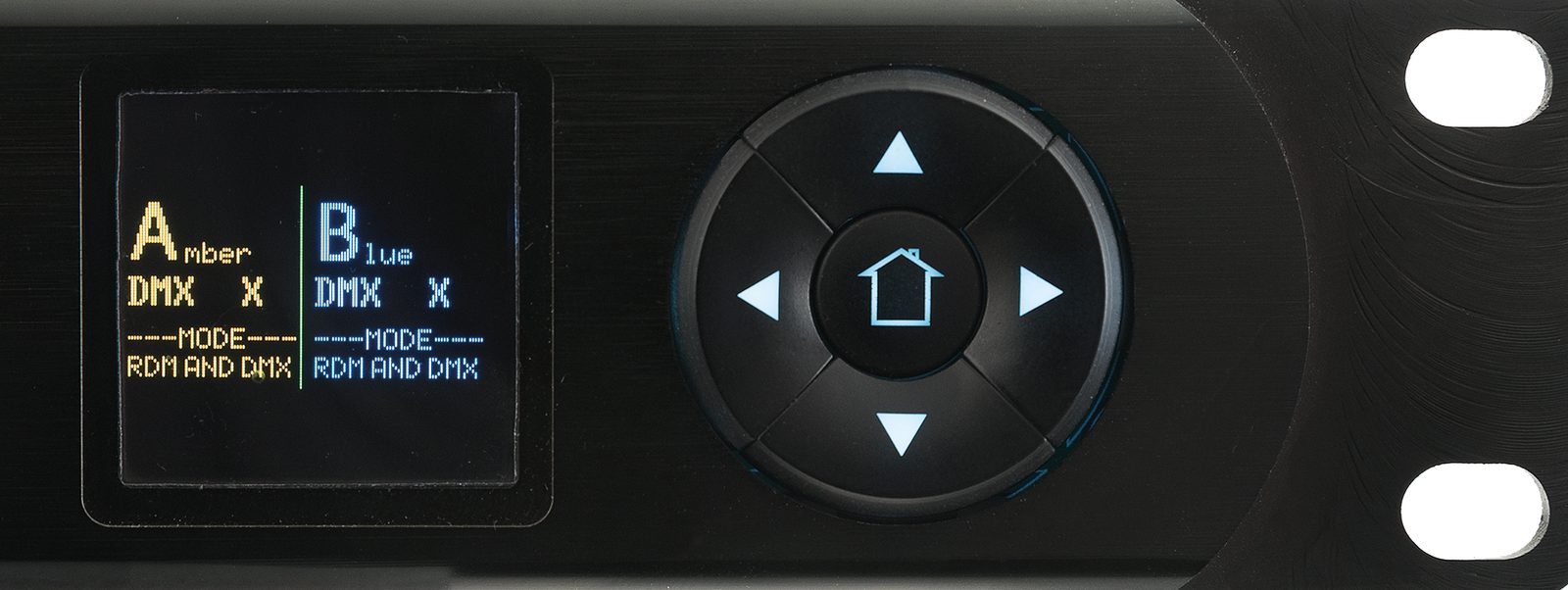

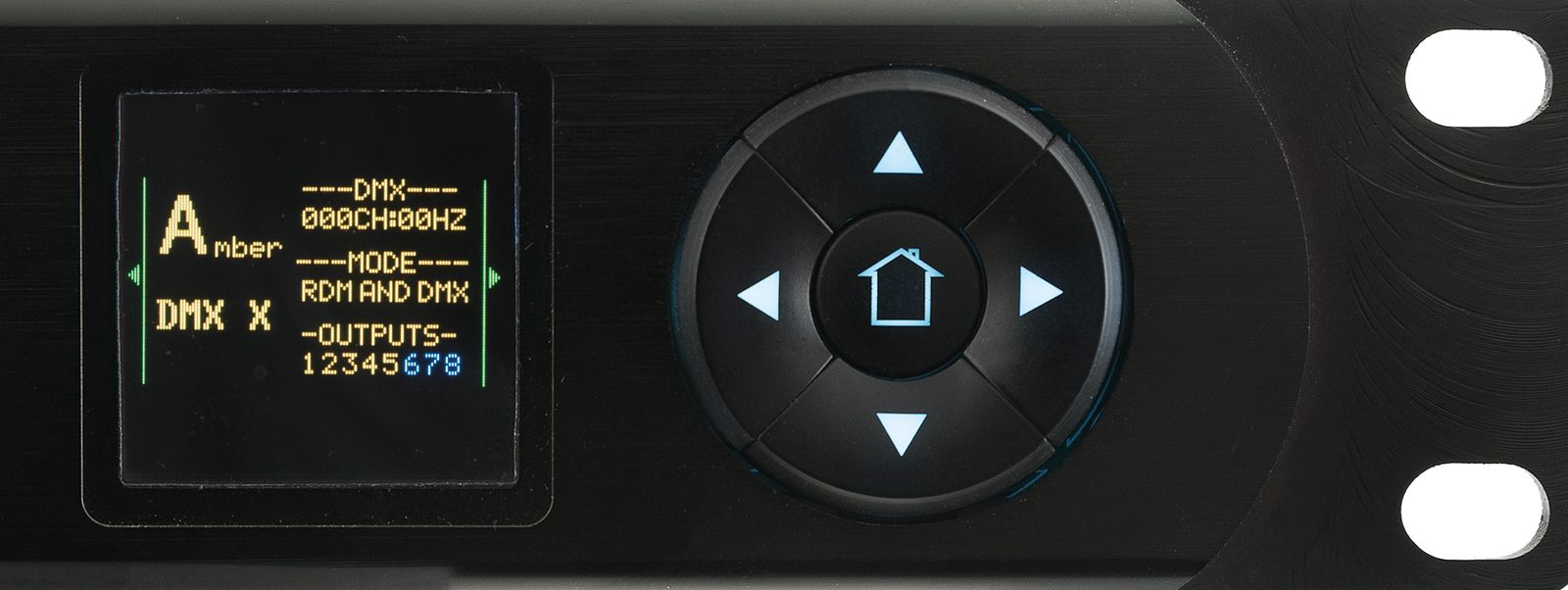

The Booster Pro is the ultimate DMX tool which should be in the equipment rack of each rental company or installation. The Booster Pro is an optical isolated DMX Splitter and Booster. The Booster Pro has 2 inputs which can be patched to 8 selectable output (for each output you can patch input A or B). The Booster Pro is fully RDM compatible and offers real-time DMX monitoring. For specialist applications the DMX timing can be adjusted. Furthermore each output of the Booster Pro has a monitoring function which controls the status of the connected cables real-time. In case of any failure an acoustical signal will warn the user. The intuitive OLED display lets you set all the different functions fast and easily.
- OLED Display
- Isolated outputs
- 2 inputs, selectable outputs
- Multiple monitoring functions
| Power Supply | 100-240 V AC 50/60 Hz |
|---|---|
| Power Consumption | 5 W |
| Power Connector In | Power Pro Blue |
| DMX Connector | XLR 3P In/Out |
| DMX Connector In | XLR 3P |
| DMX Connector Out | XLR 3P |
| Length (mm) | 483 mm |
| Width (mm) | 137 mm |
| Height (mm) | 46 mm |
| Installation Depth (Excl. Connector) | 137 mm |
| Weight | 2 kg |
| Rack Units | 1 U |
| IP Rating | IP20 (indoor use only) |
| Housing | Metal / Plastic |
| Colour | Black |
| LED Indicators | Operation mode / Power / Signal |
| Maximum Ambient Temperature | 55 °C |
| Minimum Operating Temperature | -10 °C |
| Included Cables | Power Pro Cable |
| Control Mode | DMX / RDM |
| Protocols | DMX / RDM / USITT |
| Display | OLED |
| Universes | 2 |
