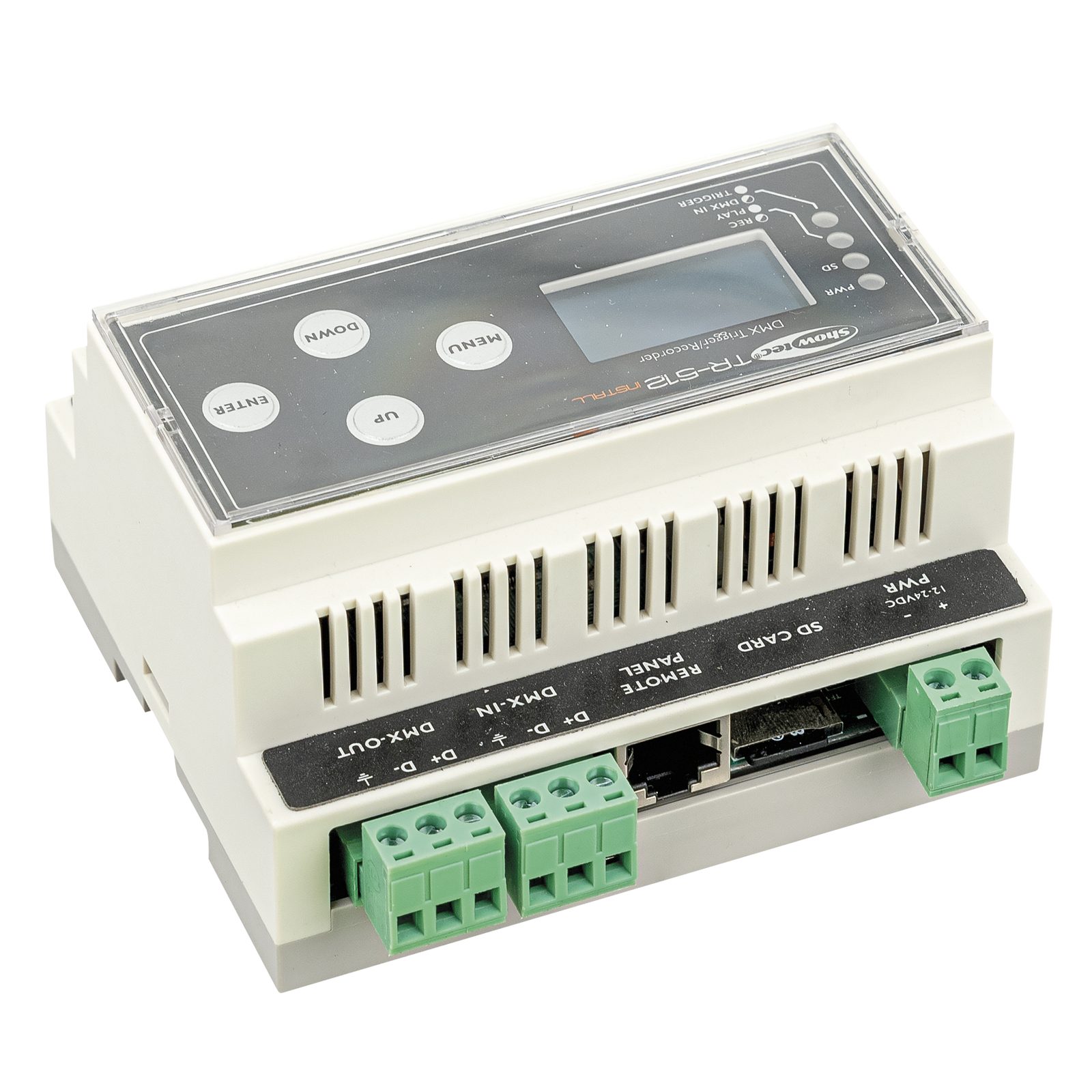

Registratore/Riproduttore DMX per installazione TR-512 Install DIN Rail - SHOWTEC 50826

The Showtec TR-512 Install is the ideal compact fixed-installation DMX Recorder/Playback unit which can trigger any lightshow in a simple way. Thanks to the latest software update, a new Idle Playback Mode opens up new possibilities.

The TR-512 Install can record and playback several shows which can be stored on the included micro-SD card. Each show can be played in loop mode ore single play. Even an auto start on power-up or delayed start can be set in order to have precise control over your show.

The new Idle Playback Mode adds a Show mode and a Passthru mode to the default Scene mode. Scene mode is perfect for a static state between active shows. When no file is selected, it uses a default blackout with all channels set to zero. Show mode will loop a selected show, which is useful for providing ongoing entertainment or background effects in the absence of triggered events. Passthru mode makes it possible to pass a DMX signal received from another source through to a connected lighting setup via the TR-512's DMX input and output.

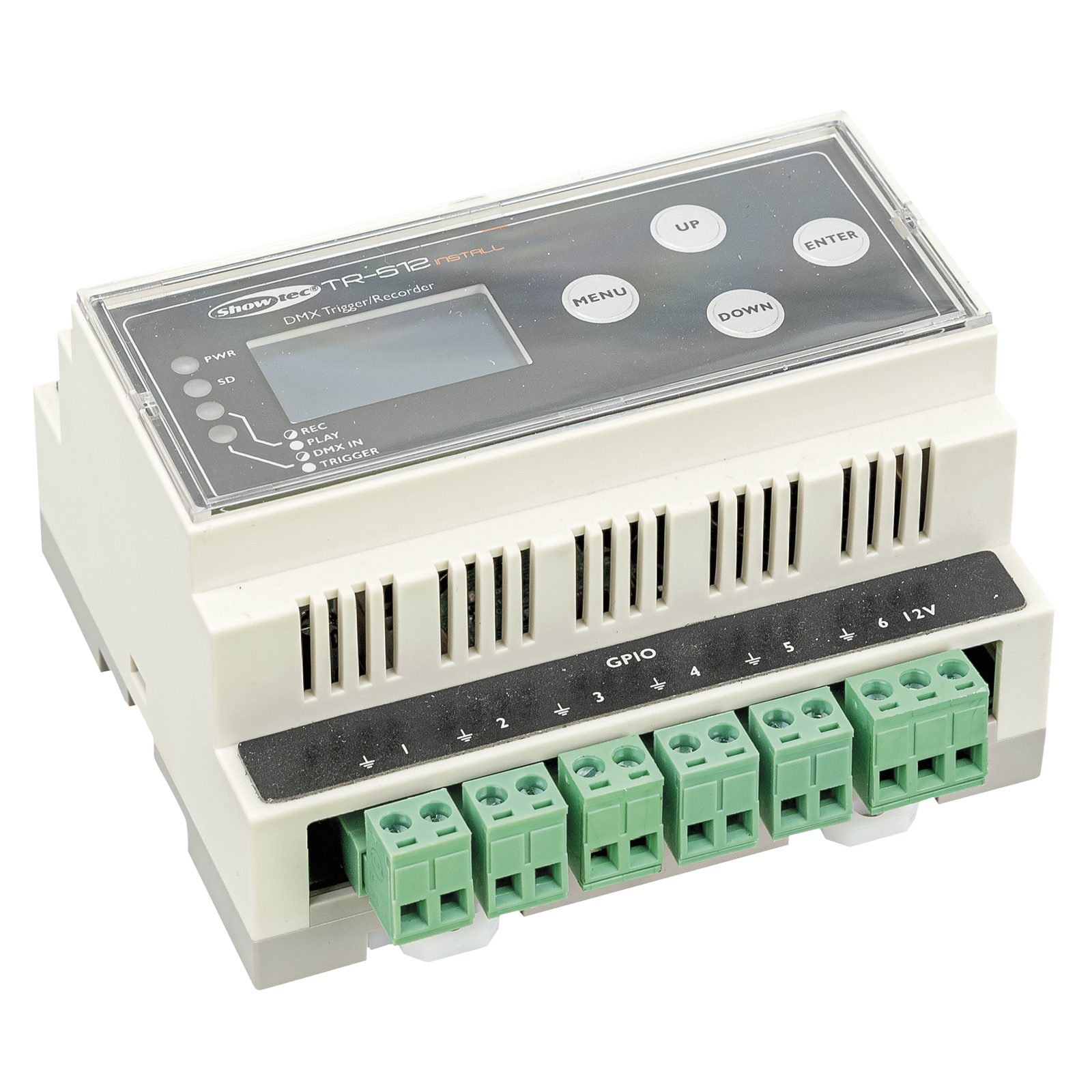

There are 6 GPIO pins available to start or stop your shows by external triggers like switches or motion detection sensors. Also a dedicated wall remote panel can easily be connected by normal cat-5 cable. The din-rail mounted TR-512 is the right product to trigger your shows or scenes in theme parks, museums, shops or other system integration projects.

Please note that this DMX Recorder/Playback unit is ONLY for use with Wall Panel Remote (50827/50828).

• Compatible with Wall Panel Remote (50827/50828)
• Bi-directional communication to wall panel
• 6 external universal triggers (GPIO)
• Optical isolated DMX ports
• Record and playback function
• DIN EN43880 form factor
• DIN EN60715 rail system
