The Showtec Assistant CRMX is a multifunctional tool for checking W-DMX, CRMX, DMX, RDM and Art-Net signals. It allows you to both receive and transmit (W-)DMX signals, making it ideal for testing your DMX and Art-Net networks, while the integrated LumenRadio transceiver allows you to check your Wireless DMX network - all with one robust device. You can also record and play back DMX signals using a removable SD card. Additionally, the Showtec Assistant CRMX enables you to check RDM parameters of your fixtures.

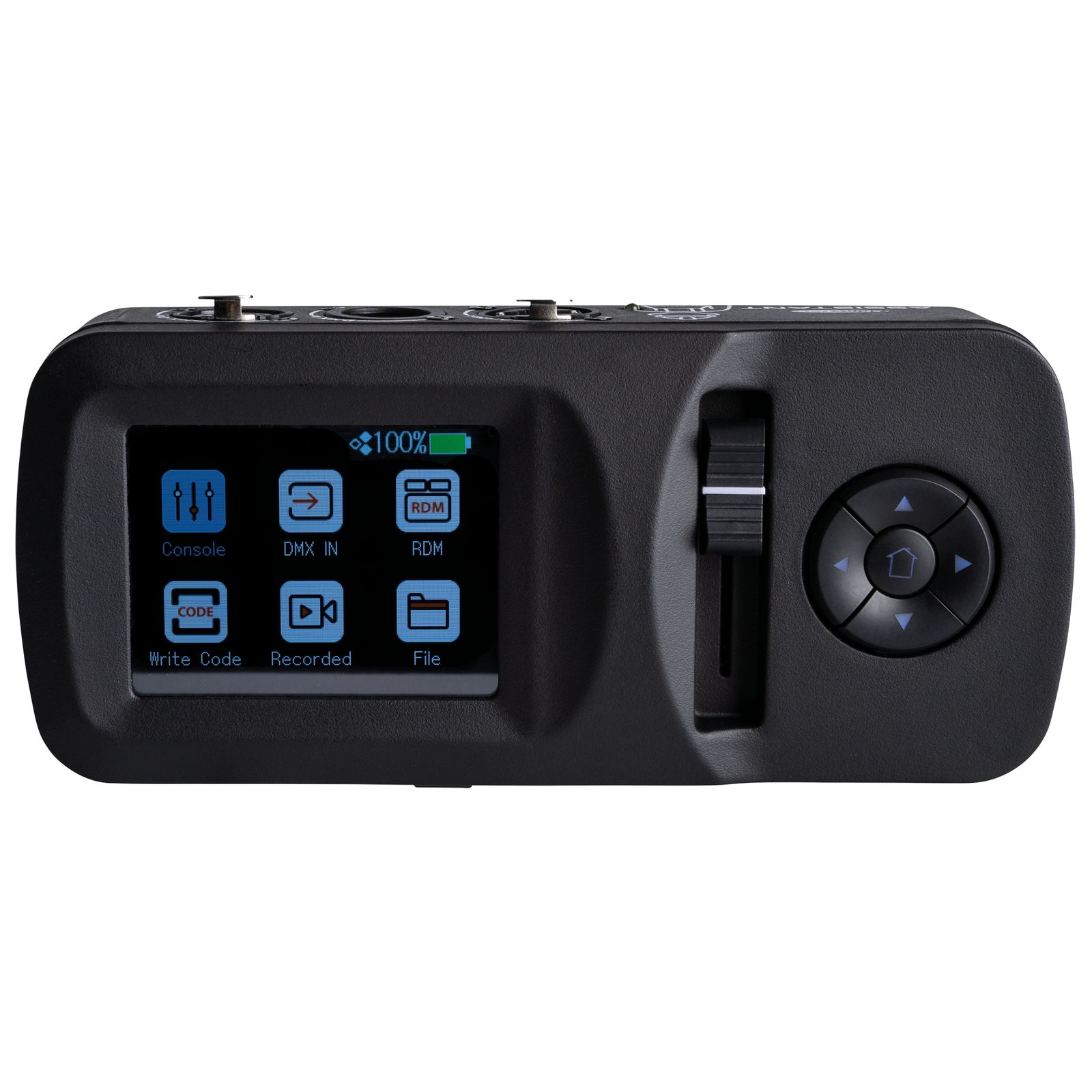

Navigating through the menu and parameters is effortless thanks to the capacitive touch screen. Alternatively, you can use the fader and buttons for control. The internal Li-ion battery, when fully charged, lasts up to 16 hours and can be recharged via the USB-C port with a 5V power supply.
- For W-DMX, CRMX, DMX, RDM and Art-Net testing
- Record and play back DMX signals with a removable SD card
- Portable, battery-powered operation
- User-friendly control with touch screen, fader, and buttons
| Wireless Mode | G3 / G4s / CRMX |
|---|
| Gain (mW) | 10 mW |
|---|
| Reaction Time | 5 ms |
|---|
| Antenna Type | Omni |
|---|
| Antenna Radiation | 360 x 360° |
|---|
| Battery Type | Lithium ion |
|---|
| Battery Voltage | 3.7 V |
|---|
| Capacity | 7.8 Ah |
|---|
| Battery Power | 28.86 Wh |
|---|
| Runtime Average | 16 h |
|---|
| Charging Time | 5 h |
|---|
| Battery Lifetime | 500 cycles |
|---|
| Memory Type | Micro SD |
|---|
| Power Supply | 5 V DC |
|---|
| Power over Ethernet (PoE) | No |
|---|
| Power Consumption | 5 W |
|---|
| Power Connector In | USB-C |
|---|
| DMX Connector | XLR 5P In/Out |
|---|
| Data Connector In | RJ45 |
|---|
| Length (mm) | 186 mm |
|---|
| Width (mm) | 82 mm |
|---|
| Height (mm) | 56 mm |
|---|
| Weight | 0.5 kg |
|---|
| IP Rating | IP20 (indoor use only) |
|---|
| Housing | ABS |
|---|
| Colour | Black |
|---|
| Maximum Ambient Temperature | 50 °C |
|---|
| Minimum Operating Temperature | -10 °C |
|---|
| Included Cables | USB-A - USB-C cable |
|---|
| Included Accessories | Pouch |
|---|
| Control Mode | Art-Net / DMX / RDM |
|---|
| Protocols | Art-Net / CRMX Classic / DMX / W-DMX / RDM |
|---|
| Display | LCD / Touch |
|---|
| Universes | 1 |
|---|
