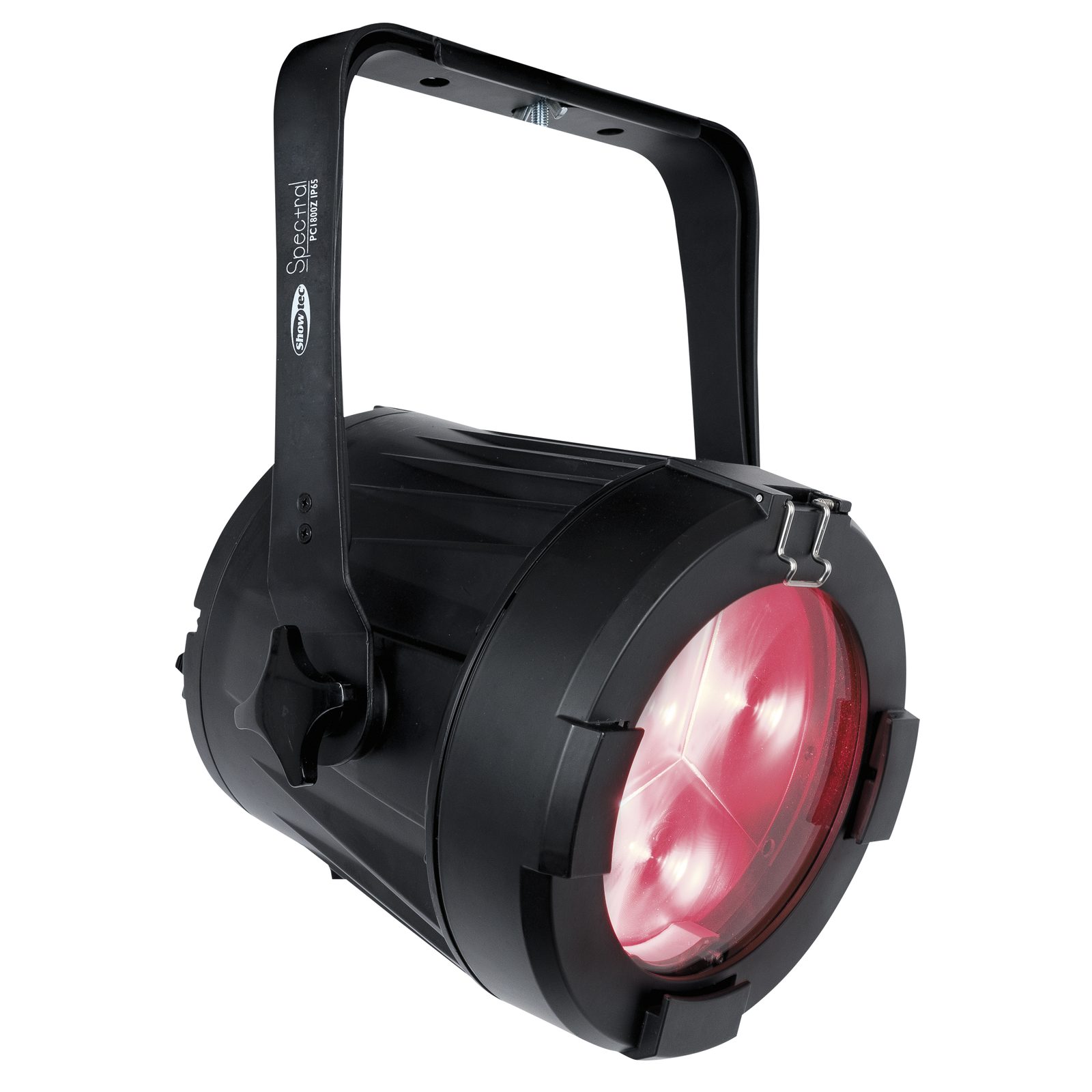

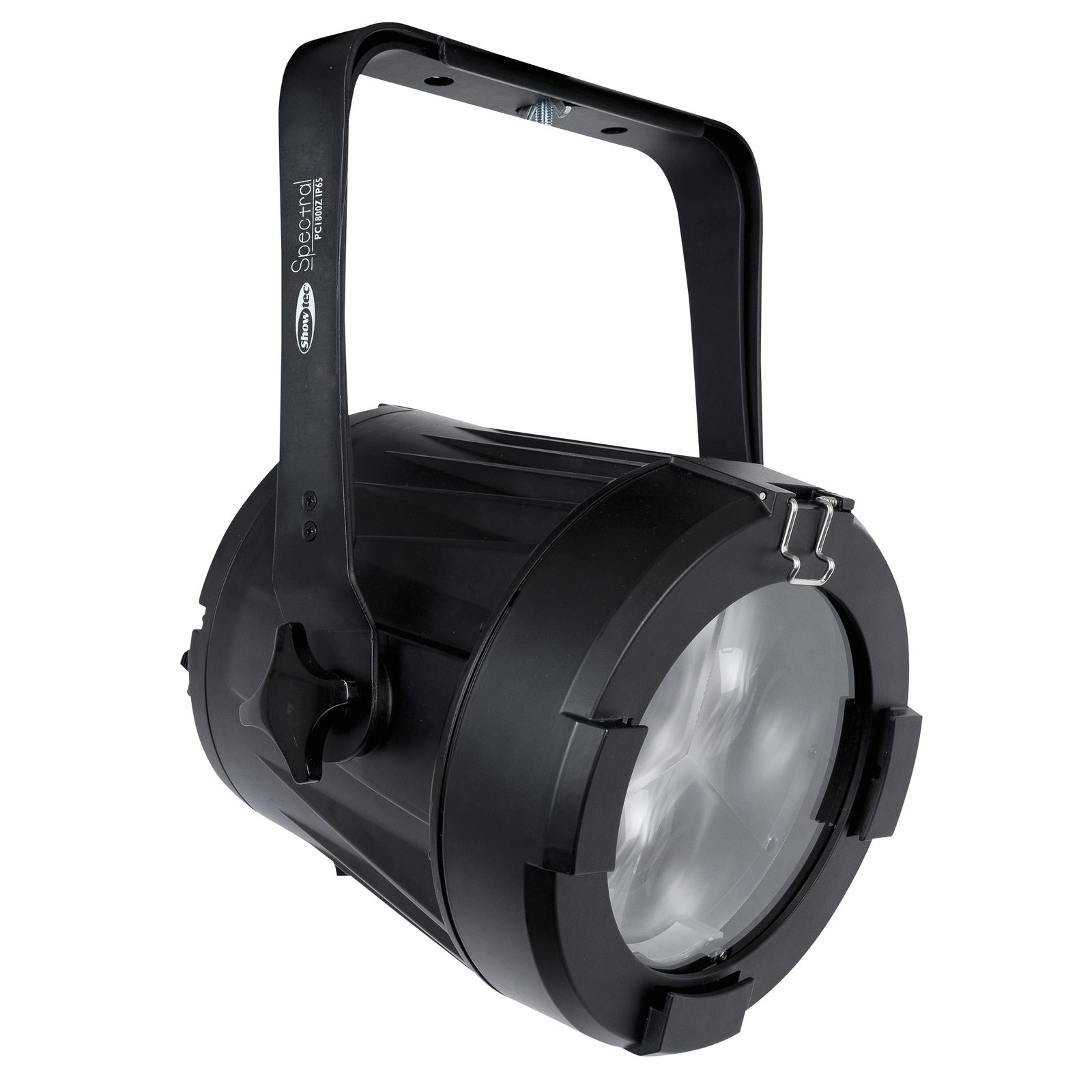

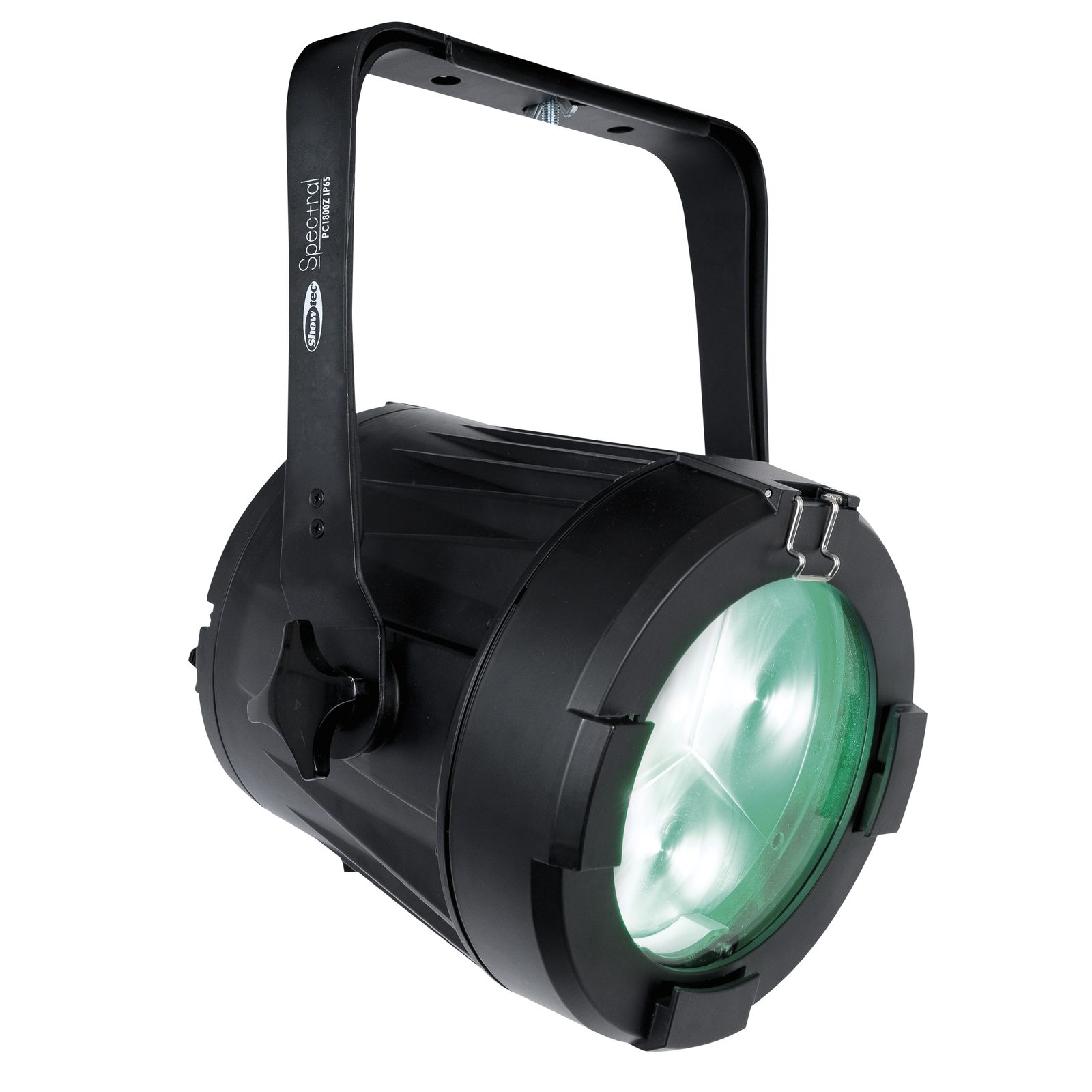

Parcan Array LED RGBW 180W zoom motorizzato 4.5°-45° spot to wash - Showtec 43553
The Showtec Spectral series offers reliable and durable spots that meet the high quality and functionalities required by festivals and fixed venues. All Spectral spots offer high output, accurate colour temperature, silent operation and a sturdy, compact design. The Spectral fixtures differ greatly in properties, from a Warm White LED Spot with a fixed beam angle to an RGBW LED Spot with a wide motorised beam angle and 2-section control. That is why you will probably see them at every festival!
Some Spectral luminaires are intended for indoor locations while other models are built with an IP65 rating, suitable for outdoor use. Thanks to a dimmer and strobe function, most Spectral luminaires are ideal for colour-mixing on stage, from punchy to white and pastel colours. A suitable solution can be devised for every setting.
Each projector offers multiple control options and is equipped with optional accessories to expand and improve functionalities. Contact us now for free advice and receive an offer you cannot refuse or check out our product pages for more information.
The Showtec Spectral PC 1800Z is a 180 watt RGBW LED Array spot to wash Parcan, with a wide 4.5° - 45° motorised zoom range, suitable for in- and outdoor applications. Each function, including 0 - 100 % dimmer, 0 - 25 Hz strobe and colour mixing engine, is controllable via DMX and Master/Slave in Manual and Auto run mode. The compact and lightweight 9.1 kg design with IP65 rating and -10~40 °C operating temperature range makes the Spectral PC 1800Z fit for almost any environment.
- 180 W RGBW LED Array Par
- Wide and fast motorised zoom range (pin spot to wash)
- IP65 (dust and water resistant, fit for outdoor use)
- PC Lens optics for a homogeneous output
- Dimmer and strobe function
- DMX and Master/Slave control
| Light Source Type | LED |
|---|---|
| Light Source Quantity | 1 |
| Light Source Power | 180 W |
| LED Colour Type | RGBW |
| Drive Current | 4.5 A |
| Refresh Rate (Max.) | 25000 kHz |
| Luminous Flux (Total) | 2067 lm |
| Luminous Flux (Red) | 449 lm |
| Luminous Flux (Green) | 836 lm |
| Luminous Flux (Blue) | 267 lm |
| Luminous Flux (White) | 1300 lm |
| Minimum CCT | 2700 K |
| Maximum CCT | 10000 K |
| Beam Angle Minimum (Circular) | 4.5° |
| Beam Angle Maximum (Circular) | 45° |
| Zoom Type | Motorised |
| Zoom Ratio | 1:10 |
| Zoom Minimum | 4° |
| Zoom Maximum | 45° |
| Control Mode | Auto / Built-in Program / DMX / Manual |
| DMX Channels | 9 / 12 / 17 |
| Protocols | DMX / RDM |
| Display | LCD |
| Dimmer | 0-100 % |
| Strobe | 0-25 Hz |
| Power Supply | 100-240 V AC 50/60 Hz |
| Power Consumption | 185 W |
| Power Connector In | powerCON TRUE1 |
| Power Connector Out | powerCON TRUE1 |
| DMX Connector | Dedicated 3P IP65 In/Out / Dedicated 5P IP65 In/Out |
| DMX Connector In | Dedicated 3P IP65 / Dedicated 5P IP65 |
| DMX Connector Out | Dedicated 3P IP65 / Dedicated 5P IP65 |
| Cable Length | 1.5 m |
| Length (mm) | 265 mm |
| Width (mm) | 240 mm |
| Height (mm) | 405 mm |
| Weight | 9.3 kg |
| IP Rating | IP65 |
| Housing | Aluminium die-cast |
| Colour | Black |
| Maximum Ambient Temperature | 40 °C |
| Minimum Operating Temperature | -10 °C |
| Cooling | Convection |
| Mounting Options | Clamp / Surface |
| Safety Attachment | Yes |
| Included Cables | powerCON TRUE1 cable |
| Included Rigging | Bracket / Safety Cable |
