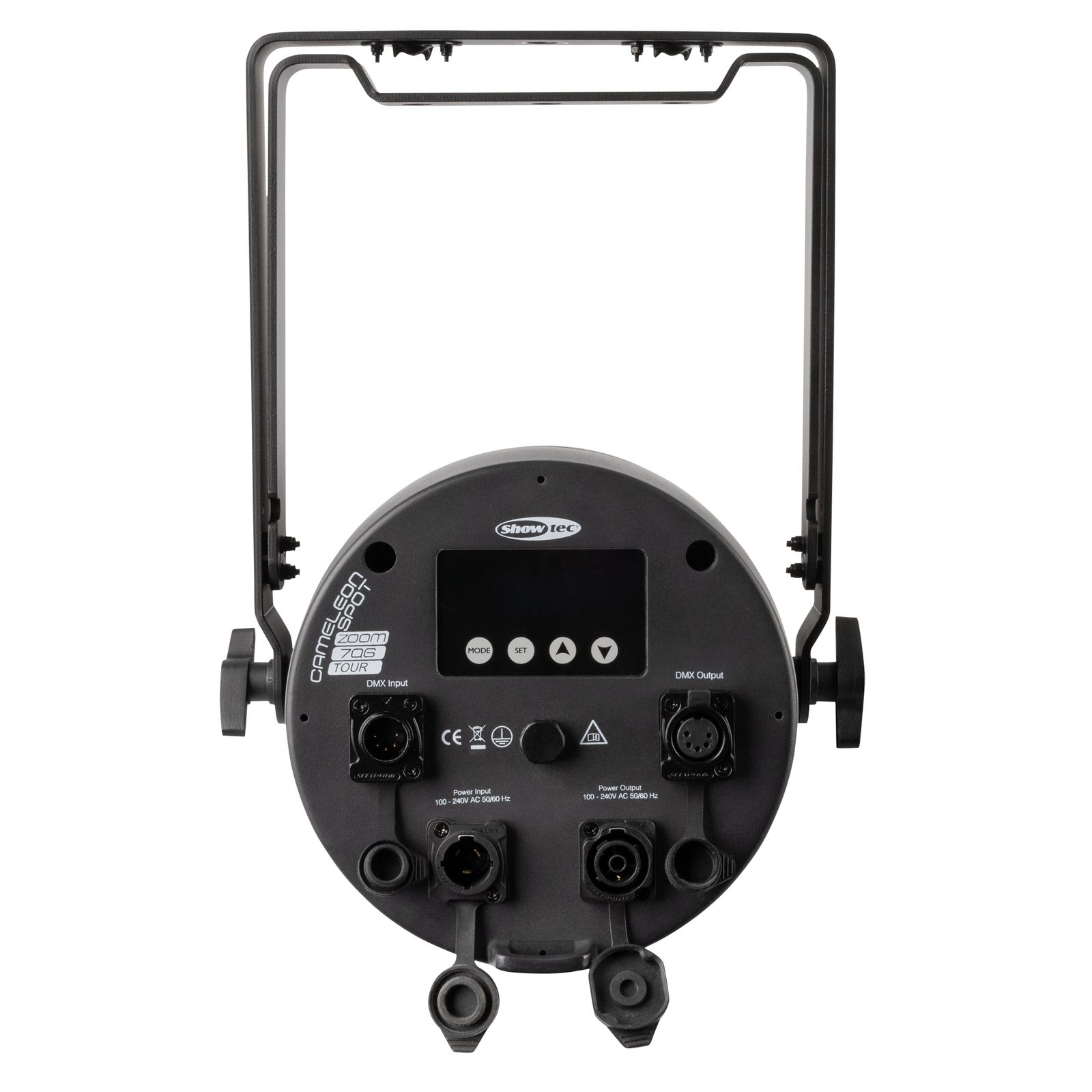

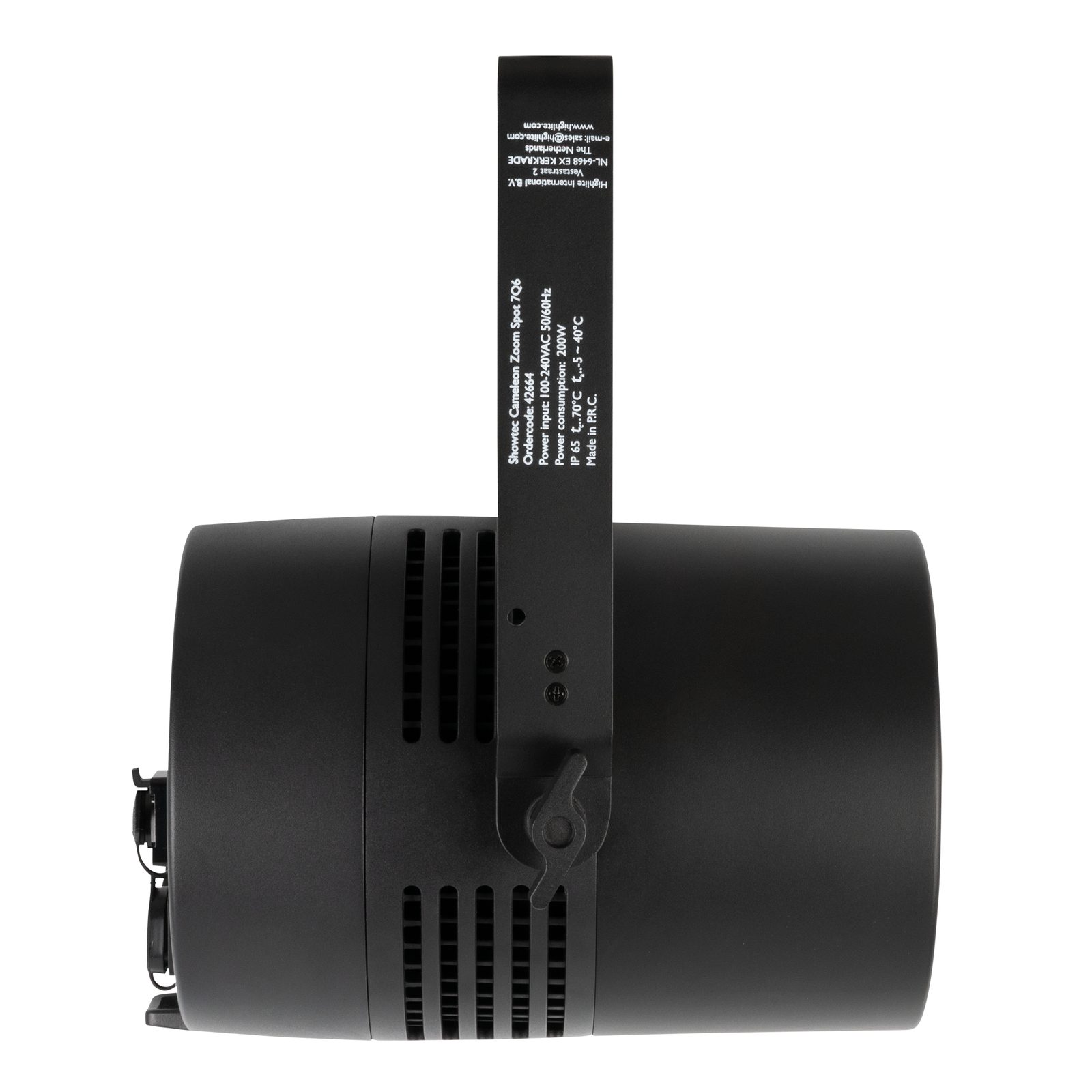

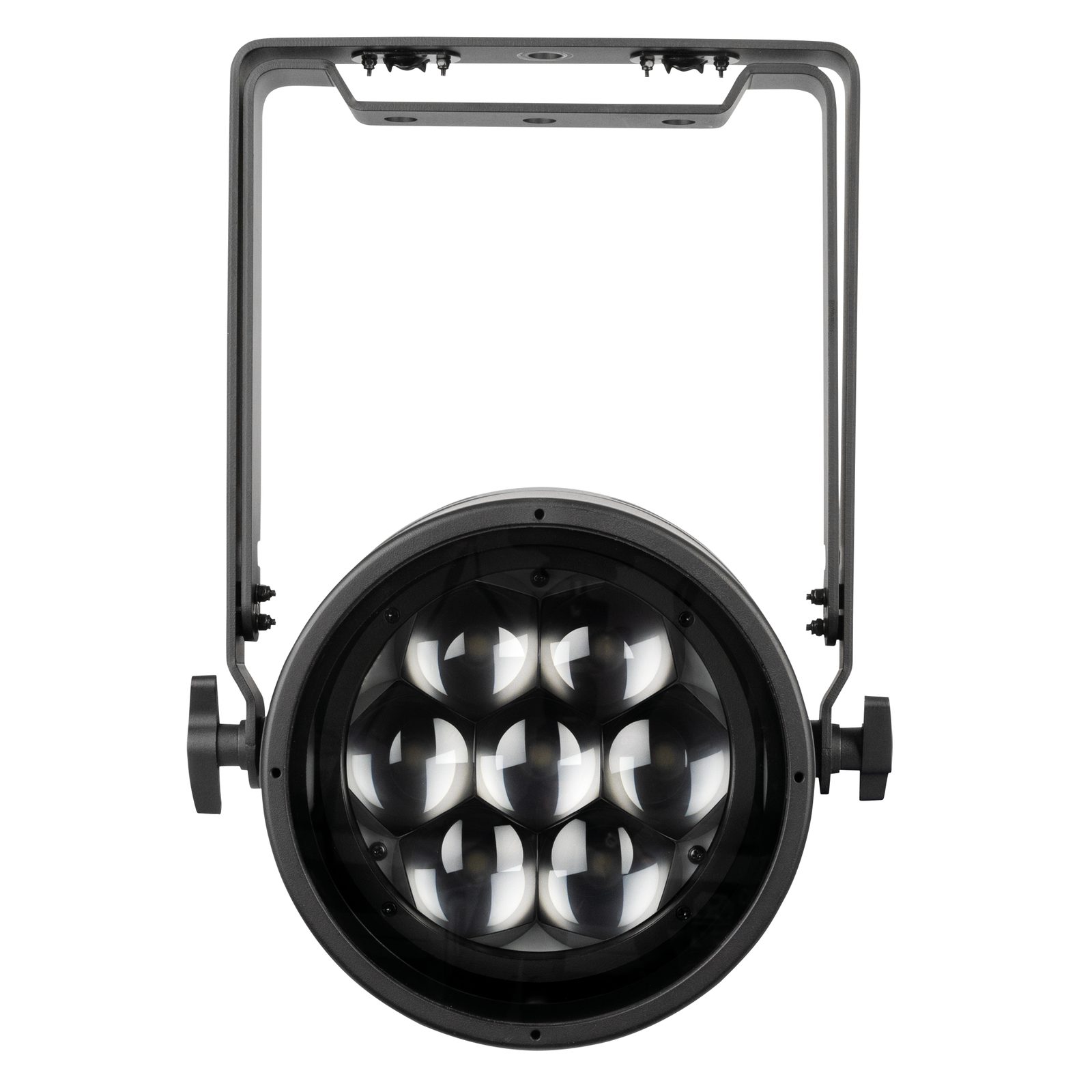

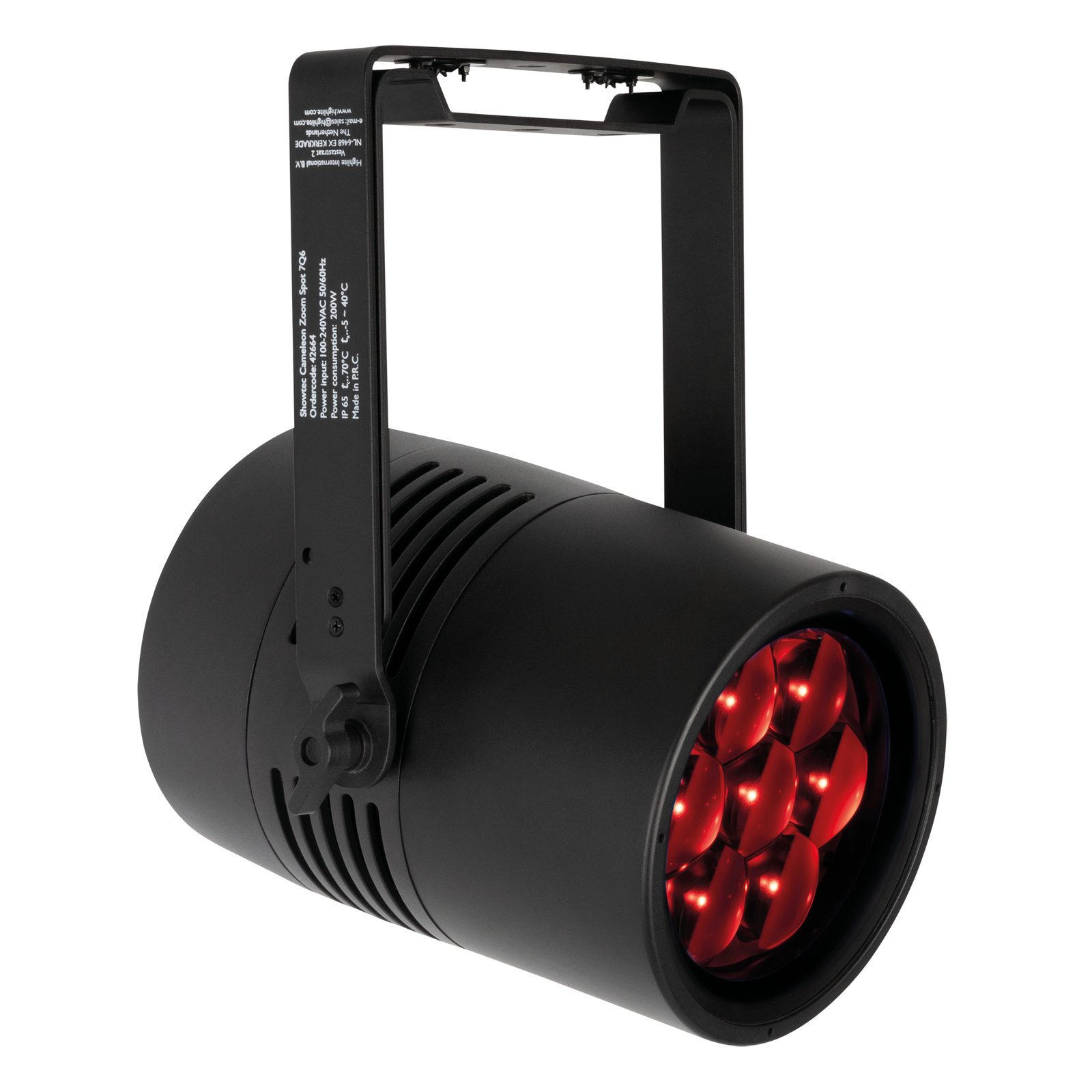

The Cameleon Zoom Spot 7Q6 Tour is an LED Spot with seven 50-watt RGBWA-UV LEDs. It has a motorised zoom range from 6° to 45° and features 0–100 % dimmer control and 0–20 Hz strobe effects. With preprogrammed colours, built-in colour macros and 4 selectable dimming curves, it's easy to use. Adjustable PWM frequencies allow flicker-free filming too. The fixture can be controlled with DMX (incl. RDM) or operated in Auto or Master/Slave modes. Manual control is also possible using the OLED display and touch buttons. The fixture, the 3-pin XLR and the Seetronic Power Pro True connectors are all IP65 rated, making the Cameleon Zoom Spot 7Q6 Tour suitable for outdoor use too.
- 7x 50 W RGBWA-UV LED Spot
- IP65 rated
- Motorised zoom range 6°–45°
- Dimmer and strobe function
- DMX/RDM, Manual, Auto and Master/Slave control
| Light Source Type | LED |
|---|
| Light Source Quantity | 7 |
|---|
| Light Source Power | 50 W |
|---|
| LED Colour Type | RGBWAUV |
|---|
| Luminous Flux (Total) | 3285 lm |
|---|
| Zoom Type | Motorised |
|---|
| Zoom Minimum | 6° |
|---|
| Zoom Maximum | 34° |
|---|
| Control Mode | Auto / DMX / Manual / Master Slave |
|---|
| DMX Channels | 7 / 10 / 13 / 15 / 21 |
|---|
| Protocols | DMX / RDM |
|---|
| Display | OLED |
|---|
| Dimmer | 0-100 % |
|---|
| Strobe | 0-20 Hz |
|---|
| Power Supply | 100-240 V AC 50/60 Hz |
|---|
| Power Consumption | 220 W |
|---|
| Power Connector In | Power Pro True |
|---|
| Power Connector Out | Power Pro True |
|---|
| DMX Connector | XLR 3P In/Out |
|---|
| DMX Connector In | XLR 3P |
|---|
| DMX Connector Out | XLR 3P |
|---|
| Length (mm) | 252 mm |
|---|
| Width (mm) | 184 mm |
|---|
| Height (mm) | 264 mm |
|---|
| Weight | 8.4 kg |
|---|
| IP Rating | IP65 |
|---|
| Housing | Aluminium die-cast |
|---|
| Colour | Black |
|---|
| Maximum Ambient Temperature | 40 °C |
|---|
| Minimum Operating Temperature | -5 °C |
|---|
| Cooling | Convection |
|---|
| Included Cables | Power Pro True Cable |
|---|
| Included Rigging | Quick-Lock Bracket |
|---|
