Ricetrasmettitore DMX wireless AirDrive 2.4 Pocket 5-pin XLR - Showtec 50260

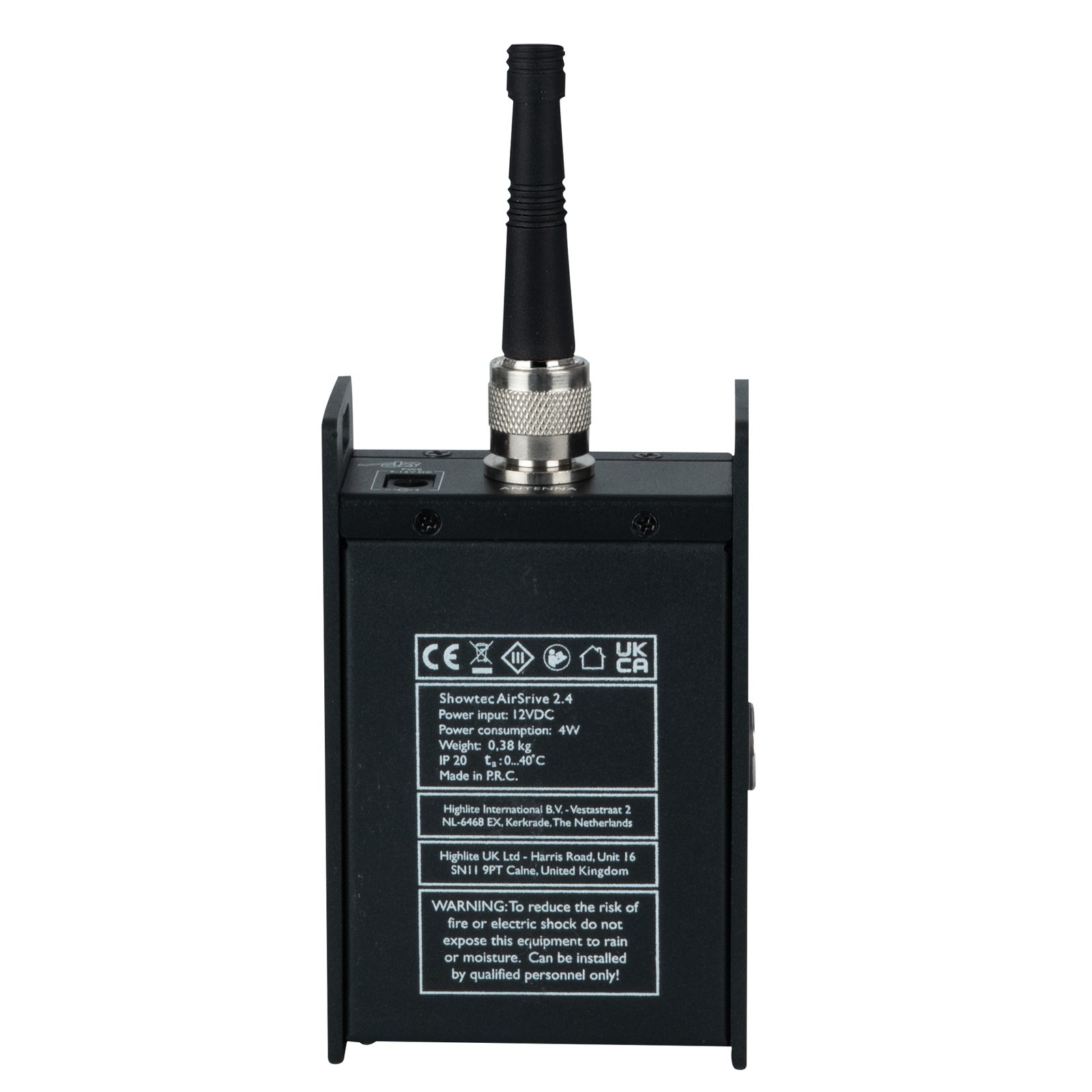

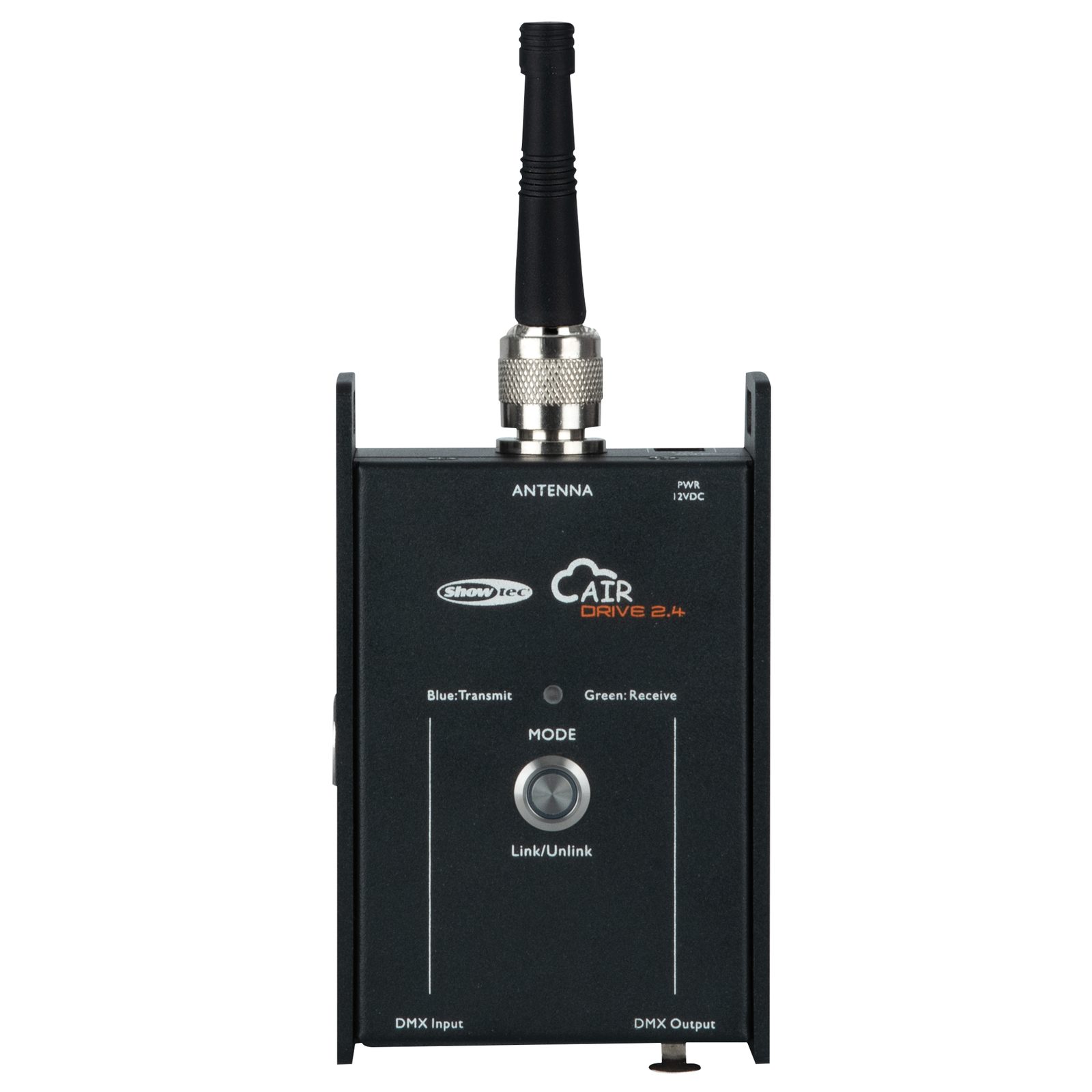

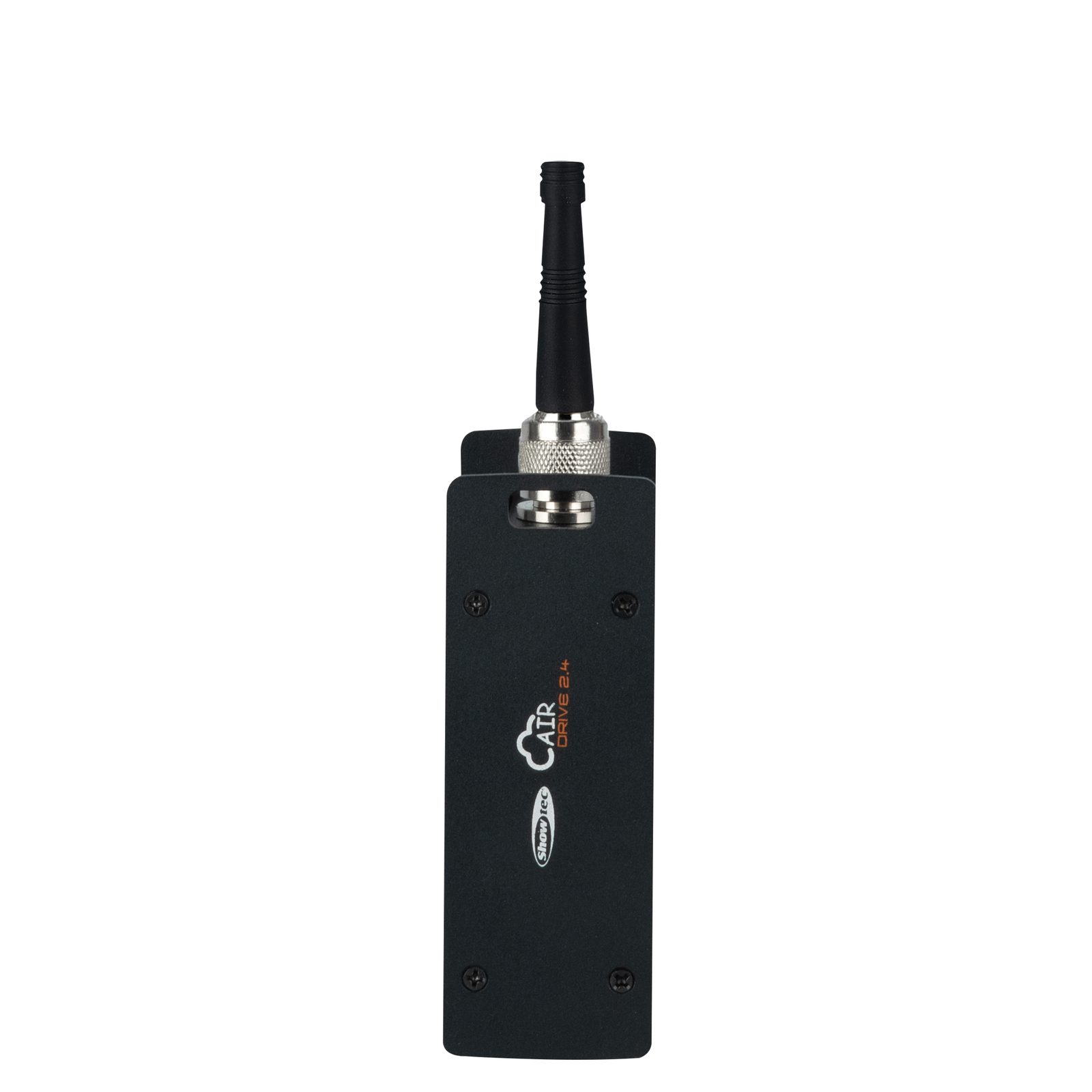

The Showtec AirDrive 2.4 Pocket is a compact DMX512 transceiver that is compatible with LumenRadio and Wireless Solutions, and can be switched between transmitter and receiver functionality. It is designed for quick and easy setup of a wireless DMX512 connection. In transmitter mode it can transmit in G3 or G4 mode, in receiver mode, it is capable of G3, G4S and CRMX mode. A functional setup requires two or more units: one set up as a transmitter and one or more set up as a receiver and paired with the transmitter. There is no limit to the number of receivers that can be paired with the transmitter.

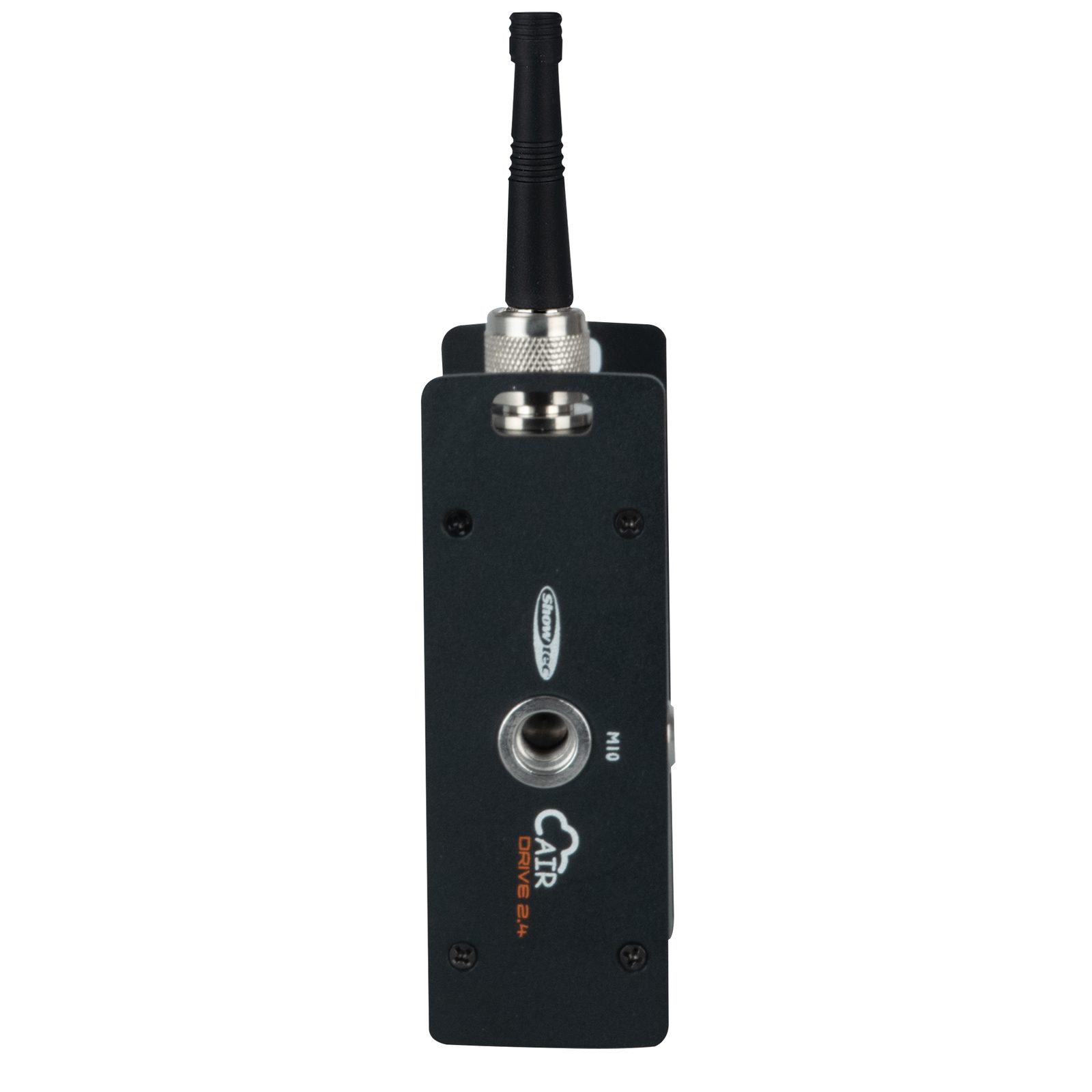

The AirDrive 2.4 Pocket has an M10 thread for easy clamp mounting and a 3/8” thread for easy mic stand mounting, so it’s quick and easy to raise the AirDrive above the audience when needed (for example, when you’re in the FOH position). Line-of-sight operation is recommended for optimum reception and maximum range. The AirDrive 2.4 Pocket is compatible with the AirDrive 2.4 IP. It comes with a universal power supply and is available with 3 or 5-pin DMX XLR connectors.
- Wireless DMX G3 and G4 transmitter and G3, G4S & CRMX receiver modes
- Quick and easy setup
- M10 and 3/8” mounting threads
- Compatible with the Showtec AirDrive 2.4 IP
- Universal power supply included
| Wireless Mode | G3 / G4s / CRMX |
|---|---|
| Reaction Time | 5 ms |
| Antenna Boost | 2 dBi |
| Antenna Type | Omni |
| Antenna Radiation | 360 x 180° |
| DMX Channels | 512 |
| Protocols | DMX |
| Operational Modes | Transceiver |
| Power Supply | 9-12 V DC |
| Power Consumption | 6 W |
| Power Connector In | Low Voltage DC plug |
| DMX Connector In | XLR 5P |
| DMX Connector Out | XLR 5P |
| Adapter type | AC-DC adapter |
| Input voltage | 100-240 V AC, 50/60 Hz |
| Output voltage | 12 V DC |
| Output current DC (mA) | 1500 mA |
| Length (mm) | 125 mm |
| Width (mm) | 78 mm |
| Depth (mm) | 44 mm |
| Weight | 0.38 kg |
| IP Rating | IP20 (indoor use only) |
| Housing | Metal |
| Colour | Black |
| Mounting Options | Clamp / Stand |
| Maximum Ambient Temperature | 40 °C |
| Minimum Ambient Temperature | -10 °C |
| Minimum Operating Temperature | -10 °C |
