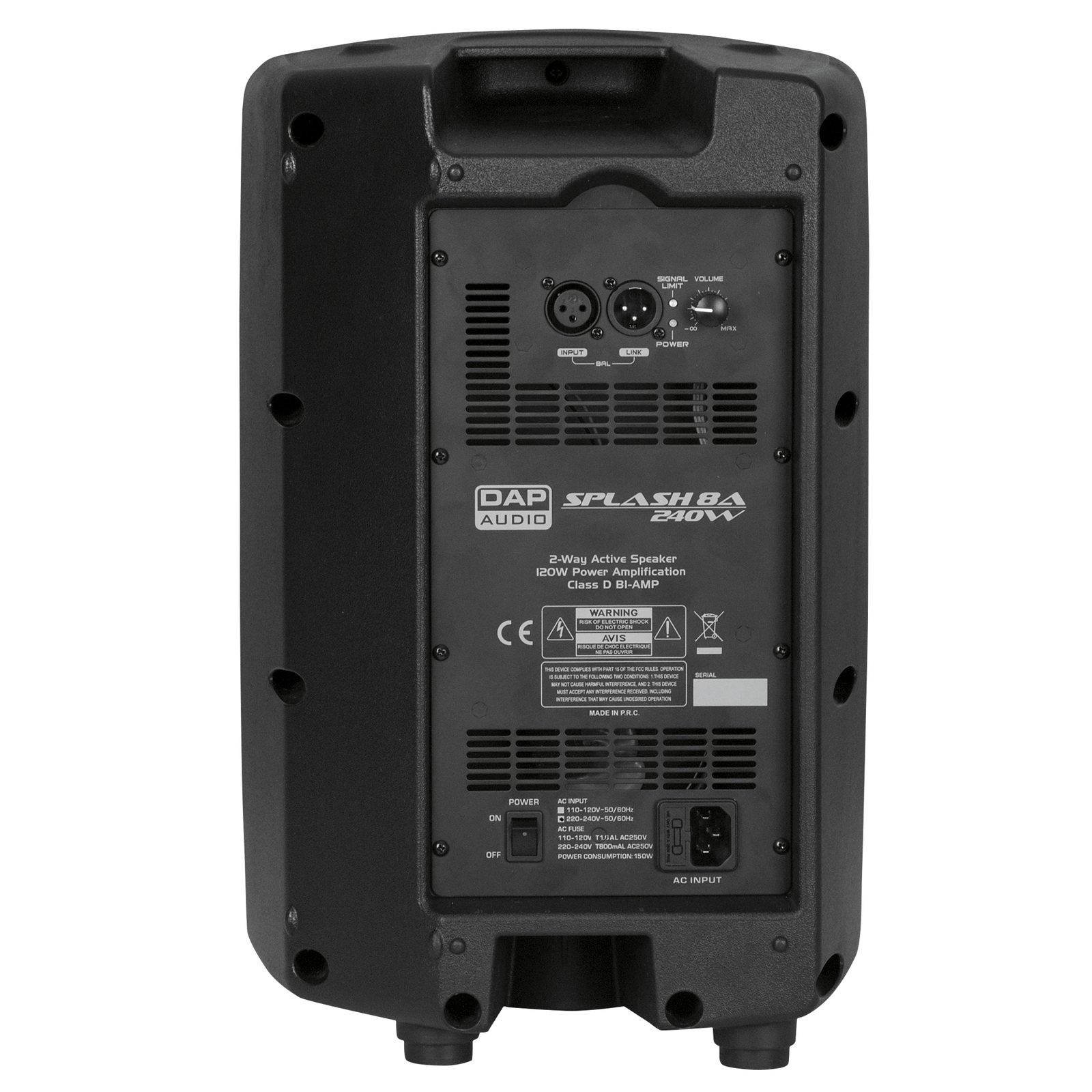

The DAP Splash 8A is an active 8-inch full-range on-the-road speaker with a maximum SPL of 113 dB at 1 meter. This speaker with built-in 240 watt amplifier can be used perfectly as a floor monitor or as a PA speaker for small locations. It has a versatile design and gives a clear sound. The Splash 8A is compact and has a narrow dispersion angle to minimize potential feedback and maximize its output.
The Splash series is designed to last and outperform. It has a sturdy ABS housing and has handles, a universal pole mount adapter and rubber feet for a quick and safe installation.
- Suitable as PA speaker or floor monitor
- Compact, lightweight and robust ABS housing
- 120 W RMS, max SPL of 113 dB at 1 m
- Universally applicable
- Handles, 35 mm pole mount adapter and rubber feets
| Low Driver Power | 90 W |
|---|
| High Driver Power | 30 W |
|---|
| Power Amplifier RMS Output | 120 W |
|---|
| Power Amplifier Peak Output | 240 W |
|---|
| Main Outputs | 1 |
|---|
| Main Output Connector | 3-pin XLR |
|---|
| Mono Inputs | 1 |
|---|
| Mono Input Connector | 3-pin XLR |
|---|
| THD Level % | < 0.5 % |
|---|
| Signal-to-noise Ratio | > 80 dB |
|---|
| Amp Technology | Class D |
|---|
| Damping Factor | 200 :1 |
|---|
| Speaker System | 2-way |
|---|
| Speaker Sensitivity (1 W/1 m) | 92 dB |
|---|
| Maximum SPL at 1 m | 113 dB |
|---|
| Frequency Response (-6 dB) Minimum | 68 Hz |
|---|
| Frequency Response (-6 dB) Maximum | 20000 Hz |
|---|
| Crossover Frequency (High) | 2.2 Hz |
|---|
| Woofer Diameter | 8" |
|---|
| Woofer Voice Coil Diameter | 1.5" |
|---|
| Woofer Magnet Type | Ferrite |
|---|
| Compression Driver Diameter | 1" |
|---|
| Compression Driver Voice Coil | 1" |
|---|
| Compression Driver Magnet Type | Ferrite |
|---|
| Dispersion Angle (Horizontal) | 90° |
|---|
| Dispersion Angle (Vertical) | 45° |
|---|
| BT | No |
|---|
| Power Supply | 100-240 V AC 50/60 Hz |
|---|
| Power Consumption | 44 W |
|---|
| Fuse | 0.8 A |
|---|
| Power Connector In | IEC |
|---|
| Amplifier Cooling | Convection |
|---|
| Height (mm) | 420 mm |
|---|
| Width (mm) | 270 mm |
|---|
| Depth (mm) | 240 mm |
|---|
| Material | ABS |
|---|
| Colour | Black |
|---|
| Weight | 5.53 kg |
|---|
| IP Rating | IP20 (indoor use only) |
|---|
| Pole Mount | 35 mm |
|---|
| Electronic Protection | Clip limiter (fixed) / DC voltage / Softstart / Thermal |
|---|
| LED Indicators | Clip / Power / Signal |
|---|
| Rotatable Horn | No |
|---|
| Useable as Monitor/Wedge | Yes |
|---|
| Speaker Grille Material | Steel |
|---|
| Speaker Handle Positions | Top |
|---|
| Included Cables | IEC cable |
|---|
