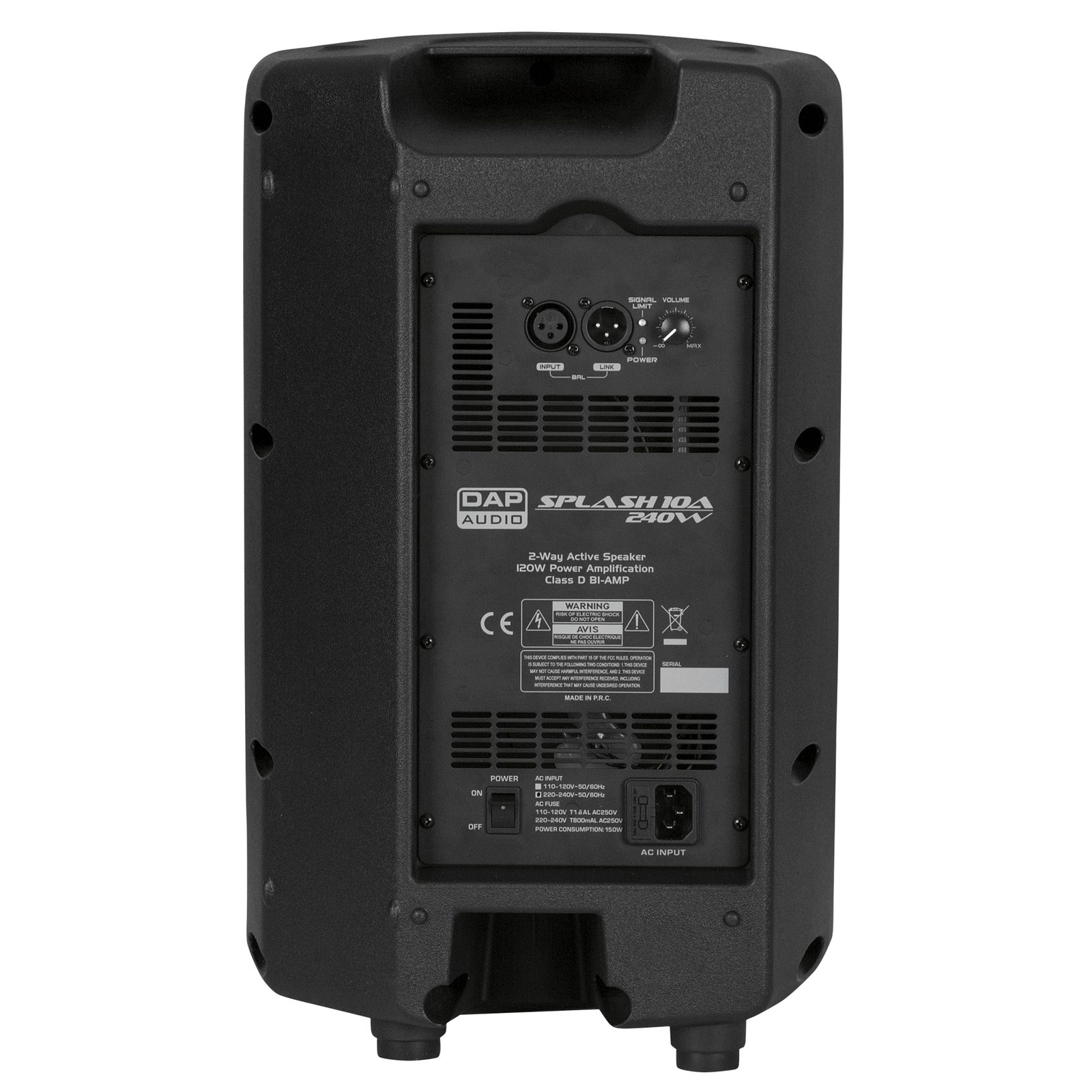

Diffusore attivo full-range 10" 120W RMS SPL 116dB - DAP D3589
Diffusore attivo full-range 10" 120W RMS SPL 116dB - DAP D3589

Diffusore attivo full-range 10" 120W RMS SPL 116dB - DAP D3589

DAP
234,96 €
Tasse incluse
Active 10" full-range speaker
Condividi

The DAP Splash 10A is an active 10-inch full-range on-the-road speaker with a maximum SPL of 116 dB at 1 meter. This speaker with built-in 240 watt amplifier can be used perfectly as a floor monitor or as a PA speaker for small locations. It has a versatile design and gives a clear sound. The Splash 10A is compact and has a narrow dispersion angle to minimize potential feedback and maximize its output.

The Splash series is designed to last and outperform. It has a sturdy ABS housing and has handles, a universal pole mount adapter and rubber feet for a quick and safe installation.

  • Suitable as PA speaker or floor monitor
  • Compact, lightweight and robust ABS housing
  • 120 W RMS, max SPL of 116 dB at 1 m
  • Universally applicable
  • Handles, 35 mm pole mount adapter and rubber feets
Low Driver Power90 W
High Driver Power30 W
Power Amplifier RMS Output120 W
Power Amplifier Peak Output240 W
Main Outputs1
Main Output Connector3-pin XLR
Mono Inputs1
Mono Input Connector3-pin XLR
THD Level %< 0.5 %
Signal-to-noise Ratio> 80 dB
Amp TechnologyClass D
Damping Factor200 :1
Speaker System2-way
Speaker Sensitivity (1 W/1 m)95 dB
Maximum SPL at 1 m116 dB
Frequency Response (-6 dB) Minimum65 Hz
Frequency Response (-6 dB) Maximum20000 Hz
Crossover Frequency (High)2800 Hz
Woofer Diameter10"
Woofer Voice Coil Diameter1.5"
Woofer Magnet TypeFerrite
Compression Driver Diameter1"
Compression Driver Voice Coil1"
Compression Driver Magnet TypeFerrite
Dispersion Angle (Horizontal)90°
Dispersion Angle (Vertical)45°
BTNo
Power Supply100-240 V AC 50/60 Hz
Power Consumption75 W
Fuse0.8 A
Power Connector InIEC
Amplifier CoolingConvection
Height (mm)460 mm
Width (mm)285 mm
Depth (mm)265 mm
MaterialABS
ColourBlack
Weight6.92 kg
IP RatingIP20 (indoor use only)
Pole Mount35 mm
Electronic ProtectionClip limiter (fixed) / DC voltage / Softstart / Thermal
LED IndicatorsClip / Power / Signal
Rotatable HornNo
Useable as Monitor/WedgeYes
Speaker Grille MaterialSteel
Speaker Handle PositionsTop
Included CablesIEC cable

  • Marca
  • Riferimento
    D3589
  • In magazzino
    10 Articoli
  • ean13
    8717748357724
