Altoparlante attivo compatto 12" con DSP e BT 5.3 - DAP D3558

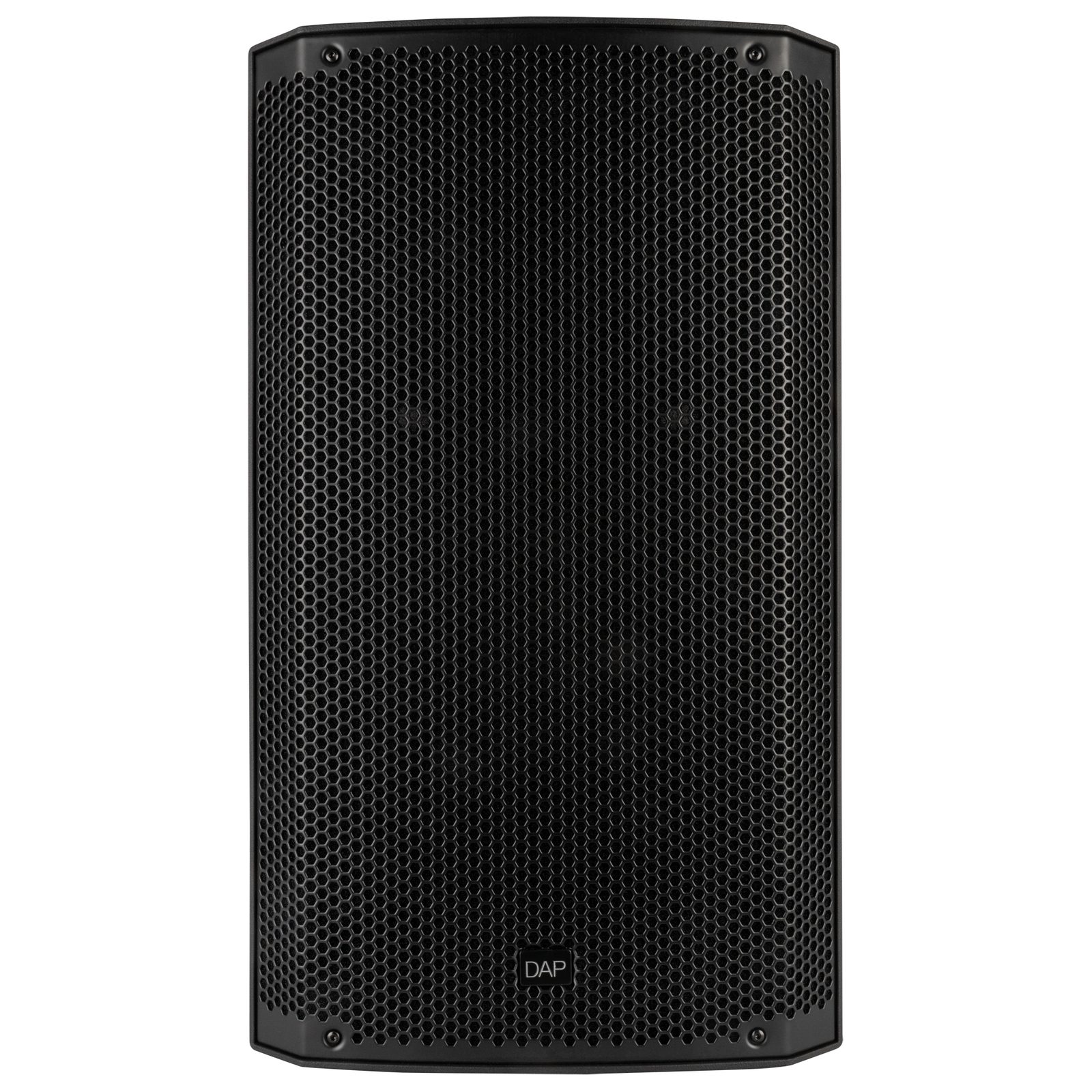

The NGA-12A is a compact active loudspeaker designed for versatile audio applications. It features a 12" woofer paired with a 1.4" compression driver, delivering a frequency response of 46 - 20,000 Hz (-10 dB). The system is powered by a 1000W RMS Class-D amplifier and includes a built-in DSP engine with four selectable user modes.

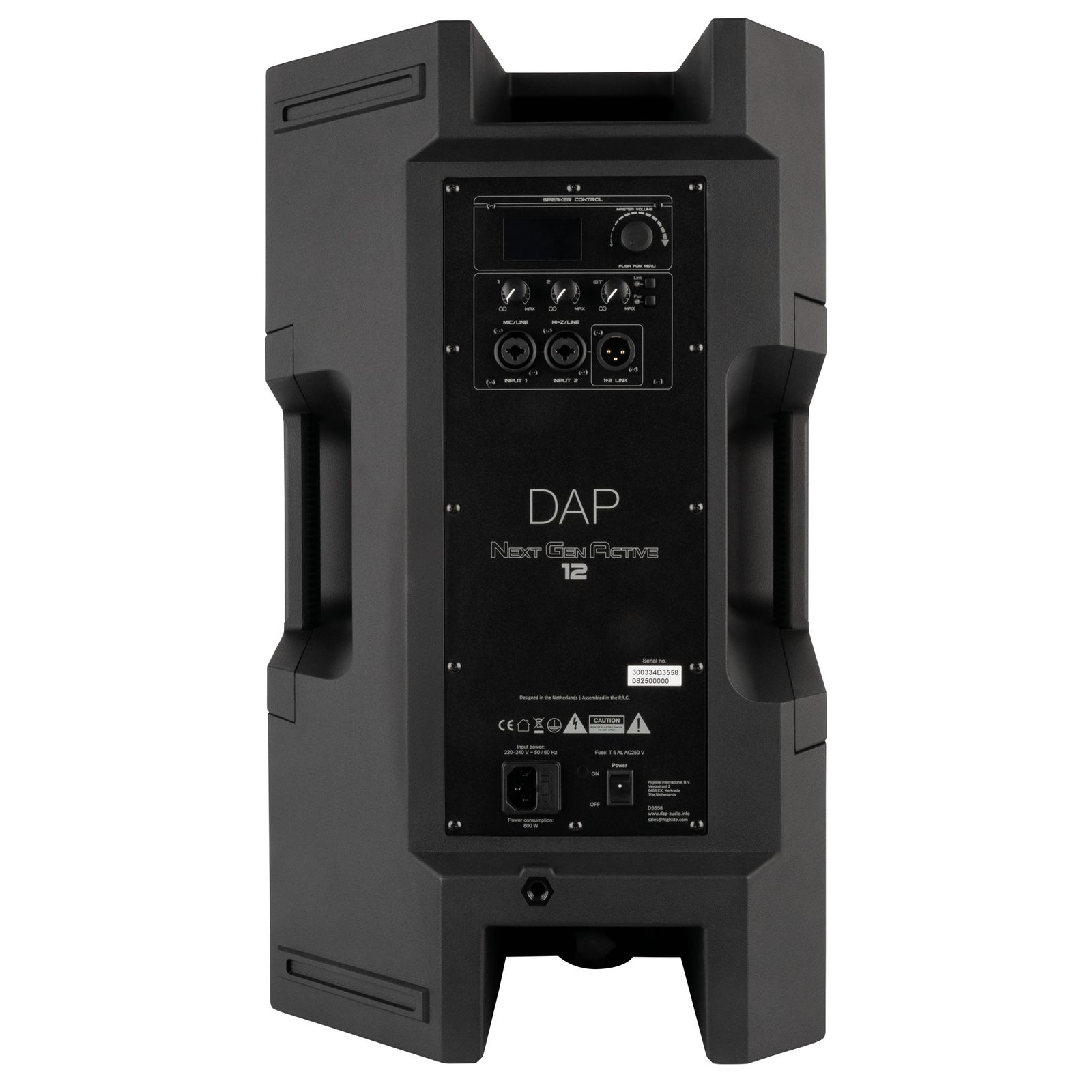

The rear panel offers two combo XLR/jack inputs. One of these accepts both mic and line-level signals, while the other supports Hi-Z sources such as electric guitars. A balanced XLR output is available for linking to additional speakers; this output combines the analogue inputs and the BT audio signal.

Further audio shaping is possible via a flexible crossover section with multiple crossover frequency options, as well as a 3-band equaliser with adjustable frequency, Q-factor and EQ type. Delay settings and user-defined EQ presets can be stored directly on the device.

BT 5.3 connectivity enables wireless audio streaming and supports True Wireless Stereo (TWS) pairing. In addition, the NGA-12A can be remotely controlled via a dedicated app (<a href="https://apps.apple.com/nl/app/sound-control-dsp/id6459363803" target="blank">iOS</a> or <a href="https://play.google.com/store/apps/details?id=com.global.sctrl" target="blank">Android</a>), allowing access to output gain, 3-band EQ, speaker name and stored presets.

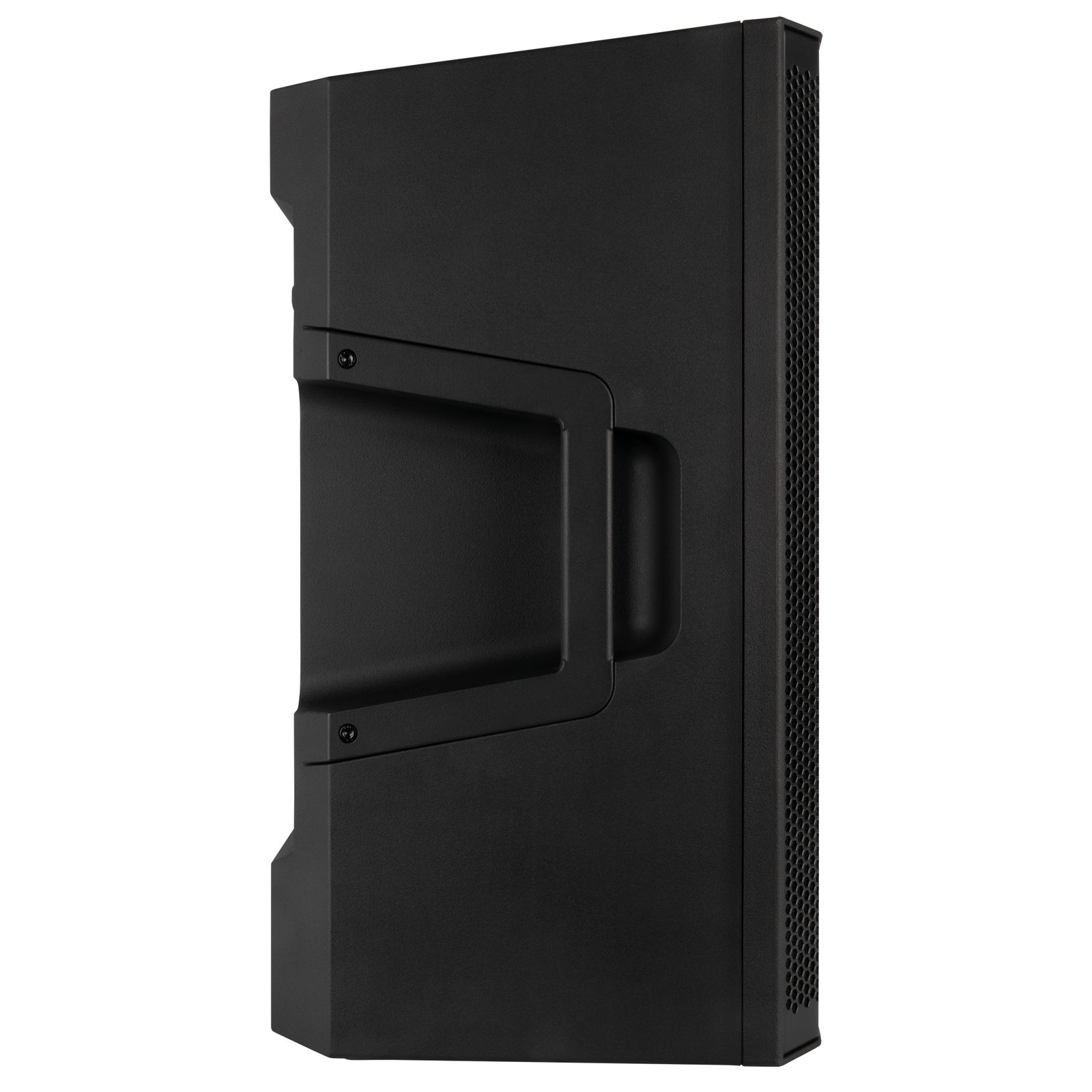

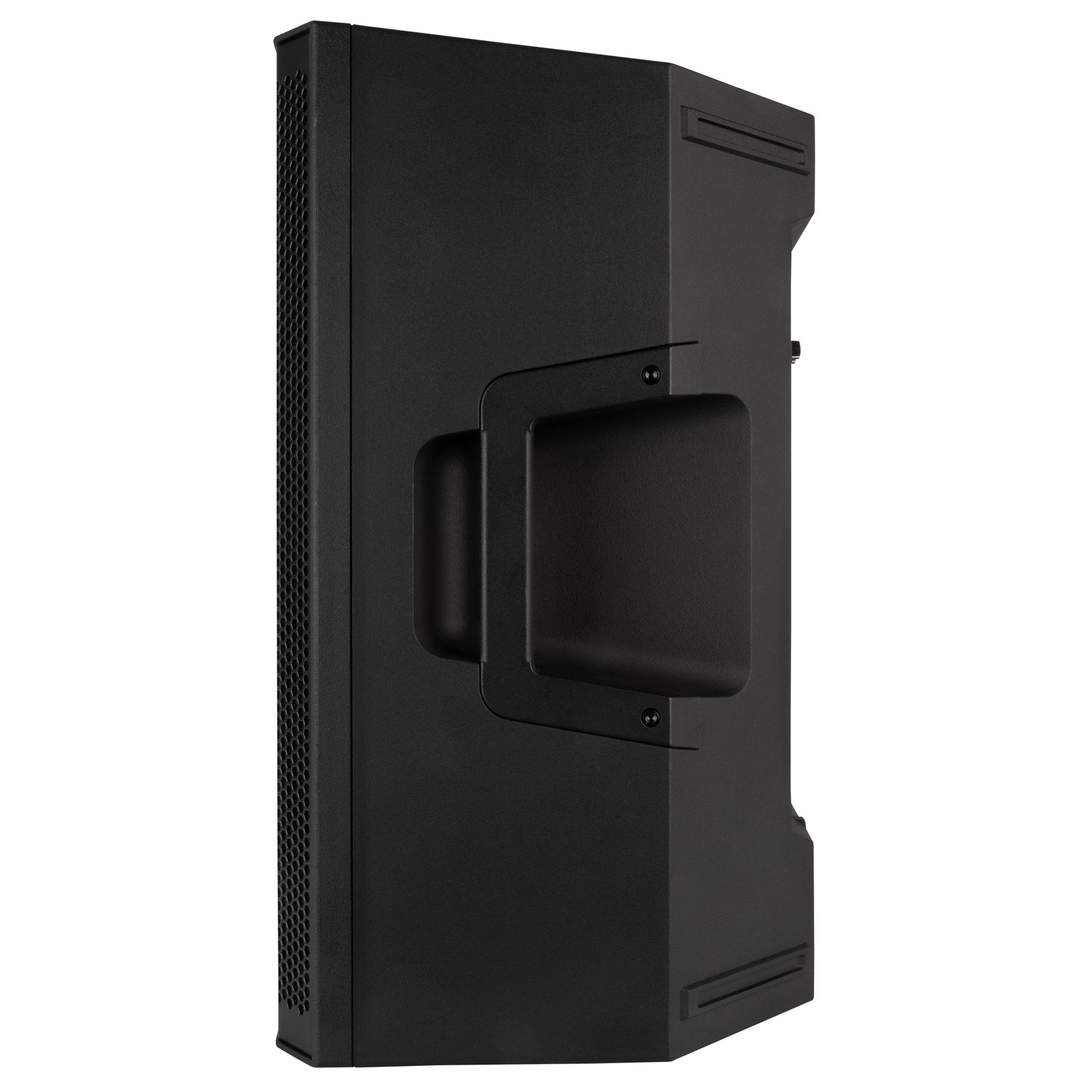

Despite its feature set, the unit remains lightweight and portable, making it suitable for both fixed installations and mobile applications.

• 1000 W RMS, 2000 W peak, max SPL of 128 dB at 1 m
• 46 - 20,000 Hz frequency range
• BT 5.3 with True Wireless Stereo (TWS)
• Dedicated mic and line + Hi-Z inputs
• Internal DSP with 4 modes, adjustable crossover, EQ, and limiting
