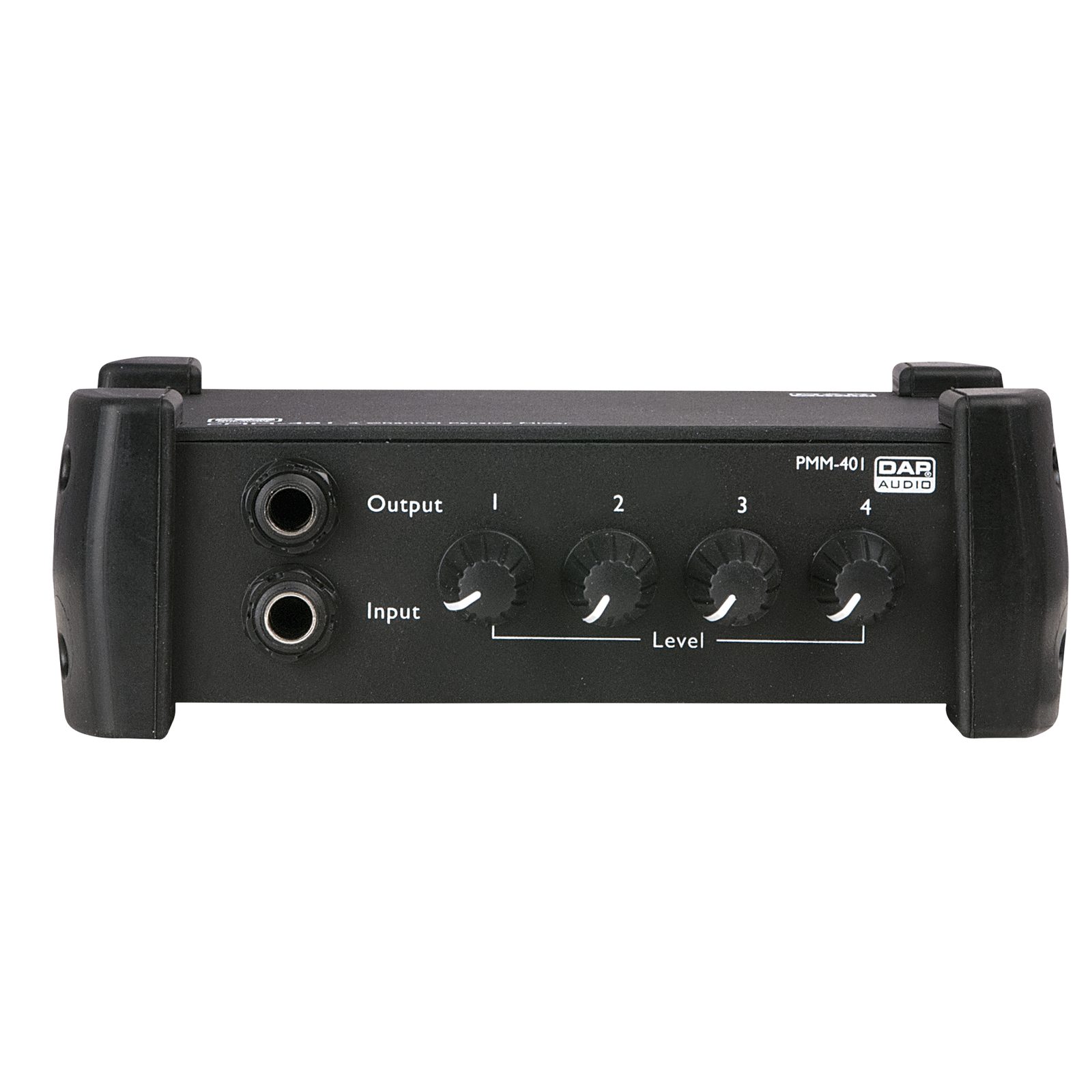

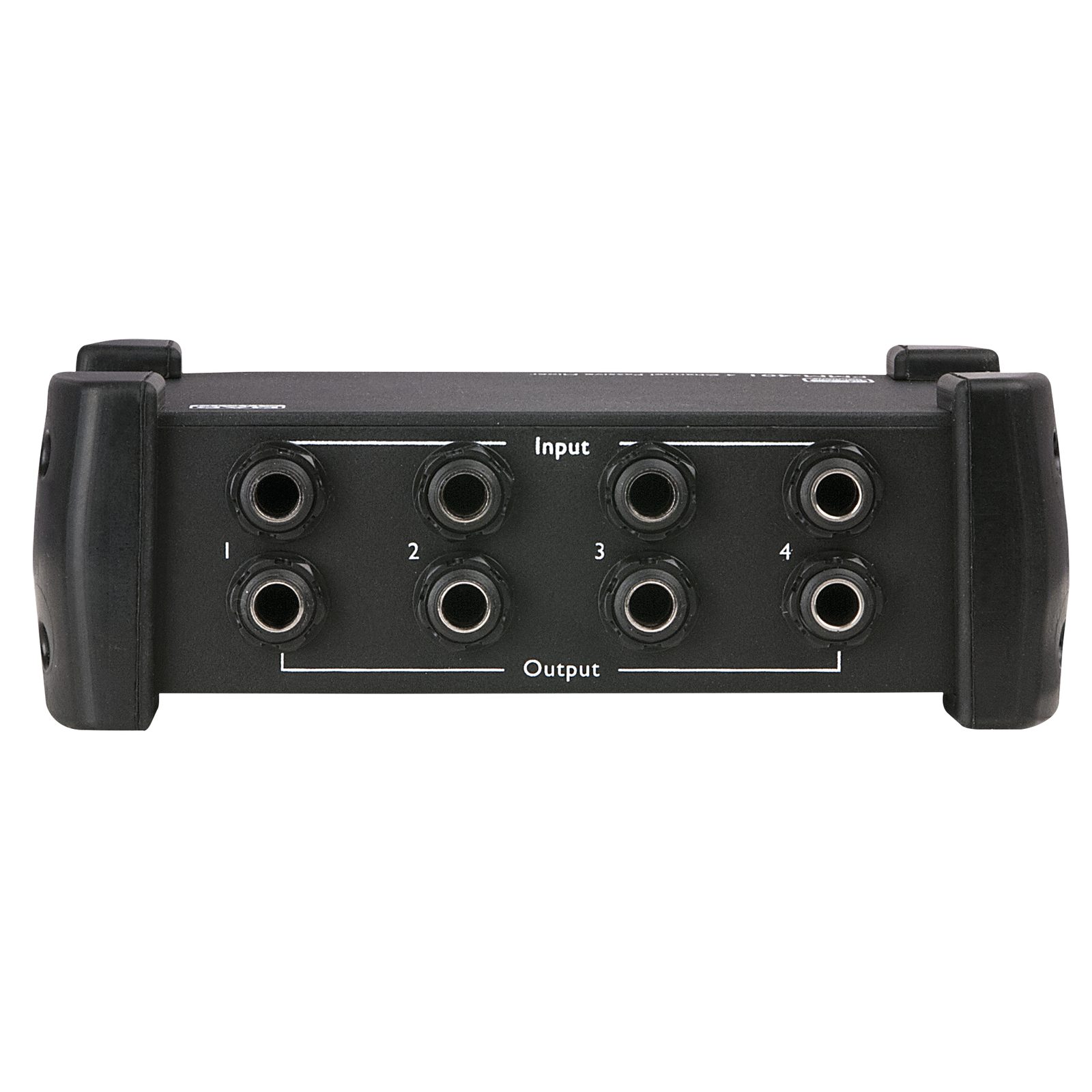

Mixer passivo/splitter stereo 4 canali TRS - DAP PMM-401 D1531
The DAP Pro Audio Solutions are a complete line-up of audio tools for the professional musician or audio engineer. It is a series of audio modifying tools like mini-mixers, pre-amps and converters available in active or passive models. All audio solutions are designed to meet the highest stage and audio demands and feature a metal road proof housing with rubber feet and easy accessible controls. The units also have a small footprint which make them ideal to be used and placed in any environment where space is critical.
The DAP PMM-401 is a high-quality product that can function as a passive mixer or splitter with four stereo channels. You can combine 4 line inputs into one output or split one input into 4 outputs without noise or distortion.
The volume of each input/output can be adjusted to set appropriate mix/volume levels. This makes it a handy tool in unforeseen situations. In addition, it is a very handy device as it does not require a power source such as batteries or mains power.
- 1-in/4-out or 4-in/1-out - 6.3 mm TRS
- Stereo inputs and outputs
- No power-supply needed
- Free of noise and distortion
| Stereo Inputs | 5 |
|---|---|
| Stereo Input Connector | TRS balanced 6.3 mm |
| Stereo Input Impedance | 50000 Ω |
| Main Outputs | 5 |
| Main Output Connector | TRS balanced 6.3 mm |
| Main Output Impedance | 12000 Ω |
| THD Level % | < 0.005 % |
| Signal-to-noise Ratio | > 110 dB |
| Frequency Response Minimum | 20 Hz |
| Frequency Response Maximum | 20000 Hz |
| Height (mm) | 53 mm |
| Width (mm) | 158 mm |
| Length (mm) | 135 mm |
| Weight | 0.67 kg |
| IP Rating | IP20 (indoor use only) |
| Housing | Aluminium |
| Colour | Black |
