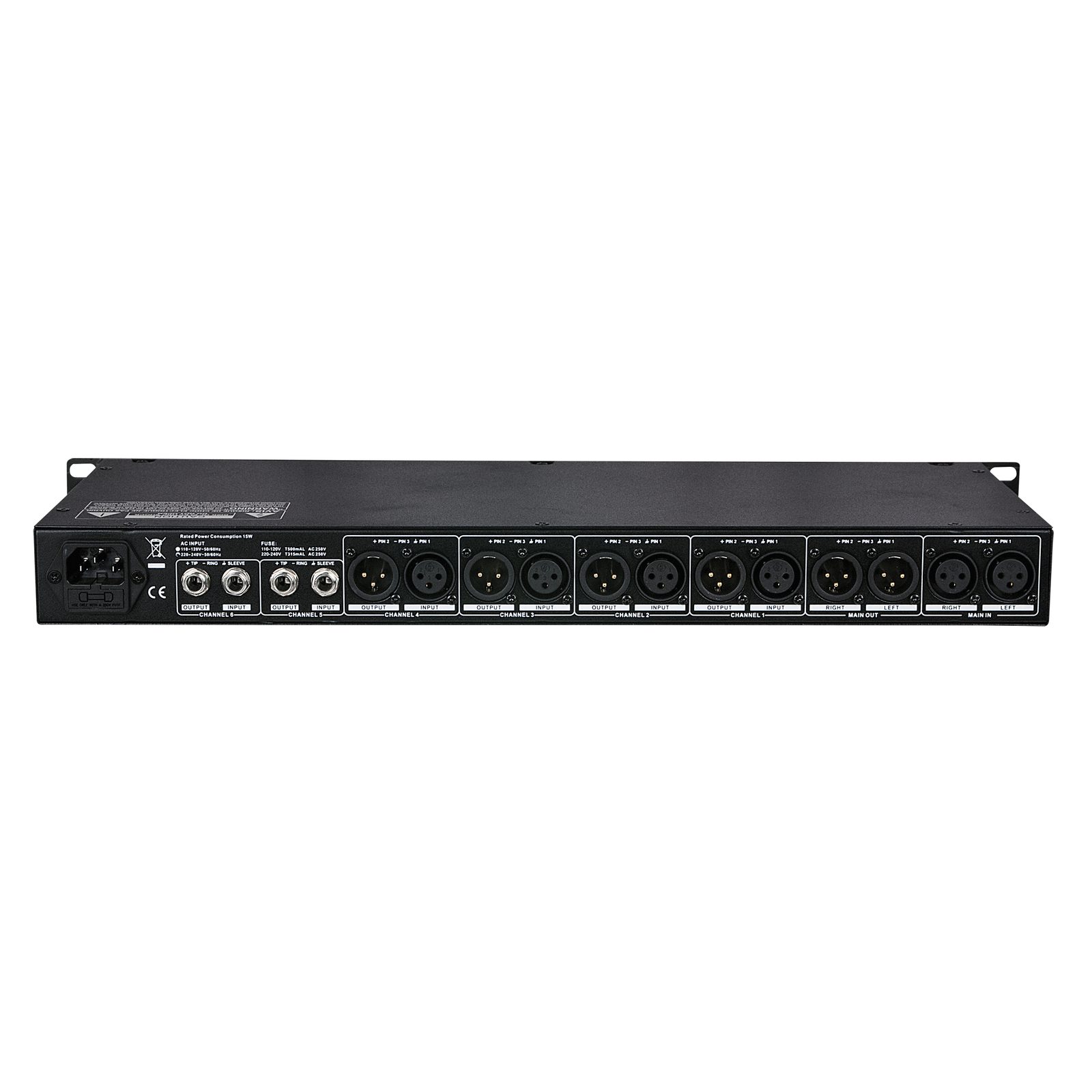

AS-8 Mixer/Splitter audio 8 canali - DAP D1904
AS-8 Mixer/Splitter audio 8 canali - DAP D1904

AS-8 Mixer/Splitter audio 8 canali - DAP D1904

DAP
202,10 €
Tasse incluse
8-channel XLR/jack 3-pin audio splitter/mixer
Condividi

The DAP AS-8 can be used for multiple purposes. The intelligent design makes it easy to switch between a controllable audio mixer with multiple inputs, to a signal splitter with multiple controllable outputs. This makes the AS-8 a multifunctional solution for your own monitor mix, multi-zone system, conference application and more.

  • 2x Jack and 6x XLR in/out
  • Switchable splitter/mixer function
  • Large headroom
Mono Inputs8
Mono Input Connector3-pin XLR / TRS balanced 6.3 mm
Balanced Mono Input Maximum Level21 dBu
Mono Input Impedance50 Ω
Main Outputs8
Main Output Connector3-pin XLR / TRS balanced 6.3 mm
Main Output Impedance60 Ω
THD Level %< 0.002 %
Signal-to-noise Ratio> 95 dB
Frequency Response Minimum5 Hz
Frequency Response Maximum40 Hz
Power Supply240 V AC 50/60 Hz
Power Consumption11.2 W
Fuse0.315 A
Power Connector InIEC
Height (mm)44 mm
Width (mm)483 mm
Length (mm)195 mm
Flightcase Size19"
Rack Units1 U
Weight2.7 kg
IP RatingIP20 (indoor use only)
HousingMetal
ColourBlack
LED IndicatorsInput level / Output level / Power
Included CablesIEC cable
Included AccessoriesRubber feet

  • Marca
  • Riferimento
    D1904
  • In magazzino
    10 Articoli
  • ean13
    8717748033383
