Titan Matrix FX matrice LED RGBW 48 LED IP65 - Showtec 40354

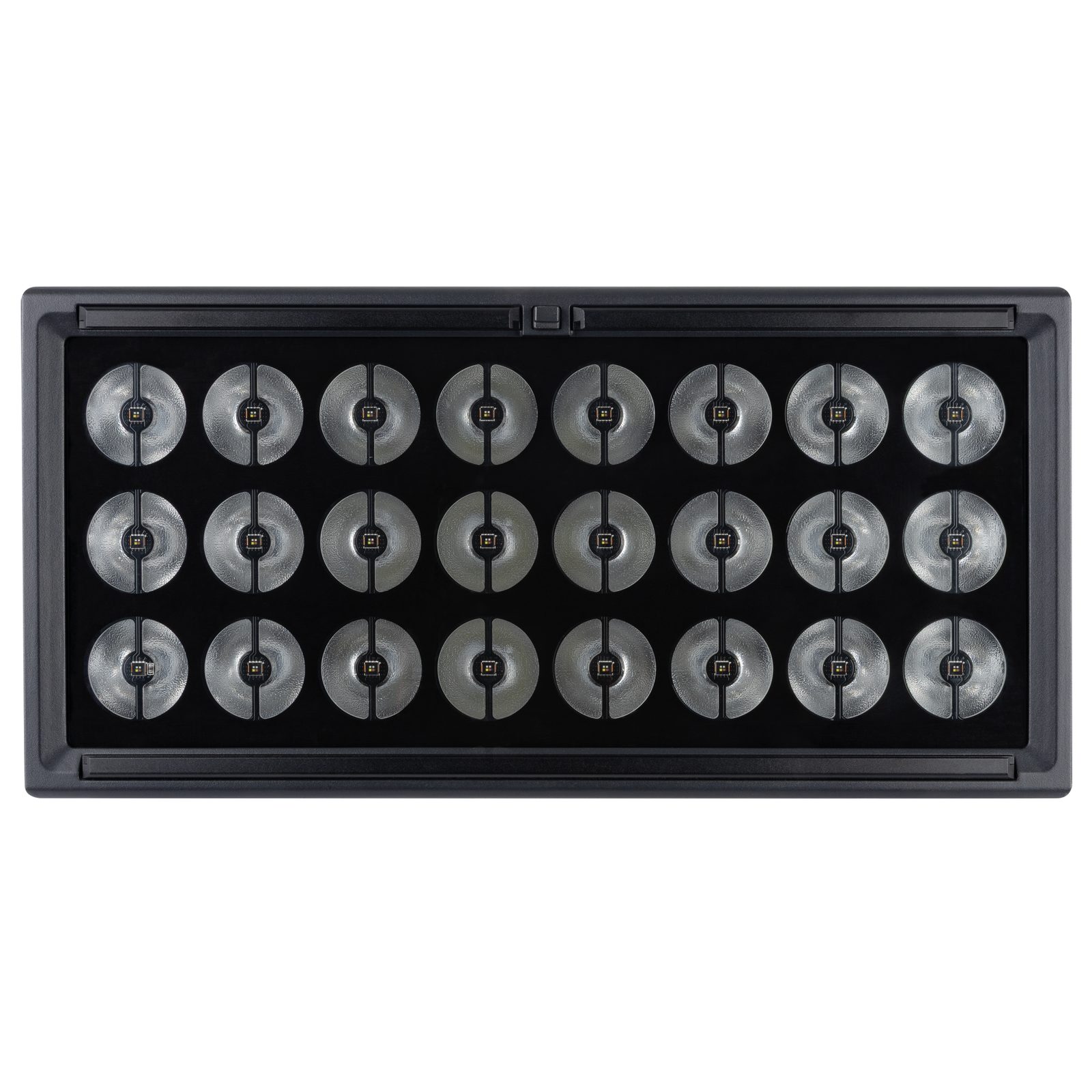

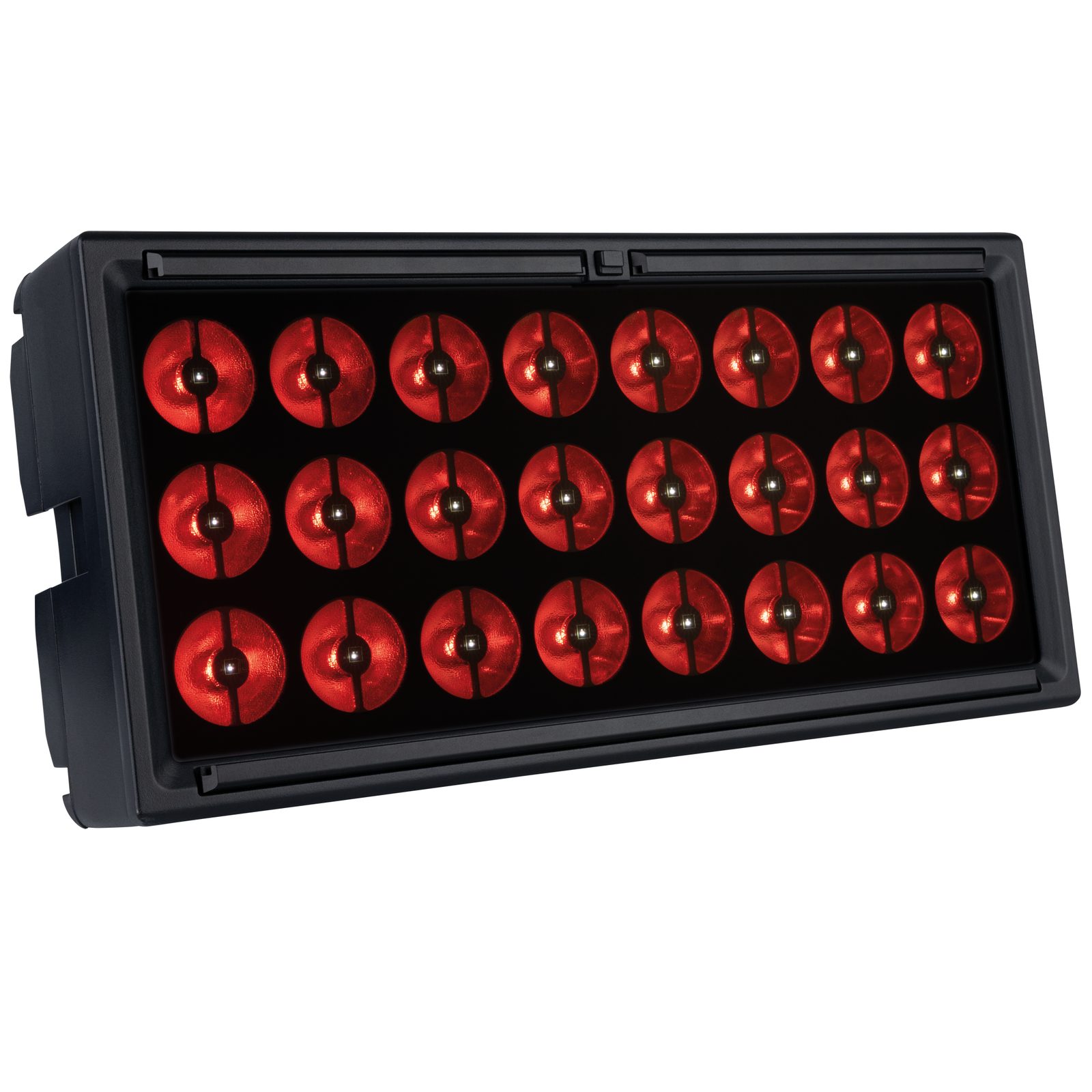

The Titan Matrix FX is a matrix light with fully controllable pixels. It features 3 rows of 8 RGBW LEDs (24 in all) that are covered with a lens and in front of each lens is a 6 W RGBW LED (another 24). This combination makes it possible to create bold, colourful. geometric patterns, making the Titan Matrix FX an excellent choice for live events, studios and more. With an IP65 rating, it can also be used outdoors.

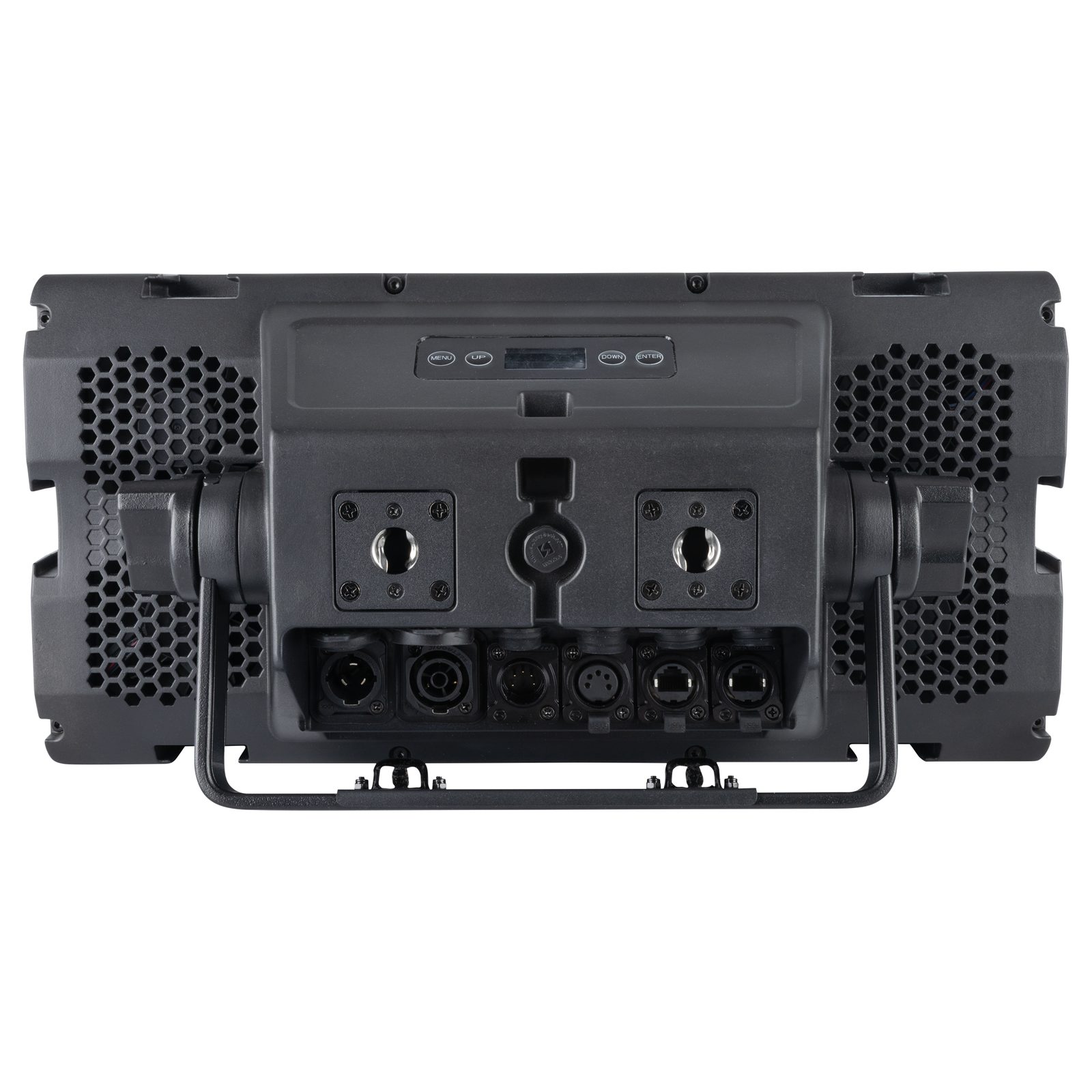

For ultimate flexibility, the fixture can be controlled with DMX (incl. RDM), Art-Net, sACN or manually. Connection options include 5-pin XLR, etherCON and Power Pro True inputs and outputs. Unique horizontal and vertical setups with multiple fixtures can be built quickly and easily using the optional Titan Connection Blocks.
- 24x 40 W RGBW LEDs
- 24x 6 W RGBW LEDs
- Full pixel control
- IP65 rated
| Light Source Type | LED |
|---|---|
| Light Source Quantity | 48 |
| Light Source Power | 40 W |
| LED Colour Type | RGBW |
| Luminous Flux (Total) | 8219 lm |
| Luminous Flux (Green) | 8846 lm |
| Luminous Flux (Blue) | 3619 lm |
| Luminous Flux (White) | 2079 lm |
| Beam Angle (Circular) | 10° |
| Control Mode | Art-Net / DMX / Manual / RDM / sACN |
| Protocols | Art-Net / DMX / RDM / sACN |
| Dim Curve | Linear / Square / I-Square / S-Curve |
| Dimmer | 0-100 % |
| Strobe | 0-25 Hz |
| Power Supply | 100-240 V AC 50/60 Hz |
| Power Consumption | 700 W |
| Power Connector In | Power Pro True |
| Power Connector Out | Power Pro True |
| DMX Connector | XLR 5P In/Out |
| DMX Connector In | XLR 5P |
| DMX Connector Out | XLR 5P |
| Data Connector | etherCON In/Out |
| Data Connector In | etherCON |
| Data Connector Out | etherCON |
| Cooling | Forced Convection |
| Height (mm) | 200 mm |
| Width (mm) | 407 mm |
| Depth (mm) | 169 mm |
| Weight | 8.8 kg |
| IP Rating | IP65 |
| Housing | Aluminium die-cast |
| Colour | Black |
| Mounting Options | Clamp / Quick-Lock |
| Safety Attachment | Yes |
| Maximum Ambient Temperature | 40 °C |
| Included Cables | Power Pro True Cable |
| Included Accessories | Frost filter |
