The Showtec Performer series offers a wide and complete range of theatre and studio lighting fixtures consisting of Fresnel, Ellipsoidal, and House Lights, suitable for indoor and outdoor applications. All Performer fixtures have accurate colour rendering (high CRI), silent operations, a long lifespan and are reliable without any interference of flickering. A bright, even distribution of light is ensured in any required colour temperature, from Warm, Daylight and Cold White to smooth pastels and punchy colours through advanced colour-mixing. All Performer fixtures meet the high quality standard required for operating in theatres, on stages and during tv/video performances.
The Performer Fresnels project a soft field of light with a widely controllable zoom range, dimmer and strobe effects, suitable for short to medium throw applications. All Performer Profiles consist of ellipsoidals with multiple lens options, all providing a hard-edged, precisely focused field of light over long distances. The Performer Pendant fixtures are House Lights, blending perfectly with show lights to create an optimal ambience.
Each projector offers multiple control options and some come with included accessories to enhance functionality. Contact us now for free advice and receive an offer you cannot refuse or check out our product pages for more information.

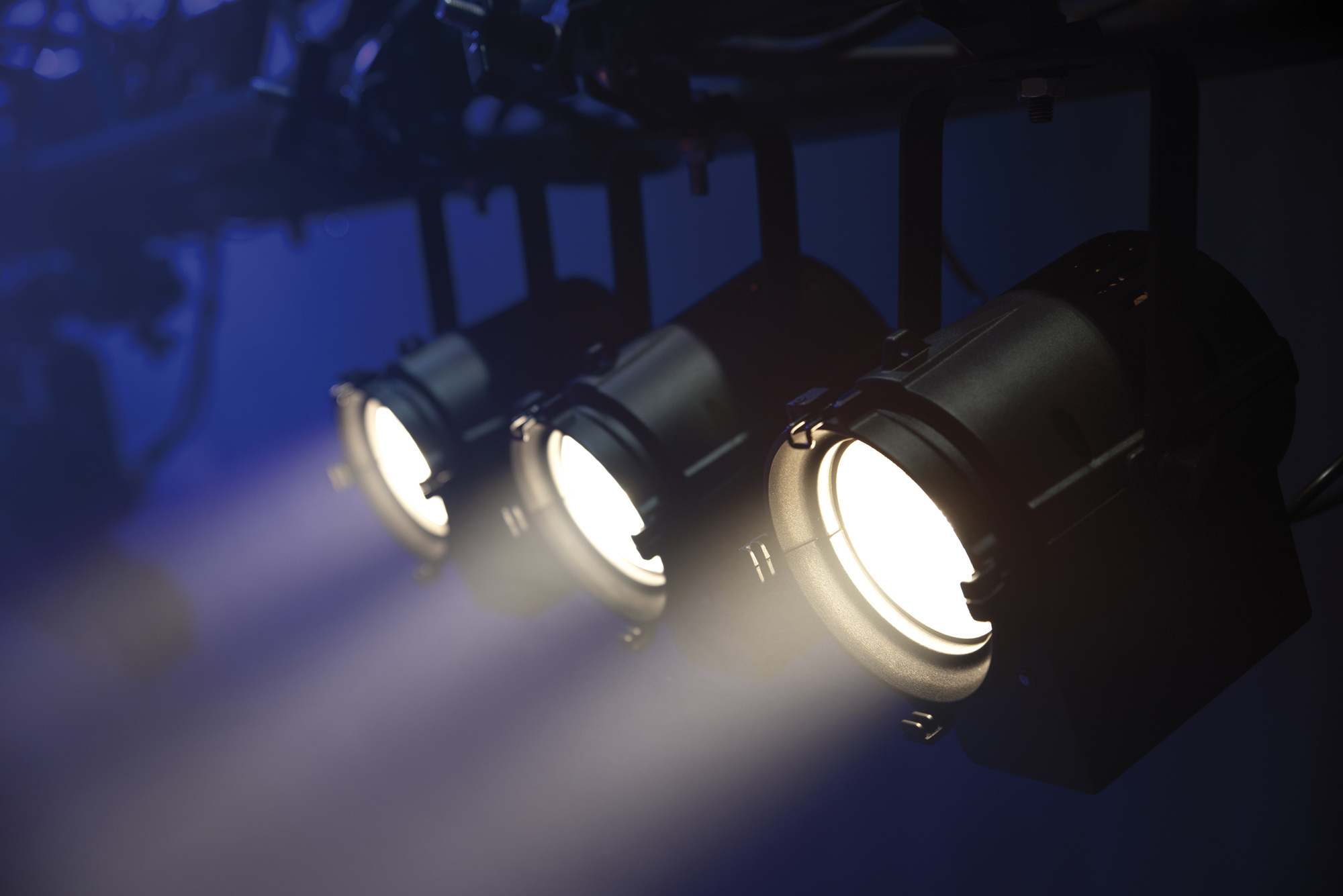

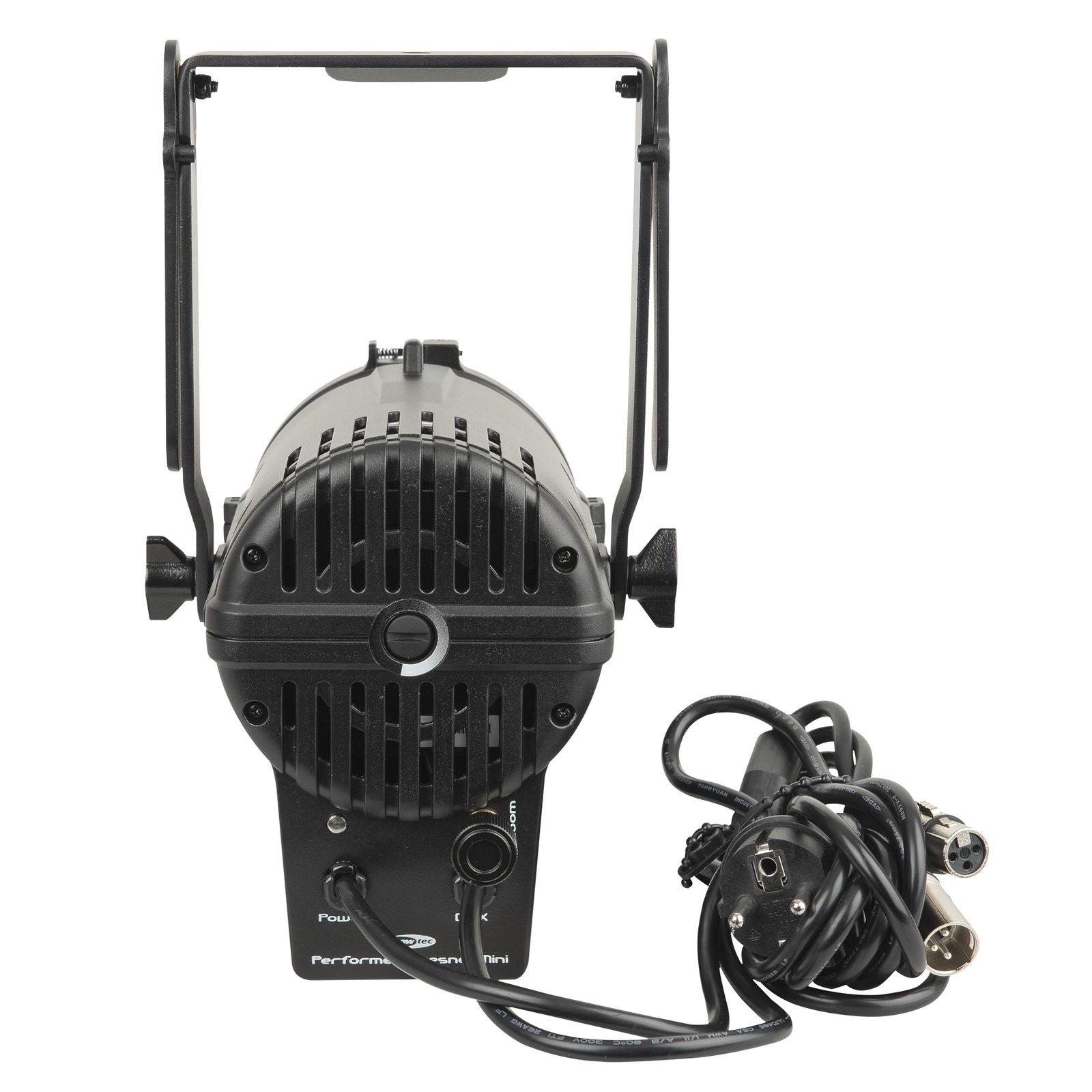

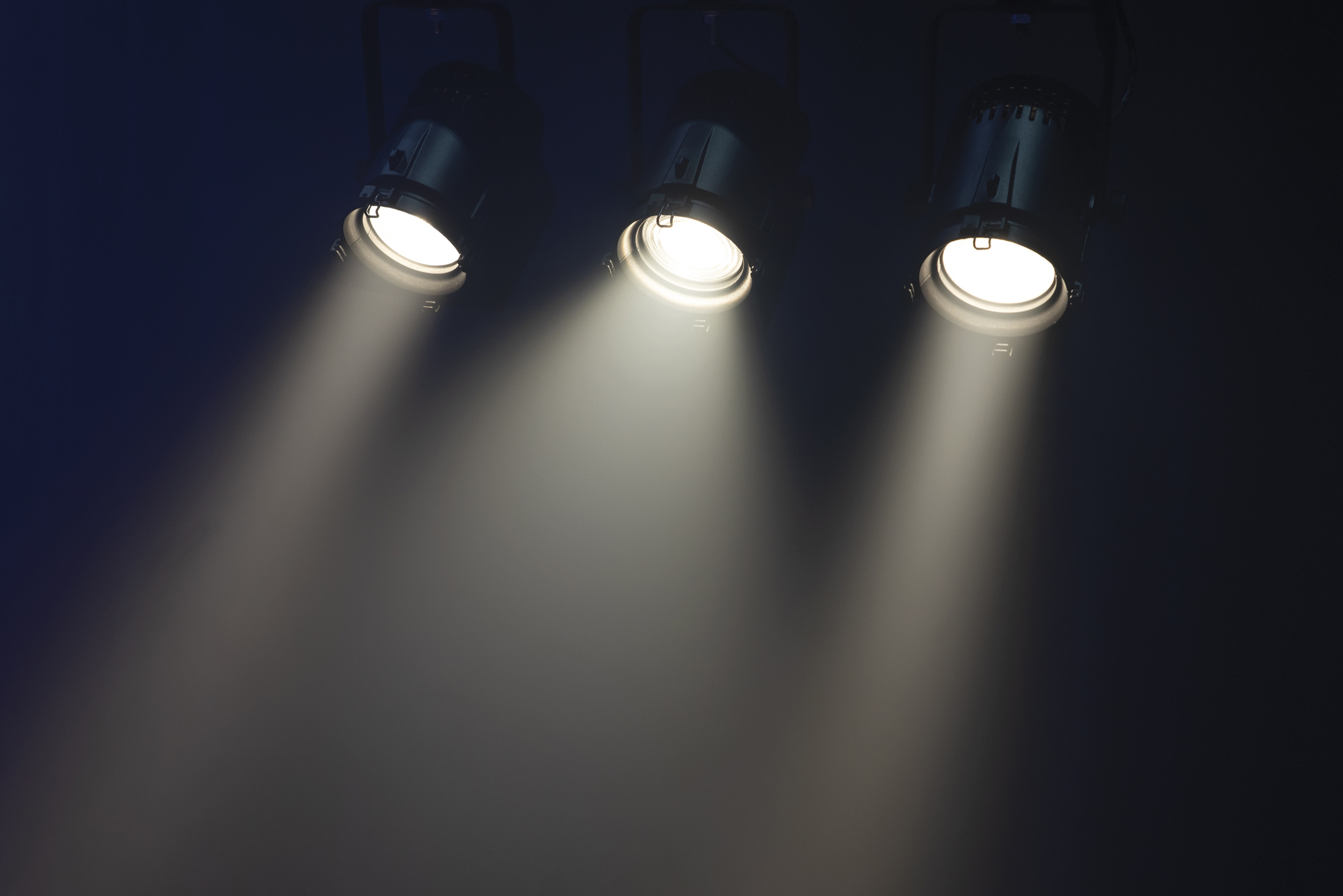

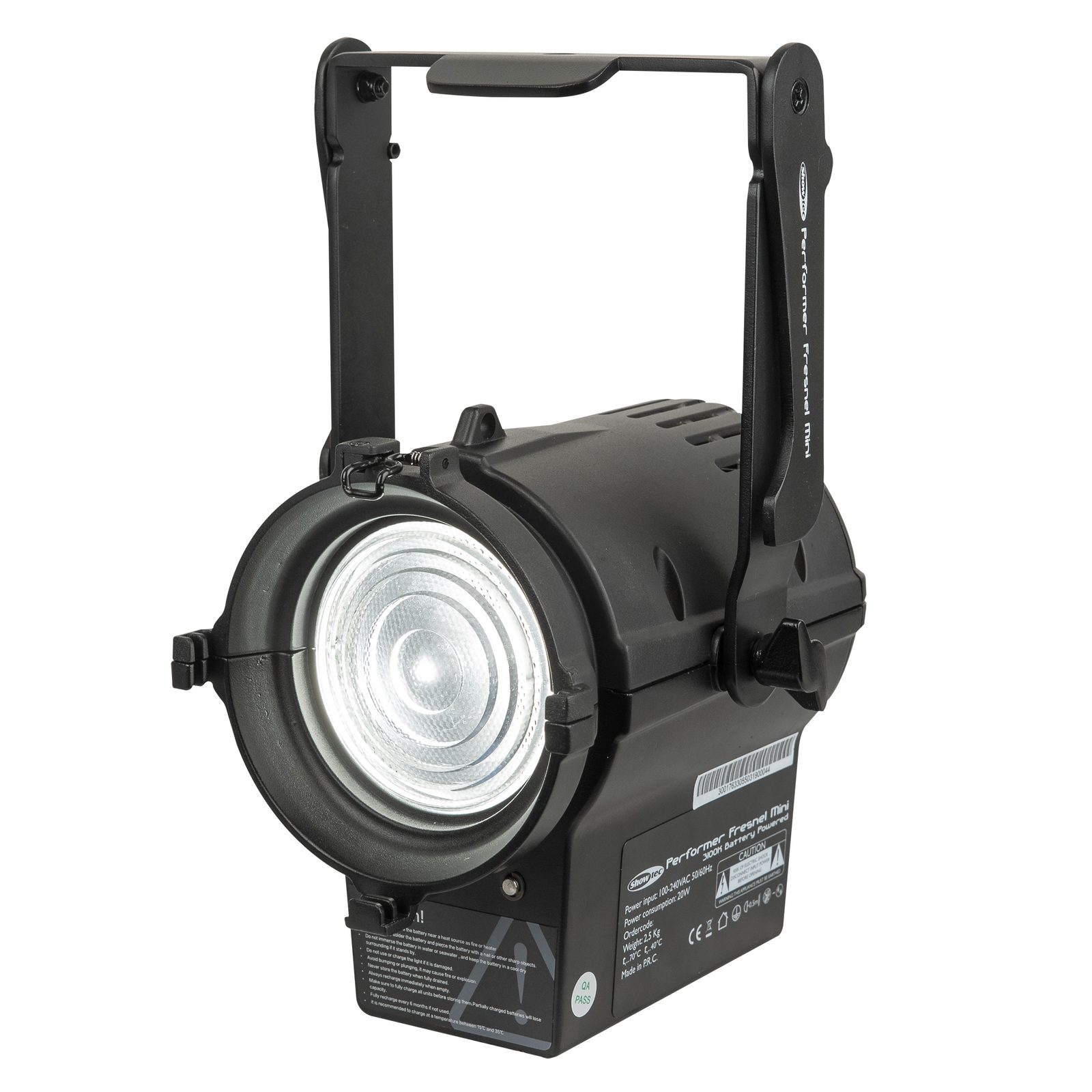

The Showtec Performer Fresnel Mini DMX is a compact 30 watt Warm White LED Spot with high CRI and silent operations, suitable for theatrical and studio applications. It projects a bright, soft field of light within a wide 12° - 40° manually adjustable zoom range. The Performer Fresnel Mini DMX has a 5 - 100 % DMX dimmer function and optional barndoor for manually shaping the output.
Please note that an RDM controller is required to set the DMX address.
- Compact 30 W Warm White LED Fresnel
- Suitable for theatrical and studio applications
- DMX-model
- Silent operation
- Wide manually adjustable zoom range
| Light Source Type | LED |
|---|
| Light Source Quantity | 1 |
|---|
| Light Source Power | 30 W |
|---|
| LED Colour Type | WW |
|---|
| Luminous Flux (Total) | 1650 lm |
|---|
| CRI | 92 |
|---|
| Maximum CCT | 3100 K |
|---|
| Beam Angle Minimum (Circular) | 12° |
|---|
| Beam Angle Maximum (Circular) | 40° |
|---|
| Zoom Type | Manual |
|---|
| Zoom Minimum | 12° |
|---|
| Zoom Maximum | 40° |
|---|
| Control Mode | DMX |
|---|
| DMX Channels | 1 |
|---|
| Protocols | DMX / RDM |
|---|
| Dimmer Resolution | 16 bit |
|---|
| Dimmer | 0-100 % |
|---|
| Power Supply | 240 V AC 50/60 Hz |
|---|
| Power Consumption | 23 W |
|---|
| Power Connector In | Internal Powerlink with custom power connector |
|---|
| DMX Connector | XLR 3P In/Out |
|---|
| DMX Connector In | XLR 3P |
|---|
| DMX Connector Out | XLR 3P |
|---|
| Length (mm) | 275 mm |
|---|
| Width (mm) | 175 mm |
|---|
| Height (mm) | 188 mm |
|---|
| Weight | 2.3 kg |
|---|
| IP Rating | IP20 (indoor use only) |
|---|
| Housing | Aluminium |
|---|
| Colour | Black |
|---|
| Cooling | Convection |
|---|
| Maximum Ambient Temperature | 40 °C |
|---|
| Minimum Ambient Temperature | 0 °C |
|---|
| Maximum Surface Temperature | 40 °C |
|---|
| Included Cables | Fixed Cable |
|---|
