Dimmer 1 canale 500W con uscita BS13 UK - Showtec 50444UK

Prezzo: 111,09 €
Tasse incluse
1-Channel Dimmer Pack - UK output
Condividi

The Showtec TED Pack Single BS13 is a 500 W leading and trailing edge 1-channel dimmer for indoor use with dim, switch and FX modes. The output is independent of the connected load and can be used with LEDs and incandescent lights up to 2 A.

The TED Pack Single BS13 uses MOSFETs to dim the output and can be switched between leading edge and trailing edge dimming. The Special FX mode offers a safety channel that prevents unintentional activation which can be helpful for controlling shooters, canons, drops, et cetera. The unit can be controlled manually and via DMX. Mounting holes on the back and the top allow easy connection of a clamp.

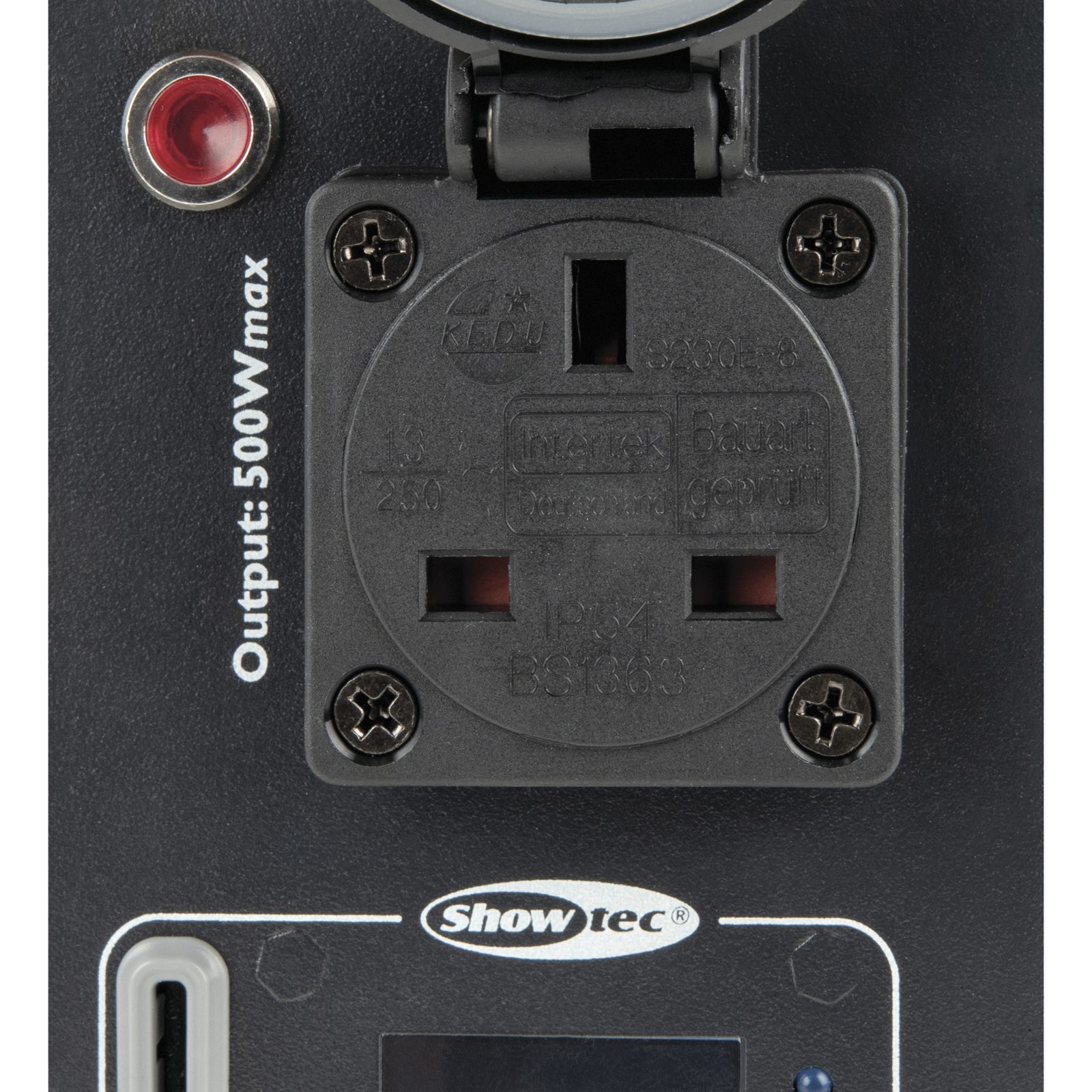

  • BS13 output connector (UK)
  • Leading and trailing edge dimming
  • 4 dimmer curves for conventional and LED lights
  • Special Effects mode with safety channel
  • Mounting holes on top and backside
Control ModeDMX / Local Control / Manual
ProtocolsDMX / RDM
DMX Channels1 / 2
Power Supply220-240 V AC 50 Hz
Power Consumption2 W
Output Current per Channel2 A

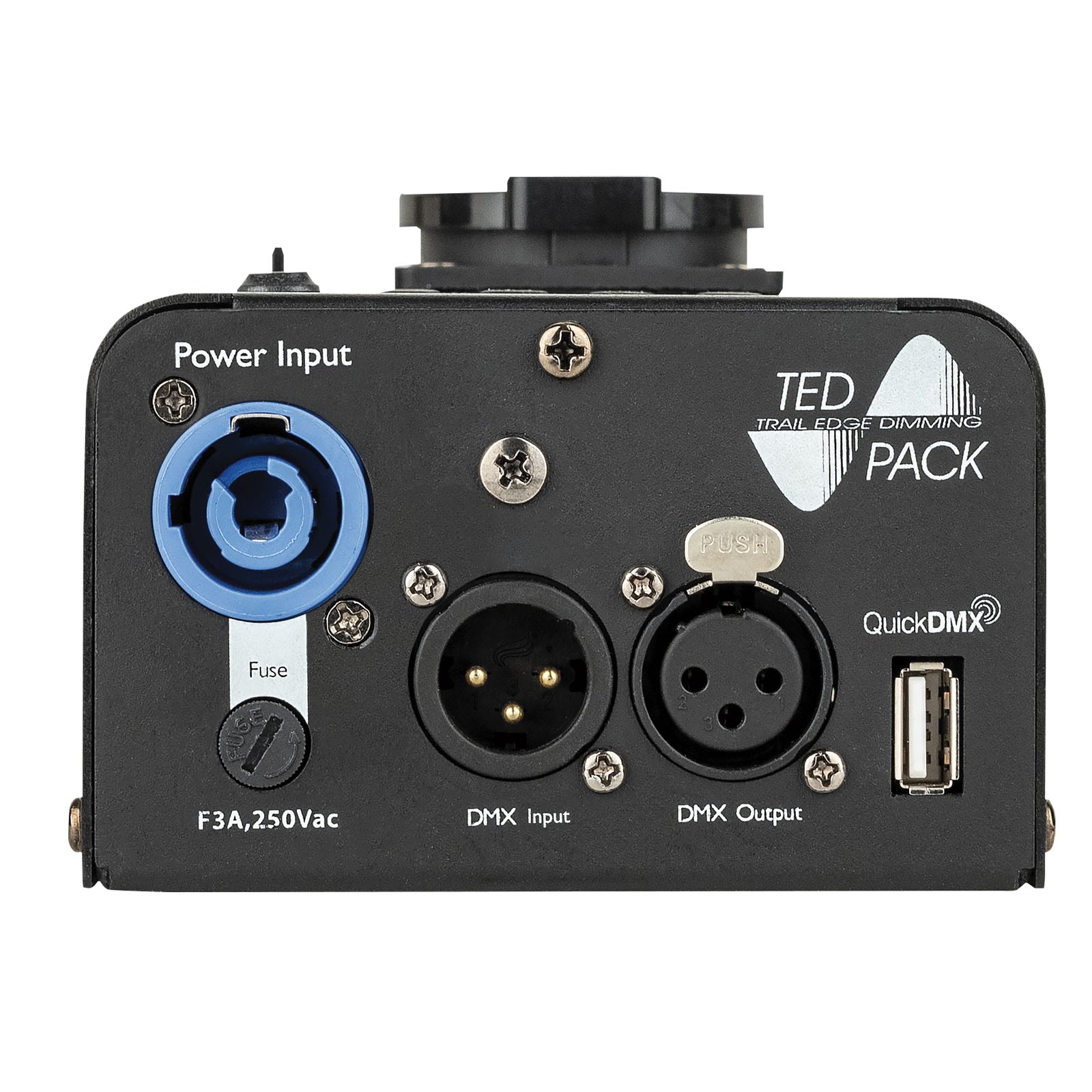

Power Connector InPower Pro Blue
Power Connector OutUK Socket
DMX Connector InXLR 3P
DMX Connector OutXLR 3P
Length (mm)221 mm
Width (mm)105 mm
Height (mm)80 mm
Weight1.3 kg
IP RatingIP20 (indoor use only)
HousingMetal
ColourBlack
LED IndicatorsSignal
Maximum Ambient Temperature40 °C
Minimum Ambient Temperature-5 °C
Minimum Operating Temperature-5 °C

  • Marca
  • Riferimento
    50444UK
  • In magazzino
    10 Articoli
  • ean13
    8717748547200
