Fresnel LED 50W RGBAL compatto - Showtec 34014
The Showtec ACT series offers a wide range of theatre lighting fixtures consisting of Fresnels, Ellipsoidals, and Flood Lights, suitable for indoor applications. All ACT fixtures have accurate colour rendering (high CRI), a long lifespan, and are reliable without any interference of flickering. A bright, even field of light is ensured in any required colour temperature, from Warm White to smooth pastels and punchy colours. All Showtec ACT fixtures meet the high quality standard required for operating in theatres, on stages, and during business events.
The ACT Fresnels project a soft field of light with a widely controllable zoom range, dimmer and strobe effects, suitable for short- to medium-throw applications. All ACT Profiles consist of ellipsoidals equipped with a zoom lens to provide a hard-edged, precisely focused field of light over long distances. The Showtec ACT Flood fixtures project a bright Wash effect, throwing a bright RGBW light with a wide angle in short-throw applications.
Each projector offers multiple control options and some come with included accessories to enhance functionality. Contact us now for free advice and receive an offer you cannot refuse or check out our product pages for more information.

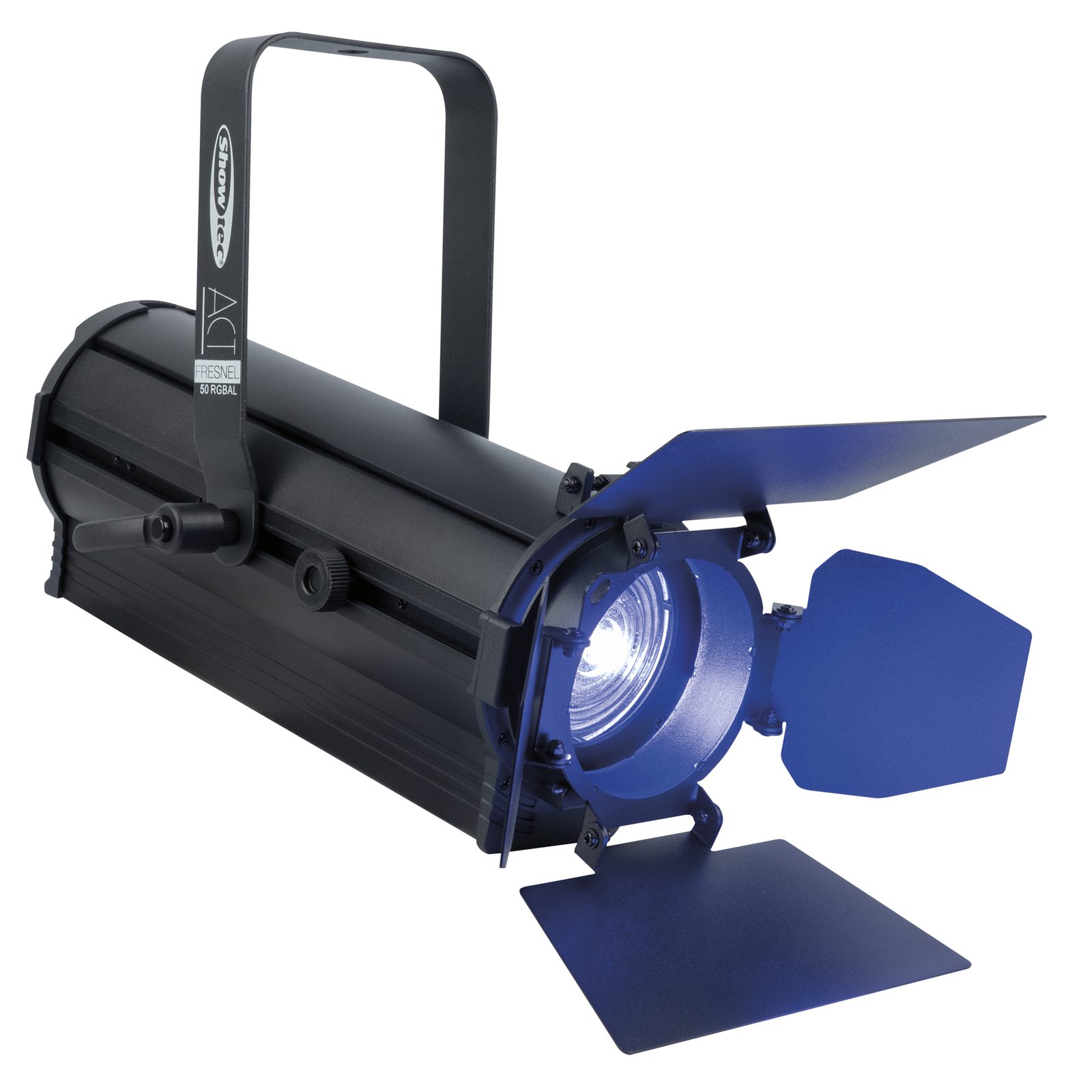

The Showtec ACT Fresnel 50 RGBAL is a compact 50-watt RGBAL COB LED Spot with high CRI (>92) and quiet operation, suitable for theatrical applications, museums, and exhibitions. It uses a 150 W RGBAL light source to optimise the colour output, allowing you to create a wide gamut of colours while maintaining a high CRI. This also allows it to achieve high light output even in single colours. The 150 W LED has 30 W per colour and a total combined maximum of 50 W. It projects a bright, soft beam of light within a wide, manually adjustable zoom range of 15°-35°. The ACT Fresnel 50 RGBAL can be controlled via DMX, RDM, and it is equipped with one knob for manual colour and dimmer control. It is supplied with a barndoor and filter frame, allowing you to shape its output.
- Modified 150 W RGBAL LED for accurate colour rendering
- Suitable for theatrical applications, museums, and exhibitions
- Silent operation
- Manually adjustable zoom and dimmer
- Soft field of light
- Barndoor and filter frame included
- Compact design
| Light Source Type | LED |
|---|---|
| Light Source Quantity | 1 |
| Light Source Power | 150 W |
| LED Colour Type | RGBAL |
| Light Source System | 5in1 |
| Refresh Rate | 1200 Hz |
| Illuminance @ 2 m | 1410 lx |
| Illuminance @ 3 m | 627 lx |
| Illuminance @ 5 m | 226 lx |
| Luminous Flux (Total) | 952 lm |
| Luminous Flux (Red) | 504 lm |
| Luminous Flux (Green) | 958 lm |
| Luminous Flux (Blue) | 313 lm |
| Luminous Flux (Amber) | 320 lm |
| Luminous Flux (Lime) | 1024 lm |
| CRI | 92 |
| Minimum CCT | 2800 K |
| Maximum CCT | 10000 K |
| Beam Angle Minimum (Circular) | 15° |
| Beam Angle Maximum (Circular) | 35° |
| Field Angle Minimum (Circular) | 30° |
| Field Angle Maximum (Circular) | 50° |
| Zoom Type | Manual |
| Zoom Ratio | 1:2 |
| Zoom Minimum | 15° |
| Zoom Maximum | 35° |
| Control Mode | DMX / Manual |
| DMX Channels | 5 / 8 / 12 |
| Protocols | DMX / RDM |
| Display | OLED |
| Dim Curve | Linear / Square / I-Square / S-Curve |
| Dimmer Resolution | 16 bit |
| Dimmer | 0-100 % |
| Strobe | 0-20 Hz |
| Power Supply | 100-240 V AC 50/60 Hz |
| Power Consumption | 52.5 W |
| Power Connector In | Power Pro Blue |
| Power Connector Out | Power Pro Grey |
| DMX Connector | XLR 3P In/Out |
| DMX Connector In | XLR 3P |
| DMX Connector Out | XLR 3P |
| Length (mm) | 317 mm |
| Width (mm) | 168 mm |
| Height (mm) | 263 mm |
| Weight | 2.9 kg |
| Noise Level Maximum | 36 dB |
| IP Rating | IP20 (indoor use only) |
| Material | ABS / Aluminium |
| Housing | Aluminium |
| Colour | Black |
| Cooling | Forced Convection |
| Mounting Options | Bracket |
| Safety Attachment | Yes |
| Safety Eyes | 1 |
| Maximum Ambient Temperature | 45 °C |
| Minimum Ambient Temperature | 0 °C |
| Included Cables | Power Pro Cable |
| Included Accessories | Barndoor / Filterframe |
