The Pinspot Bar 4 WW is a high-output bar with 4 individual pin spots. This bar is lightweight, which makes it ideal for many different events and purposes. The included 20° beam shapers make the bar very suitable for highlighting buffets, displayed products, or pointing out tables.
This superb bar produces a bright, narrow 4.5° beam or a 20° wash of warm white light (3000 K) output.

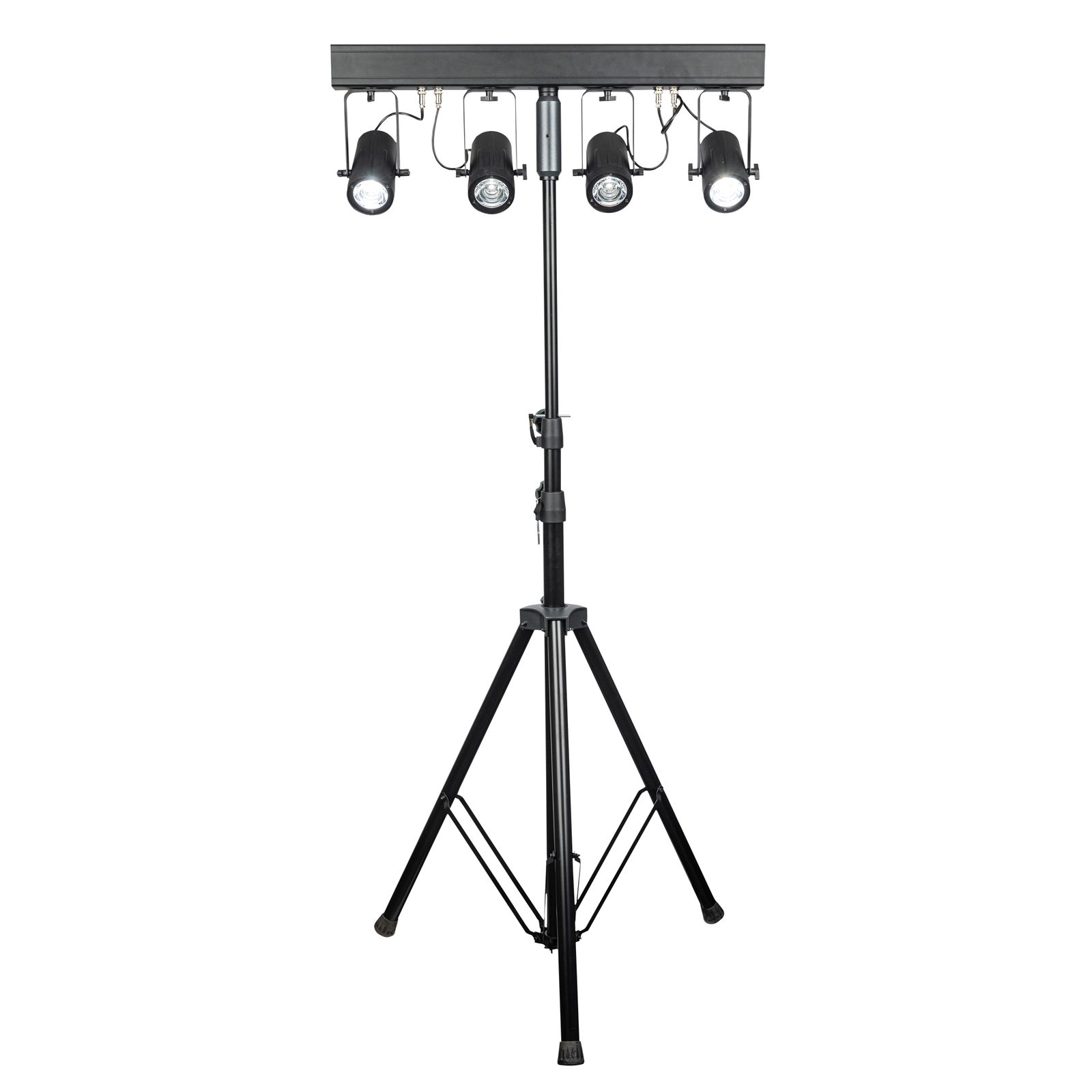

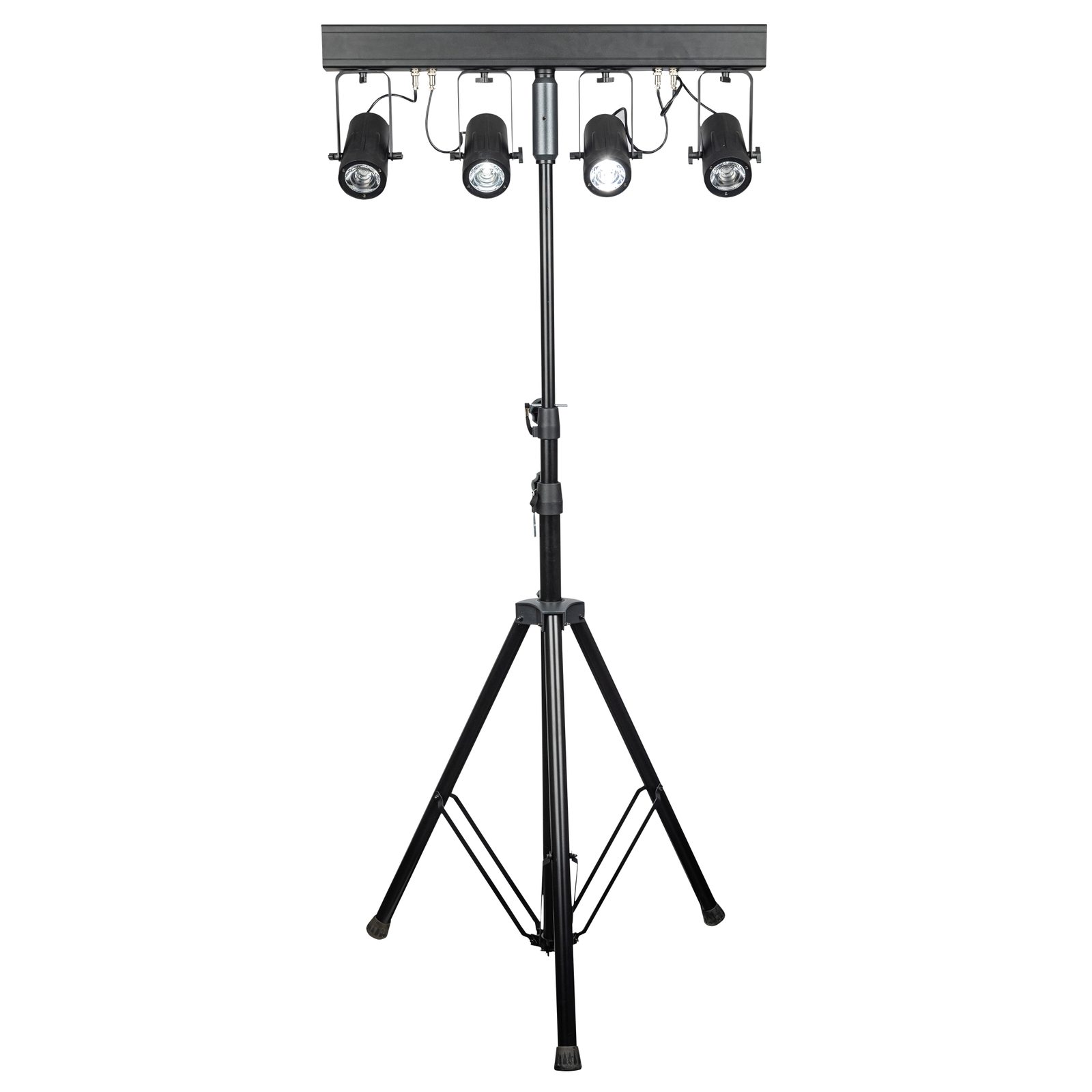

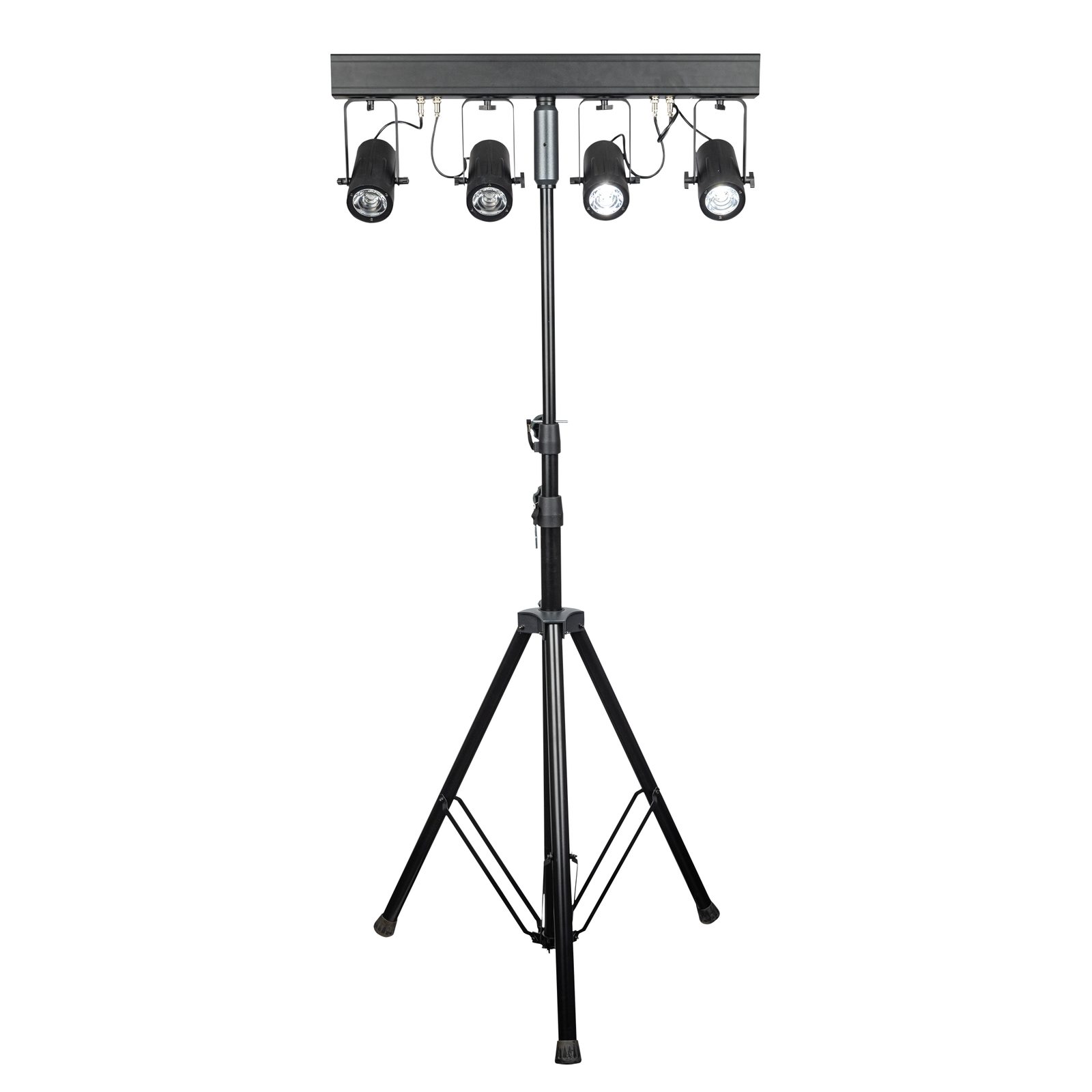

The T-bar can be placed on a stand with the included 28-mm spigot, or hanged on a truss with the included Quick-Lock brackets. Direct mounting of a clamp is also possible thanks to the M10 thread holes.
You can easily setup each individual spot with the onboard controls. Just connect the main power of the bar and you are ready to go.
- Four WW 15 W LED spots
- Independent control
- Super lightweight
- Magnetic beamshapers included
- 5 m Power Pro cable included
| Light Source Type | LED |
|---|
| Light Source Quantity | 4 |
|---|
| Light Source Power | 15 W |
|---|
| LED Colour Type | WW |
|---|
| Life Expectancy | 50000 h |
|---|
| CCT | 3000 K |
|---|
| Beam Angle (Circular) | 4.5° |
|---|
| Control Mode | Auto / DMX / Manual / Master Slave / Sound |
|---|
| DMX Channels | 1 / 2 / 4 / 6 / 7 / 10 |
|---|
| Protocols | DMX |
|---|
| Display | OLED |
|---|
| Dim Curve | Linear / Square / I-Square / S-Curve |
|---|
| Dimmer Resolution | 8 bit |
|---|
| Dimmer | 0-100 % |
|---|
| Strobe | 0-20 Hz |
|---|
| Power Supply | 100-240 V AC 50/60 Hz |
|---|
| Power Consumption | 75 W |
|---|
| Power Connector In | Power Pro Blue |
|---|
| Power Connector Out | Power Pro Grey |
|---|
| DMX Connector In | XLR 3P / XLR 5P |
|---|
| DMX Connector Out | XLR 3P / XLR 5P |
|---|
| Height (mm) | 278 mm |
|---|
| Width (mm) | 800 mm |
|---|
| Depth (mm) | 177 mm |
|---|
| Weight | 6.5 kg |
|---|
| IP Rating | IP20 (indoor use only) |
|---|
| Housing | Aluminium die-cast |
|---|
| Colour | Black |
|---|
| Cooling | Axial fan |
|---|
| Maximum Ambient Temperature | 40 °C |
|---|
| Minimum Ambient Temperature | -10 °C |
|---|
| Included Cables | powerCON cable |
|---|
| Included Rigging | Quick-Lock Bracket / Rigging Eye |
|---|
