Image Spot LED 50W bianco freddo - Showtec 34060
The Showtec ACT series offers a wide range of theatre lighting fixtures consisting of Fresnels, Ellipsoidals, and Flood Lights, suitable for indoor applications. All ACT fixtures have accurate colour rendering (high CRI), a long lifespan, and are reliable without any interference of flickering. A bright, even field of light is ensured in any required colour temperature, from Warm White to smooth pastels and punchy colours. All Showtec ACT fixtures meet the high quality standard required for operating in theatres, on stages, and during business events.
The ACT Fresnels project a soft field of light with a widely controllable zoom range, dimmer and strobe effects, suitable for short- to medium-throw applications. All ACT Profiles consist of ellipsoidals equipped with a zoom lens to provide a hard-edged, precisely focused field of light over long distances. The Showtec ACT Flood fixtures project a bright Wash effect, throwing a bright RGBW light with a wide angle in short-throw applications.
Each projector offers multiple control options and some come with included accessories to enhance functionality. Contact us now for free advice and receive an offer you cannot refuse or check out our product pages for more information.

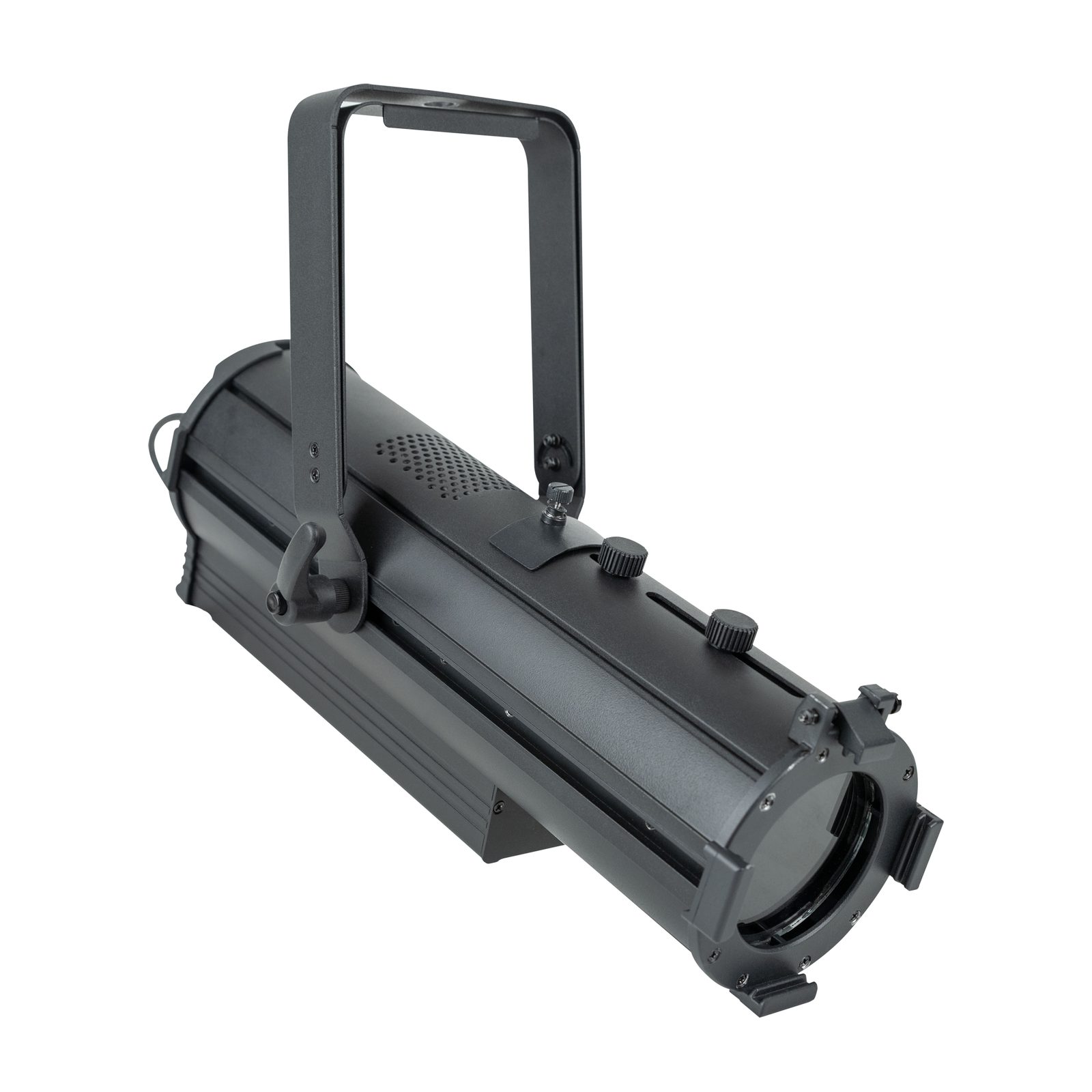

The Showtec ACT Image Spot 50 is a 50 watt cold white LED spot with a CCT of 6000 K and quiet operation, suitable for commercial applications. It projects a bright, sharp field of light with an adjustable zoom range from 16° - 28° that can be set manually, through DMX, or with the optionally available IR remote. It is possible to add your own gobo to the built-in gobo holder and project it onto a wall, for example. The ACT Image Spot 50 is equipped with a 0 - 100 % dimmer with 4 curves, controllable through DMX, through the optionally available IR remote, or manually. It also features a strobe function of 0-20 Hz. A sturdy bracket allows for easy mounting. A Power Pro cable is included.
- 50 W Cold White LED gobo projector
- Suitable for commercial applications
- 6000 K CCT
- DMX, IR remote (optional), and manual control
- 4 Dimmer curves
- 16° - 28° Zoom range
| Light Source Type | LED |
|---|---|
| Light Source Quantity | 1 |
| Light Source Power | 50 W |
| LED Colour Type | White |
| Refresh Rate | 1100 Hz |
| Illuminance @ 2 m | 6672 lx |
| Illuminance @ 3 m | 2965 lx |
| Illuminance @ 5 m | 1068 lx |
| Luminous Flux (Total) | 1743 lm |
| CRI | 96 |
| CCT | 6500 K |
| Beam Angle Minimum (Circular) | 152° |
| Beam Angle Maximum (Circular) | 275° |
| Control Mode | DMX / IR / Manual |
| DMX Channels | 2 / 3 |
| Protocols | DMX |
| Display | OLED |
| Dim Curve | Linear / Square / I-Square / S-Curve |
| Dimmer Resolution | 8 bit |
| Dimmer | 0-100 % |
| Strobe | 0-20 Hz |
| Gobo Wheel Index & Rotate | Yes |
| Gobo Wheel 1 | 1 + Open |
| Power Supply | 100-240 V AC 50/60 Hz |
| Power Consumption | 57 W |

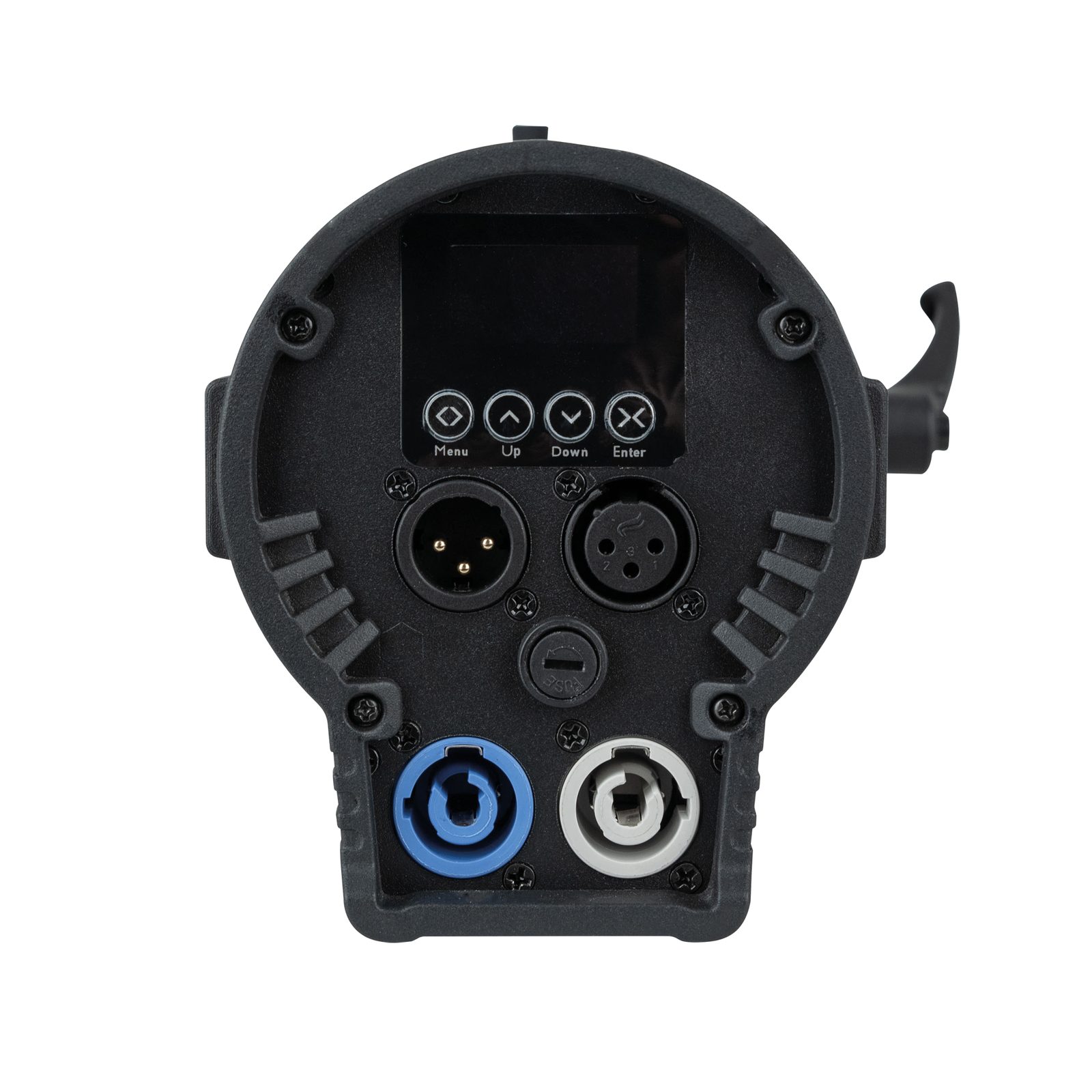

| Power Connector In | Power Pro Blue |
| Power Connector Out | Power Pro Grey |
| DMX Connector | XLR 3P In/Out |
| DMX Connector In | XLR 3P |
| DMX Connector Out | XLR 3P |
| Height (mm) | 145 mm |
| Width (mm) | 165 mm |
| Depth (mm) | 425.2 mm |
| Weight | 2.8 kg |
| IP Rating | IP20 (indoor use only) |
| Housing | Aluminium / Aluminium die-cast |
| Colour | Black |
| Cooling | Convection/Axial fan |
| Mounting Options | Bracket |
| Safety Attachment | Yes |
| Maximum Ambient Temperature | 45 °C |
| Minimum Ambient Temperature | 0 °C |
| Included Cables | Power Pro Cable |

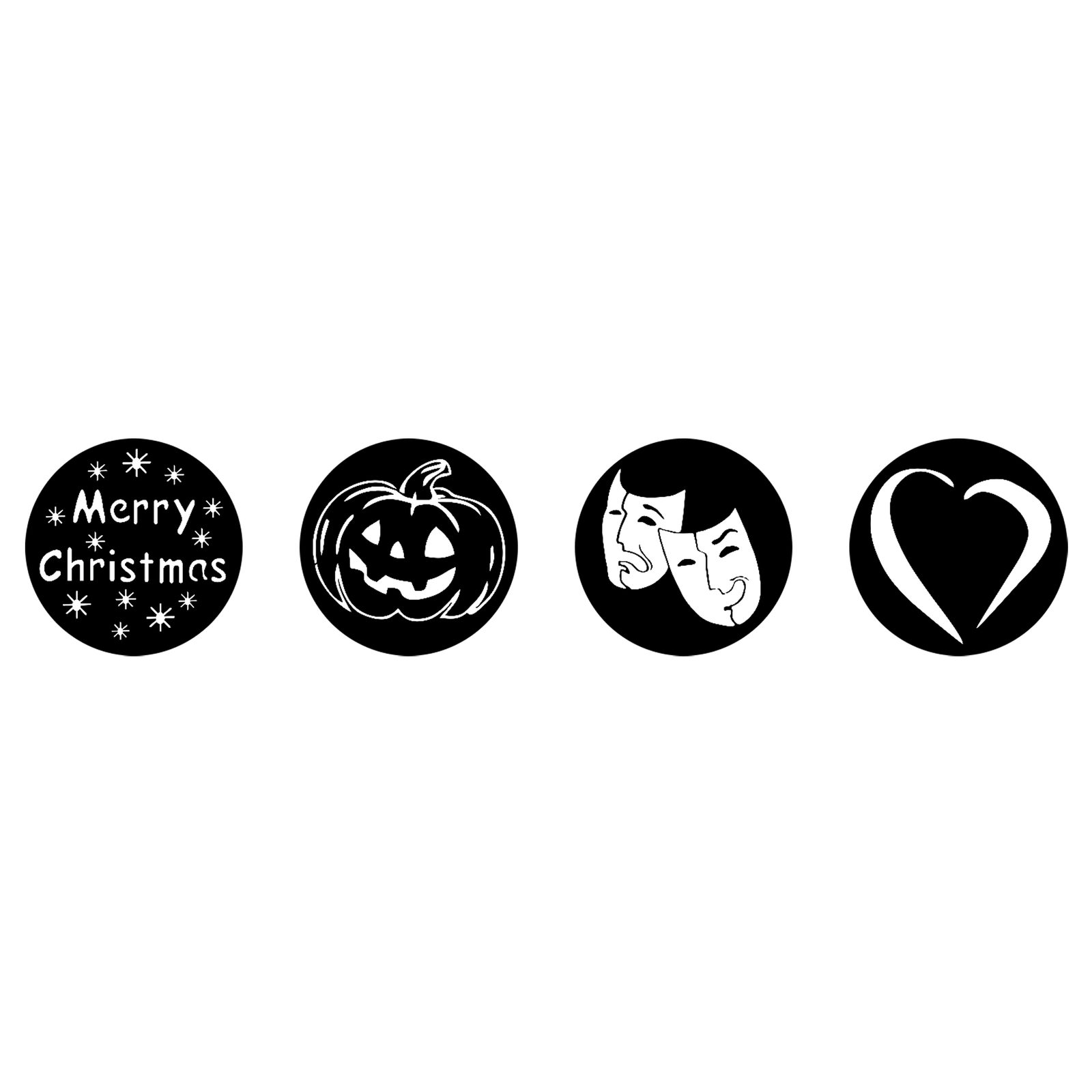

| Included Accessories | Metal Gobo's (5x) / Gobo Holder |
