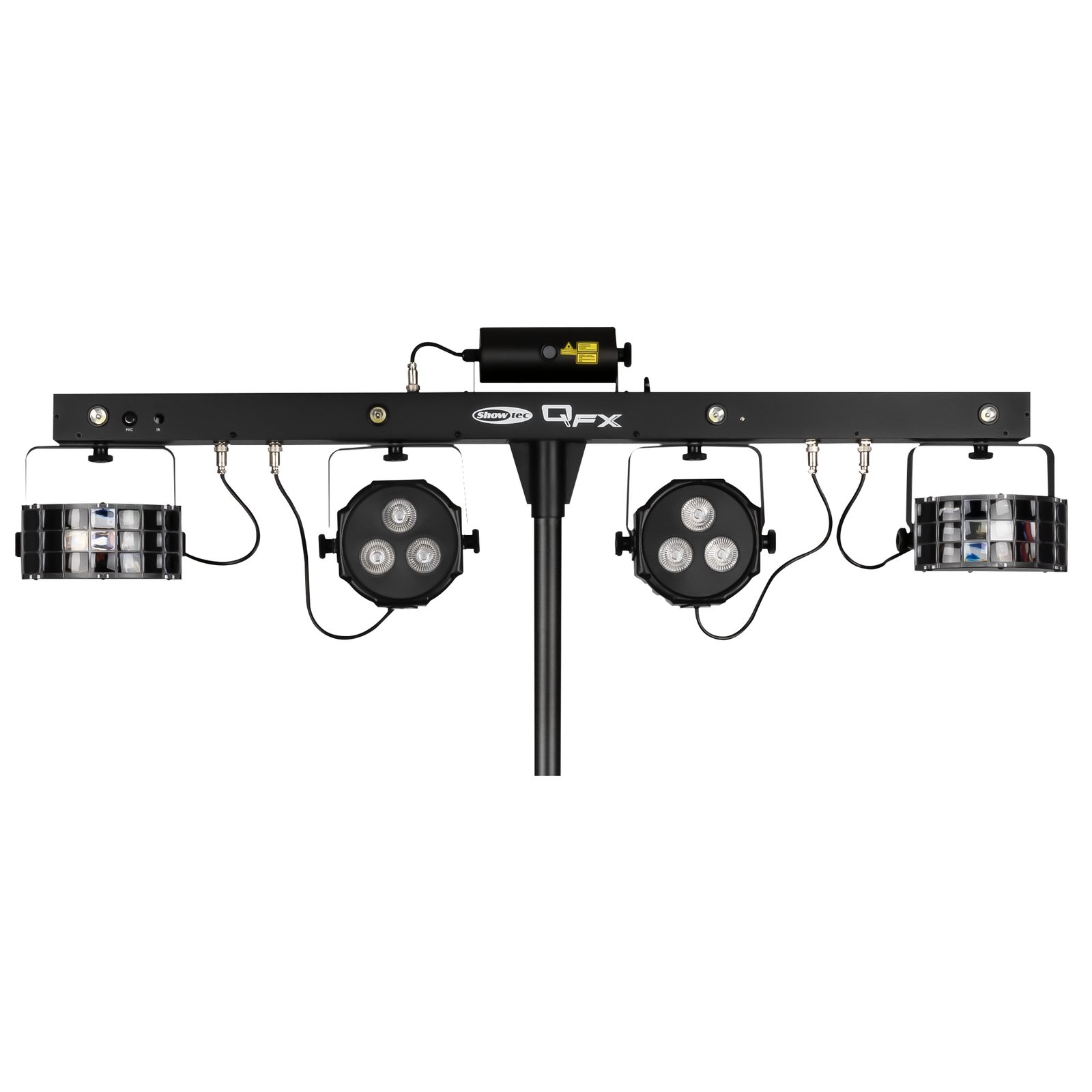

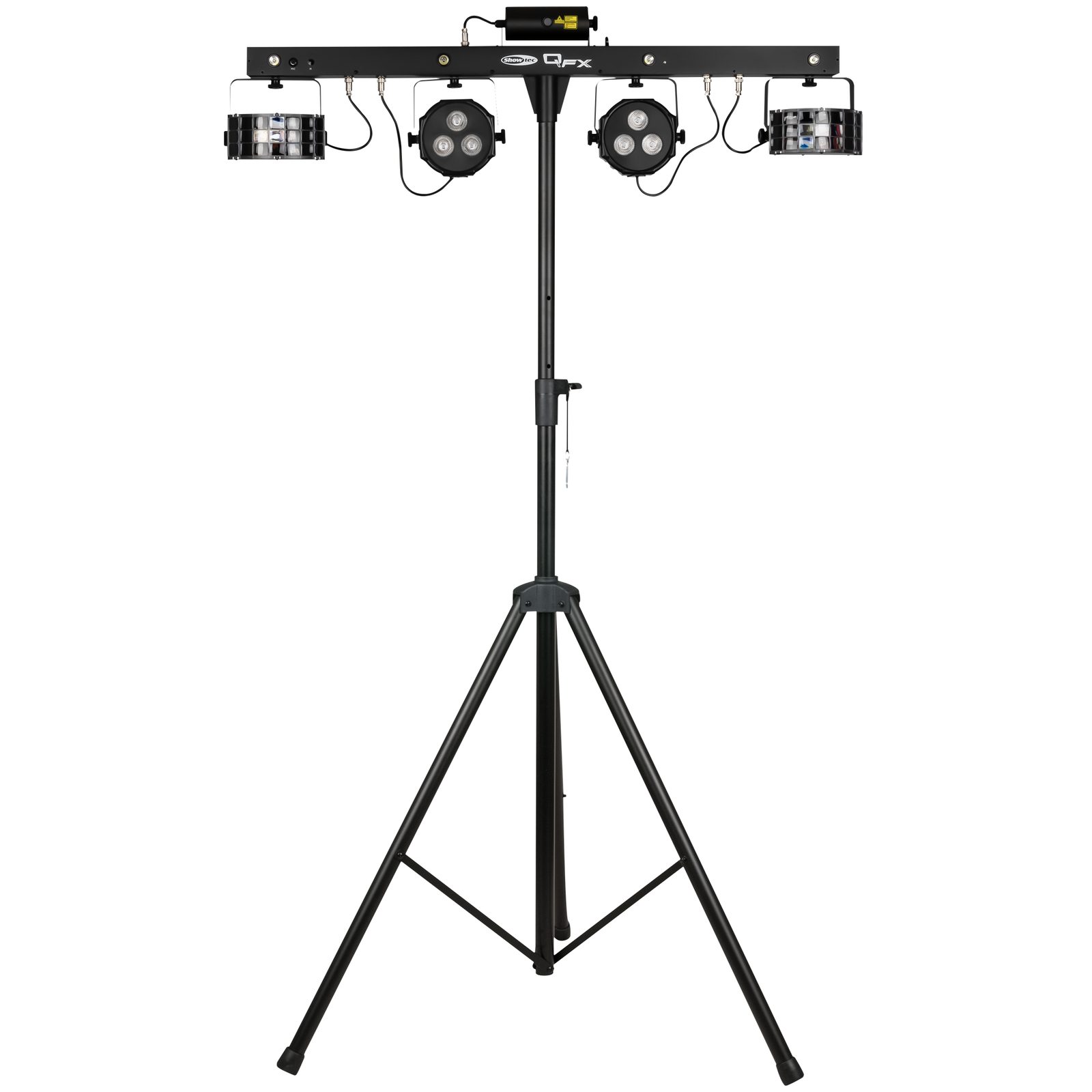

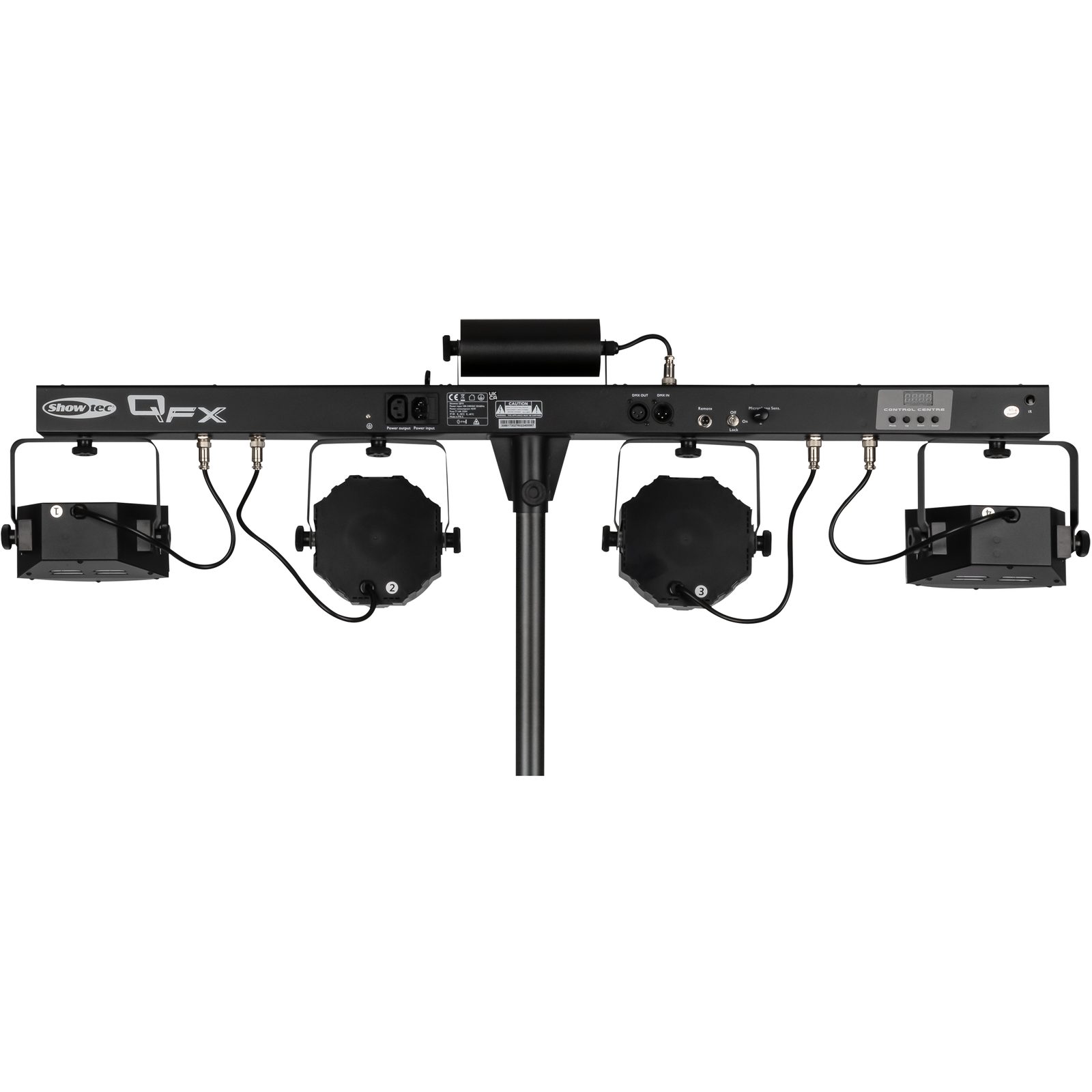

The Showtec QFX combines LED RGB spots, Derby fx, a Laser and a Strobe effect onto a single control bar. QFX maximizes convenience and ease of set-up and take-down for mobile entertainers who want to create a dynamic lighting experience for any event. The RG laser has many versatile grating & burst effects and is equipped with a key lock and remote interlock. The strobe has 4 sections with different preprogrammed patterns. The LED spot and Derby FX have RGB colours can be selected individually or in many preprogrammed combinations. The system is complete including a tripod stand, wireless footswitch, IR remote and carrying bags to protect the set during transport. The QFX controller bar features phenomenal built-in automated and sound-activated programs that include all 4 effects to make one complete show.
Attention, the laser only works when the interlock connector is connected with a remote interlock (ordercode 51316). You can test if the laser works properly with the included test connector. If you use the laser in public area's an remote interlock is necessary for safety regulations.
- 4 FX on 1 Bar

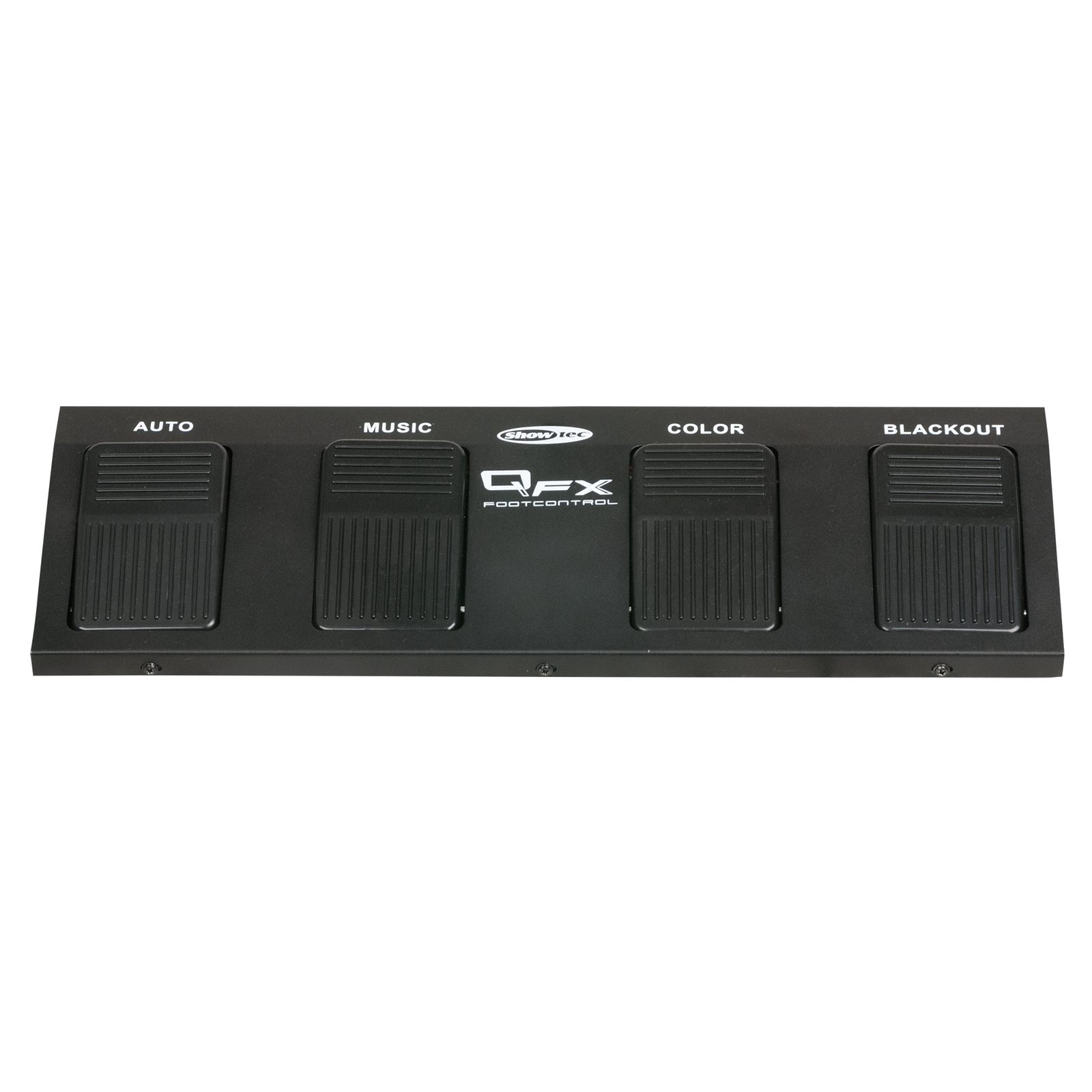

- Incl. wireless foot controller & IR remote
- Incl. tripod + bag & Transport case
- Effects interchangeable on bar
- 130 mW RG Laser
| Light Source Type | Diode / DPSS / LED |
|---|---|
| Light Source Quantity (Par) | 6 |
| Light Source Quantity (Effect) | 6 |
| Light Source Power (Par) | 3 W |
| Light Source Power (Effect) | 2 W |
| LED Colour Type | RGB / White |
| LED Strobe | Yes |
| LED Strobe Quantity | 4 |
| LED Strobe Power | 4 W |
| Drive Current | 0.95 A |
| Laser | Yes |
| Laser Class | 3R |
| Laser Colour | Red / Green |
| Laser Power (Total) | 130 mW |
| Laser Power (Red) | 100 mW |
| Laser Wavelength (Red) | 650 nm |
| Laser Power (Green) | 30 mW |
| Laser Wavelength (Green) | 532 nm |
| Illuminance @ 2 m | 1205 lx |
| Beam Angle (Circular) | 24° |
| Control Mode | Auto / DMX / IR / Master Slave / Sound |
| DMX Channels | 3 / 5 / 9 / 27 |
| Protocols | DMX |
| Display | 7-segment / LED |
| Strobe | 0-20 Hz |
| Power Supply | 100-240 V AC 50/60 Hz |
| Power Consumption | 45 W |
| Power Connector In | IEC |
| Power Connector Out | IEC |
| DMX Connector In | XLR 3P |
| DMX Connector Out | XLR 3P |
| Height (mm) | 378 mm |
| Width (mm) | 1185 mm |
| Depth (mm) | 110 mm |
| Weight | 6.6 kg |
| IP Rating | IP20 (indoor use only) |
| Housing | Metal |
| Colour | Black |
| Cooling | Convection |
| Safety Features | Interlock / Key Switch / Safety Eye |
| Mounting Options | Bracket / Clamp / Stand |
| Safety Attachment | Yes |
| Maximum Ambient Temperature | 40 °C |
| Included Cables | IEC cable |
| Included Accessories | Bag / Footswitch / Interlock connector / Interlock key(s) / Stand |
| Included Rigging | Bracket |
| Included Remotes | IR Remote battery not included |
| Laser Classification Standard | EN-IEC 60825-1:2007 |
