Raccoon P7/7 - Proiettore PAR LED 7-colori IP65 - Infinity 200550

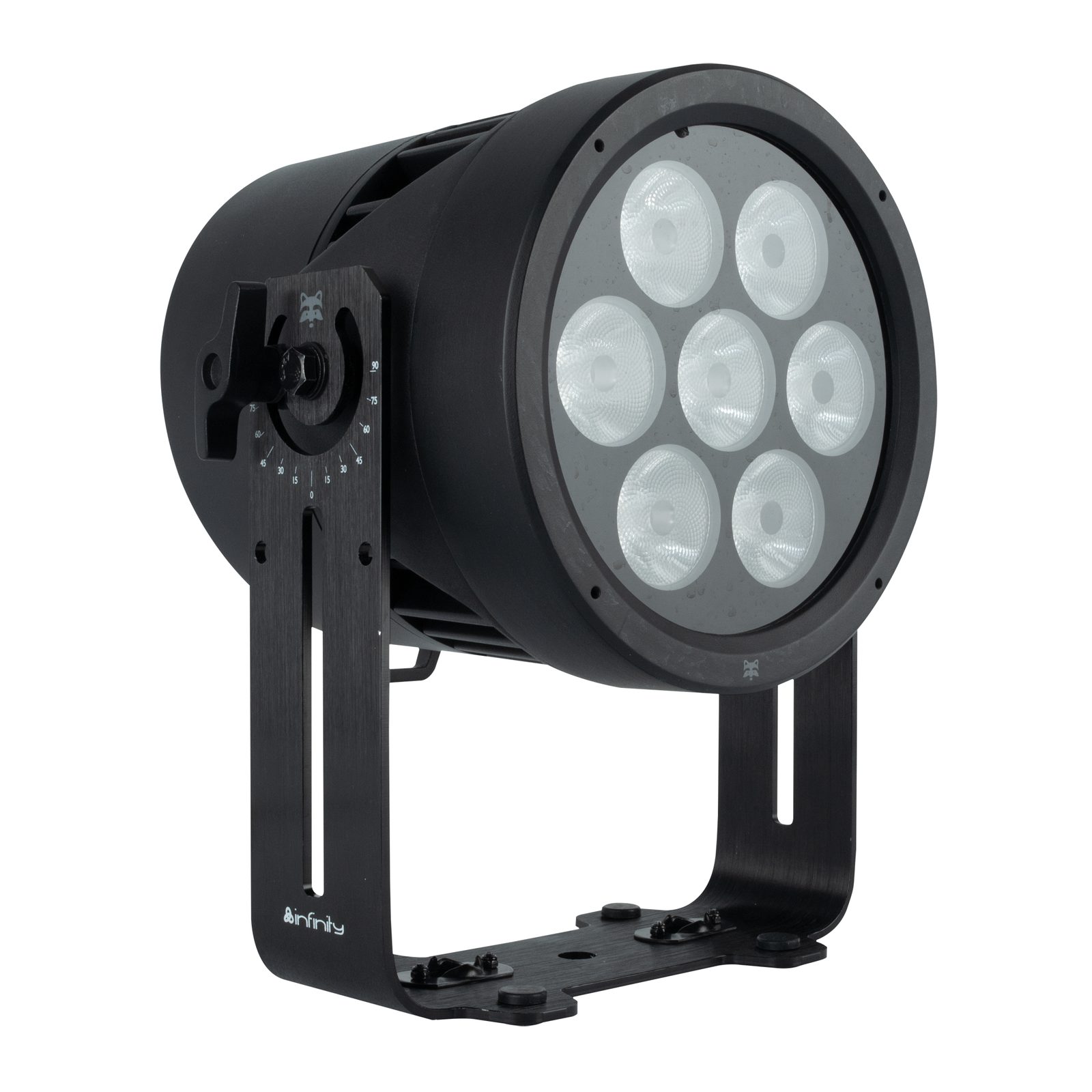

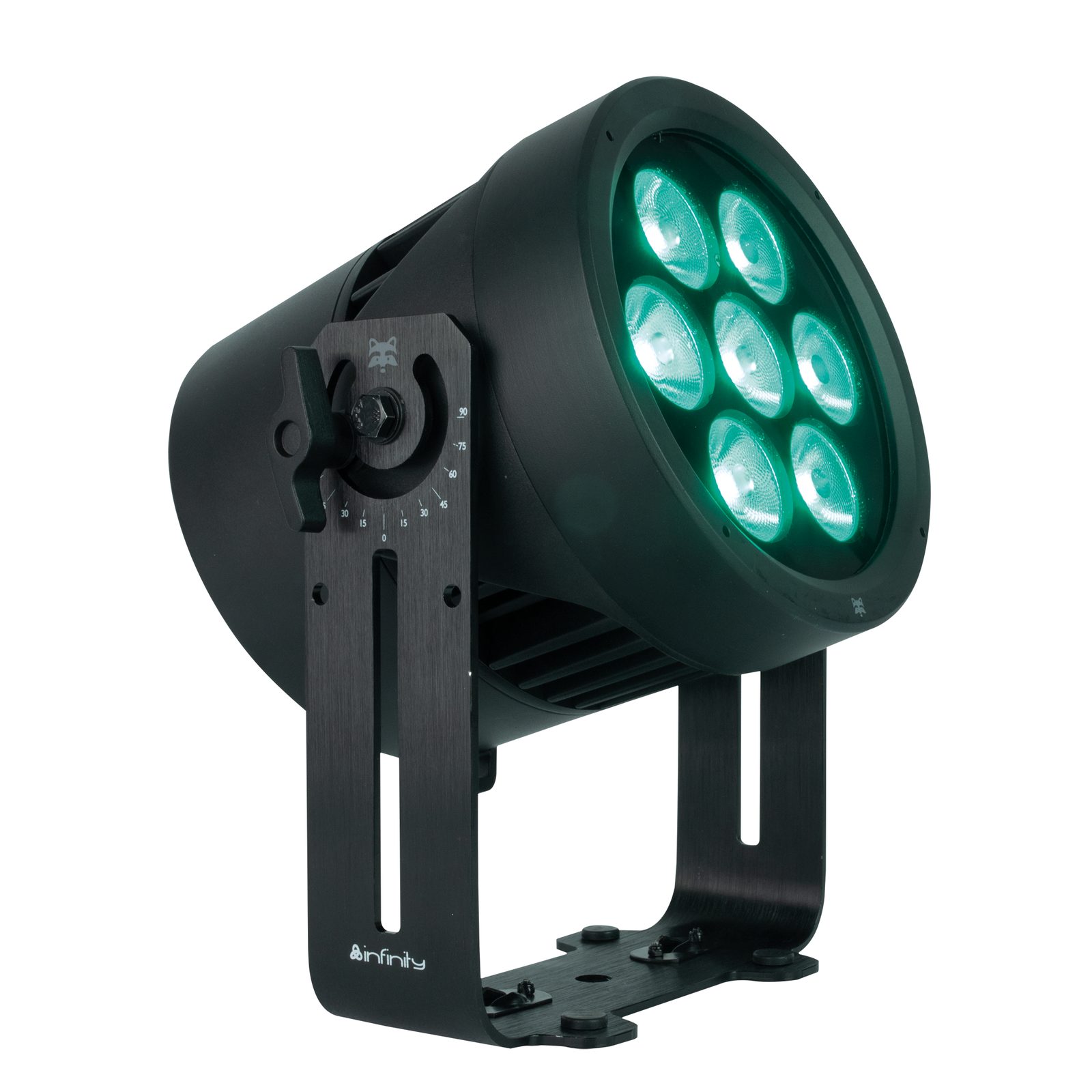

The Raccoon P7/7 is a very high-CRI, high-brightness, IP65-rated Par can, intended for applications where both quality and brightness are of high importance, especially exhibitions, museums, and situations that demand a high quality of light. It has 7 extremely accurate LEDs that have seven colours each: red, green, PC green, blue, royal blue, PC amber and cyan. You can switch between maximum brightness and maximum colour-rendering quality (high CRI) mode.
The fixture offers top-of-the-line control options. The core-technology of the Raccoon series is the calibrated XY colour engine, which guarantees outstanding colour quality and stability. With the embedded XY technology, it doesn’t matter which XY-capable fixtures you mix, their colours will always match! The calibrated internal controller ensures an exceptionally stable colour output at every temperature of the LEDs and every brightness setting, without any visible colour shift when dimming. We use the same calibration standards as the Infinity Signature series, so both fixtures are highly consistent in colour. Five different internal dimmer curves are available through the easy-to-use menu system, including a Tungsten shift simulation that works even with a colour filter applied! It can take care of CCT, RGB, and Lee filters internally.

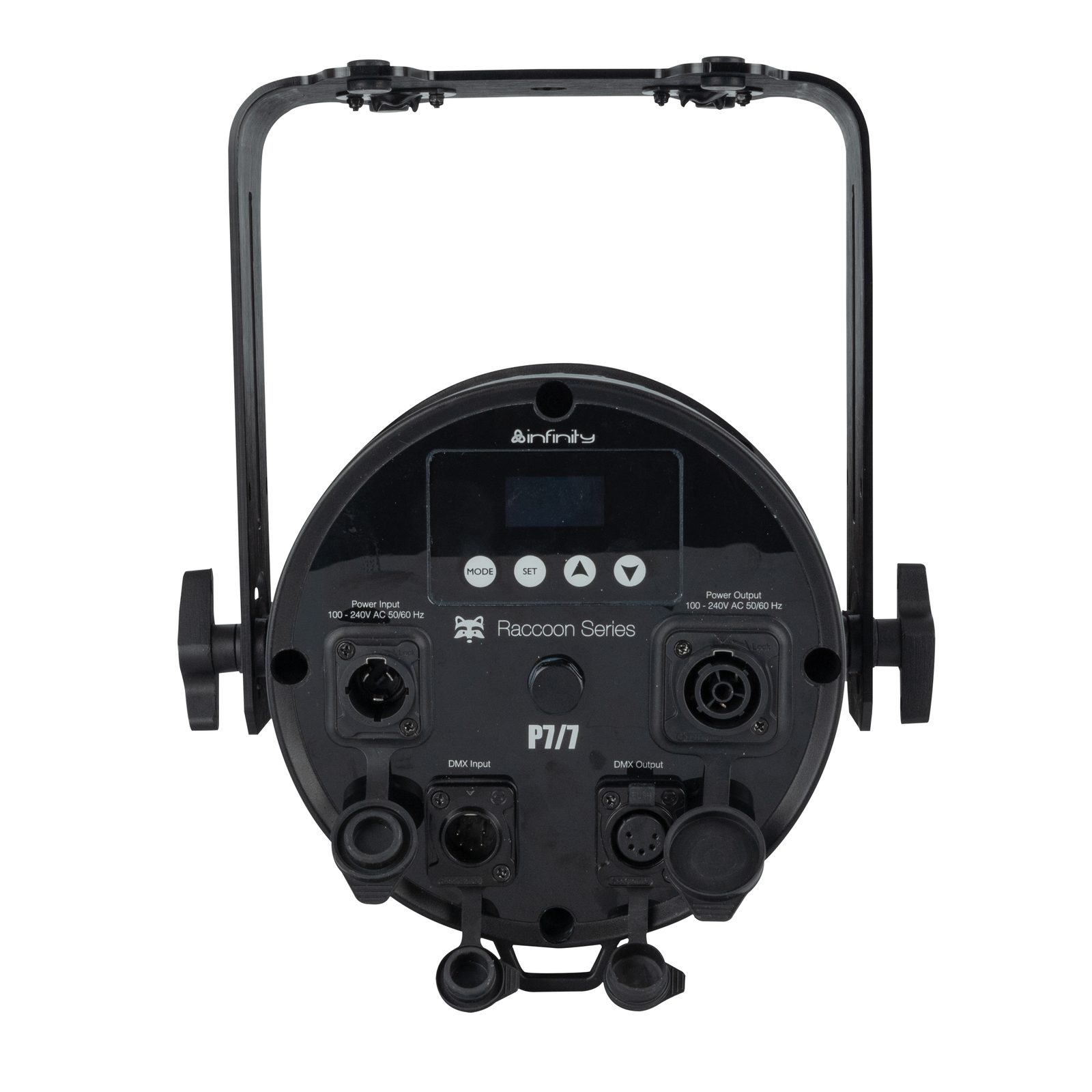

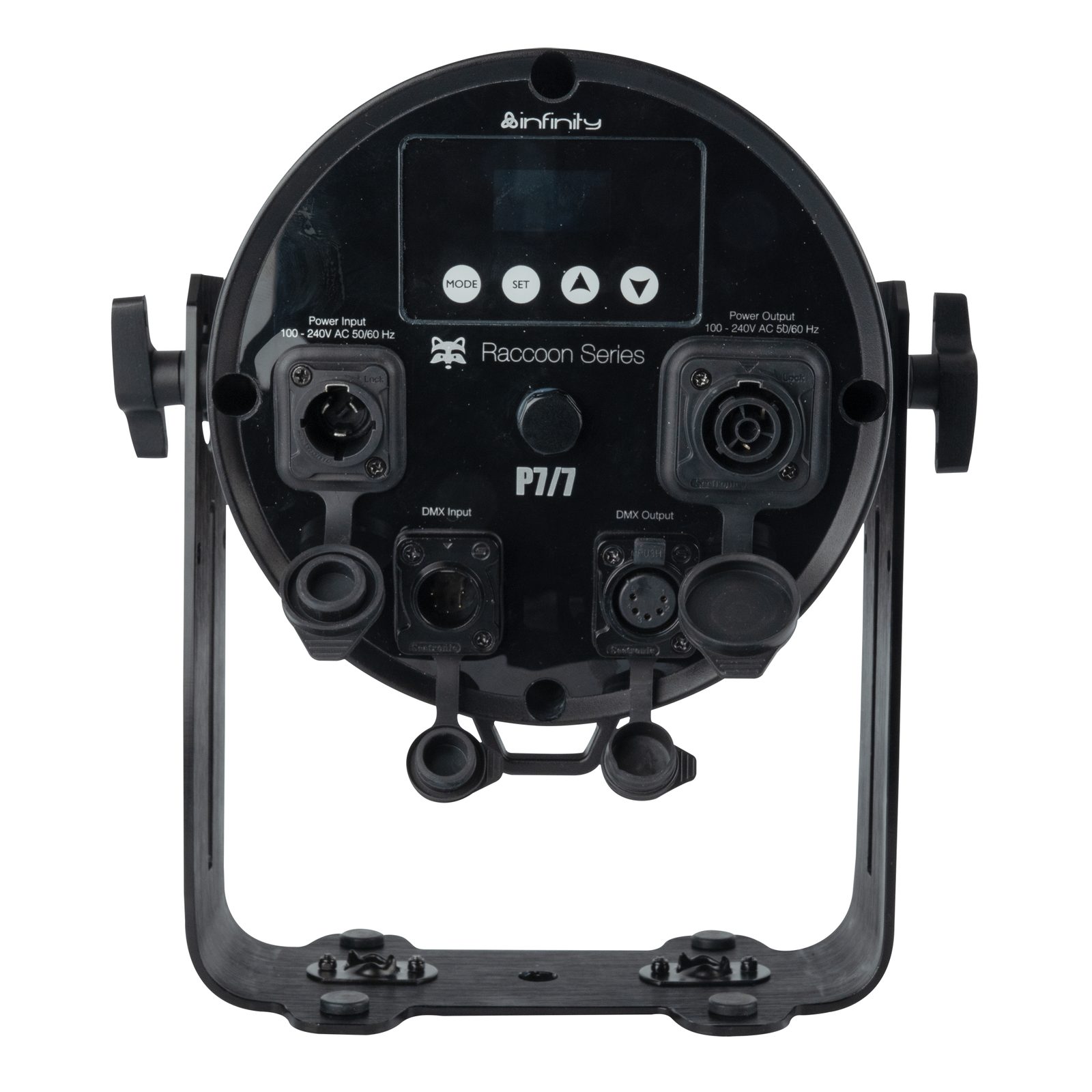

Besides XY mode, control through regular DMX, RDM, Manual, and Master/slave is also possible. The PWM frequency is adjustable between 640 Hz and 25 kHz, ensuring flicker-free camera images. Basic settings, like PWM and dimmer curve, can be copied among Raccoon fixtures in the same network to guarantee identical behaviour. Sturdy 5P XLR DMX and Power Pro True power connectors ensure reliable connections and IP65 compliance. With its stylish housing and accessories like barndoors, a top hat, filter frames, and diffusion filters, the Raccoon series poses an ultra-flexible competitor for high-end par cans.
- Very high CRI (>95), very high brightness, excellent for exhibitions and critical lighting conditions
- Accurate and stable colours due to software calibration
- Advanced XY, RGB, CMY, and HSI colour mixing technology and pre-set gel colours
- Ultra-smooth dimming with five dimmer curves, including tungsten
- IP65 rated
- DMX, RDM, and Manual control
- Engineered in Europe
| Light Source Type | LED |
|---|---|
| Light Source Quantity | 7 |
| Light Source Power | 25 W |
| LED Colour Type | RGBCALDB |
| Luminous Flux (Total) | 4932 lm |
| Control Mode | DMX / Manual / Static Dimmer |
| DMX Channels | 1 / 3 / 8 / 10 / 12 / 14 |
| Protocols | DMX / RDM |
| Power Supply | 100-240 V AC 50/60 Hz |
| Power Consumption | 150 W |
| Power Connector In | Power Pro True |
| Power Connector Out | Power Pro True |
| DMX Connector | XLR 5P In/Out |
| Length (mm) | 203 mm |
| Width (mm) | 262 mm |
| Height (mm) | 301 mm |
| Weight | 6 kg |
| IP Rating | IP65 |
| Housing | Aluminium die-cast |
| Colour | Black |
| Cooling | Convection |
