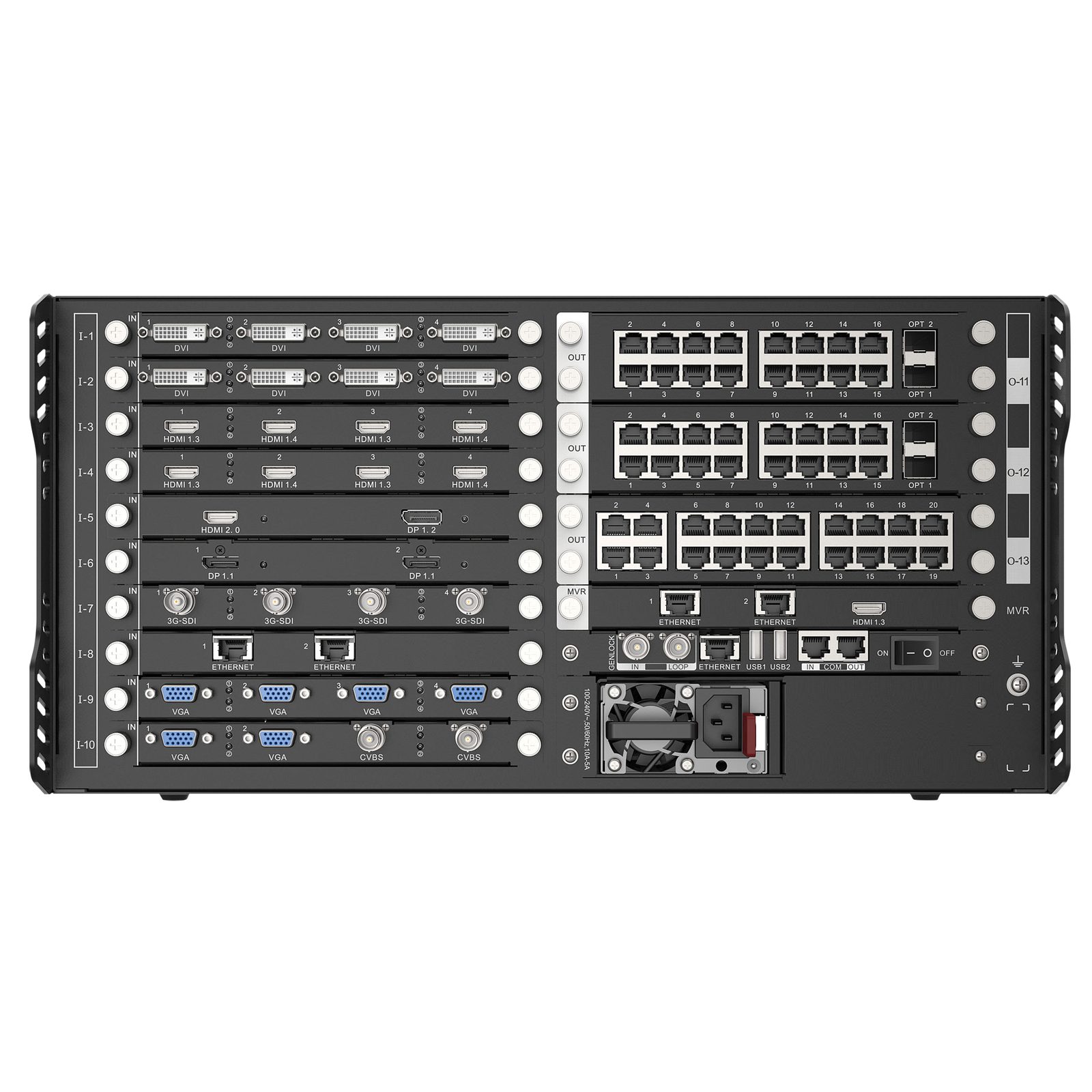

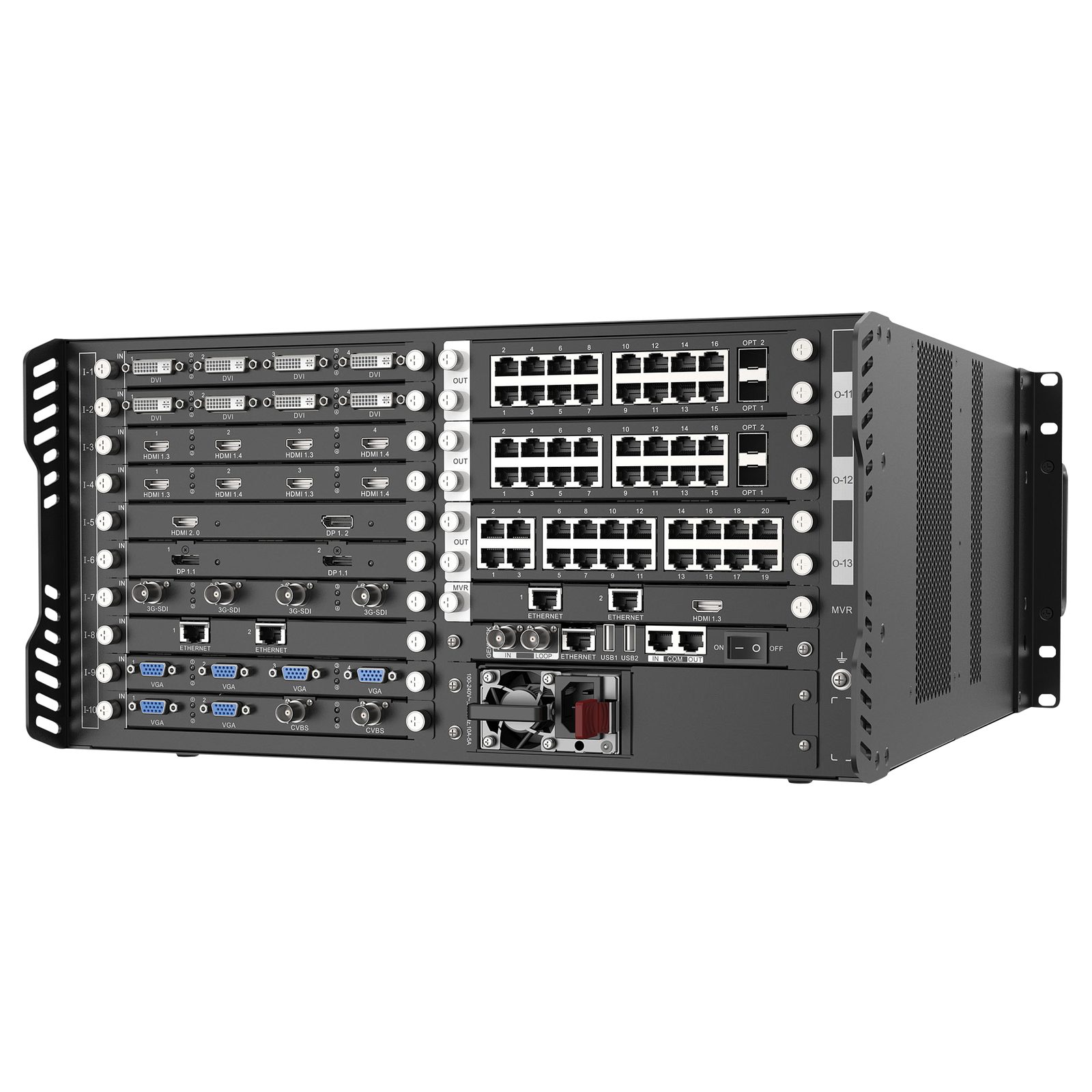

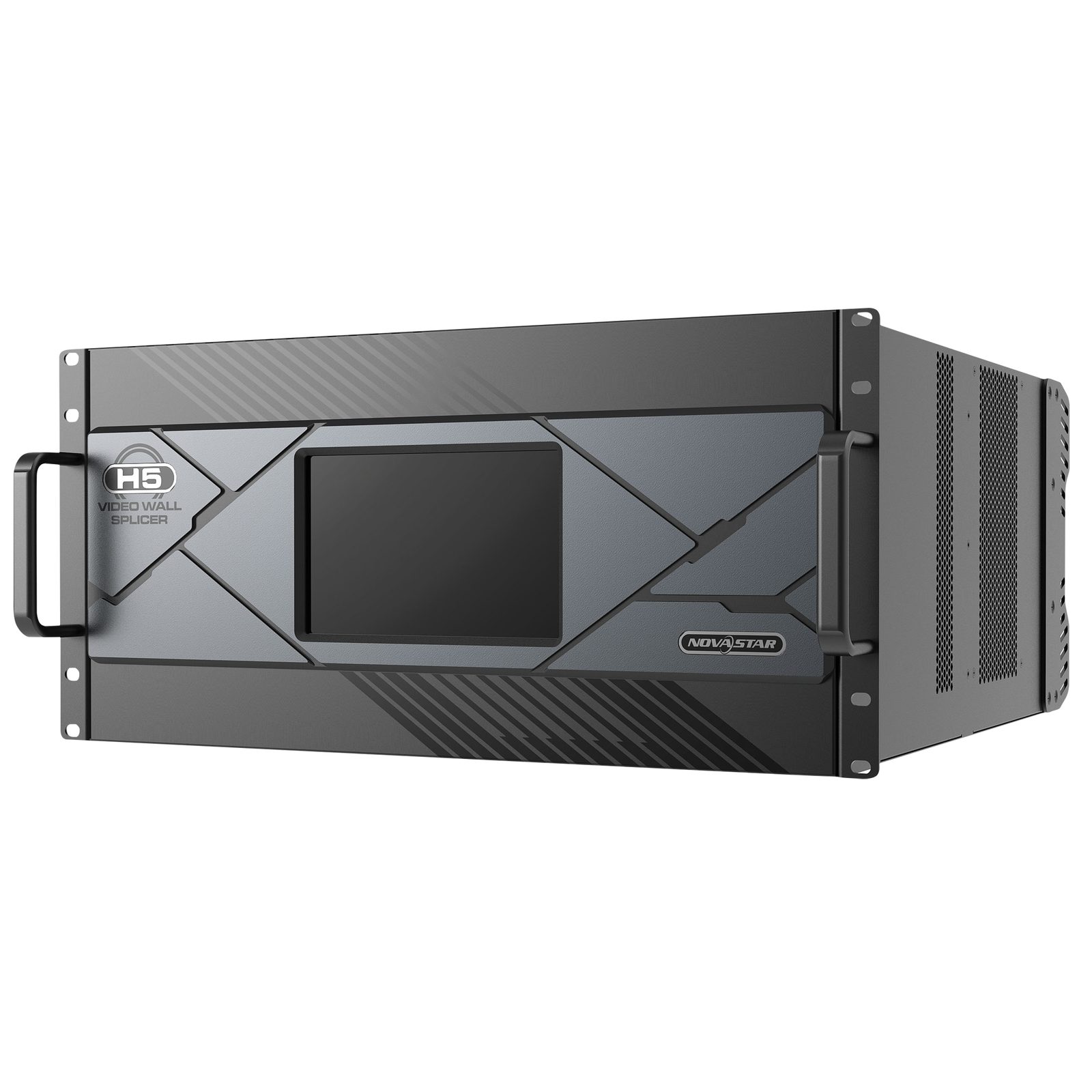

Main Frame H-Series H5 - Novastar 101676

The H Series from Novastar is intended to be used in fixed installations with large and fine pitch LED screens. The H5 is an all-in-one solution which combines video splicing features with LED processing in one housing. The modular design works with hot-swappable plug-in modules that allow for a flexible configuration of input and output cards. A variety of connector modules is available providing the industry-standard input connectors, so the system can be optimised for the intended installation.

The H5 is based upon a powerful hardware FPGA system architecture, providing stable and highly efficient operation. It supports 10-bit video sources and processing and 4 K high-definition in- and outputs. Two kinds of LED 4 K sending cards are available, allowing for backup connections as well as ultra-long-distance transmission. The H5 supports multi-screen and multi-layer management, as well as in- and output EDID management and monitoring. With its browser/server control architecture it supports cross-platform, cross-system access and control from within Windows, Mac, iOS, Android, and Linux. Even online collaboration of multiple users is supported.

• Supports up to 39,000,000 pixels, 10 input cards, and 3 output cards
• Supports redundant power supply
• HDR10, HLG, and 10-bit processing
• Web Control
