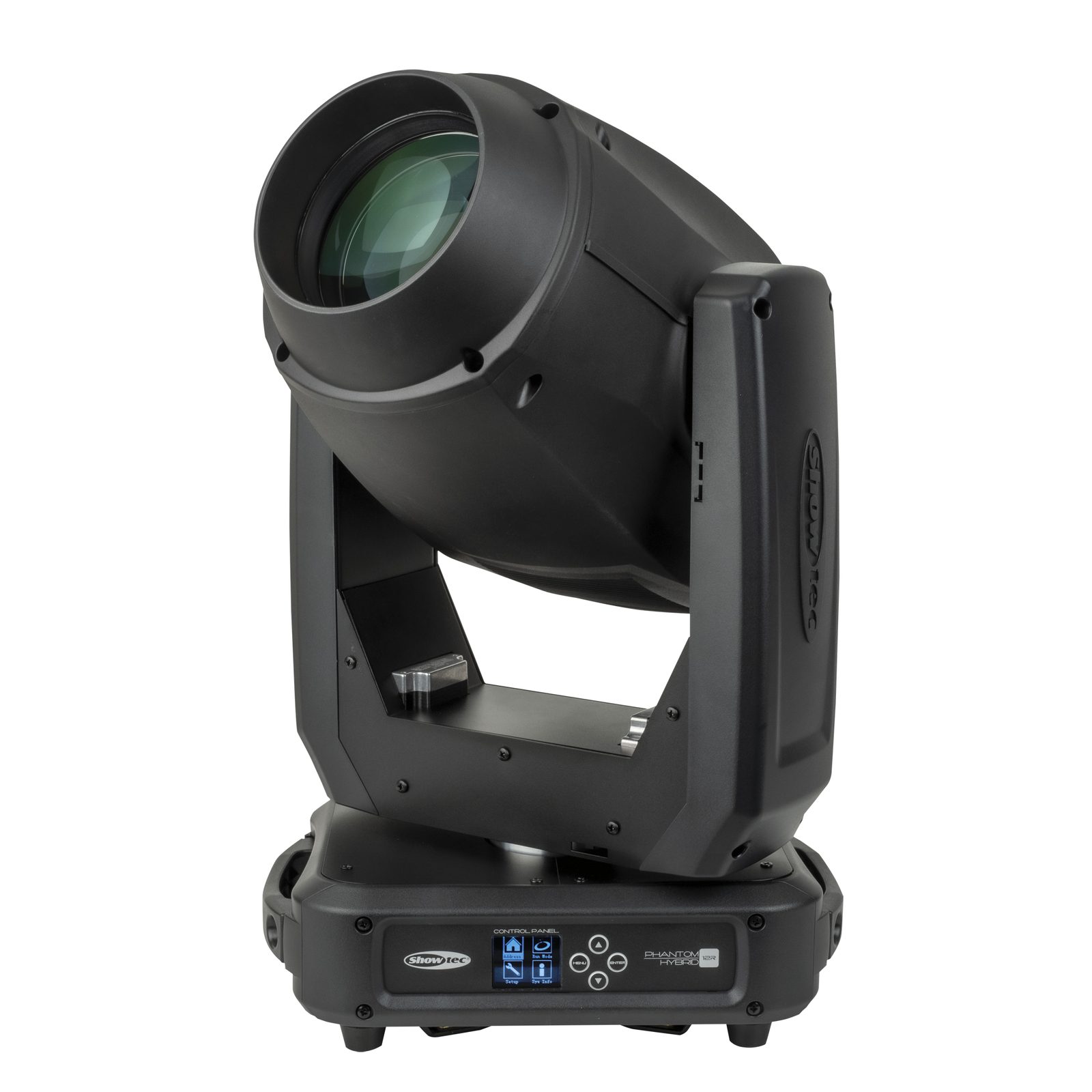

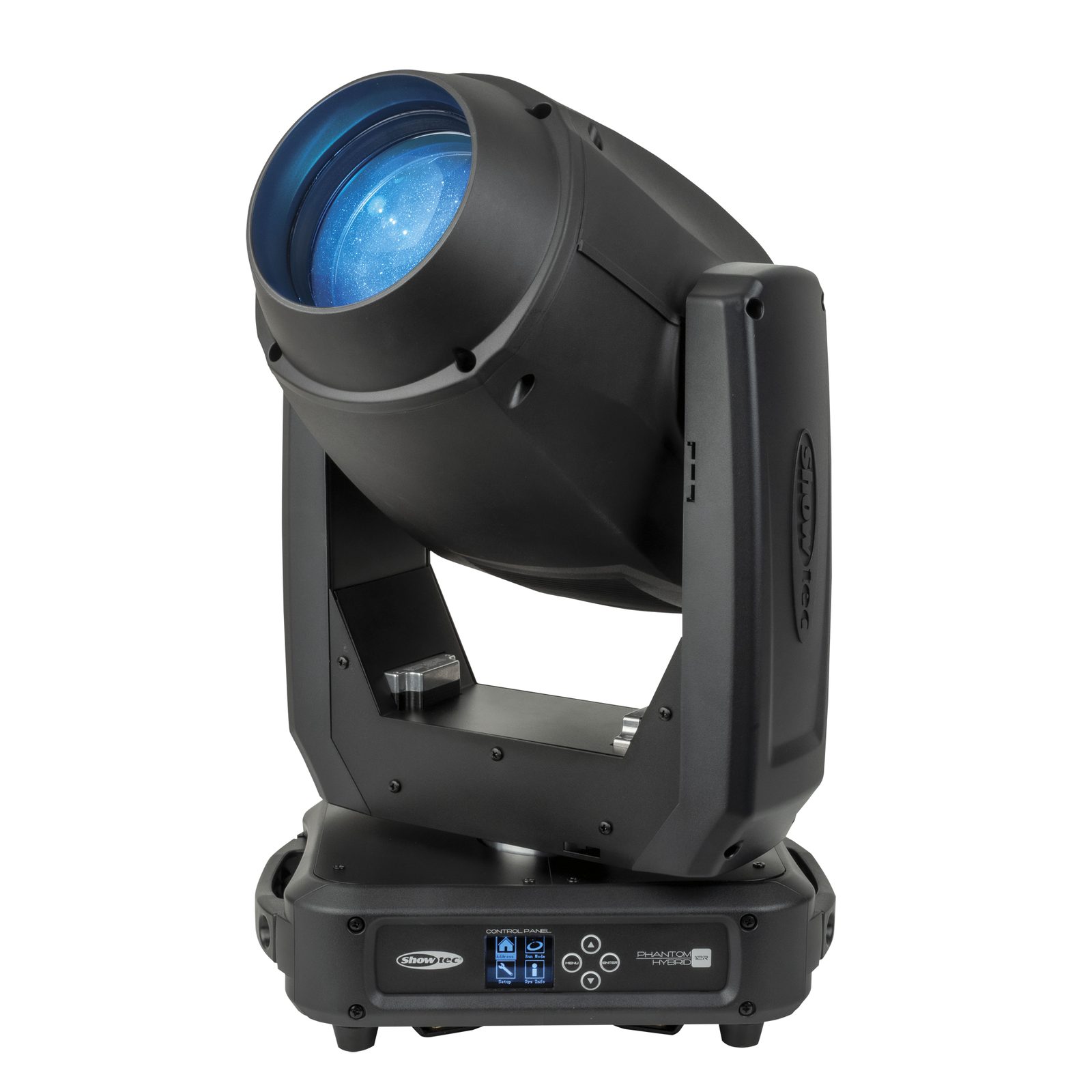

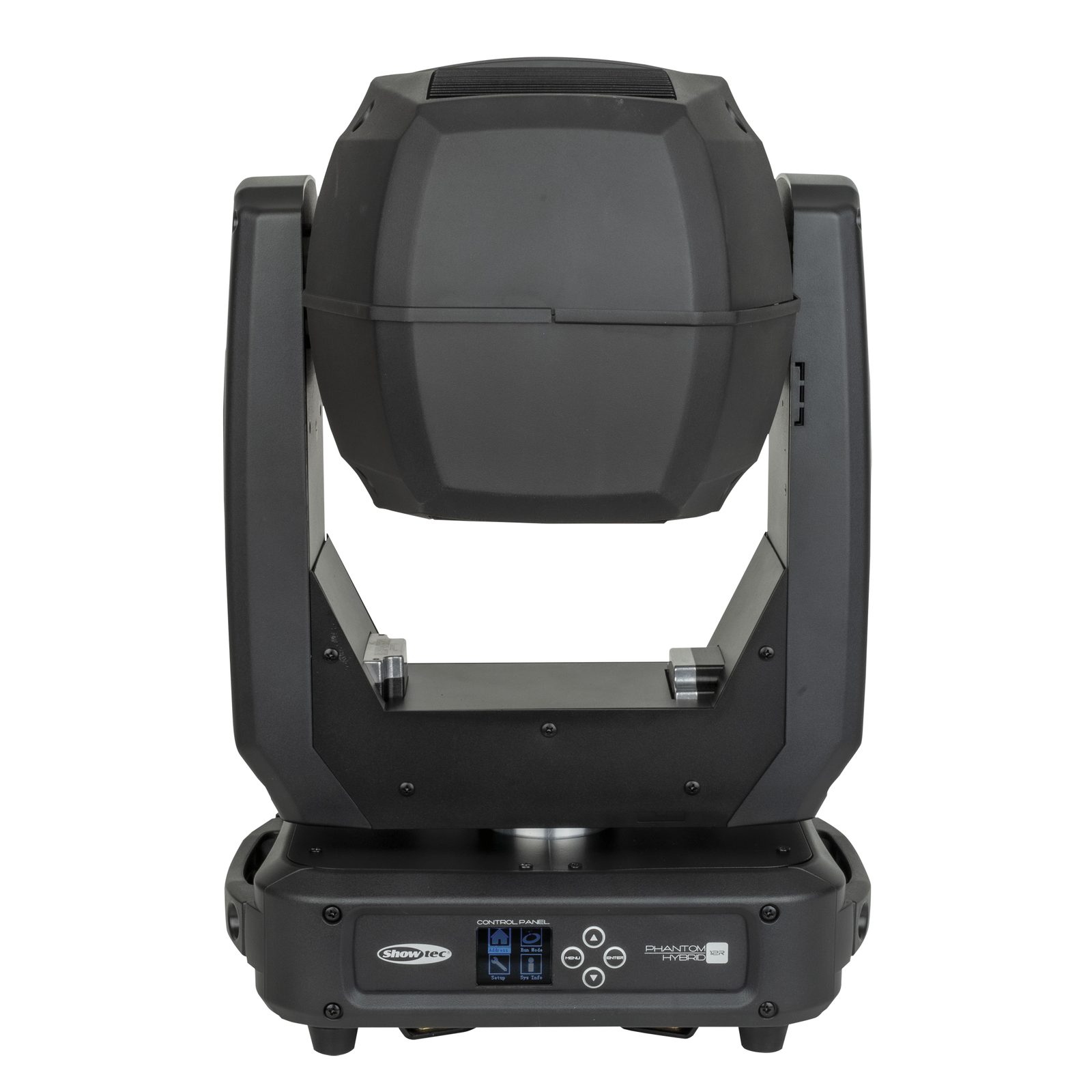

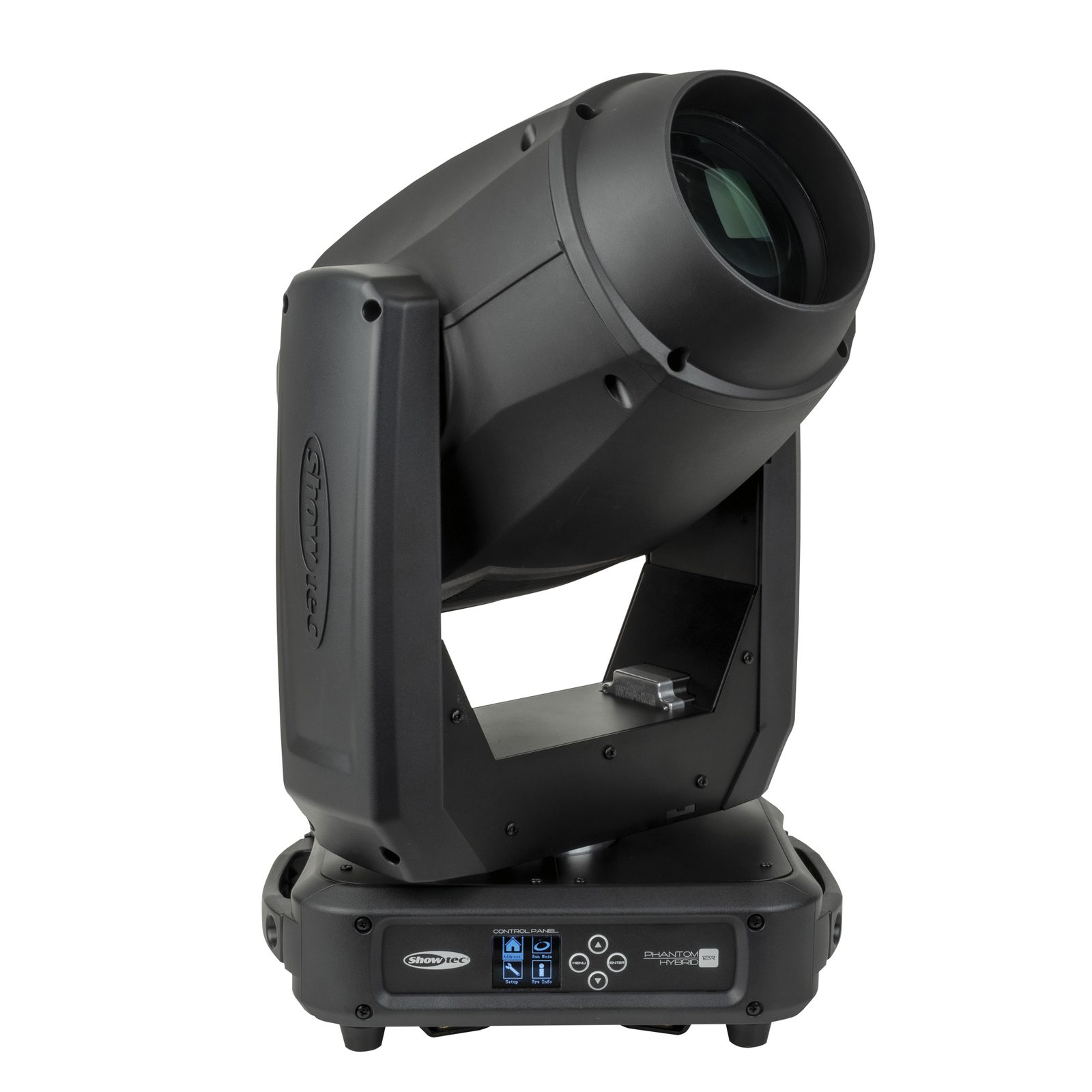

Moving head Hybrid Phantom 12R - Showtec 40080

Prezzo: 1.839,73 €
Tasse incluse
300 W Hybrid moving head
Condividi

The Showtec Phantom series offers a wide range of reliable and high performance moving light effects, consisting of various types of Moving Head fixtures (Spot, Wash, Beam, Hybrid, and Matrix FX) and a Moving Zoombar. They all look stylish and create amazing (dynamic) optical effects. Each Phantom fixture can be controlled manually but also has other control options, like DMX and Master/Slave. Phantom units are not only user-friendly, they also contribute to quick rigging on stage due to their lightweight and compact design with a Quick Lock Bracket system or one-clamp mount.

The Phantom series consists of a diverse range of moving show light units. Consider, for example, the Phantom Spots with a wide beam angle, which covers a large surface with colourful moving gobos. If you prefer a razor-sharp beam for events with a high energy level, then the Phantom 3R Beam is an excellent option in combination with smoke or mist. The Phantom 180 Wash offers yet another Moving Head effect, providing a soft edged output with four separately controllable sections and a wide adjustable beam angle, perfect for vivid colour-mixing on stage.

The Phantom Hybrid and Matrix FX are special units. The Hybrid is able to create Spot, Wash and Beam effects while the Matrix FX offers Individual Pixel Control (5 x 5) on which you can display detailed animations, such as characters and numbers.

Each fixture offers multiple control options, functionalities and effects. Also, optional dedicated flight cases are available for safe and easy transport. Contact us now for free advice and receive an offer you cannot refuse or check out our product pages for more information.

The Showtec Phantom Hybrid 12R is a bright and versatile 300 watt hybrid moving head for a seamless transition from Beam to Spot to Wash. With its wide motorised zoom (2.2° - 48.8 °), focus and frost, you can create versatile effects. Namely from a tight focused beam and a wide gobo projection to a soft wash effect.

The Phantom Hybrid 12R can create stunning visual effects since it is equipped with 17 fixed metal gobos and 8 removable rotating glass gobos + open. In addition, it has two prisms of 8 and 24 facets that can be used simultaneously for dynamic projections. All these effects can be displayed in 12 dichroic colours + white.

Despite the high-quality and versatile functionalities, the Phantom Hybrid 12R is very quick and easy to rig on stage. Namely, it's equipped with Quick-Lock brackets and you have the option to opt for a W-DMX connection (wireless).

Please be aware that you will need an external W-DMX module to use the wireless function. This is not included.

  • Bright 300 W Hybrid Moving Head
  • Wide motorised zoom with focus & frost
  • 17 static & 8 bi-rotating interchangeable gobos + open
  • 12 dichroic colours + white
  • Circular 8 & 24-facet prisms with overlay function
  • Including Quick-Lock brackets
  • W-DMX (wireless) optional
Light Source TypeDischarge
Light Source Quantity1
Light Source Power300 W
Life Expectancy1500 h
Luminous Flux (Total)8600 lm
CRI80
CCT7200 K
Source Warm-up Time5 min
Source Hot Restart Time5 min
Beam Angle Minimum (Circular)2.2°
Beam Angle Maximum (Circular)48.8°
Zoom TypeMotorised
FrostYes
FocusMotorised
Control ModeAuto / DMX / Manual / Master Slave / Sound
DMX Channels14 / 18
ProtocolsDMX
WirelessOptional
DisplayLCD
Dimmer0-100 %
Strobe0-15 Hz
ShutterYes
Prism 124-facet Circular
Prism 28-facet Circular
Prism OverlayYes
Prism Index & RotateYes
Colour SystemColour Wheel
Dichroic Colour Wheel 112 + Open
Gobo Wheel Index & RotateYes
Gobo Wheel 117 + Open
Gobo Wheel 28 + Open
Pan540°
Tilt270°
Pan/Tilt Resolution16-bit
Power Supply100-240 V AC 50/60 Hz
Power Consumption400 W
Power Connector InPower Pro Blue
Power Connector OutPower Pro Grey
DMX ConnectorXLR 3P In/Out
DMX Connector InXLR 3P
DMX Connector OutXLR 3P
Length (mm)323 mm
Width (mm)220 mm
Height (mm)550 mm
Weight16 kg
IP RatingIP20 (indoor use only)
HousingMetal / Plastic
ColourBlack
CoolingAxial fan
Mounting OptionsQuick-Lock
Safety AttachmentYes
Safety Eyes1
Maximum Ambient Temperature45 °C
Maximum Surface Temperature60 °C
Minimum Operating Temperature-5 °C
Minimum Distance to Objects10 m
Included CablesPower Pro Cable
Included RiggingQuick-Lock Bracket

  • Marca
  • Riferimento
    40080
  • In magazzino
    10 Articoli
  • ean13
    8717748516756
