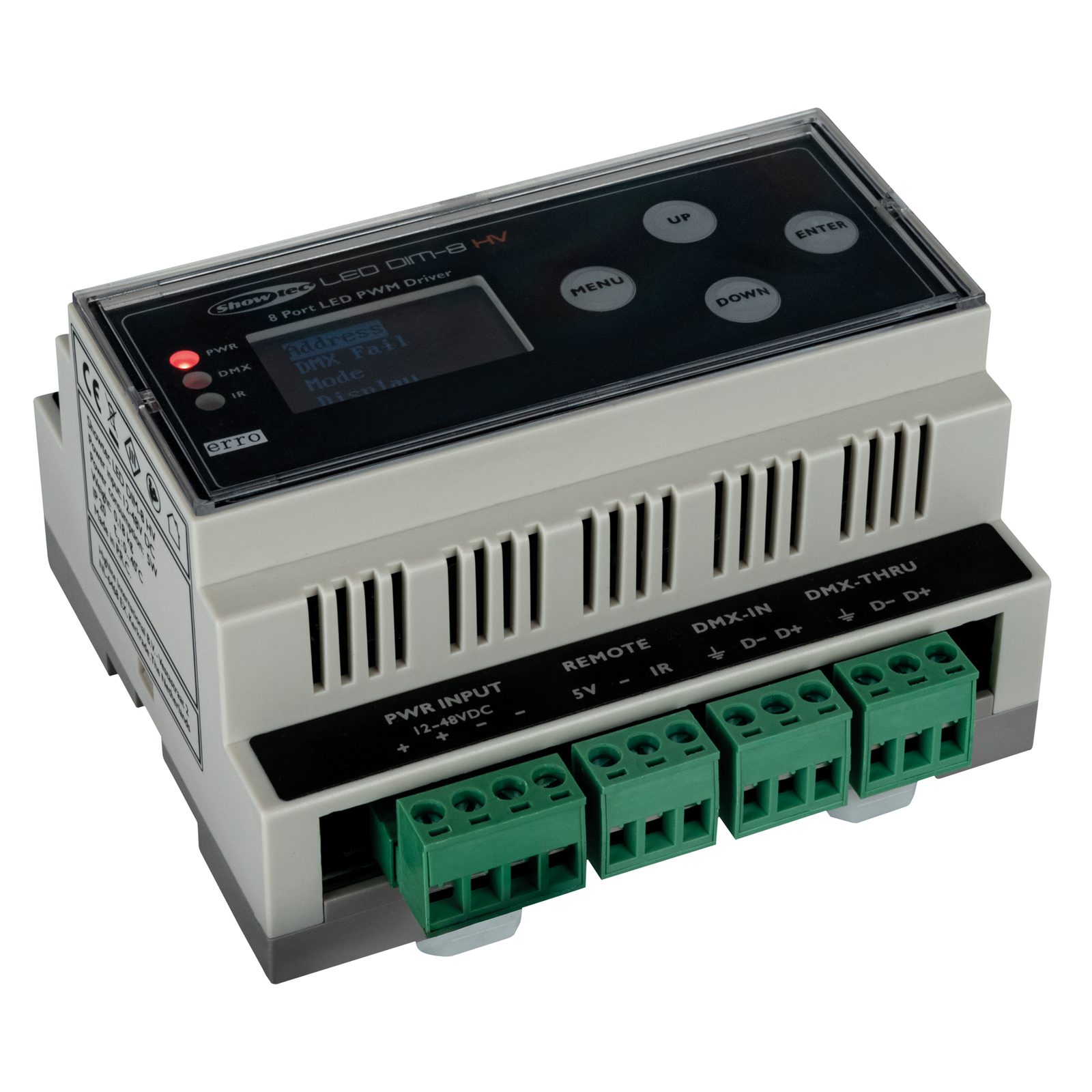

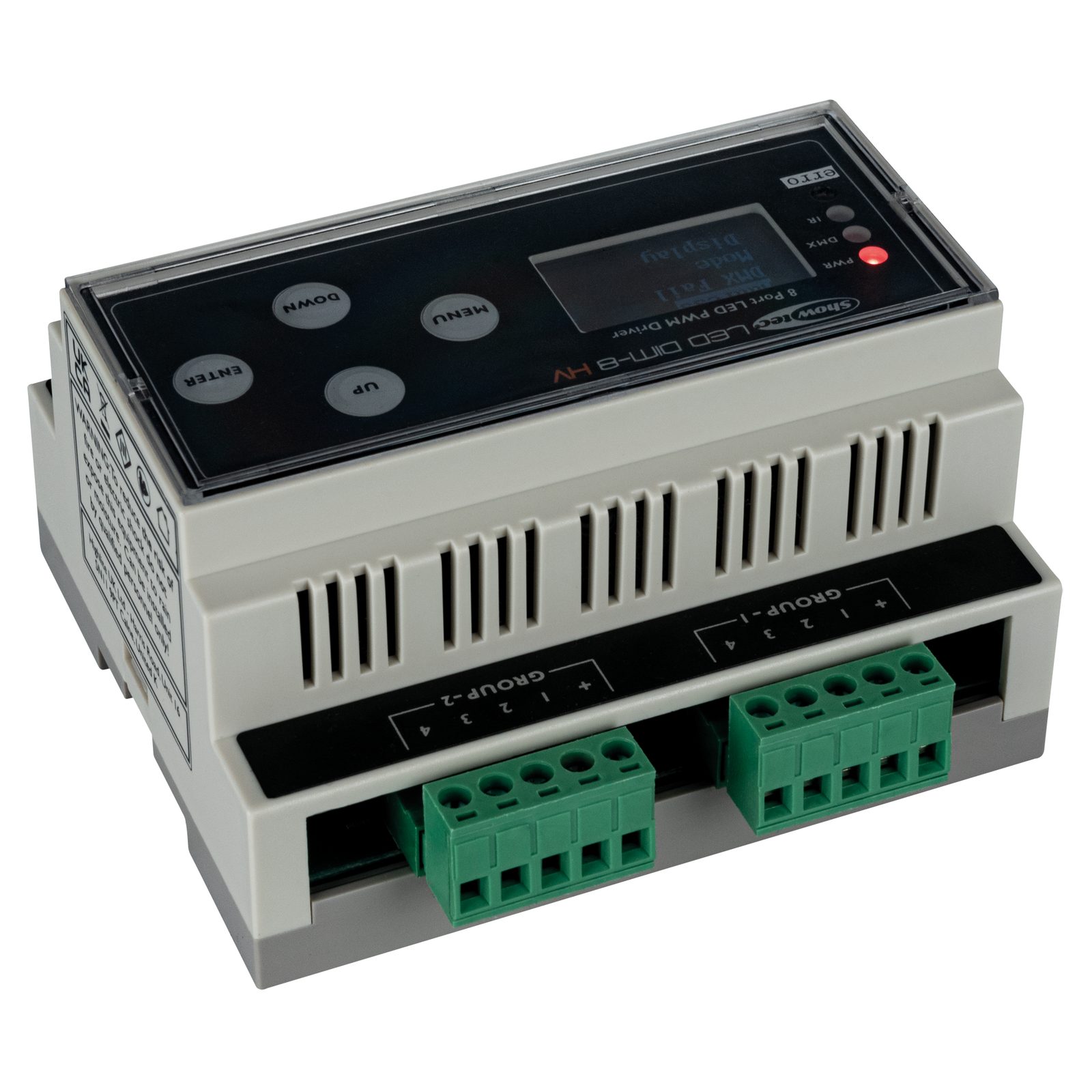

LED Dim-8 HV Dimmer PWM alta tensione per guida DIN - Showtec 50414

The Showtec LED Dim-8 HV is the high-voltage version of the Showtec LED Dim-8 Install and the ideal compact fixed installation PWM dimmer for long RGBW LED strips. It offers two groups of 4 outputs for RGBW control with a maximum output of 8A per group, 16A in total. All connections are easy to make using plug-in Phoenix terminals. The LED Dim-8 HV is very user-friendly and universally configurable for different LED strips. It can control 12 V to 48 V constant voltage strips via DMX or as a stand-alone controller for single scenes and chases. The user interface is very convenient with a high quality O-LED display. The DIN rail mounted LED Dim-8 is ideal for networked system integration projects.

• Wide input voltage range
• 2 PWM groups (RGBW)
• Selectable PWM frequency
• IR remote control available
• DIN EN43880 form factor
