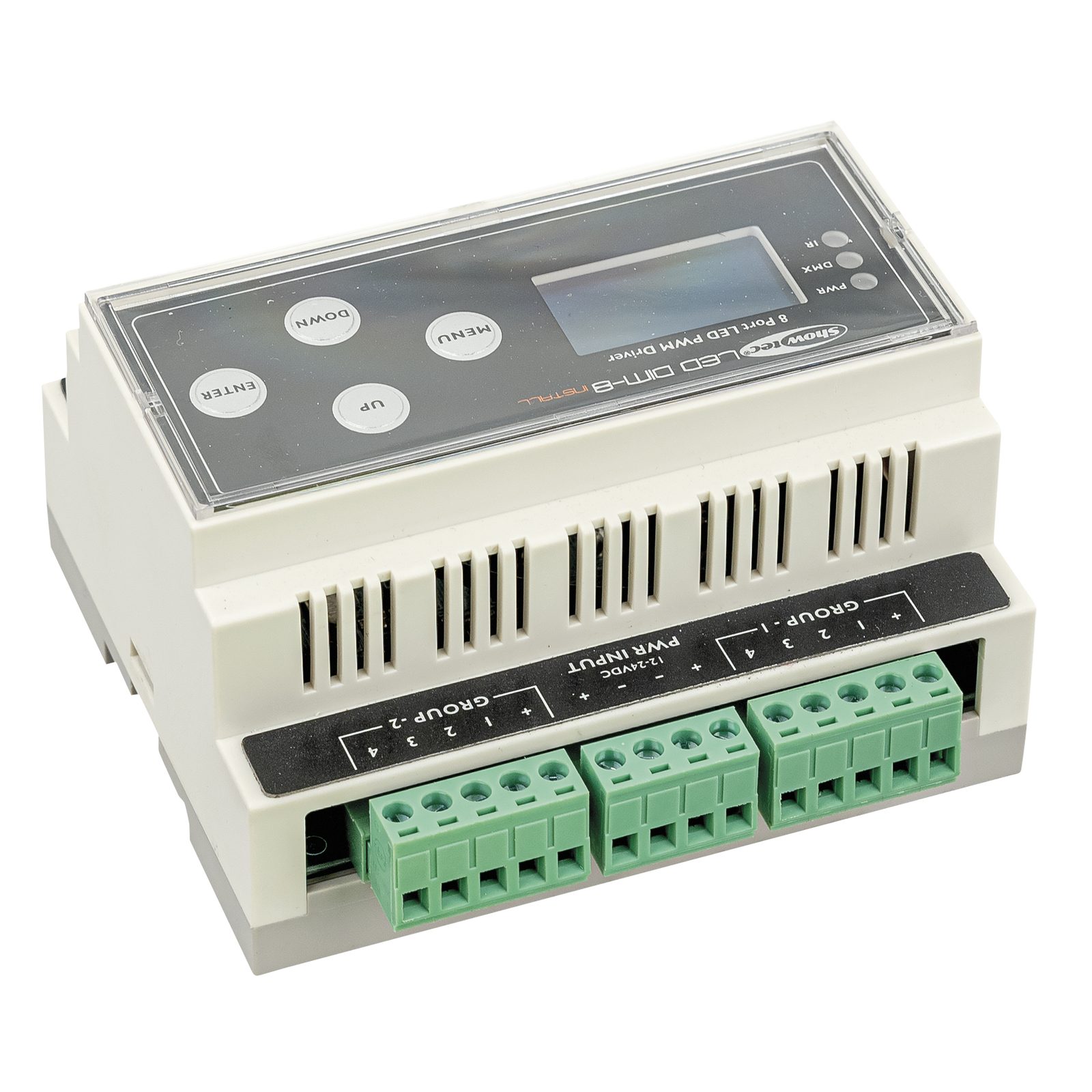

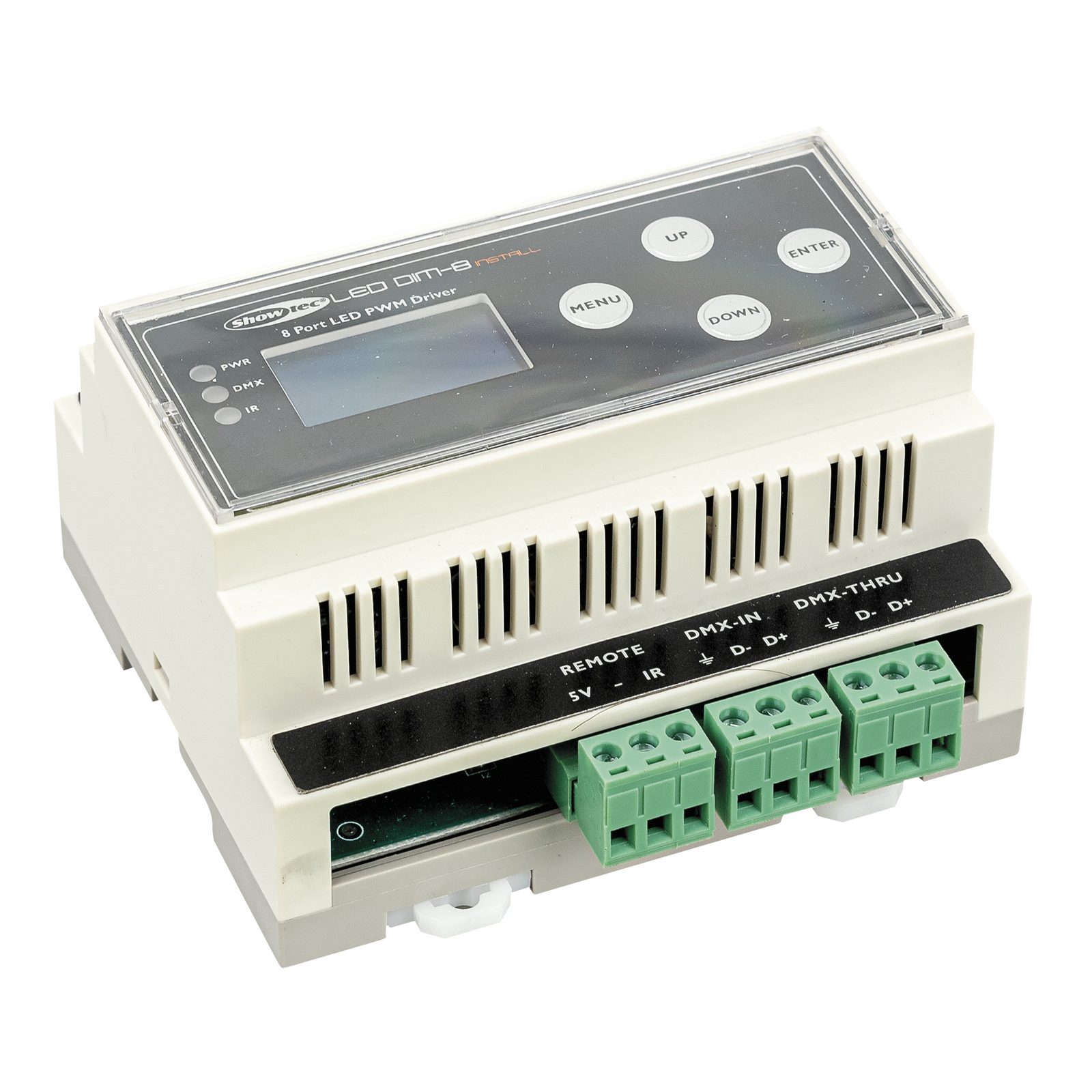

LED Dim-8 Install Dimmer PWM per guida DIN - Showtec 50413
LED Dim-8 Install Dimmer PWM per guida DIN - Showtec 50413
LED Dim-8 Install Dimmer PWM per guida DIN - Showtec 50413

LED Dim-8 Install Dimmer PWM per guida DIN - Showtec 50413

SHOWTEC
217,98 €
Tasse incluse
DIN rail
Condividi

The Showtec LED Dim-8 Install is the ideal compact fixed-installation PWM dimmer for you. All connections are easy connectable with the plug-in Phoenix terminals. The LED Dim-8 Install is very user friendly and universal configurable for various LED strips. It can control 12 V to 24 V constant voltage strips by DMX or used as stand-alone controller for single scene and chases. The user interface is very friendly due to high quality O-LED display. It can handle maximum 8 A single channel current and 25 A maximum total current. The din-rail mounted LED Dim-8 control your RGBW strips and is ideal for network system integration projects.

  • Wide range input voltage
  • 2 PWM Groups (RGBW)
  • Selectable PWM frequency
  • IR Remote control (50547)
  • DIN EN43880 form factor
  • DIN EN60715 rail system
Control ModeDMX / IR / Manual / Remote
DMX Channels8
Power Supply12-24 V DC
Output voltage12-24 V DC
Power Consumption5 W
Output Current (A)25 A
Power Connector InPhoenix
DMX Connector InPhoenix
DMX Connector OutPhoenix
Length (mm)106 mm
Width (mm)87 mm
Height (mm)58 mm
Weight0.18 kg
IP RatingIP20 (indoor use only)
HousingPlastic
ColourGrey
LED IndicatorsPower / Signal
DIN Rail Spacing35 mm
Maximum Ambient Temperature40 °C
Minimum Ambient Temperature0 °C
Minimum Operating Temperature0 °C

  • Marca
  • Riferimento
    50413
  • In magazzino
    10 Articoli
  • ean13
    8717748496966
