Single DP-1 1-Channel DMX Dimming/Switch Pack - Showtec 50396

Single DP-1 1-Channel DMX Dimming/Switch Pack - Showtec 50396

Name: Single DP-1 1-Channel DMX Dimming/Switch Pack - Showtec 50396
Brand: SHOWTEC
SKU: 50396
Price: 88.76 EUR
Availability: InStock

SHOWTEC

88,76 €

Tasse incluse

1-Channel DMX Dimming / Switch Pack

One channel DMX Dimming/Switch Pack

• 512 DMX-channels

• Wall / Truss mounting

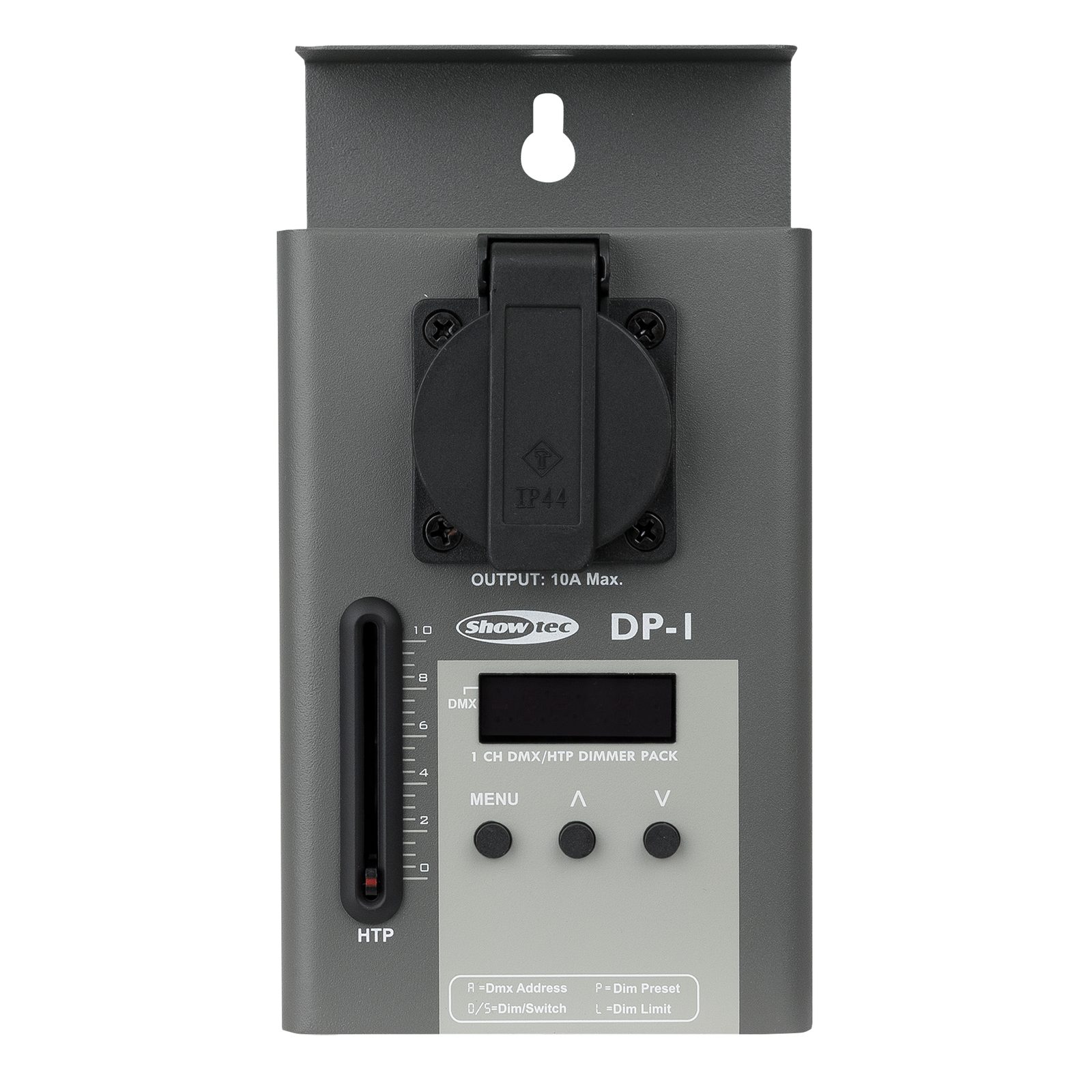

• 50 mm dimming slider

• Dim and switch

• Dimming pre-set

• Dimming limit

• Capacitive load 10 A, Inductive load 3 A.

50 mm dimming slider
Dim and switch function
DMX control
Capacitive load 10 A, Inductive load 3 A

Control Mode	DMX / Manual
DMX Channels	1
Power Supply	240 V AC 50/60 Hz
Power Consumption	2300 W
Output Current per Channel	10 A
Power Connector In	Schuko Plug
Power Connector Out	Schuko Socket, Type F

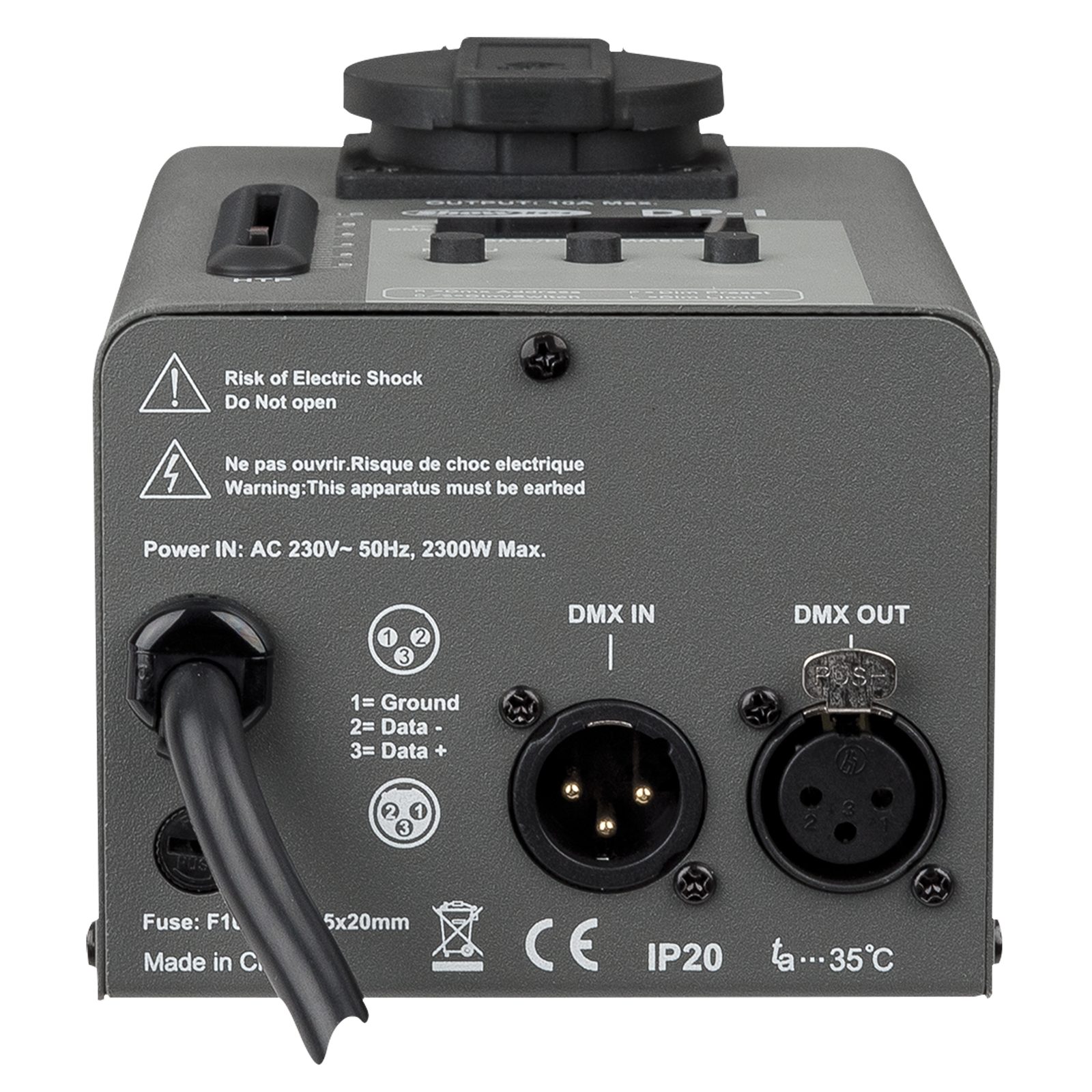

DMX Connector In	XLR 3P
DMX Connector Out	XLR 3P
Length (mm)	100 mm
Width (mm)	80 mm
Height (mm)	195 mm
Weight	1.4 kg
IP Rating	IP20 (indoor use only)
Housing	Metal
Colour	Grey
Maximum Ambient Temperature	40 °C
Minimum Ambient Temperature	-5 °C
Minimum Operating Temperature	0 °C
Included Cables	Fixed Cable
