Cameleon Bar 16 - Barra LED RGBW 16x5W IP65 39° - Showtec 42670
The Showtec Cameleon series offers IP65-rated Floodlights, Light-bars and Spots, from subtle pastels to punchy colours and clear whites, suitable for indoor and outdoor venues. The Cameleon fixtures are perfect for colour-mixing on stage and illuminating objects due to their DMX and Master/Slave controllable colour, dimming and strobe functions. Each Cameleon fixture has a compact, fancy design, a powerful output and offers silent (fanless) operation. They come with a quick rigging bracket and are all IP65 rated, ensuring the Cameleon adds colour to any rainy day.
Each projector offers multiple effects and is equipped with optional accessories to expand and improve functionalities. Contact us now for free advice and receive an offer you cannot refuse or check out our product pages for more information.

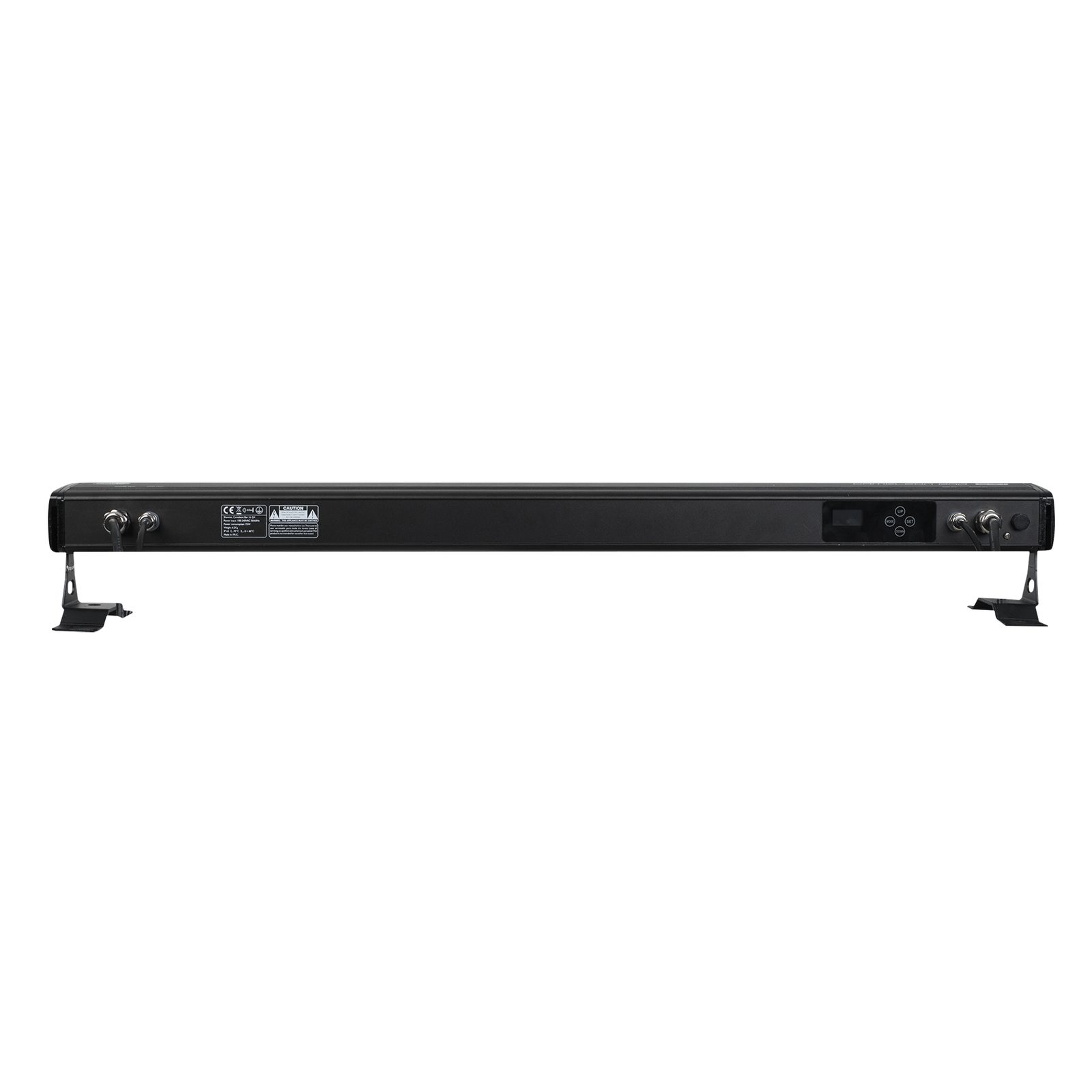

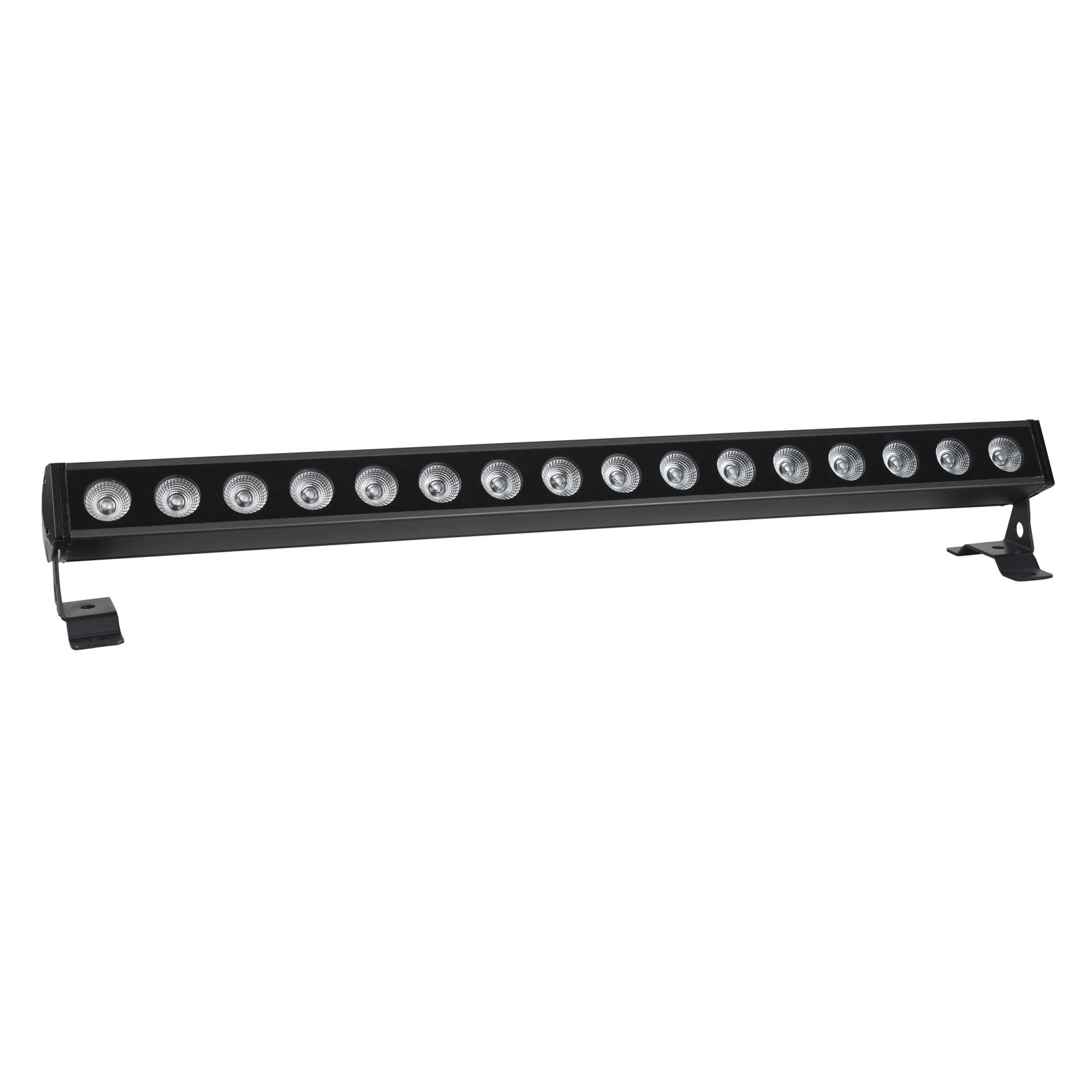

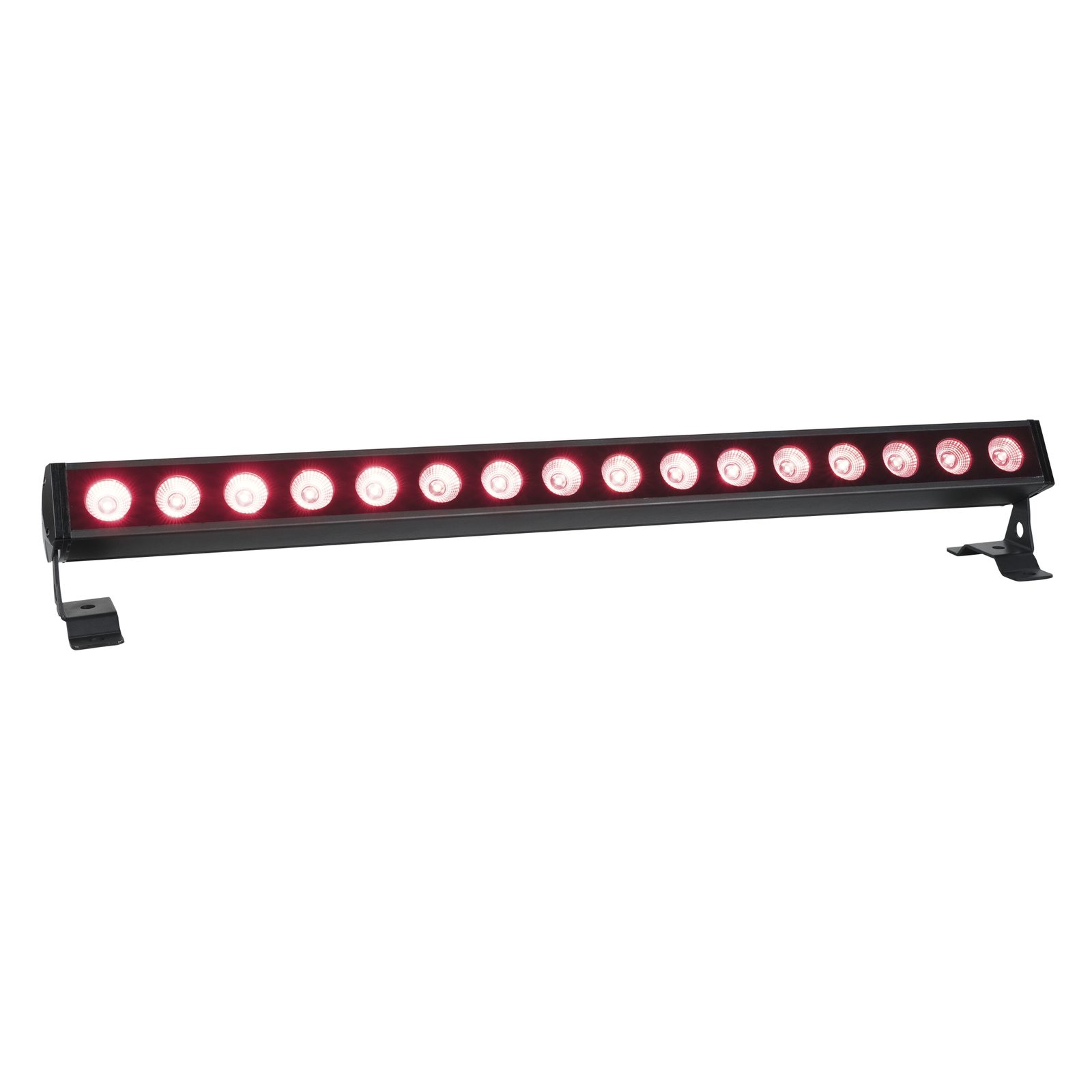

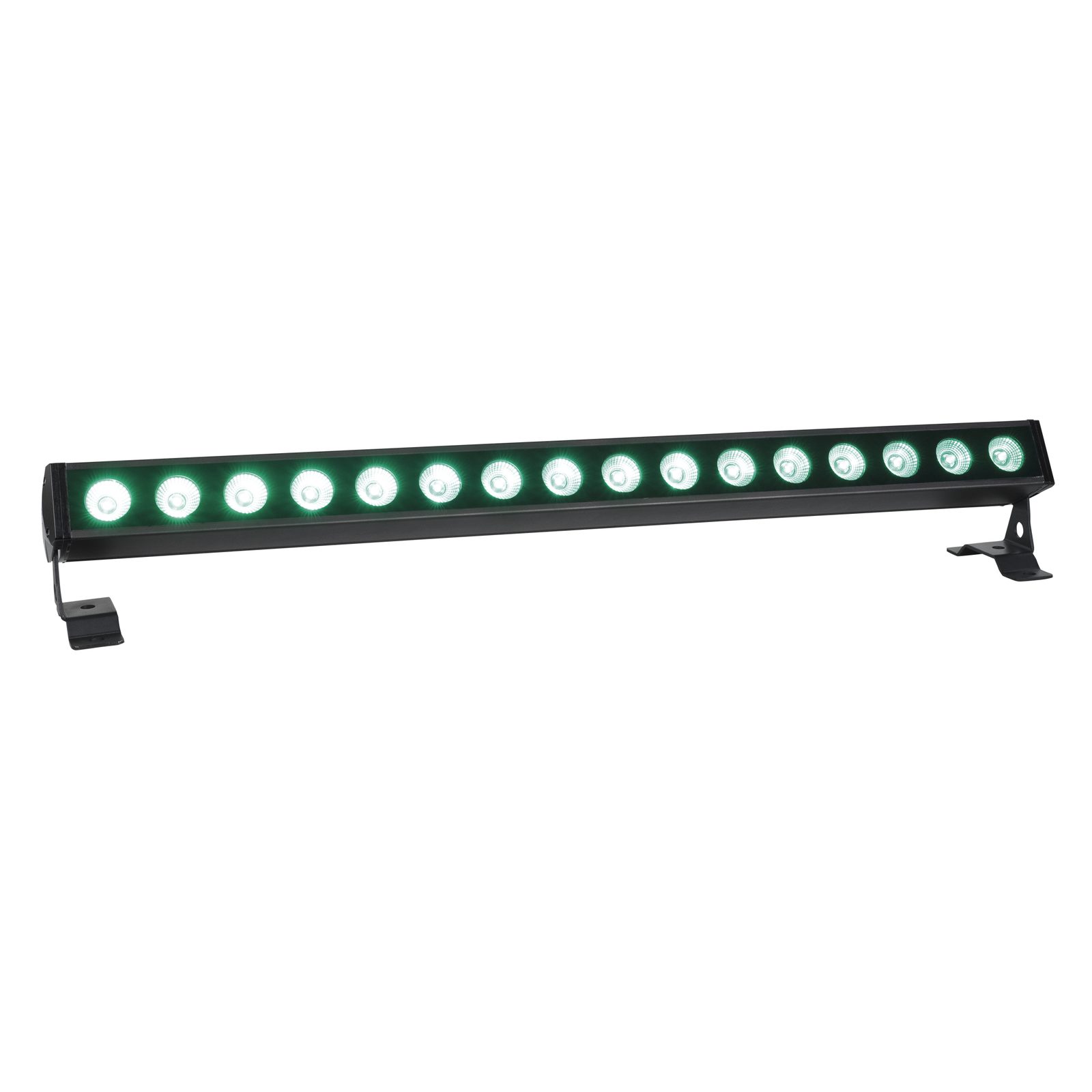

The Showtec Cameleon Bar 16 is a 16x 5 W RGBW LED Bar with IP65 rating, suitable for indoor and outdoor applications. It has a 39° fixed beam angle and features 0 - 100 % dimmer and 0 - 15 Hz strobe effects. The Cameleon Bar 16 can be controlled manually, via DMX, Master/Slave and IR Remote in either Manual or Auto run mode with many available built-in programs. It comes with a bracket for quick rigging. An infrared remote is optional.
- 16x 5 W RGBW LED Bar
- IP65 (dust and water resistant, suitable for outdoor use)
- 39° fixed beam angle
- Dimmer and strobe function
- Manual, DMX, IR and Master/Slave control
- Brackets and IP65 power connector included
| Light Source Type | LED |
|---|---|
| Light Source Quantity | 16 |
| Light Source Power | 5 W |
| LED Colour Type | RGBW |
| Drive Current | 3.5 A |
| Refresh Rate | 6000 Hz |
| Illuminance @ 2 m | 2966 lx |
| Luminous Flux (Total) | 2966 lm |
| Luminous Flux (Red) | 640 lm |
| Luminous Flux (Green) | 898 lm |
| Luminous Flux (Blue) | 282 lm |
| Luminous Flux (White) | 1287 lm |
| Beam Angle (Horizontal) | 39° |
| Beam Angle (Vertical) | 39° |
| Control Mode | Auto / DMX / Master Slave |
| DMX Channels | 4 / 5 / 6 / 9 |
| Protocols | DMX / RDM |
| Display | OLED |
| Dimmer | 0-100 % |
| Strobe | 0-15 Hz |
| Power Supply | 100-240 V AC 50/60 Hz |
| Power Consumption | 75 W |
| Power Connector In | Dedicated IP65 Powerconnection |
| Power Connector Out | Dedicated IP65 Powerconnection |
| DMX Connector | Dedicated 3P IP65 In/Out |
| DMX Connector In | Dedicated 3P IP65 |
| DMX Connector Out | Dedicated 3P IP65 |
| Length (mm) | 1002 mm |
| Width (mm) | 72 mm |
| Height (mm) | 142 mm |
| Weight | 6.2 kg |
| IP Rating | IP65 |
| Housing | Aluminium die-cast |
| Colour | Black |
| Maximum Ambient Temperature | 40 °C |
| Minimum Operating Temperature | 0 °C |
| Cooling | Convection |
| Mounting Options | Bracket |
| Safety Attachment | Yes |
| Included Cables | Dedicated IP65 Powerconnection |
| Included Rigging | Bracket |
