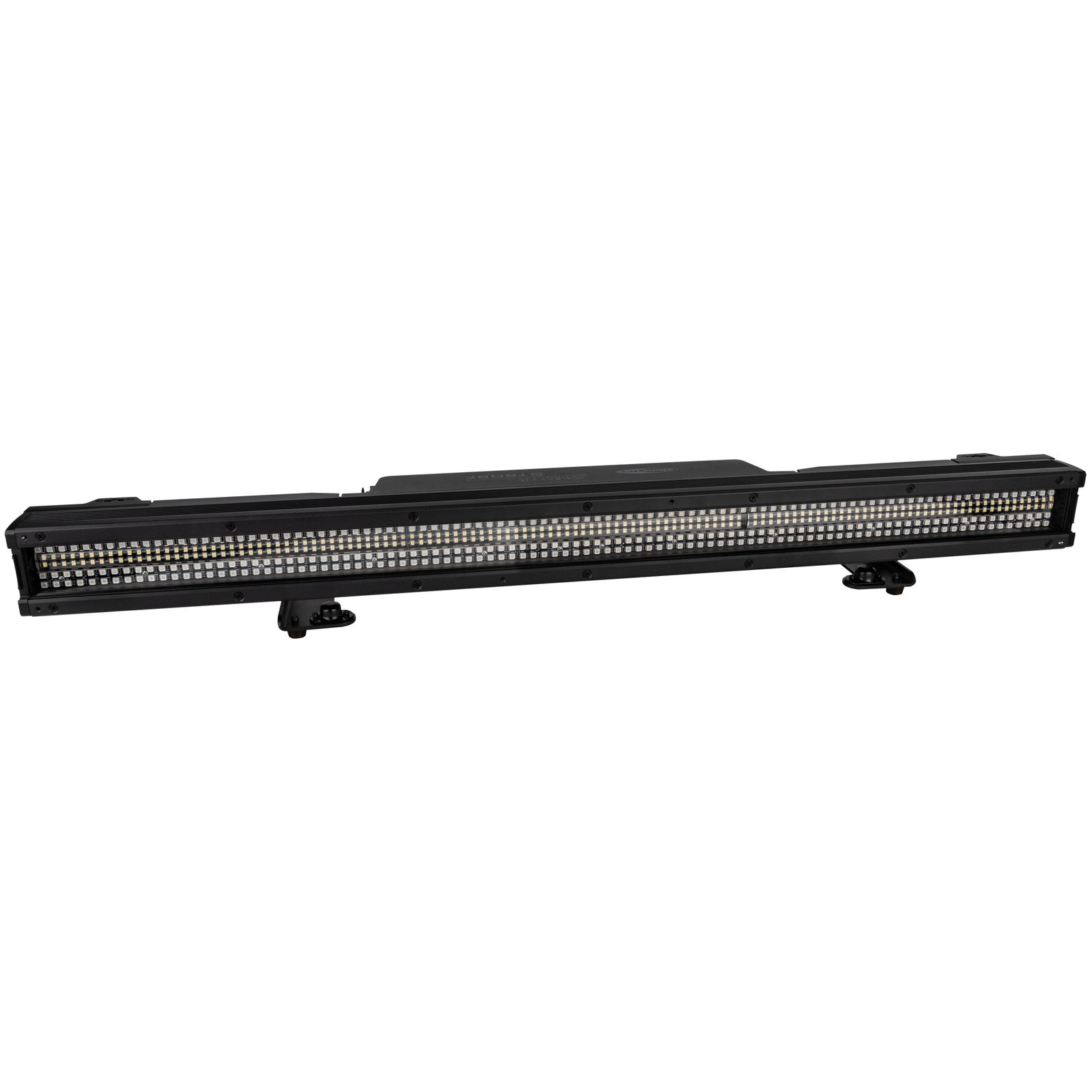

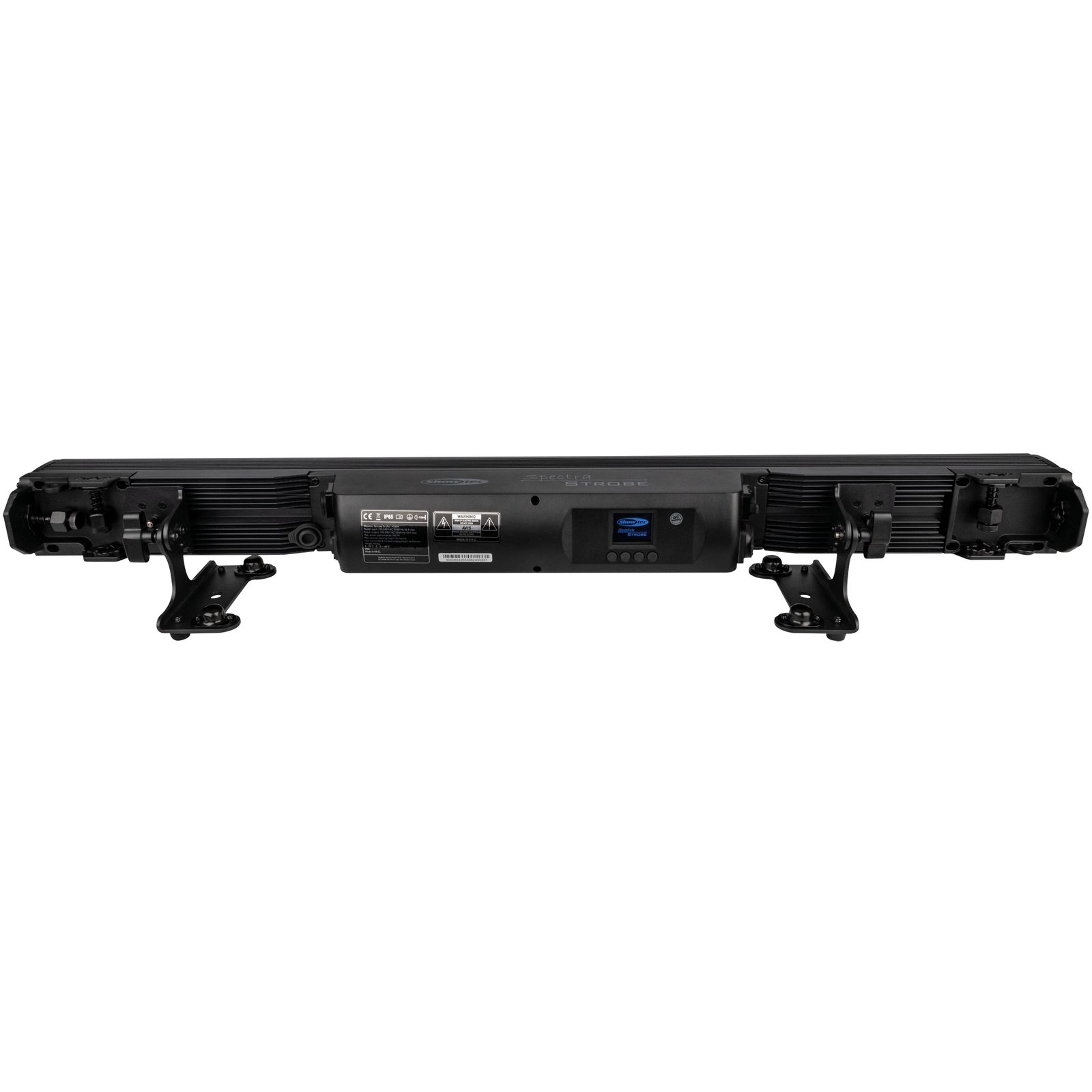

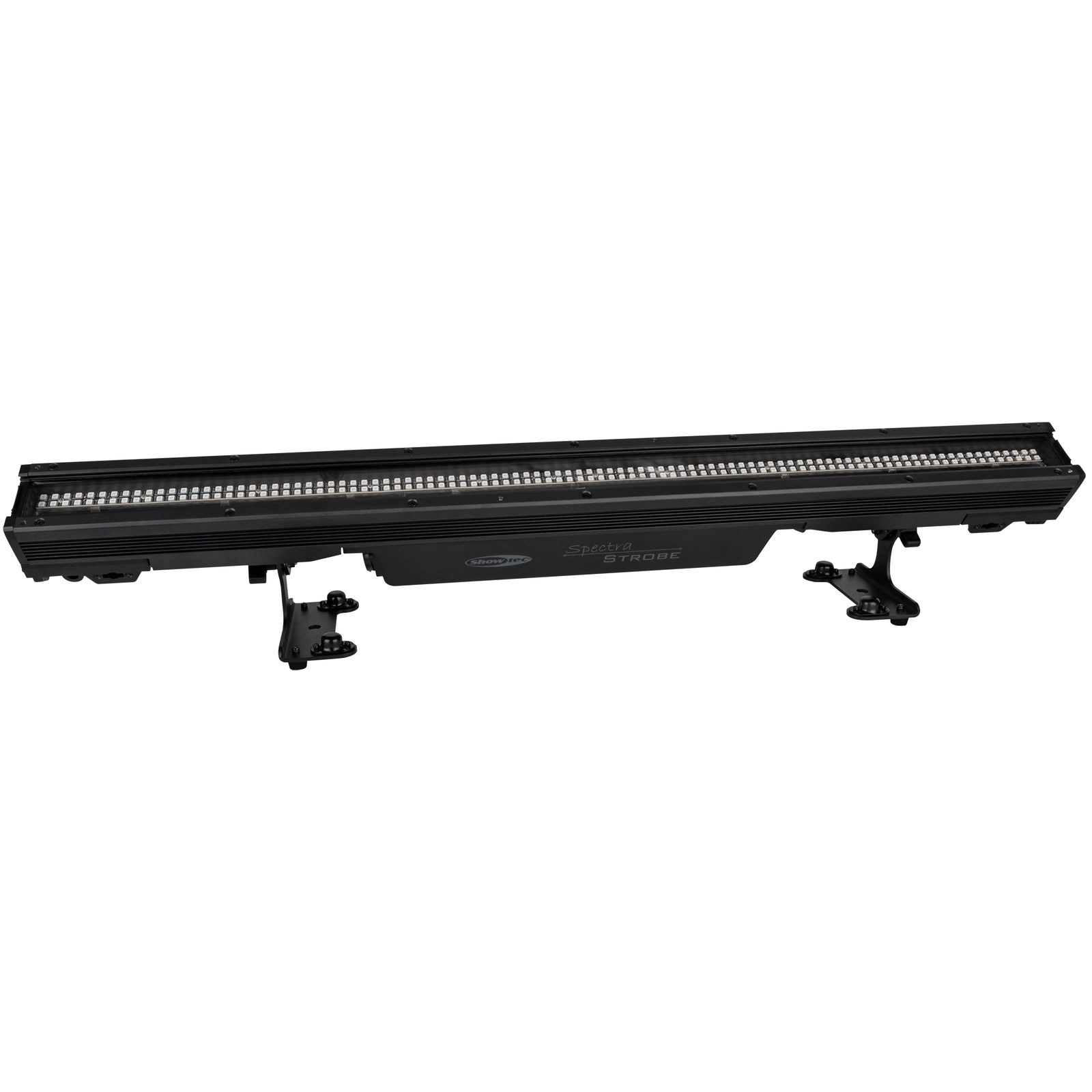

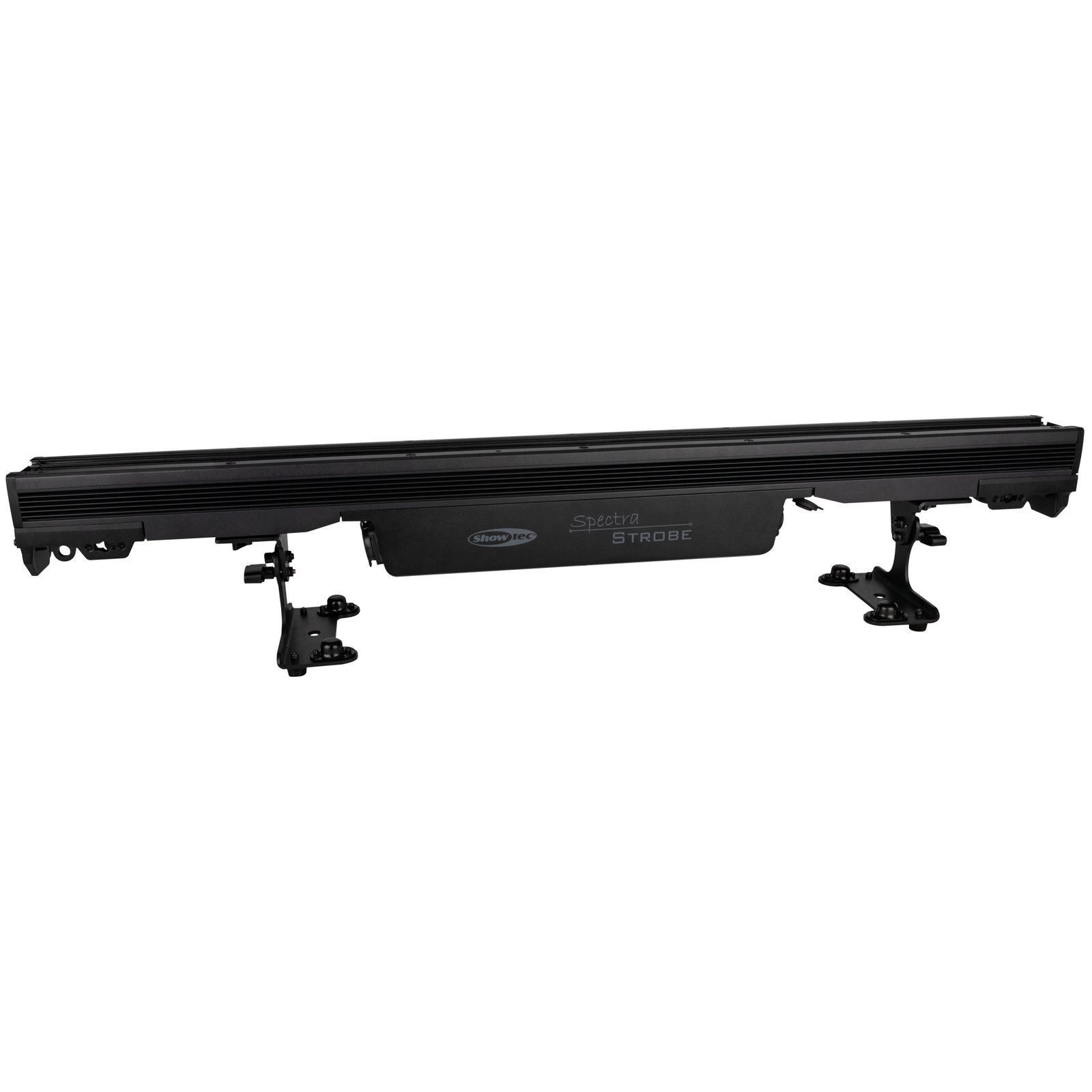

Spectra Strobe 1m IP65 - Showtec 42654
The Showtec Spectra Strobe is a 1-metre-long, IP65-rated strobe bar for temporary outdoor use. It has 360 1W white LEDs and 384 0.5W RGB LEDs to create powerful and colourful flash and wash effects. It allows you to control 12 sections of white LEDs and 24 sections of RGB LEDs via DMX. The LED bar has a wide beam angle. The optionally available beam shapers enable you to change the beam angle to 15°, 25° or 10° x 40°.
The Spectra Strobe runs stand-alone with multiple built-in presets and effects, in master/slave mode and in 3-, 9-, 21-, 35-, 49- and 91-channel DMX mode with RDM support. The quick lock system allows you to easily connect multiple units in horizontal or vertical direction, or suspend the LED bar horizontally under a truss. For vertical mounting the optional Vertical Bracket for Showtec Spectra series is required. With the optional Base Plate for Showtec Spectra series and one Vertical Bracket you can stack up to two Spectra fixtures vertically on the stage floor. It is also possible to stack two LED bars or attach them to the Showtec Spectra Wash using the quick lock system. Two quick lock brackets and a Power Pro True cable are included. Barndoors are available as an option.
- 360x 1W white LED, 384x RGB LED
- IP65-rated for temporary outdoor use
- DMX (RDM), stand-alone and master/slave modes
- Optional beam shapers (15°, 25°, 10° x 40°) and barndoors
| Light Source Type | LED |
|---|---|
| Light Source Quantity | 384 |
| Light Source Power | 0.5 W |
| LED Colour Type | RGB |
| Refresh Rate | 12400 Hz |
| Luminous Flux (Total) | 0 lm |
| LED Strobe Quantity | 360 |
| LED Strobe Power | 1 W |
| Beam Angle (Horizontal) | 0° |
| Beam Angle (Vertical) | 0° |
| Control Mode | Built-in Program / DMX / Manual / Stand Alone |
| DMX Channels | 3 / 9 / 21 / 35 / 49 / 91 |
| Protocols | DMX / RDM |
| Display | LCD |
| Dimmer | 0-100 % |
| Strobe | 0-20 Hz |
| Power Supply | 100-240 V AC 50/60 Hz |
| Power Consumption | 362 W |
| Power Connector In | Power Pro True |
| Power Connector Out | Power Pro True |
| DMX Connector In | XLR 5P |
| DMX Connector Out | XLR 5P |
| Length (mm) | 1025 mm |
| Width (mm) | 140 mm |
| Height (mm) | 192 mm |
| Weight | 9.5 kg |
| IP Rating | IP65 |
| Housing | Aluminium die-cast |
| Colour | Black |
| Maximum Ambient Temperature | 40 °C |
| Minimum Operating Temperature | -5 °C |
| Cooling | Passive |
| Mounting Options | Baseplate / Bracket / Quick-Lock |
| Safety Attachment | Yes |
| Included Cables | Power Pro True Cable |
| Included Rigging | Quick-Lock Bracket |
