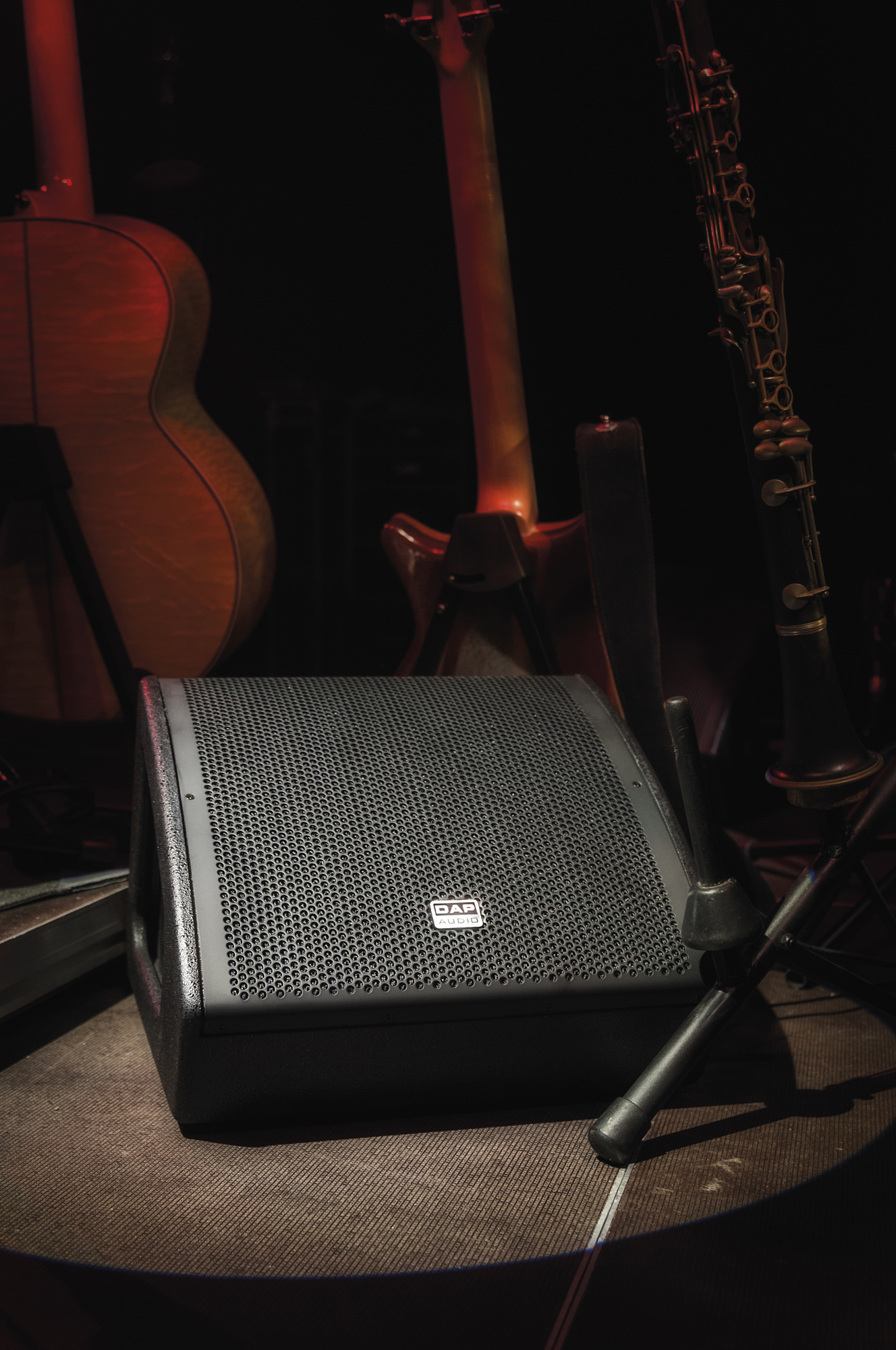

The DAP M10 is an active floor monitor with a 10-inch woofer and a total power of 415 watt, especially built to amplify sounds on stage. It features a 60° wedge design and a coaxial speaker for transparent and direct 'in your face' sound with consistent coverage. The powerful Class D amplifier provides good sound quality, even at a high volume.

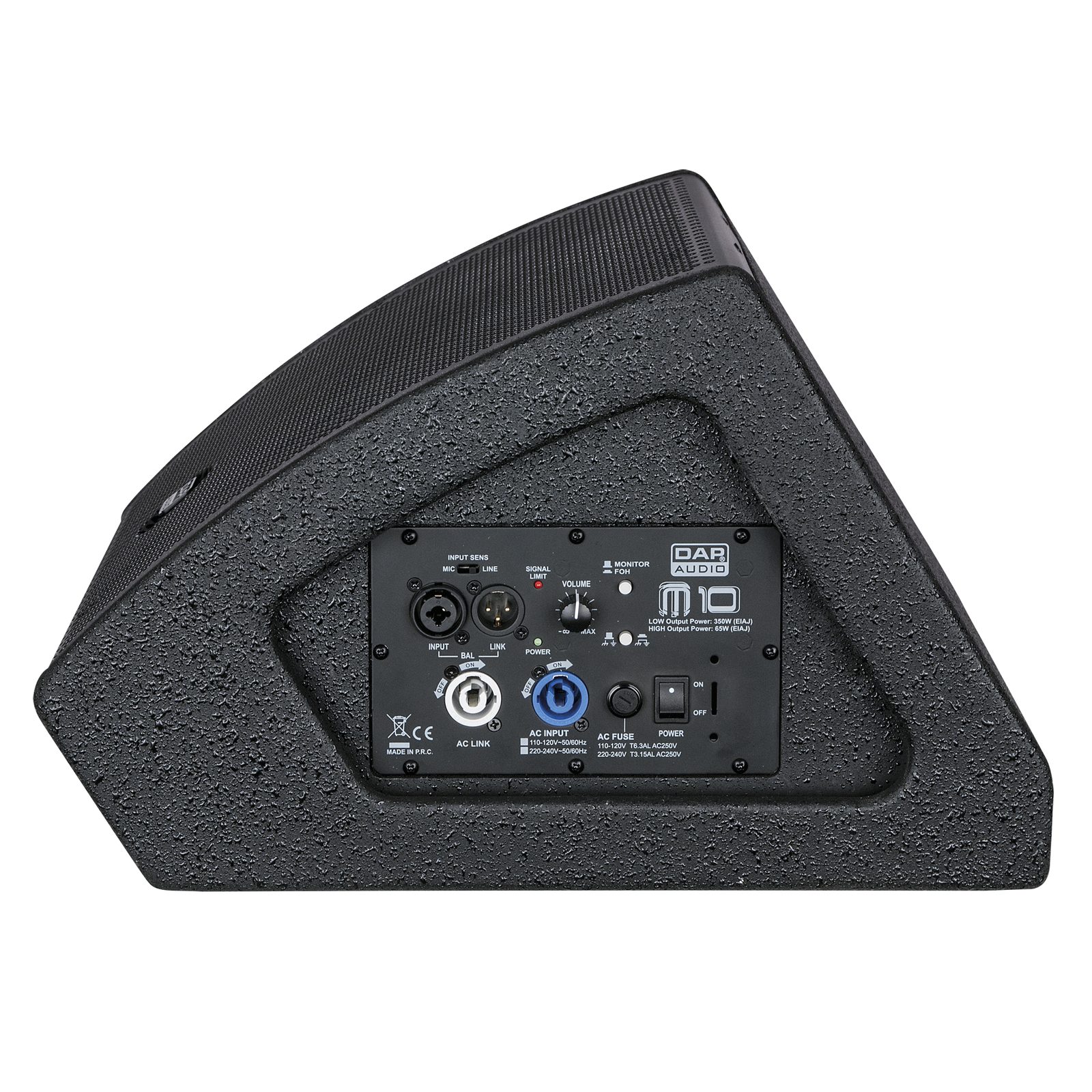

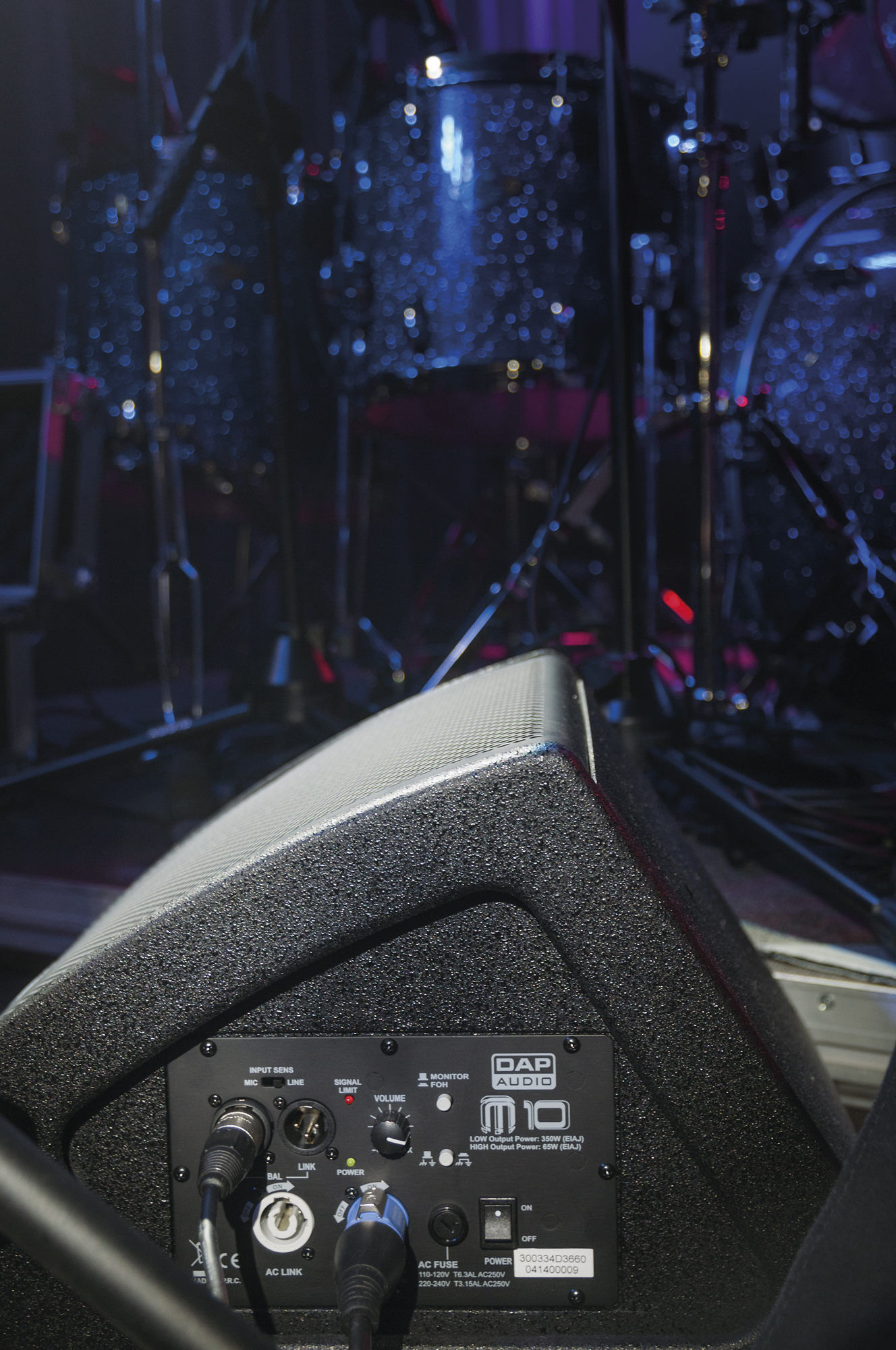

The built-in amplifier of the M10 has an XLR/Jack input connector, XLR line output connector and powerCON in and through connector. It's equipped with a volume control, EQ preset selector, ground switch and AC fuse for adjusting the sound and output level.
Integrated handles protect the recessed amplifier and connectors from getting damaged and makes it a very easy-to-handle floor monitor, even in the toughest stage environments.
- 415 W RMS, max SPL of 126 dB at 1 m
- Class D amplifier
- Compact and lightweight
- Easy daisy chain with XLR and powerCON
- Stage proof design with rugged metal protective speaker grill
| Low Driver Power | 350 W |
|---|
| High Driver Power | 65 W |
|---|
| Power Amplifier RMS Output | 415 W |
|---|
| Main Outputs | 1 |
|---|
| Main Output Connector | 3-pin XLR |
|---|
| Mono Inputs | 1 |
|---|
| Mono Input Connector | 3-pin XLR / TRS balanced 6.3 mm |
|---|
| THD Level % | < 0.5 % |
|---|
| Signal-to-noise Ratio | > 90 dB |
|---|
| Amp Technology | Class D |
|---|
| Damping Factor | 200 :1 |
|---|
| Speaker System | 2-way |
|---|
| Speaker Sensitivity (1 W/1 m) | 97 dB |
|---|
| Maximum SPL at 1 m | 126 dB |
|---|
| Frequency Response Minimum | 70 Hz |
|---|
| Frequency Response Maximum | 20000 Hz |
|---|
| Frequency Response (-10 dB) Minimum | 70 Hz |
|---|
| Frequency Response (-10 dB) Maximum | 20000 Hz |
|---|
| Woofer Diameter | 10" |
|---|
| Woofer Voice Coil Diameter | 2.5" |
|---|
| Woofer Magnet Type | Ferrite |
|---|
| Compression Driver Diameter | 1" |
|---|
| Compression Driver Voice Coil | 1" |
|---|
| Compression Driver Magnet Type | Neodymium |
|---|
| Dispersion Angle (Horizontal) | 70° |
|---|
| Dispersion Angle (Vertical) | 70° |
|---|
| BT | No |
|---|
| Power Supply | 100-240 V AC 50/60 Hz |
|---|
| Power Consumption | 80 W |
|---|
| Fuse | 3.15 A |
|---|
| Power Connector In | powerCON Blue |
|---|
| Power Connector Out | powerCON Grey |
|---|
| Amplifier Cooling | Axial fan |
|---|
| Height (mm) | 278 mm |
|---|
| Width (mm) | 364 mm |
|---|
| Depth (mm) | 430 mm |
|---|
| Material | Wood |
|---|
| Material Thickness | 15 mm |
|---|
| Colour | Black |
|---|
| Finish | Painted |
|---|
| Weight | 11.4 kg |
|---|
| IP Rating | IP20 (indoor use only) |
|---|

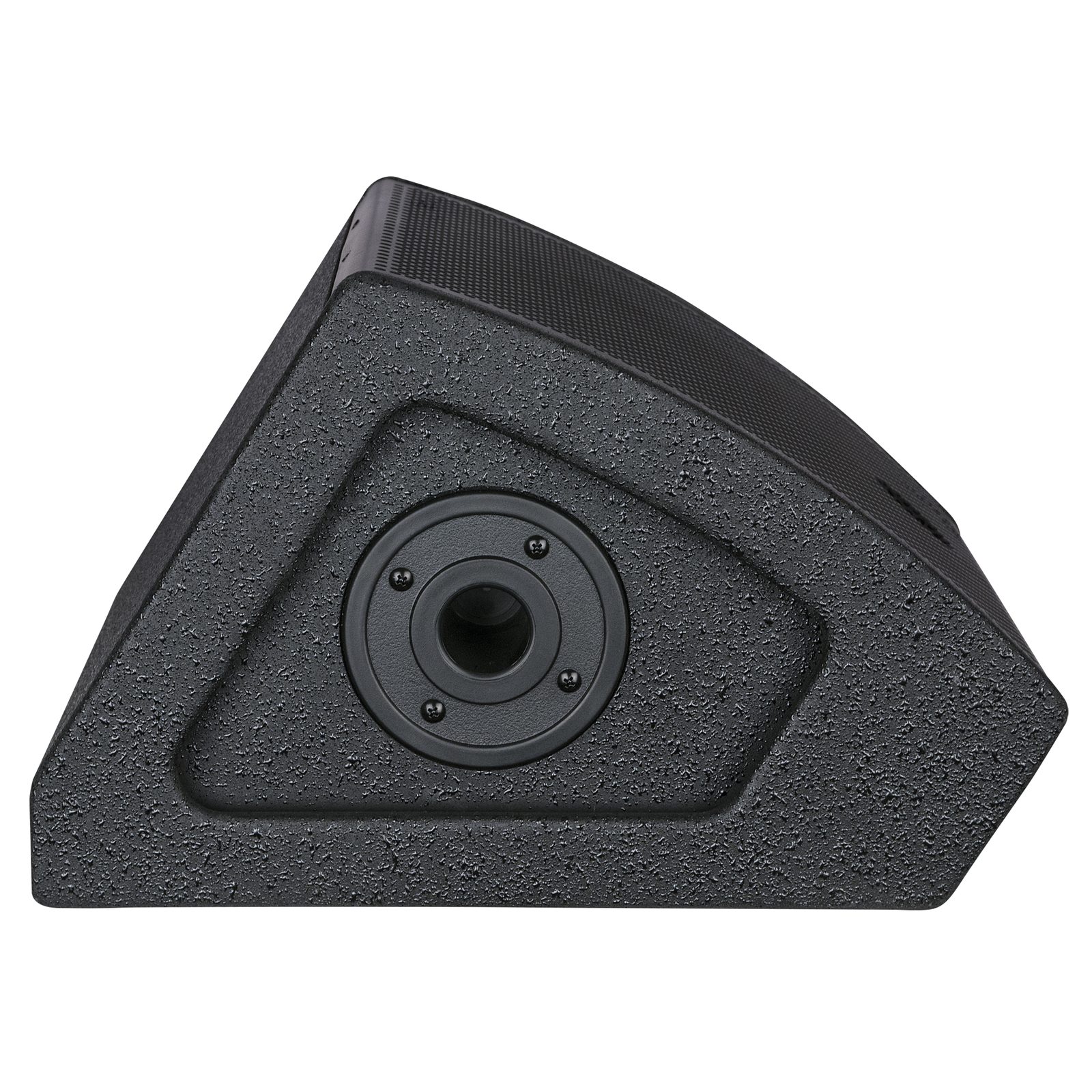

| Pole Mount | 35 mm |
|---|
| Electronic Protection | Clip limiter (fixed) / Convection-fan / DC voltage / Thermal |
|---|
| LED Indicators | Clip / Power |
|---|
| Rotatable Horn | No |
|---|
| Useable as Monitor/Wedge | Yes |
|---|
| Speaker Grille Material | Steel |
|---|
| Speaker Handle Positions | Left side / Right side |
|---|
| Included Cables | powerCON cable |
|---|
