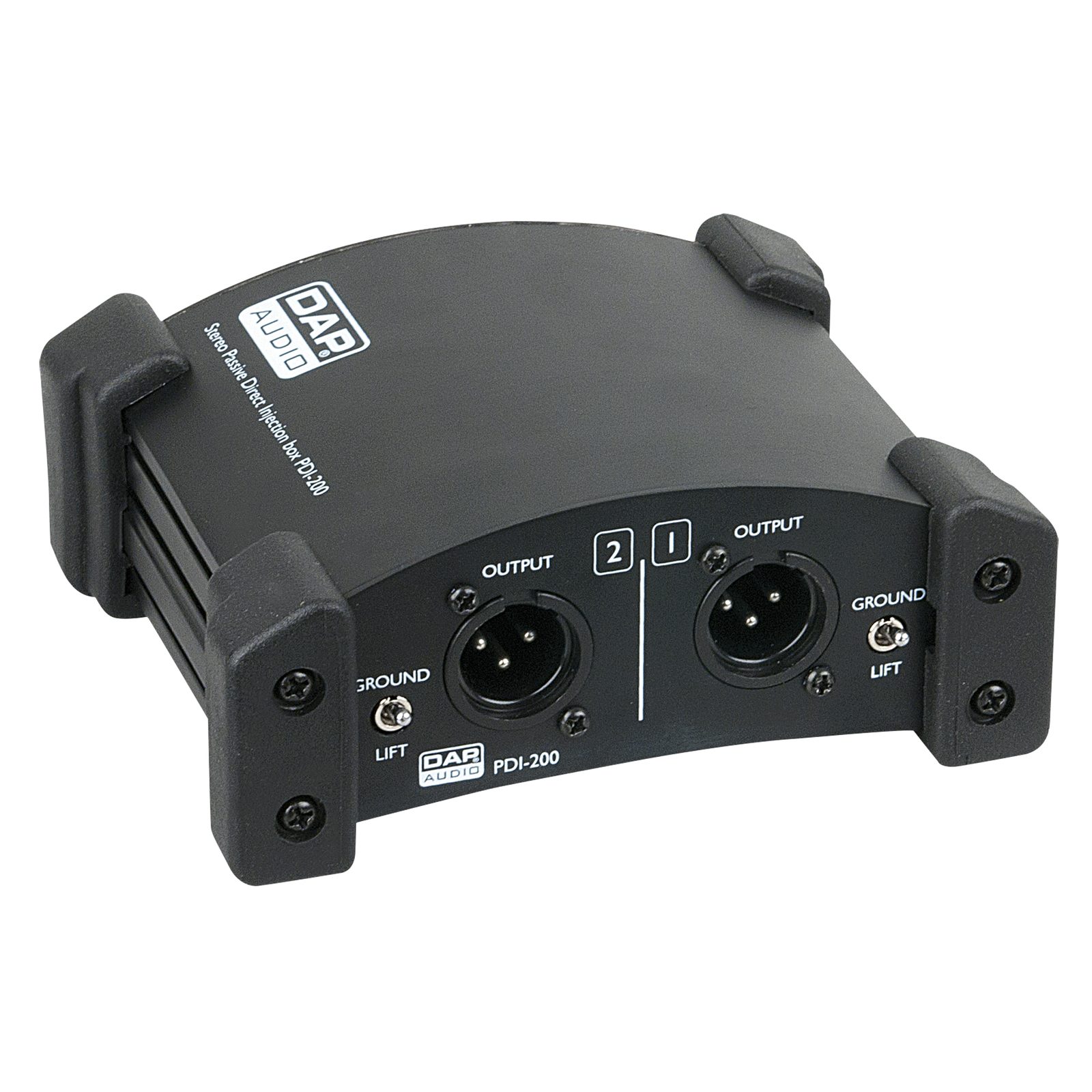

DI box passivo PDI-200 - DAP D1944
DI box passivo PDI-200 - DAP D1944

DI box passivo PDI-200 - DAP D1944

DAP
55,37 €
Tasse incluse
Stereo passive DI box
Condividi

The DAP PDI-200 is a two-channel passive direct injection box. It converts a HI-Z signal into a LO-Z signal. You do not need a battery or phantom power for this direct box.

It is suitable for a wide array of applications, great for keyboard signals, acoustic & electric guitar signals and any other instrument signals that need to be plugged into a snake on stage. In addition, it has a 0/20/40 dB attenuation switch.

  • 2x 6.3 mm TS Jack in, 2x balanced XLR out
  • Prevents ground loops, hum and buzz
  • Road proof housing with rubber feet
  • Low distortion
  • No power supply needed
  • 0, 20 and 40 dB attenuation settings
Mono Inputs2
Mono Input ConnectorTS unbalanced 6.3 mm
Mono Input Impedance50000 Ω
Main Outputs2
Main Output Connector3-pin XLR / TS unbalanced 6.3 mm
Main Output Impedance500 Ω
THD Level %< 0.003 %
Signal-to-noise Ratio> 95 dB
Crosstalk96 dBu
Frequency Response Minimum30 Hz
Frequency Response Maximum50000 Hz
Phantom PowerNo
Height (mm)55 mm
Width (mm)140 mm
Length (mm)110 mm
HousingAluminium
Weight1.1 kg
IP RatingIP20 (indoor use only)
ColourBlack

  • Marca
  • Riferimento
    D1944
  • In magazzino
    10 Articoli
  • ean13
    8717748290021
