Driver LED Dualdrive AC 50W DALI-2 2 uscite separabili bianco regolabile - ELDOLED A9950562

Name: Driver LED Dualdrive AC 50W DALI-2 2 uscite separabili bianco regolabile - ELDOLED A9950562
Brand: ELDOLED
SKU: A9950562
Price: 95.99 EUR
Availability: OutOfStock

ELDOLED

95,99 €

Tasse incluse

eldoLED DL0560 A DALI 2 Ballast 2 outputs

Non disponibile

Avvisami quando disponibile

Sei interessato a questo prodotto? Inviaci un'email e ti faremo sapere quando sarà disponibile per l'ordine.

LED constant current driver max.50 W. Hybrid HydraDrive: efficient, smooth

and flicker-free dimming.

DALI compatible, 2 separately controllable LED outputs

Being a LightShape LED driver, DUALdrive 560/A allows you to compose the exact shade of white at the right intensity level to complement materials in retail, support productivity in the office, or create the perfect atmosphere in a hospitality environment.

LightShape: intuitive colour temperature and intensity control
Hybrid HydraDrive provides smooth, flicker-free dimming down to 1 %
LEDcode2 supports several digital accessories and IoT applications
Wide application area thanks to fully configurable dimming curve
Perfect for tunable white applications

Control Mode	DALI
DALI Ballast	2 control channel
Protocols	DALI 2
Dimmable	Yes
Power Supply	100-240 V AC 50/60 Hz
Output Voltage Vf/Vo Minimum	1.5 V DC
Output Voltage Vf/Vo Maximum	55 V DC
Power Consumption	50 W
Minimum Output Current (mA)	150 mA
Maximum Output Current (mA)	1400 mA
Power Connector In	Open End
Power Connector Out	Open End
Data Connector In	Open End
Data Connector Out	Open End

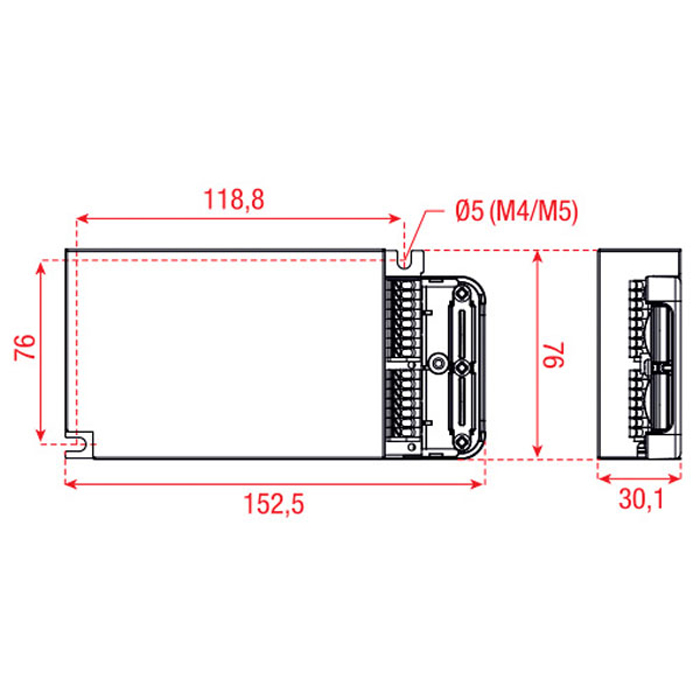

Length (mm)	153 mm
Height (mm)	31 mm
Width (mm)	76 mm
Weight	0.372 kg
IP Rating	IP20 (indoor use only)
Material	Metal
Housing	Metal / Plastic
Colour	White
Maximum Ambient Temperature	50 °C
Minimum Ambient Temperature	-20 °C
Included Accessories	None
BT	No
