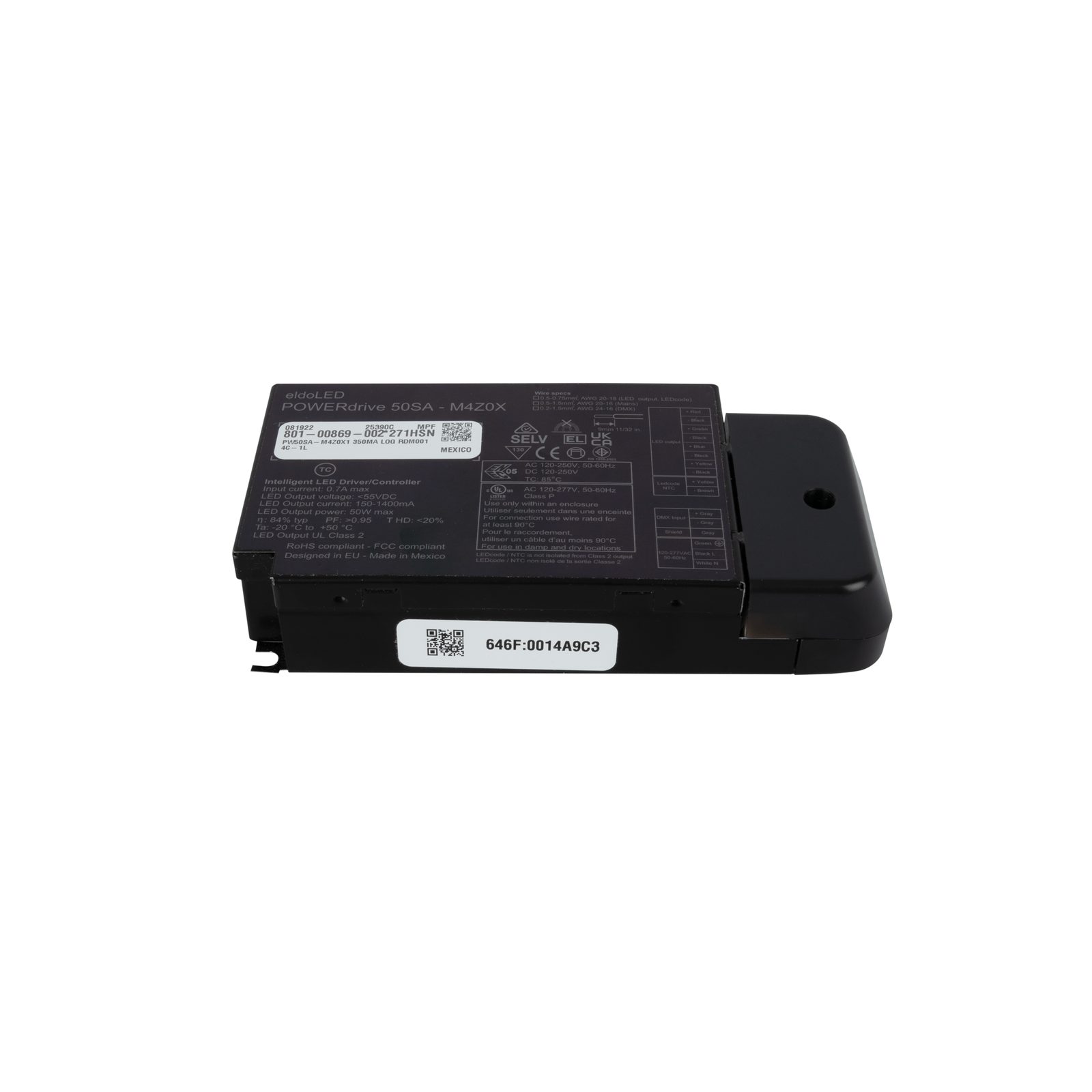

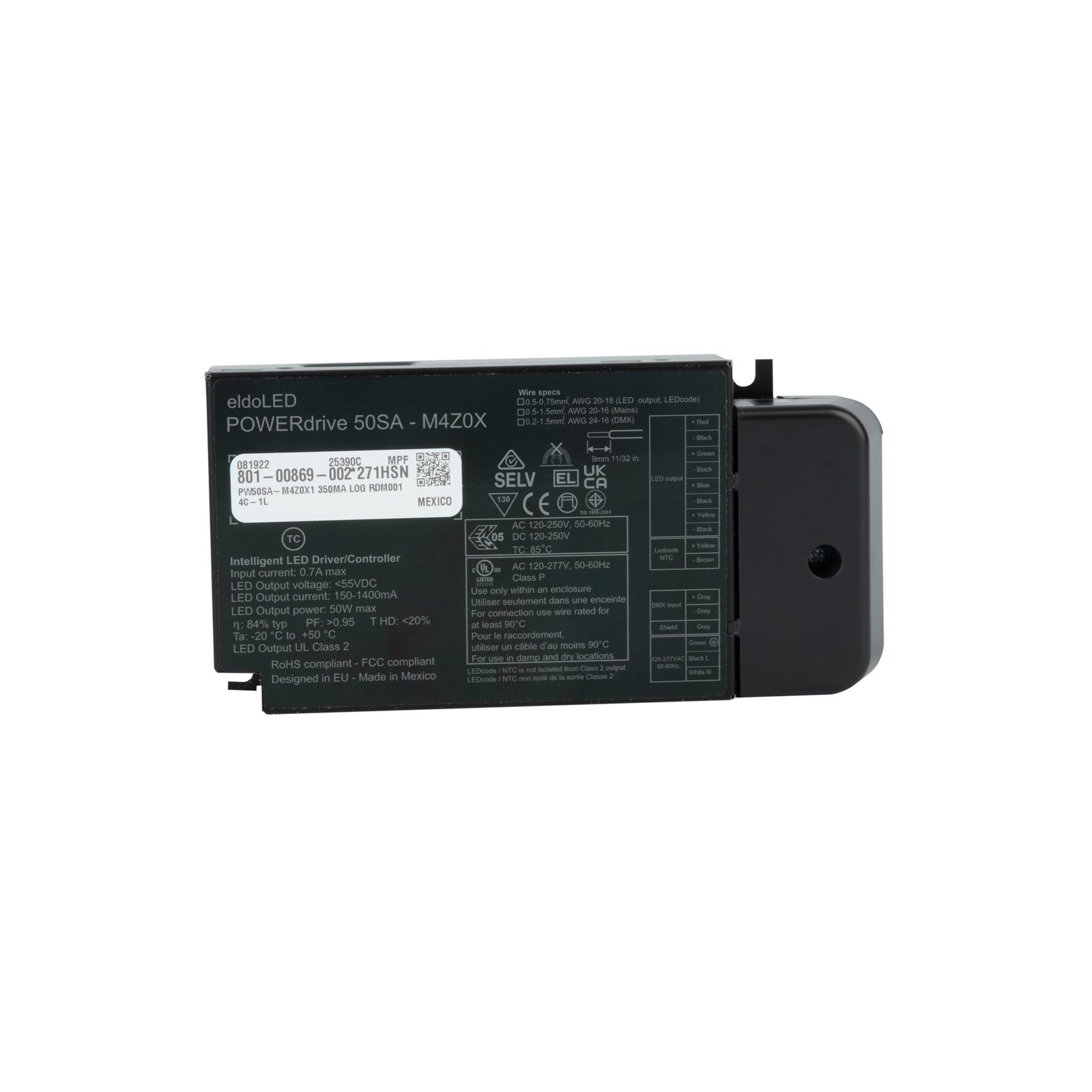

Driver LED POWERdrive AC 50 W DMX Dimmerabile - ELDOLED A9950579
Prezzo:
124,35 €
Tasse incluse
Constant Current - DMX - RGBW (4 Channels) - 50SA-M4Z0X
The POWERdrive AC - 50 W is an easy-to-configure, dimmable constant current driver/controller with multiple current sources for high brightness indoor LED lighting applications requiring up to 50 W/150-1400 mA. The POWERdrive 50SA-M4Z0X can be integrated into a network or used as a standalone device and is DMX and LEDcode compatible. The optical isolation in the DMX interface improves robustness against faulty wiring and improper use. The isolation also improves the resistance of the driver and the connected DMX network to transient events such as lightning strikes.
- Hybrid HydraDrive provides smooth, flicker-free dimming down to 1 %
- NTC interface for robust thermal management
- Made for DMX/RDM environment
- LEDcode supports most constant current LED modules and arrays
- High protection against surge events
| Control Mode | DMX |
|---|---|
| Power Supply | 120-250 V AC 50/60 Hz |
| Power Consumption | 50 W |
| Power Connector In | Terminal |
| Power Connector Out | Terminal |
| Length (mm) | 153 mm |
| Height (mm) | 305 mm |
| Width (mm) | 76 mm |
| Weight | 0.35 kg |
| IP Rating | IP20 (indoor use only) |
| Housing | Metal |
| Colour | Black |
| Maximum Ambient Temperature | 50 °C |
| Minimum Ambient Temperature | -20 °C |
| BT | No |
