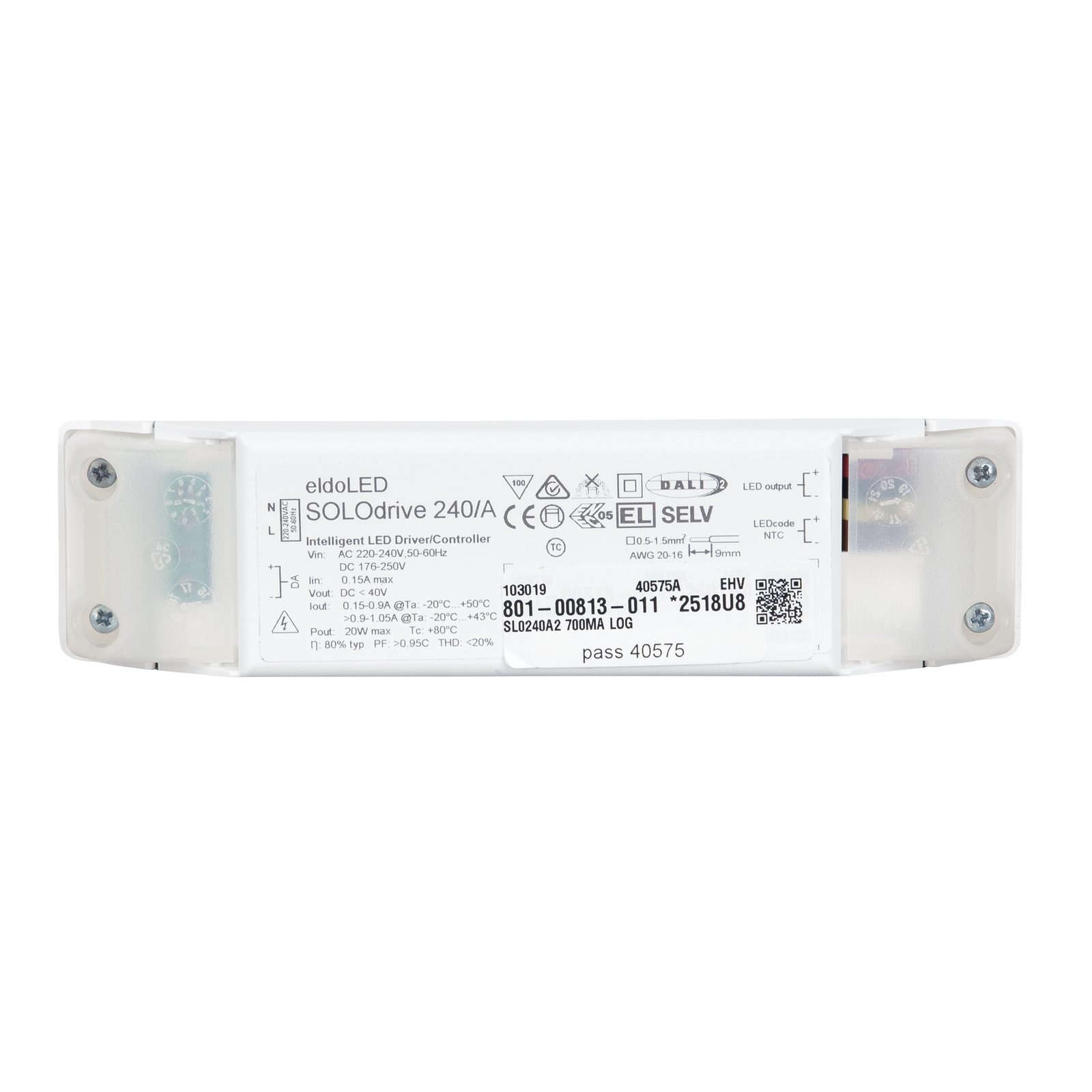

Driver LED SOLOdrive 20W DALI Push-dim con ritegno cavo - ELDOLED A9950250
Prezzo:
49,16 €
Tasse incluse
DALI-2 - Dim to Dark - Pulse Dimming - SL0240A3
The SOLOdrive - 20 W delivers 20 W and is DALI-2 certified. Like all SOLOdrives, the 240/A smoothly dims all the way down to dark. The 20 W /A independent LED driver with cable retention is perfect for downlight applications in Europe where the LED driver needs to fit through a 50 mm diameter hole in the ceiling into a plenum with a 110 mm height between functional and decorative ceiling.
With Pulse dimming it is possible to create lighting systems that can be easily switched and smoothly dimmed from multiple control points at low cost.
- Pulse dimming
- Hybrid HydraDrive provides smooth, flicker-free dimming down to 1 %
- LEDcode2 supports several digital accessories and IoT applications
- NTC interface for robust thermal management
- Increase performance and capability of any LED fixture
| Control Mode | DALI / Push-dim |
|---|---|
| Protocols | Push-dim |
| Dimmable | Yes |
| Power Supply | 220-240 V AC 50 Hz |
| Output Voltage Vf/Vo Minimum | 2 V DC |
| Output Voltage Vf/Vo Maximum | 40 V DC |
| Power Consumption | 20 W |
| Minimum Output Current (mA) | 150 mA |
| Maximum Output Current (mA) | 1400 mA |
| Power Connector In | Open End |
| Power Connector Out | Open End |
| Data Connector In | Open End |
| Data Connector Out | Open End |
| Length (mm) | 160 mm |
| Height (mm) | 31 mm |
| Width (mm) | 42 mm |
| Weight | 0.125 kg |
| IP Rating | IP20 (indoor use only) |
| Material | Plastic |
| Housing | Plastic |
| Colour | White |
| Maximum Ambient Temperature | 50 °C |
| Minimum Ambient Temperature | -20 °C |
| Included Accessories | None |
| BT | No |
