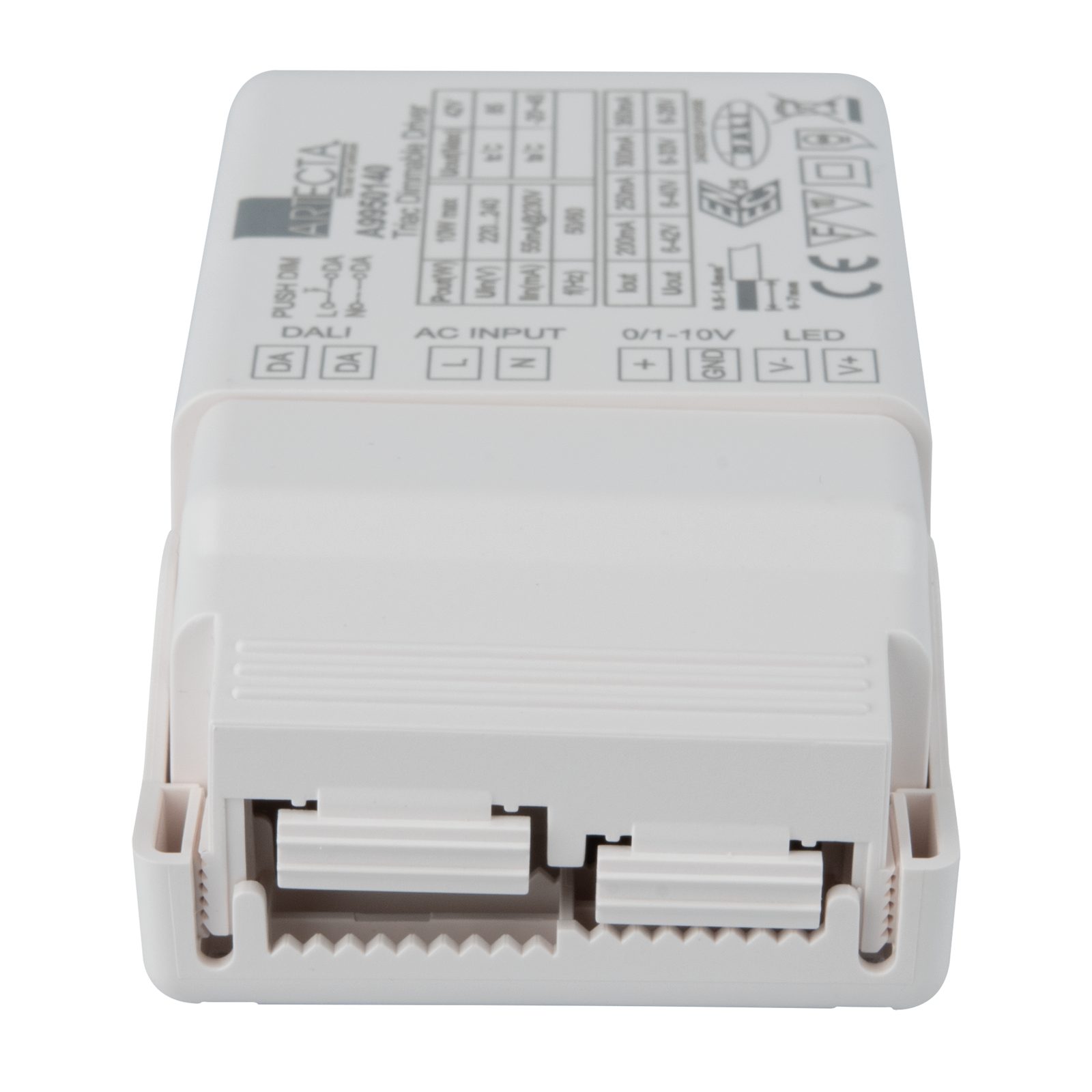

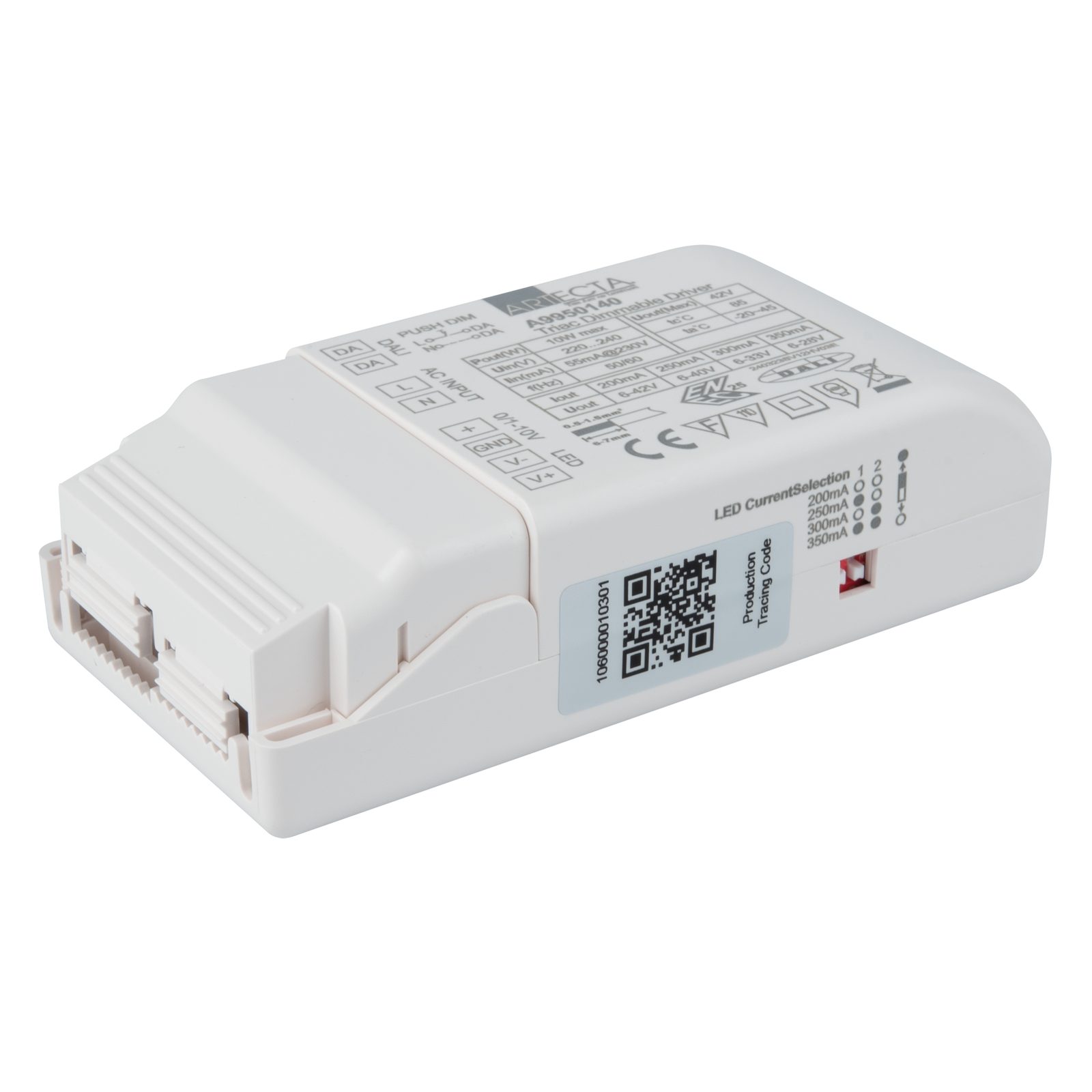

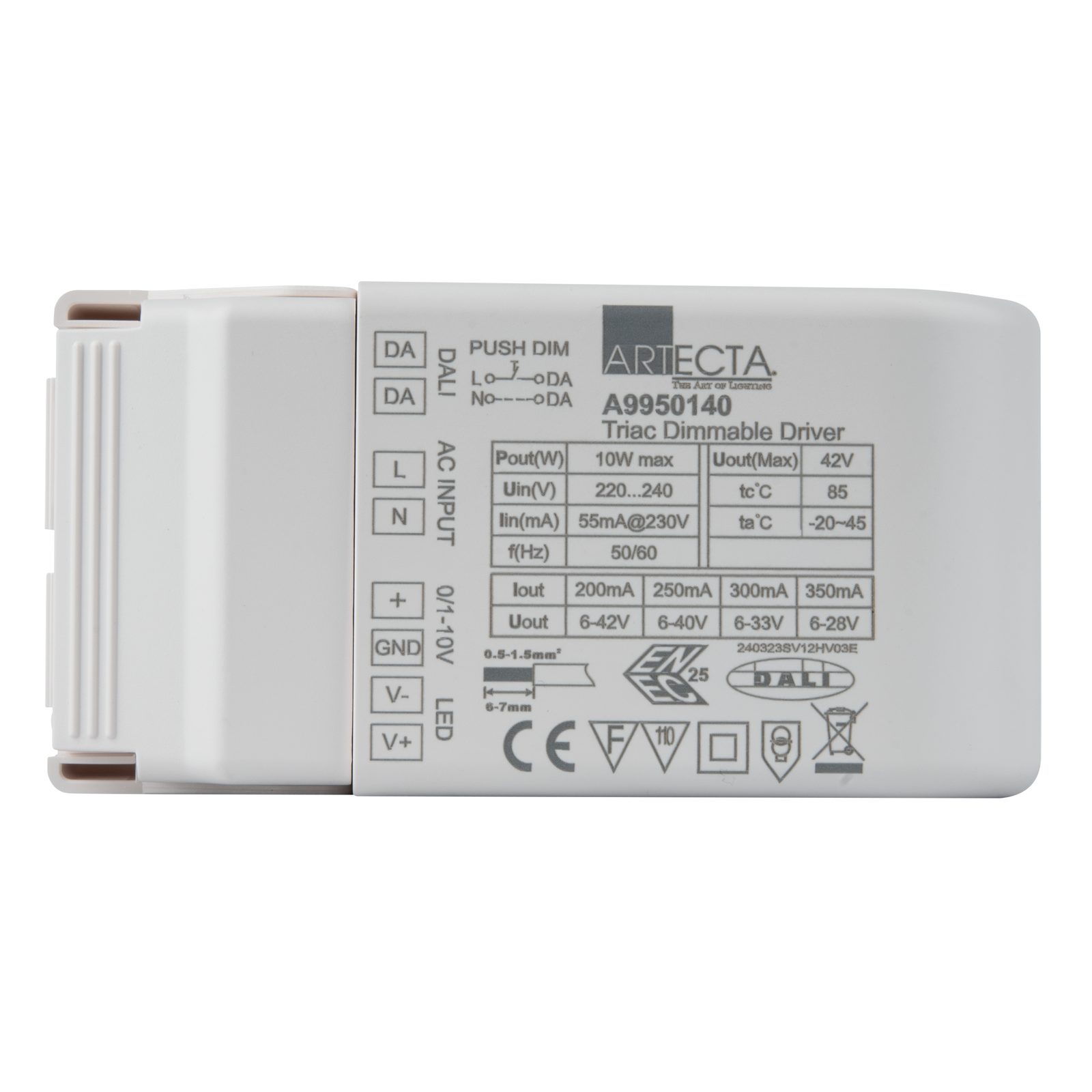

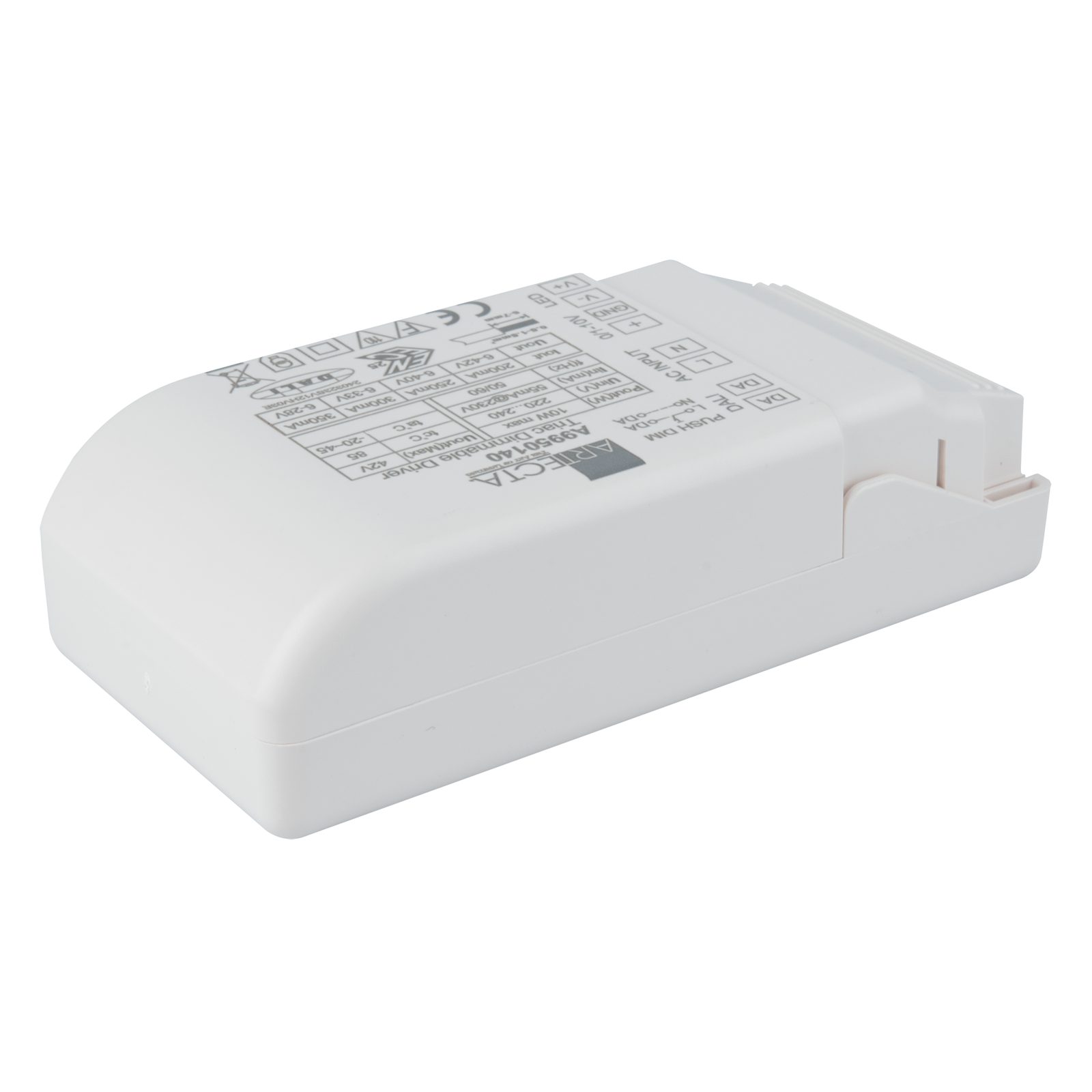

Driver LED universale 10 W dimmerabile DALI/Push/Triac/0-10V - Artecta A9950140

Driver LED universale 10 W dimmerabile DALI/Push/Triac/0-10V - Artecta A9950140

Name: Driver LED universale 10 W dimmerabile DALI/Push/Triac/0-10V - Artecta A9950140
Brand: ARTECTA
SKU: A9950140
Price: 37.44 EUR
Availability: InStock

ARTECTA

37,44 €

Tasse incluse

Constant Current - Dimmable with DALI, Push, Triac and 0/1-10 V

The Artecta Universal LED Driver - 10 W is a single-channel 10-watt power supply for LEDs. It can be adjusted by DIP switches between 200-350 mA output current and it is dimmable via a wide range of interfaces: DALI, Push dimming, triac dimming and 0/1-10 V. Because it uses amplitude dimming instead of PWM, the output is completely flicker-free. Dimming is possible down to 1% without noise or flicker.

Constant current mode output
Output current 200-350 mA adjustable by DIP switches
Dimming via DALI, Push, triac and 0/1-10 V
Amplitude dimming for completely flicker-free dimming down to 1%
Built-in DALI-2 interface

Control Mode	0-10 V DC / DALI / Push-dim / Triac (Phase cut dimming)
DALI Ballast	1 control channel
Protocols	0-10VDC / DALI / DALI 2 / Push-dim
Dimmable	Yes
Power Supply	220-240 V AC 50 Hz
Output Voltage Vf/Vo Minimum	6 V DC
Output Voltage Vf/Vo Maximum	42 V DC
Power Consumption	10 W
Minimum Output Current (mA)	200 mA
Maximum Output Current (mA)	350 mA
Power Connector In	Terminal
Power Connector Out	Terminal
Length (mm)	104 mm
Height (mm)	30 mm
Width (mm)	53 mm
Weight	0.12 kg
IP Rating	IP20 (indoor use only)
Colour	White
Maximum Ambient Temperature	45 °C
Minimum Ambient Temperature	-20 °C
Maximum Surface Temperature	85 °C
