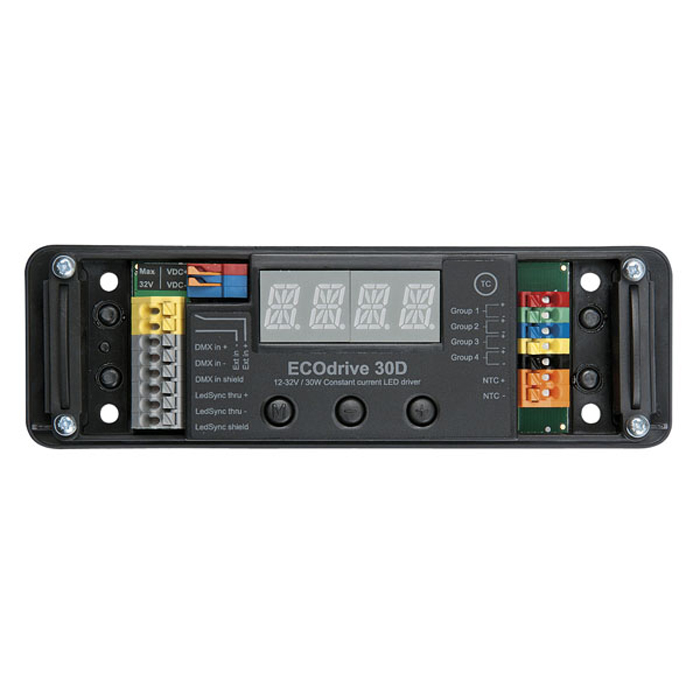

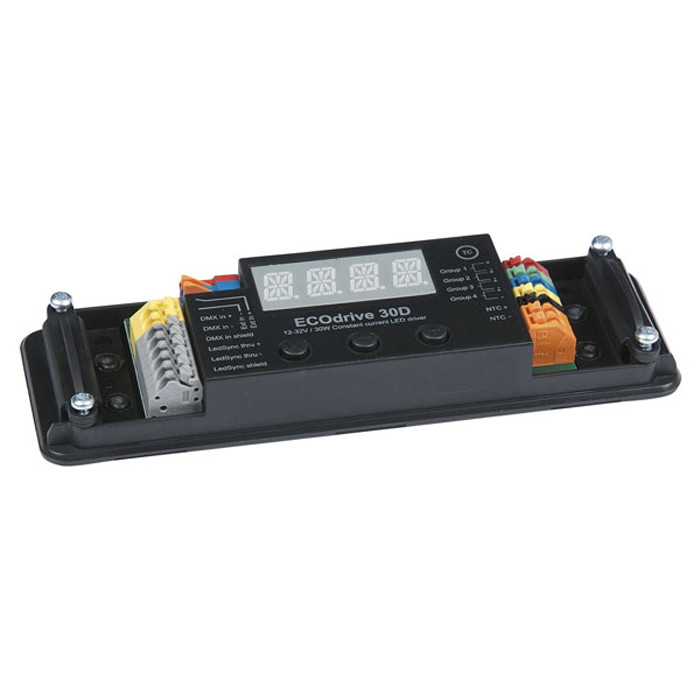

ECOdrive DC 30W RGB(W) Controller DMX - Eldoled A9950031

ECOdrive DC 30W RGB(W) Controller DMX - Eldoled A9950031

Name: ECOdrive DC 30W RGB(W) Controller DMX - Eldoled A9950031
Brand: ELDOLED
SKU: A9950031
Price: 101.95 EUR
Availability: InStock

ELDOLED

101,95 €

Tasse incluse

Constant Current RGB(W) LED Driver/Controller - ECO030D1

The ECOdrive DC - 30 W is a highly integrated, cost effective, enclosed and by display easy-to-configure constant current driver/controller for indoor LED lighting applications. The ECOdrive can be integrated in a network or used as a standalone device. With a wide supply voltage of 12 V-32 V DC, the ECOdrive DC - 30 W is the ideal choice for powering 200 mA - 1050 mA HB LEDs.

4-channel RGB(W) LED strip controller
Power output range: 0-30 W
12-32 VDC/200-1050 mA
Easy configuration

Control Mode	DMX
DMX Channels	4
Protocols	DMX
Power Supply	12-32 V DC
Output Current (mA)	1050 mA
Maximum Output Current (A)	1.05 A
Power Connector In	Open End
Power Connector Out	Open End

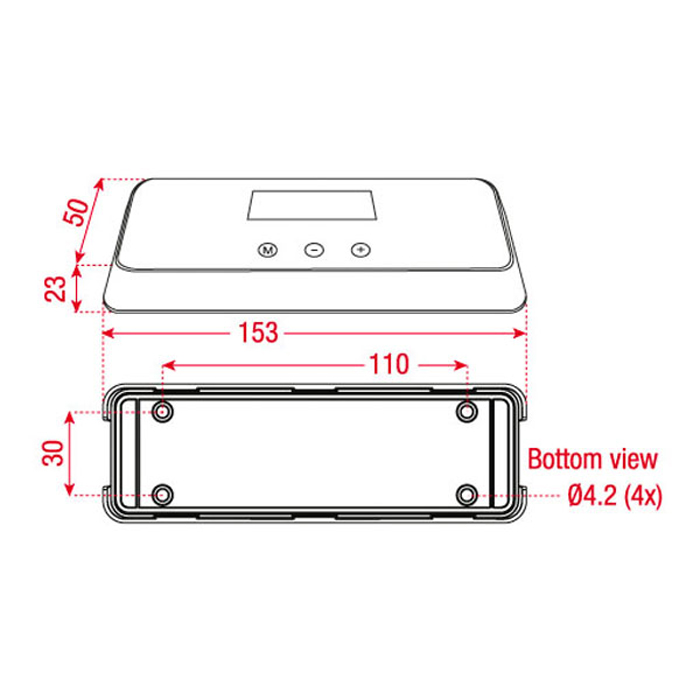

Length (mm)	153 mm
Height (mm)	23 mm
Width (mm)	50 mm
IP Rating	IP20 (indoor use only)
Housing	Plastic
Colour	Black
Maximum Ambient Temperature	50 °C
Minimum Ambient Temperature	-20 °C
