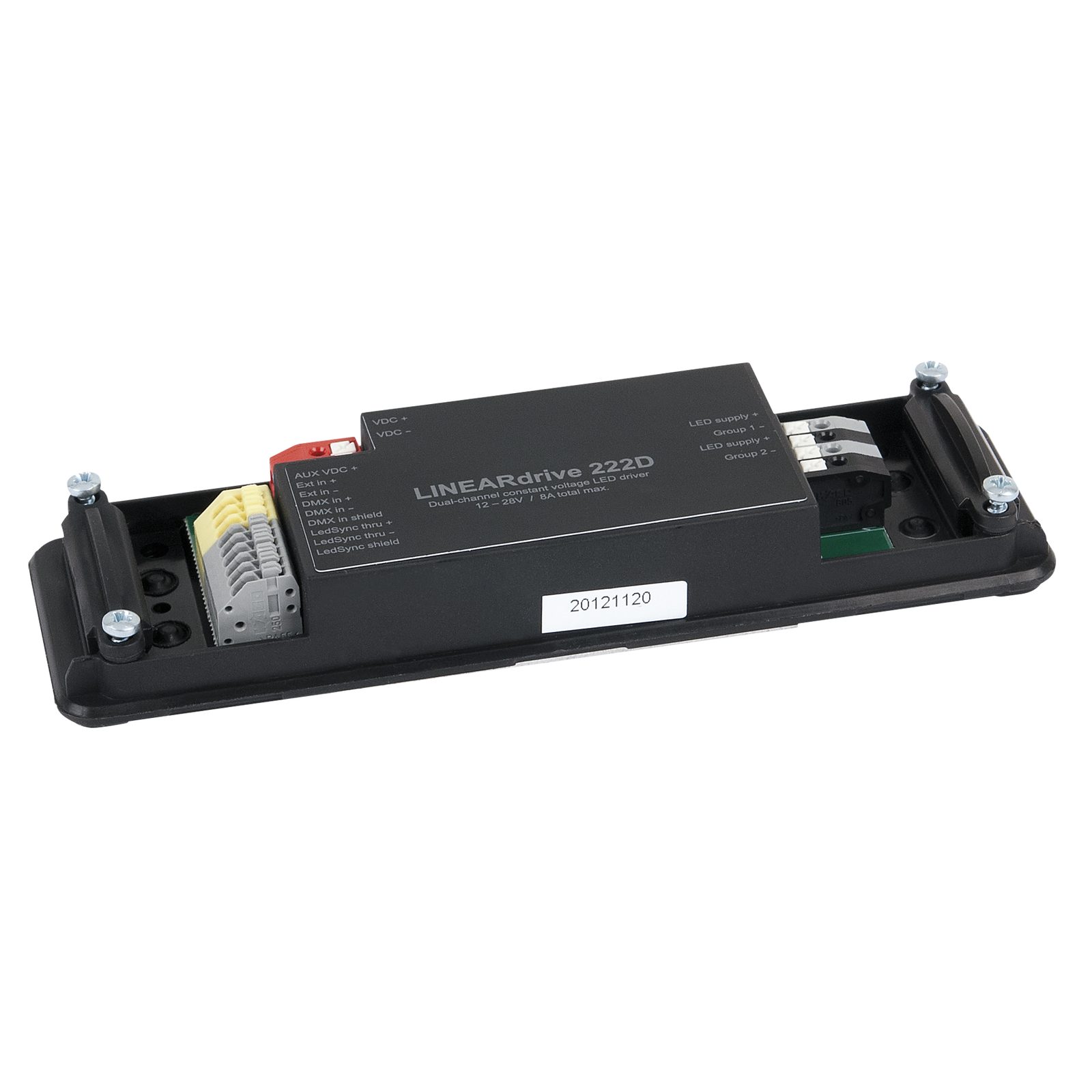

Driver LED LINEARdrive DC 200 W DMX 2 canali - Eldoled A9950222
Driver LED LINEARdrive DC 200 W DMX 2 canali - Eldoled A9950222
Driver LED LINEARdrive DC 200 W DMX 2 canali - Eldoled A9950222

Driver LED LINEARdrive DC 200 W DMX 2 canali - Eldoled A9950222

ELDOLED
88,11 €
Tasse incluse
Constant Voltage - DMX - 2 Channels, 2 Outputs - LIN222D1
Condividi

eldoLED Lineardrivers are high-end PWM dimmers for flickerfree and smooth dimming, even in the very low ranges. The are available in 0-10 V, Dali and DMX, for single and multicolour.

  • Smooth, flicker-free dimming with linear and log curves
  • Made for DMX environment
  • Auxiliary output
  • 12-28 VDC output up to 8 A in total
Control ModeDMX
DMX Channels2
ProtocolsDMX
Power Supply12-28 V DC
Output voltage12-28 V DC
Maximum Output Current (A)8 A
Power Connector InOpen End
Power Connector OutOpen End
DMX Connector InOpen end
DMX Connector OutOpen end

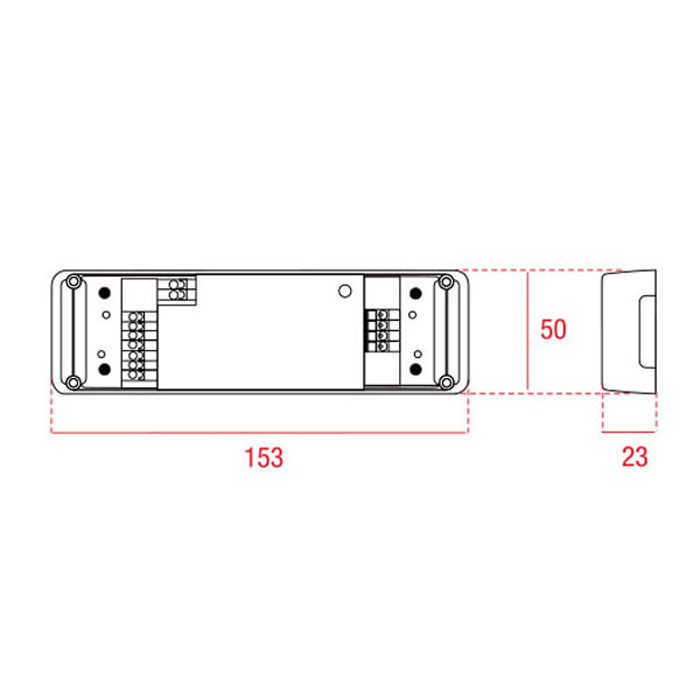

Length (mm)153 mm
Height (mm)23 mm
Width (mm)50 mm
Weight0.12 kg
IP RatingIP20 (indoor use only)
HousingPlastic
ColourBlack
Maximum Ambient Temperature50 °C
Minimum Ambient Temperature-20 °C

  • Marca
  • Riferimento
    A9950222
  • In magazzino
    10 Articoli
  • ean13
    8717748313300
