Moving head Spot Phantom 130 White - Showtec 40073
The Showtec Phantom series offers a wide range of reliable and high performance moving light effects, consisting of various types of Moving Head fixtures (Spot, Wash, Beam, Hybrid, and Matrix FX) and a Moving Zoombar. They all look stylish and create amazing (dynamic) optical effects. Each Phantom fixture can be controlled manually but also has other control options, like DMX and Master/Slave. Phantom units are not only user-friendly, they also contribute to quick rigging on stage due to their lightweight and compact design with a Quick Lock Bracket system or one-clamp mount.
The Phantom series consists of a diverse range of moving show light units. Consider, for example, the Phantom Spots with a wide beam angle, which covers a large surface with colourful moving gobos. If you prefer a razor-sharp beam for events with a high energy level, then the Phantom 3R Beam is an excellent option in combination with smoke or mist. The Phantom 180 Wash offers yet another Moving Head effect, providing a soft edged output with four separately controllable sections and a wide adjustable beam angle, perfect for vivid colour-mixing on stage.
The Phantom Hybrid and Matrix FX are special units. The Hybrid is able to create Spot, Wash and Beam effects while the Matrix FX offers Individual Pixel Control (5 x 5) on which you can display detailed animations, such as characters and numbers.
Each fixture offers multiple control options, functionalities and effects. Also, optional dedicated flight cases are available for safe and easy transport. Contact us now for free advice and receive an offer you cannot refuse or check out our product pages for more information.

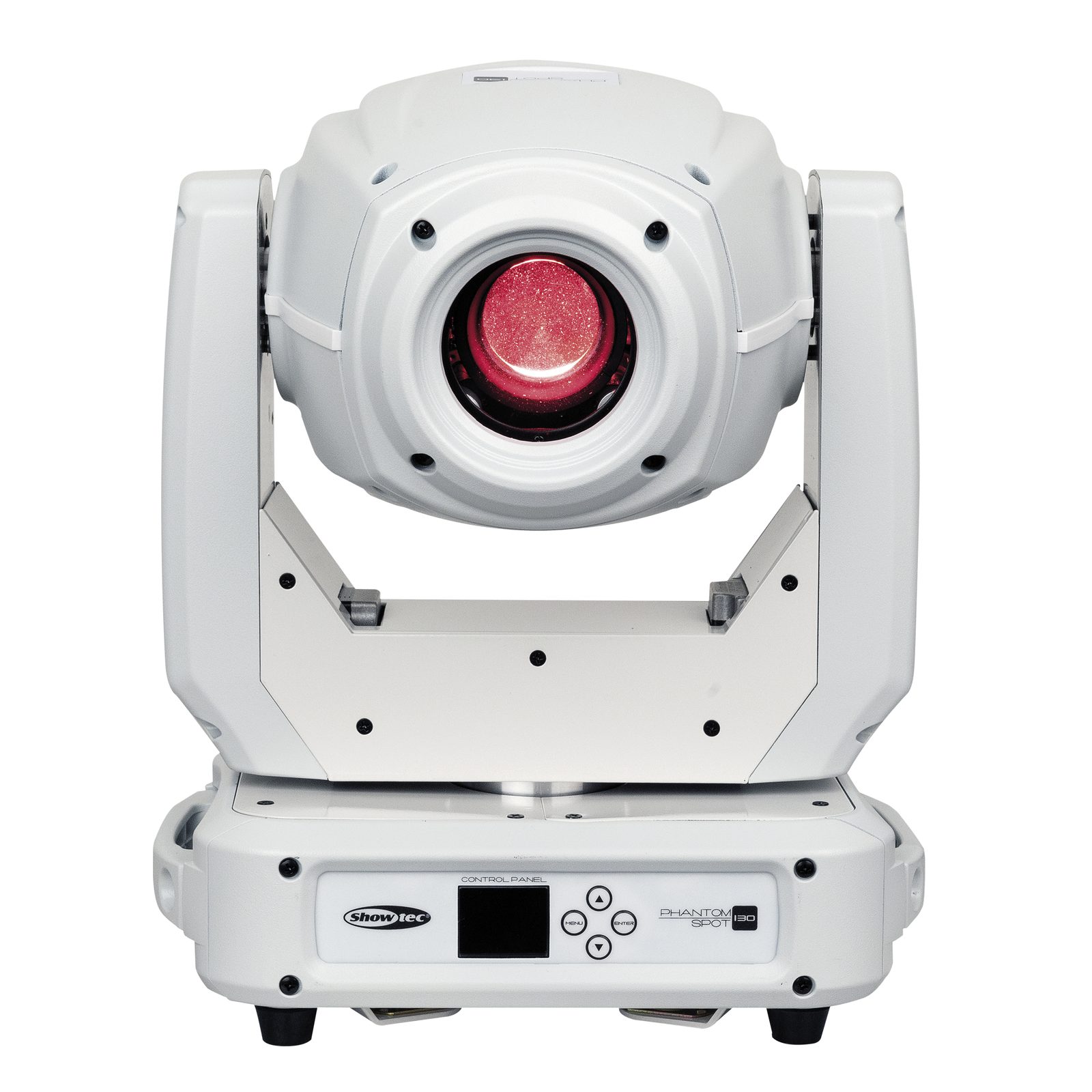

The Showtec Phantom 130 Spot is a medium-sized, yet powerful 130 watt LED Spot Moving Head including motorised zoom and focus, suitable for indoor venues. It has better features than the Phantom 100, like a 6-facet circular & 5-facet linear rotating prism and a bigger 12° - 21° motorised zoom range. Besides, the Phantom 130 Spot is W-DMX prepared for wireless communications. It creates stunning optical effects with 7 precise bi-rotating gobos + open and 7 dichroic colours + white. The mid-range priced Phantom 130 with razor sharp light beams and spectacular gobos, deliver a high performance/value ratio.
- 130 W LED Spot Moving Head
- 6-facet circular & 5-facet linear rotating prism
- 7 fixed and 7 bi-rotating interchangeable gobos + open
- 7 colours + white
- Motorised zoom and focus
- Optional W-DMX for wireless communications
- Compact design with Quick-Lock brackets
| Light Source Type | LED |
|---|---|
| Light Source Quantity | 1 |
| Light Source Power | 130 W |
| LED Colour Type | CW |
| Illuminance @ 5 m | 5200 lx |
| Luminous Flux (Total) | 5200 lm |
| Beam Angle Minimum (Circular) | 12° |
| Beam Angle Maximum (Circular) | 21° |
| Zoom Type | Motorised |
| Zoom Minimum | 12° |
| Zoom Maximum | 21° |
| Focus | Motorised |
| Control Mode | Auto / DMX / Manual / Master Slave / Sound |
| DMX Channels | 12 / 16 |
| Protocols | DMX |
| Wireless | Optional |
| Display | LCD |
| Dimmer | 0-100 % |
| Strobe | 0-20 Hz |
| Prism 1 | 6-facet Circular |
| Prism 2 | 5-facet Linear |
| Prism Overlay | No |
| Prism Index & Rotate | Yes |
| Colour System | Colour Wheel |
| Colour Wheel Index & Rotate | Yes |
| Dichroic Colour Wheel 1 | 7 + Open |
| Gobo System | Glass + Metal |
| Gobo Wheel Index & Rotate | Yes |

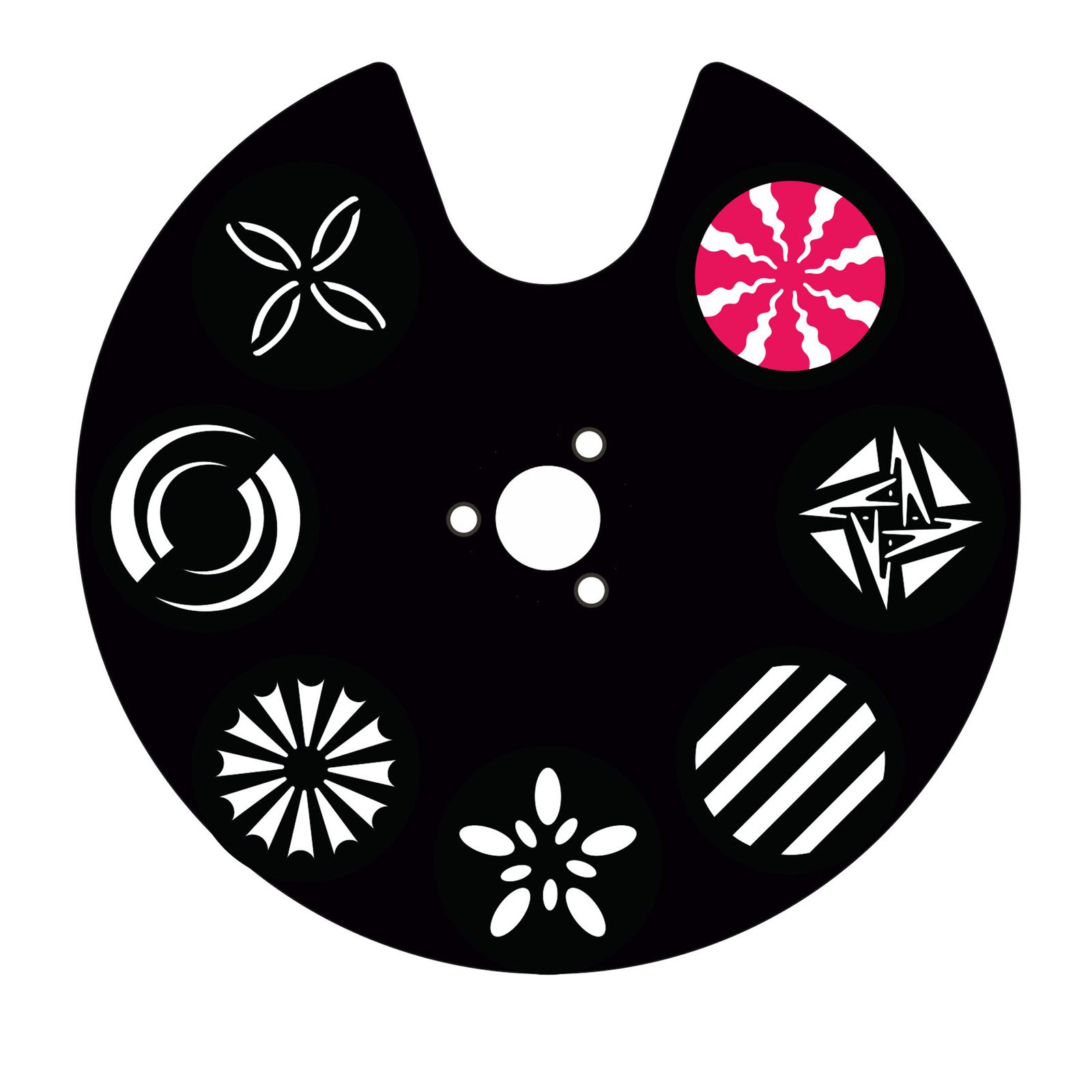

| Gobo Wheel 1 | 7 + Open |

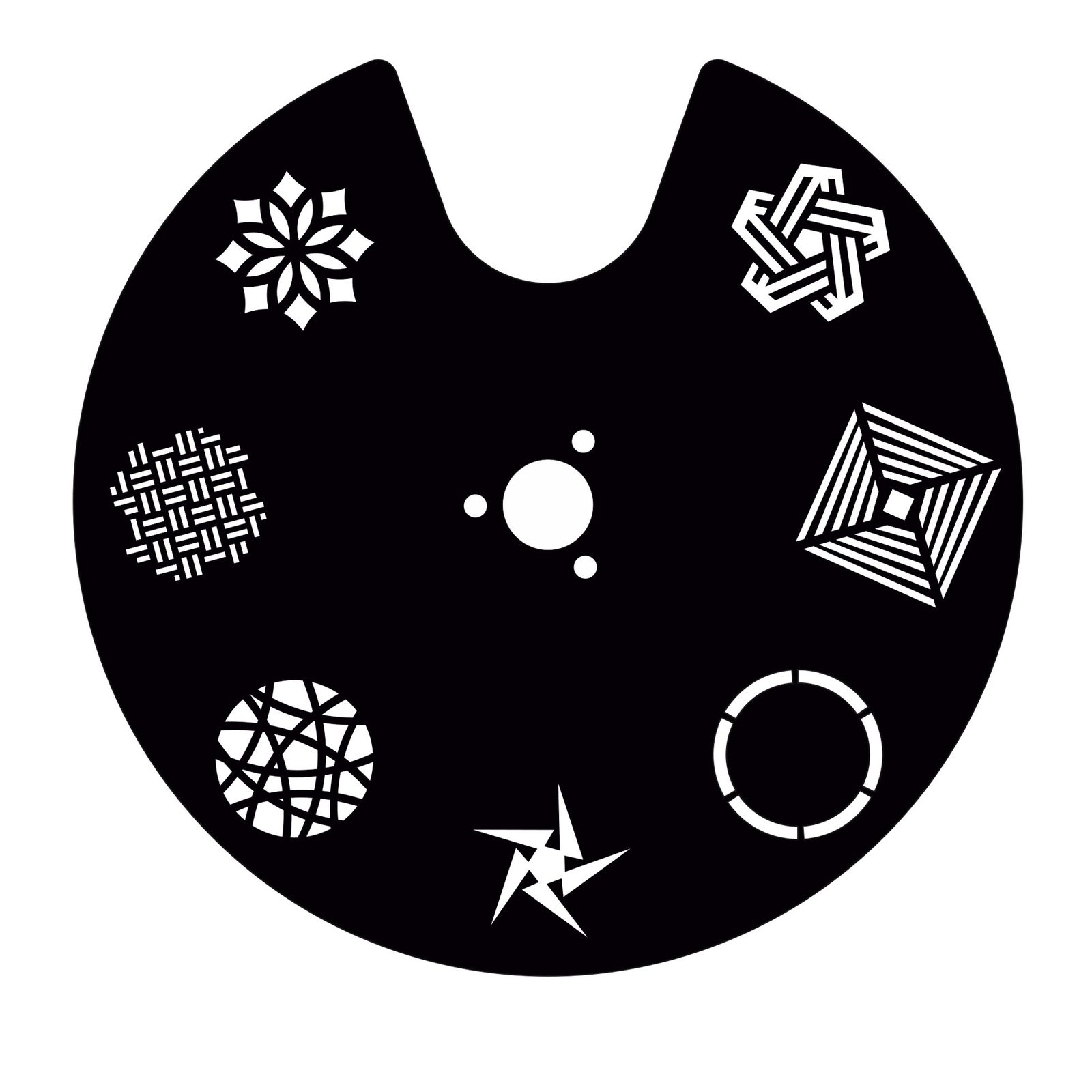

| Gobo Wheel 2 | 7 + Open |
| Gobo Size | 24 mm |
| Image Diameter | 21 mm |
| Pan | 540° |
| Tilt | 245° |
| Pan/Tilt Resolution | 16-bit |
| Power Supply | 100-240 V AC 50/60 Hz |
| Power Consumption | 300 W |
| Fuse | 5 A |

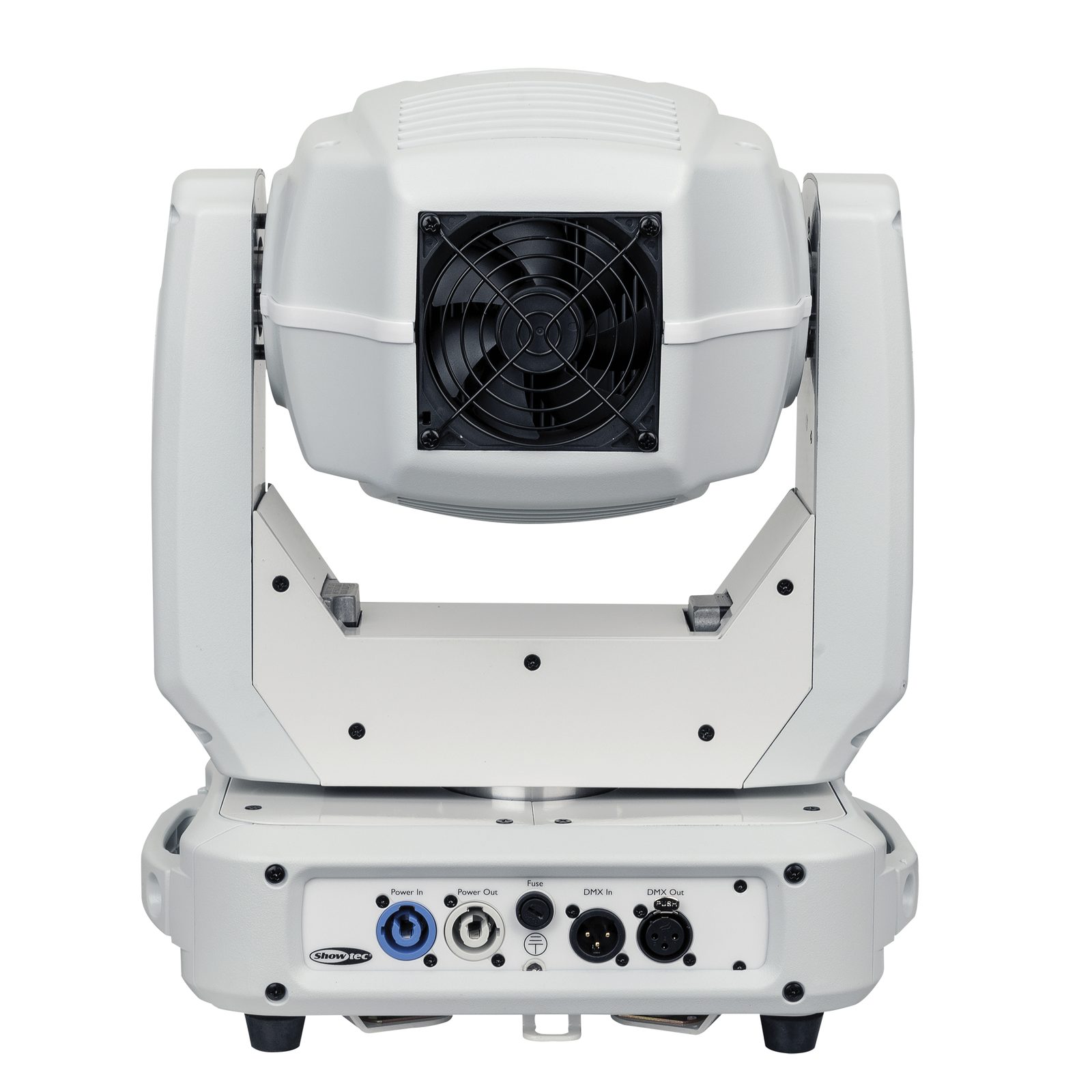

| Power Connector In | Power Pro Blue |
| Power Connector Out | Power Pro Grey |
| DMX Connector | XLR 3P In/Out |
| DMX Connector In | XLR 3P |
| DMX Connector Out | XLR 3P |
| Length (mm) | 321 mm |
| Width (mm) | 211 mm |
| Height (mm) | 462 mm |
| Weight | 13 kg |
| IP Rating | IP20 (indoor use only) |
| Housing | Metal / Plastic |
| Colour | White |
| Cooling | Axial fan |
| Mounting Options | Quick-Lock |
| Safety Attachment | Yes |
| Maximum Ambient Temperature | 40 °C |
| Included Cables | powerCON cable |
| Included Rigging | Quick-Lock Bracket |
