The Showtec Kanjo series offers compact and lightweight moving light effects consisting of Moving Heads and Barrels with a bright output, suitable for indoor venues. They all look stylish and create impressive optical effects. Since quick rigging on stage is important, all Kanjo fixtures are under 4 kg (8.8 lbs) and therefore easy to transport, rig, and setup. Each unit is equipped with a similar LED display and user-friendly control buttons for quick and intuitive control. Of course, DMX or Master/Slave can be used for controlling each Kanjo unit in Manual, Auto-run, or Sound-controlled mode with many available built-in programs.
The Kanjo series consists of a diverse range of moving showlight units. Consider, for example, the Kanjo Spot with a wide angle and a large pan and tilt range for covering bigger areas with great moving gobo and spotlight imagery. Kanjo Barrels are able to display two moving and rotatable projections simultaneously due to its rotational mirror barrel.
Each fixture offers multiple control options, functionalities, and effects. Also, optional dedicated flight cases are available for safe and easy transport. Contact us now for free advice and receive an offer you cannot refuse or check out our product pages for more information.

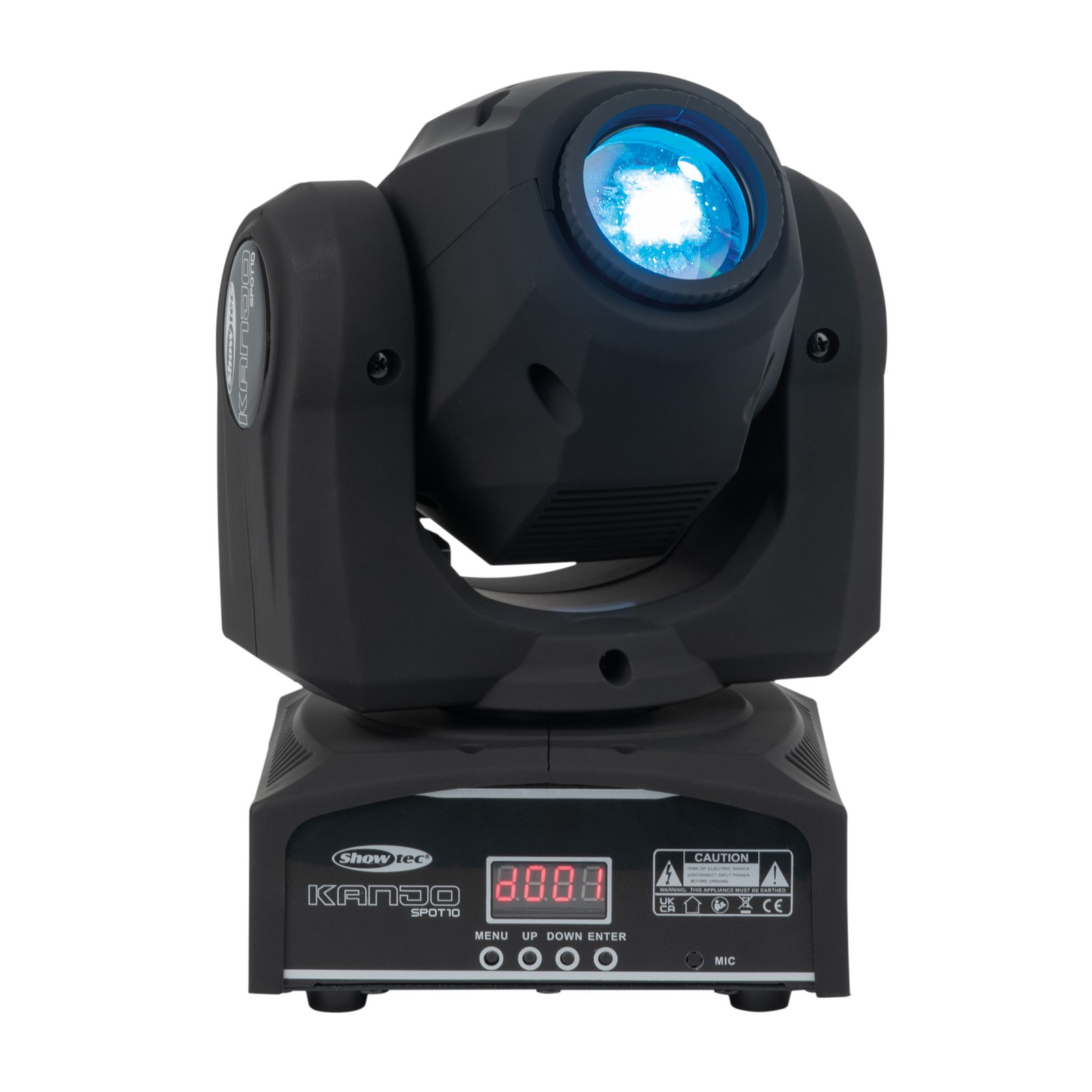

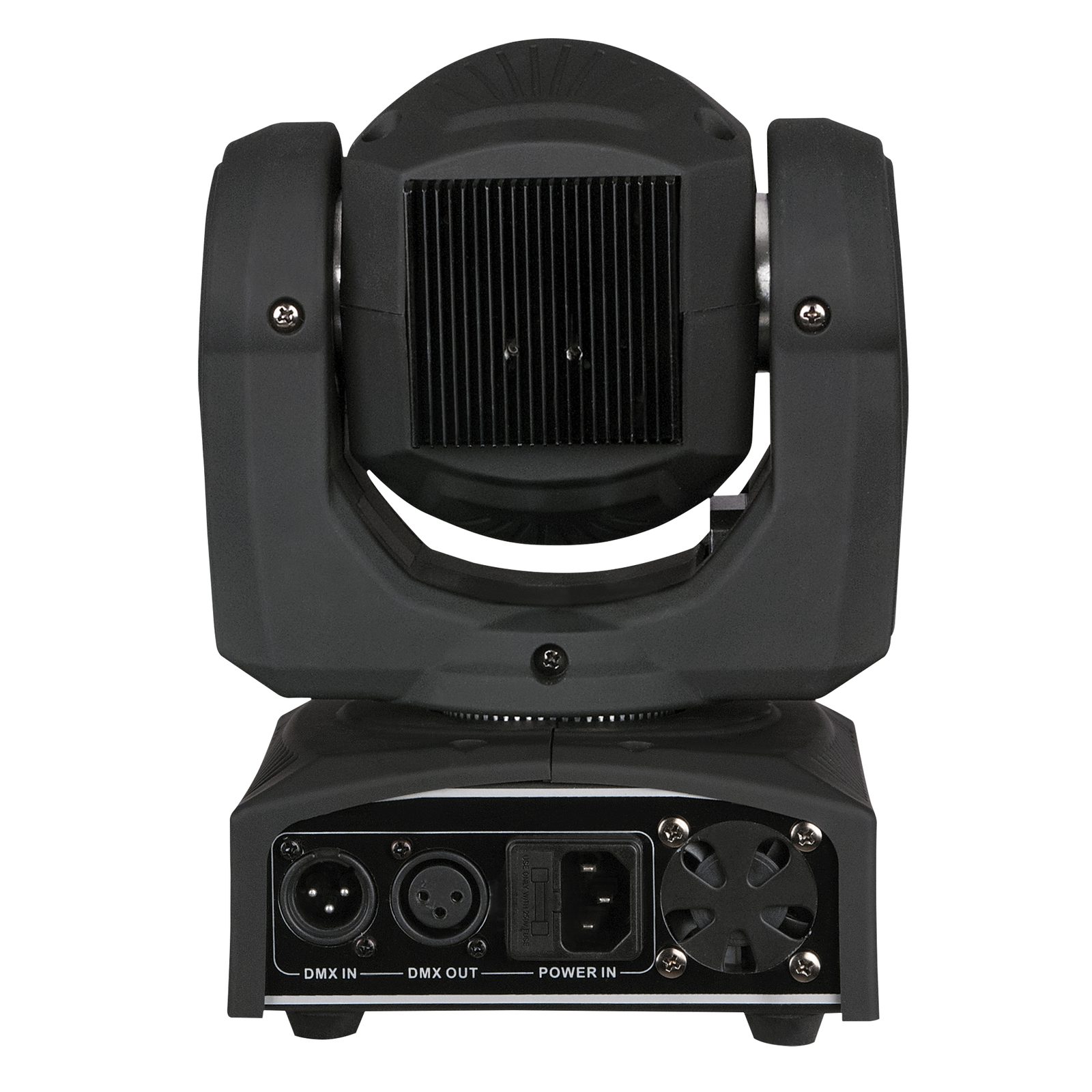

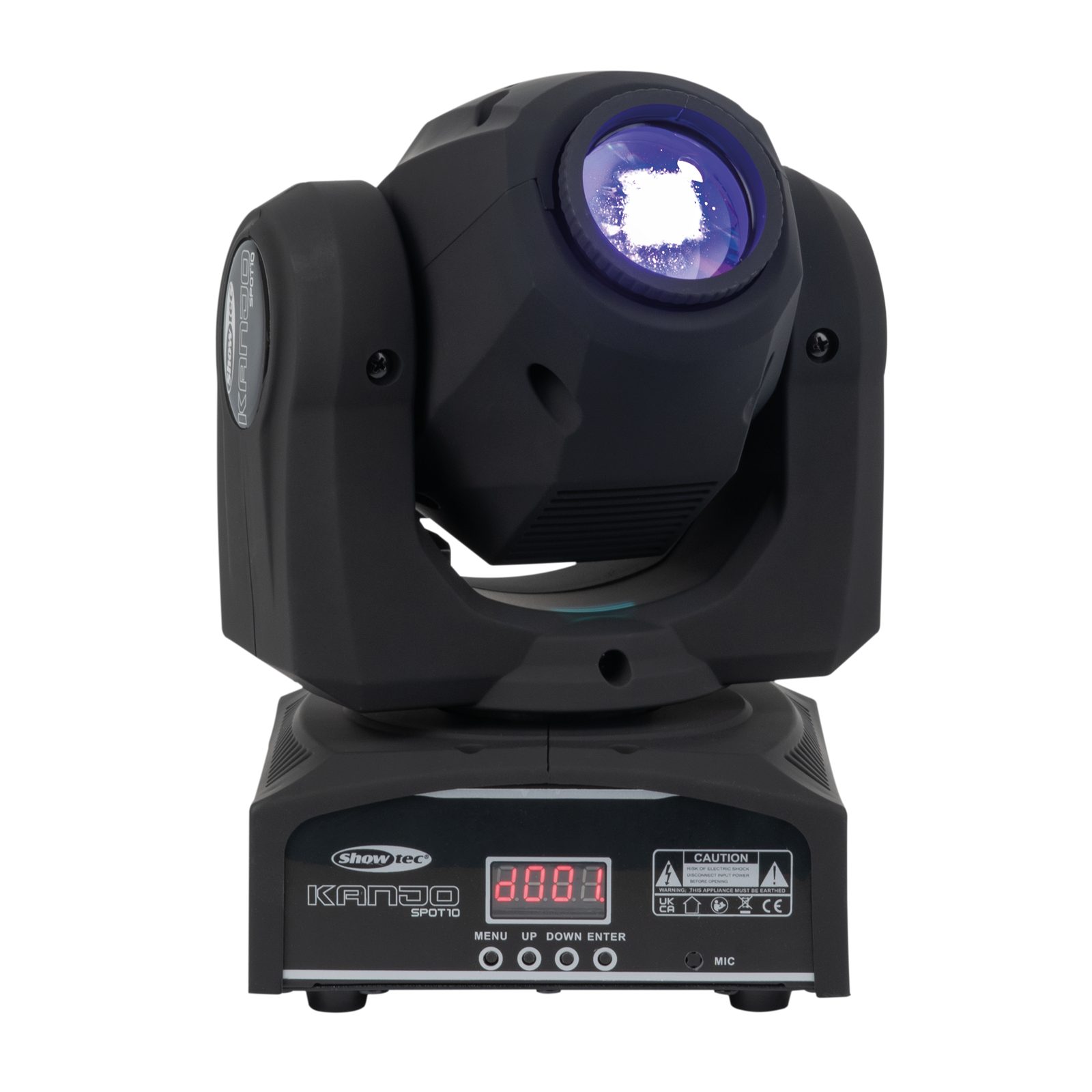

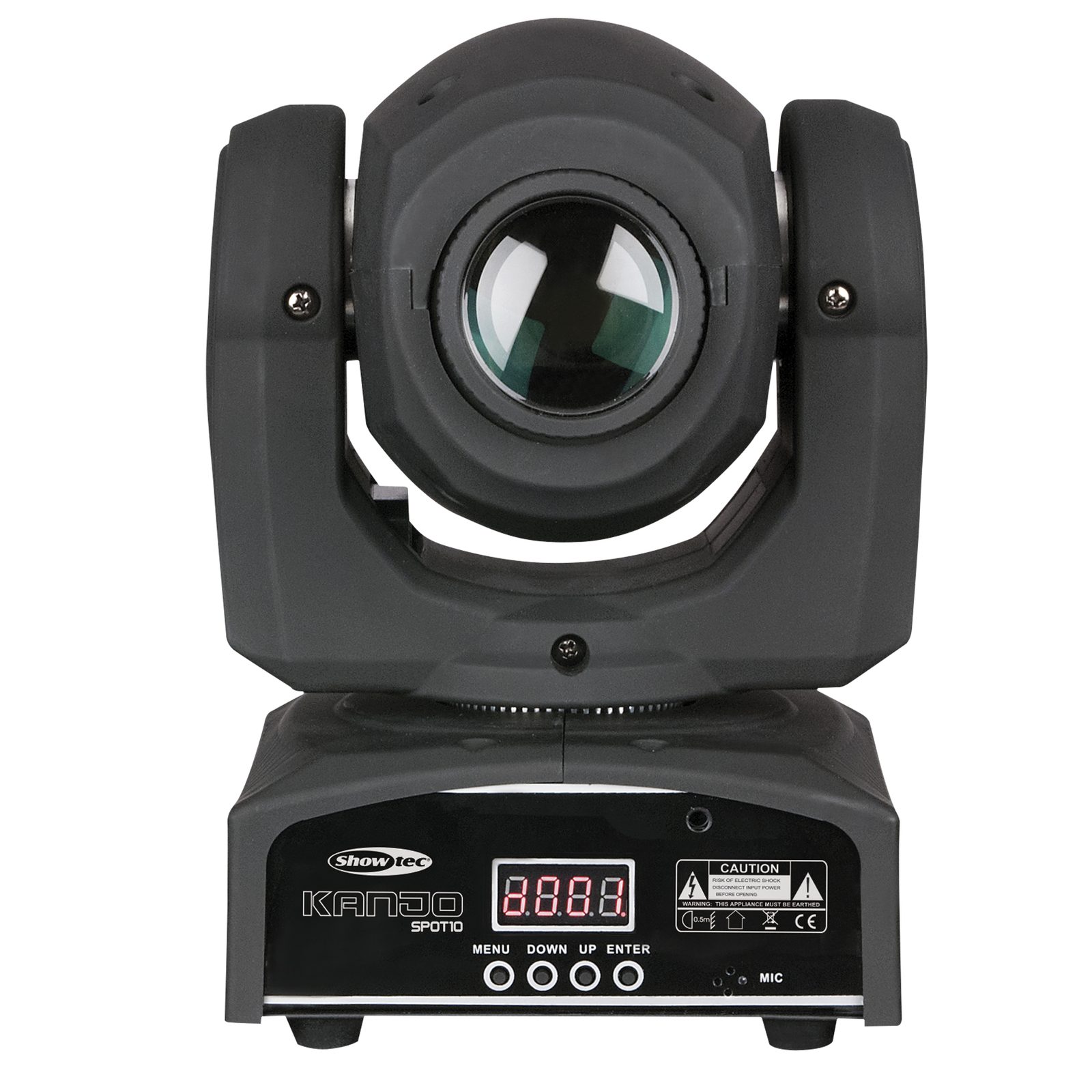

The Showtec Kanjo Spot 10 is an ultra-compact 10 watt LED Moving Head suitable for small indoor venues. Its 7 fixed gobos + open and 7 dichroic colours + white create nice optical effects and can be controlled via DMX and Master/Slave in either Manual, Auto run and Sound-controlled mode. Equipped with 0 - 100 % dimmer and 0 - 20 Hz strobe effects, the Kanjo Spot 10 has a 13° fixed beam angle and a manual focus for creating sharp-outlined projections. Its compact one-clamp-mount 3 kg design is ideal for quick rigging on stage..
- 10 W LED Moving Head
- 7 fixed gobos + open
- 7 colours + white
- Dimmer and strobe function
- DMX and Master/Slave control
- Manual focus for sharp-outlined projections
- Compact, one-clamp-mount design
| Light Source Type | LED |
|---|
| Light Source Quantity | 1 |
|---|
| Light Source Power | 10 W |
|---|
| Illuminance @ 5 m | 180 lx |
|---|
| Luminous Flux (Total) | 4500 lm |
|---|
| CCT | 7000 K |
|---|
| Beam Angle Maximum (Circular) | 13° |
|---|
| Focus | Manual |
|---|
| Control Mode | DMX |
|---|
| DMX Channels | 8 / 10 |
|---|
| Protocols | DMX |
|---|
| Display | 7-segment |
|---|
| Dimmer | 0-100 % |
|---|
| Strobe | 0-20 Hz |
|---|
| Colour System | Colour Wheel |
|---|
| Colour Wheel Index & Rotate | Yes |
|---|
| Dichroic Colour Wheel 1 | 7 + Open |
|---|
| Gobo System | Metal |
|---|
| Gobo Wheel Index & Rotate | Yes |
|---|
| Gobo Wheel 1 | 7 + Open |
|---|
| Pan | 540° |
|---|
| Tilt | 230° |
|---|
| Pan/Tilt Resolution | 16-bit |
|---|
| Power Supply | 100-240 V AC 50/60 Hz |
|---|
| Power Consumption | 26 W |
|---|
| Fuse | 3 A |
|---|
| Power Connector In | IEC |
|---|
| DMX Connector | XLR 3P In/Out |
|---|
| DMX Connector In | XLR 3P |
|---|
| DMX Connector Out | XLR 3P |
|---|
| Length (mm) | 145 mm |
|---|
| Width (mm) | 160 mm |
|---|
| Height (mm) | 270 mm |
|---|
| Weight | 3 kg |
|---|
| IP Rating | IP20 (indoor use only) |
|---|
| Housing | Plastic |
|---|
| Colour | Black |
|---|
| Cooling | Convection |
|---|
| Mounting Options | Bracket |
|---|
| Safety Attachment | Yes |
|---|
| Safety Eyes | 1 |
|---|
| Maximum Ambient Temperature | 40 °C |
|---|
| Included Cables | IEC cable |
|---|
| Included Rigging | Bracket |
|---|
