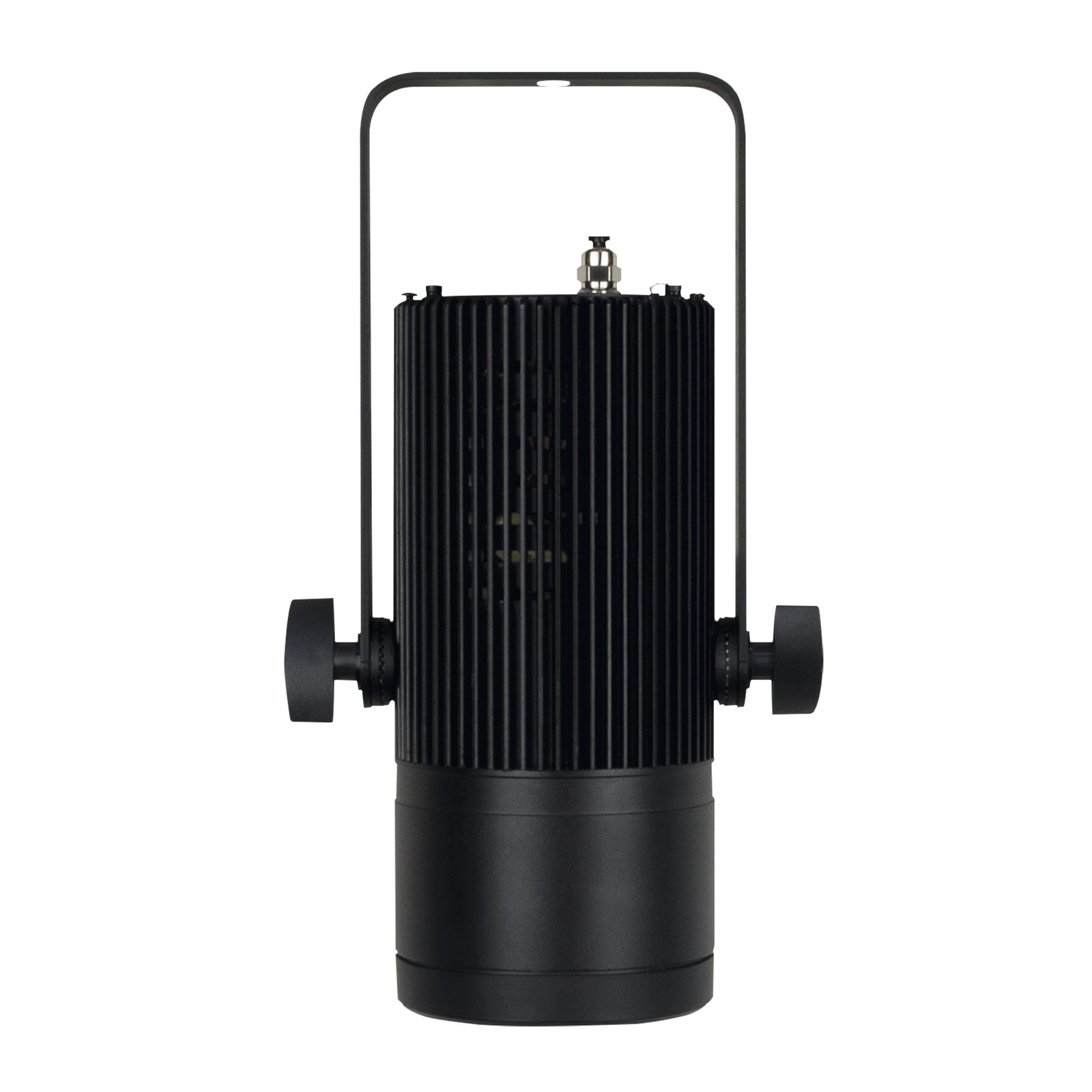

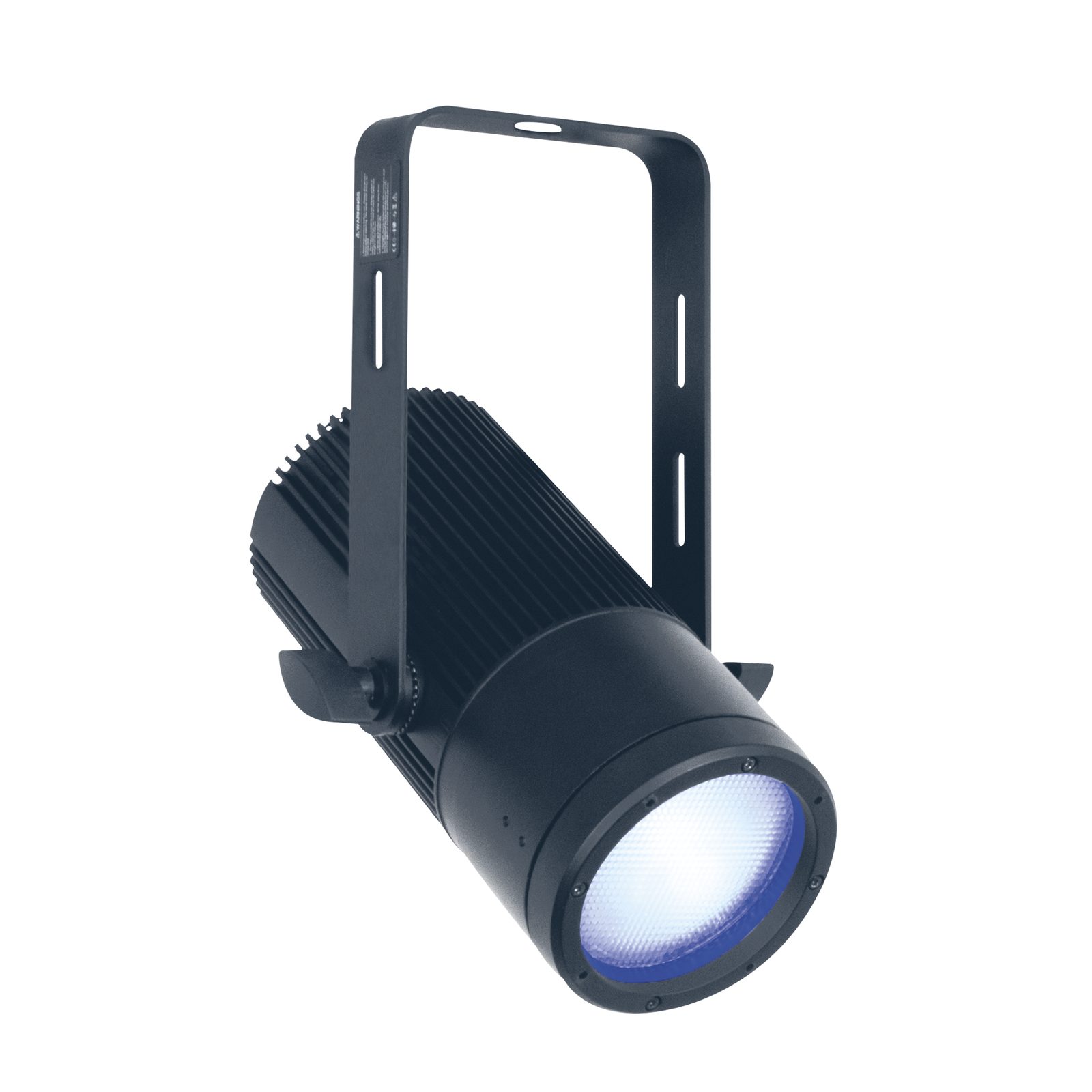

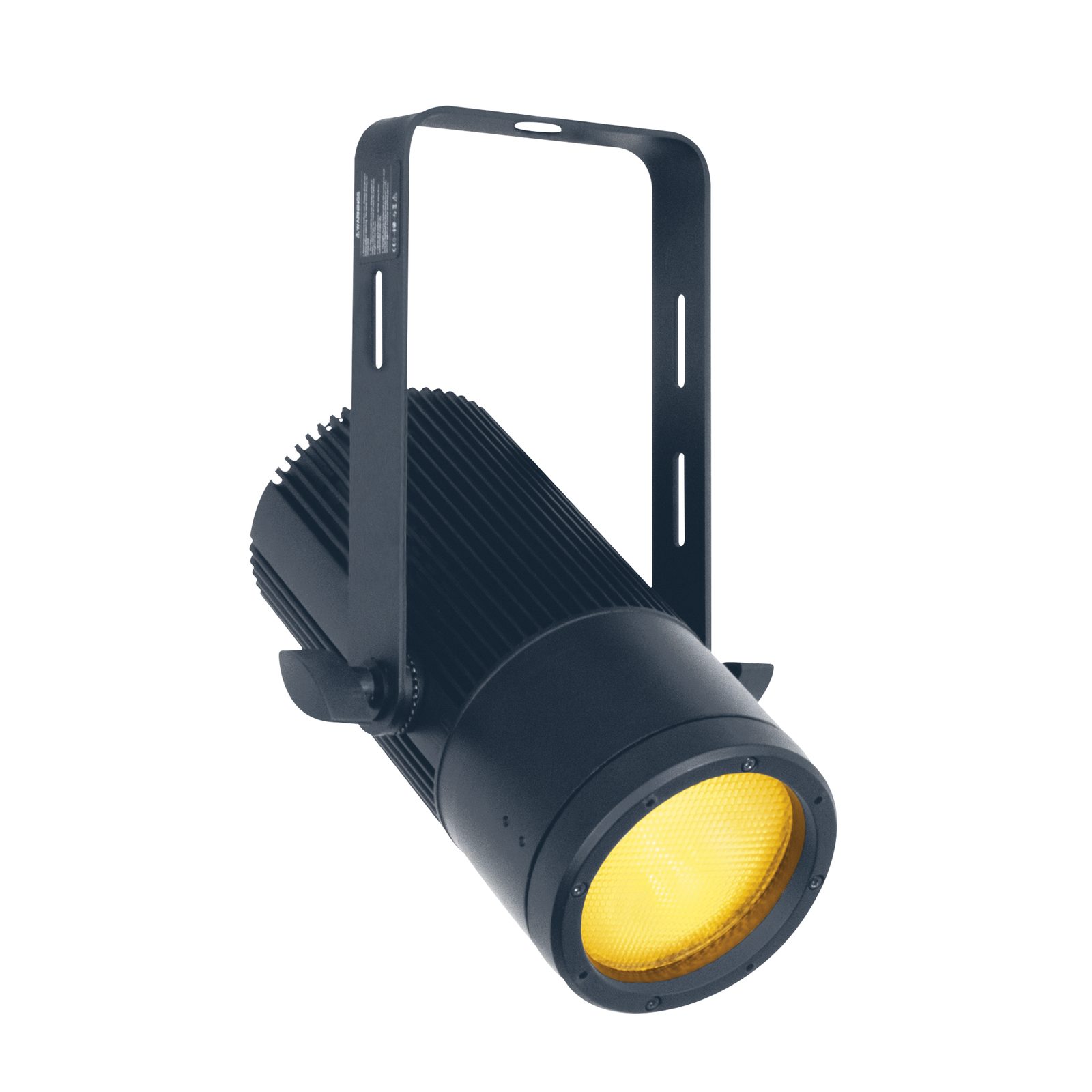

Performer Pendant 75 Q6 House Light LED Fresnel 70W RGBALC - Showtec 33149
The Showtec Performer series offers a wide and complete range of theatre and studio lighting fixtures consisting of Fresnel, Ellipsoidal, and House Lights, suitable for indoor and outdoor applications. All Performer fixtures have accurate colour rendering (high CRI), silent operations, a long lifespan and are reliable without any interference of flickering. A bright, even distribution of light is ensured in any required colour temperature, from Warm, Daylight and Cold White to smooth pastels and punchy colours through advanced colour-mixing. All Performer fixtures meet the high quality standard required for operating in theatres, on stages and during tv/video performances.
The Performer Fresnels project a soft field of light with a widely controllable zoom range, dimmer and strobe effects, suitable for short to medium throw applications. All Performer Profiles consist of ellipsoidals with multiple lens options, all providing a hard-edged, precisely focused field of light over long distances. The Performer Pendant fixtures are House Lights, blending perfectly with show lights to create an optimal ambience.
Each projector offers multiple control options and some come with included accessories to enhance functionality. Contact us now for free advice and receive an offer you cannot refuse or check out our product pages for more information.
The Showtec Performer Pendant 75 Q6 is a 70 watt RGBALC LED Fresnel. It is a fixed installation lamp (House Light) that works perfectly with show light to create an optimal atmosphere. Its 6-colour LED engine (red, green, blue, amber, lime, cyan) has 48 preset colours and provides highly accurate colour temperatures. It has a CRI of no less than 92. In addition, it has silent operations and 4 available dimming curves with a range of 0 - 100 %.
The Performer Pendant 75 Q6 is controllable both manually and via DMX. It is also equipped with a Master/Slave function that allows you to link multiple fixtures together. You can also install it neatly in a suspended ceiling thanks to an optional Flush Mount Holder. For this it has an appropriate beam angle of 30°.
- 70 W RGBALC LED houselight
- Suitable for fixed installations
- 48 preset colours
- CCT colour temperature range of 1800 - 10,000 K
- DMX/RDM, W-DMX, Master/Slave and Manual mode
- Silent operation
- Mounting bracket suitable for a certified safety cable
- Including 2.4 m power cable, bare cable and cable gland
| Light Source Type | LED |
|---|---|
| Light Source Quantity | 1 |
| Light Source Power | 80 W |
| LED Colour Type | RGBALC |
| Refresh Rate | 1000 Hz |
| Refresh Rate (Max.) | 25 kHz |
| Luminous Flux (Total) | 2684 lm |
| Luminous Flux (Red) | 305 lm |
| Luminous Flux (Green) | 527 lm |
| Luminous Flux (Blue) | 119 lm |
| Luminous Flux (Amber) | 462 lm |
| Luminous Flux (Lime) | 1034 lm |
| Luminous Flux (Cyan) | 207 lm |
| CRI | 92 |
| Minimum CCT | 1800 K |
| Maximum CCT | 10000 K |
| Beam Angle (Circular) | 30° |
| Field Angle (Circular) | 30° |
| Control Mode | DMX / Master Slave / Stand Alone |
| DMX Channels | 3 / 6 / 7 / 9 / 13 / 16 |
| Protocols | DMX / W-DMX / RDM |
| Dim Curve | Linear / Square / I-Square / S-Curve |
| Dimmer Resolution | 16 bit |
| Dimmer | 0-100 % |
| Strobe | 0-25 Hz |
| Power Supply | 100-240 V AC 50/60 Hz |
| Power Consumption | 70 W |
| Fuse | 3.15 A |
| Power Connector In | Open End |

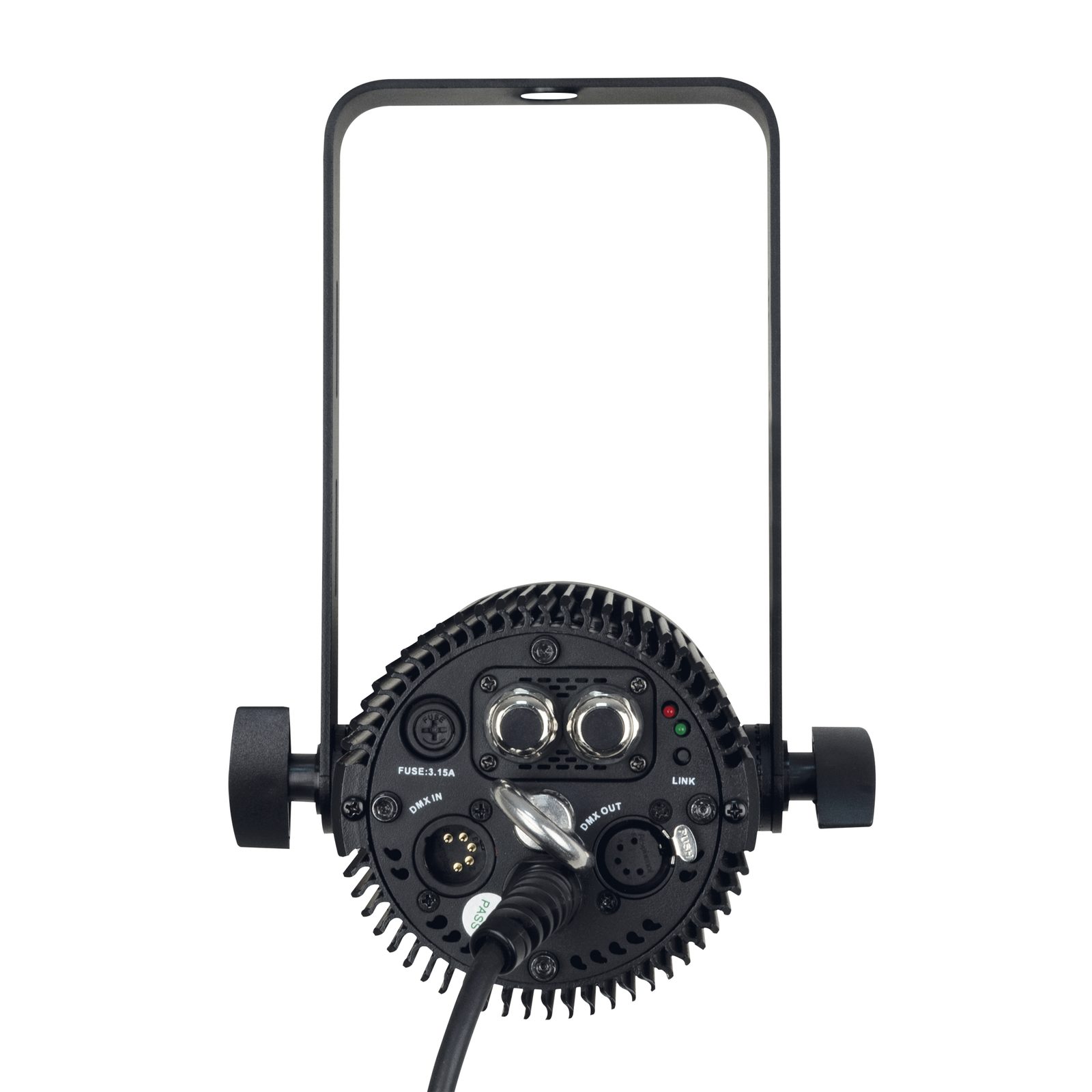

| DMX Connector | XLR 5P In/Out / Phoenix In/Out |
| DMX Connector In | Phoenix / XLR 5P |
| DMX Connector Out | Phoenix / XLR 5P |
| Cable Length | 3 m |
| Length (mm) | 332 mm |
| Width (mm) | 192 mm |
| Height (mm) | 115 mm |
| Weight | 3.4 kg |
| IP Rating | IP20 (indoor use only) |
| Material | Aluminium |
| Housing | Aluminium |
| Colour | Black |
| Cooling | Convection/Axial fan |
| Mounting Options | Bracket / Ceiling / Flush |
| Safety Attachment | Yes |
| Safety Eyes | 1 |
| Maximum Ambient Temperature | 45 °C |
| Minimum Operating Temperature | 0 °C |
