Altoparlante passivo da soffitto 6" 30W RMS 16 Ohm 2 vie - DAP D6585
Altoparlante passivo da soffitto 6" 30W RMS 16 Ohm 2 vie - DAP D6585

Altoparlante passivo da soffitto 6" 30W RMS 16 Ohm 2 vie - DAP D6585

DAP
€65.25
Tax included
Passive 6" Ceiling Speaker - white
Share

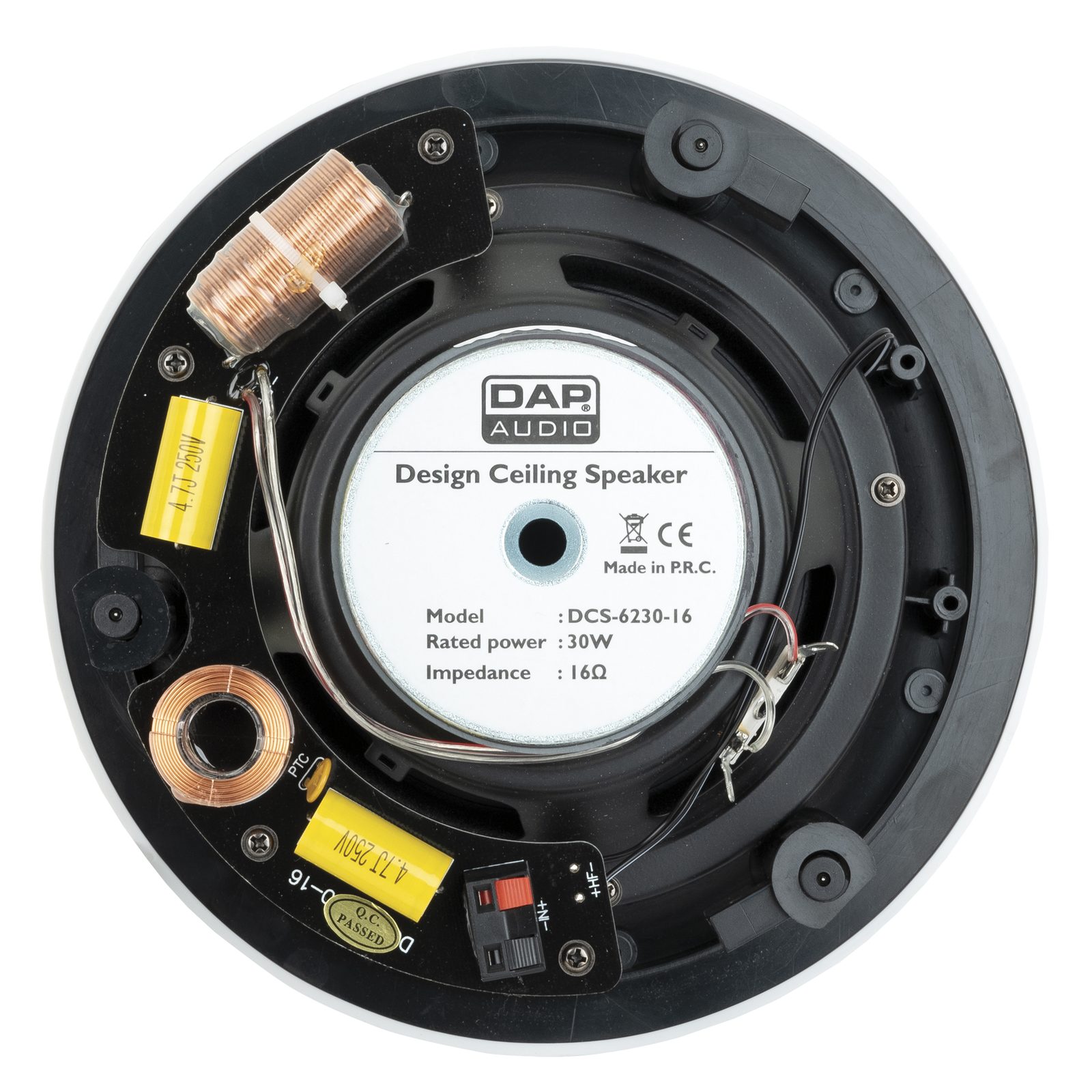

The DAP DCS-6230-16 is a passive 6-inch design ceiling speaker with 16 Ohm impedance. This white recessed ceiling speaker is designed with almost no rim around the grille and the depth of the grille is also very limited. This makes that this unit is almost invisible after mounting.

The DCS-6230-16 is a 2-way system with a high peak power of 60-watt (30-watt RMS). Besides an 6-inch low driver, it also is equipped with a 0.75-inch Neodymium high driver for a clear full-range sound.

  • 30 W RMS/60 W peak power - 16 Ω - 2-way
  • Ultra slim rim around the grille
  • Magnet detachable and small depth grille
  • Protection against solid objects >1 mm (IP40)
RMS Input Power30 W
Peak Input Power60 W
Passive Input ConnectionTerminal
Speaker System2-way
Speaker Sensitivity (1 W/1 m)86 dB
Speaker Impedance16 Ω
Maximum SPL at 1 m101 dB
Frequency Response Minimum46 Hz
Frequency Response Maximum19000 Hz
Woofer Diameter6"
Woofer Voice Coil Diameter1"
Compression Driver Diameter0.75"
Compression Driver Voice Coil0.5"
Dispersion Angle (Horizontal)80°
Dispersion Angle (Vertical)80°
Height (mm)102 mm
Width (mm)237 mm
Length (mm)237 mm
Installation Depth (Excl. Connector)98 mm
MaterialPlastic
ColourWhite
Weight1.5 kg
IP RatingIP40

  • Brand
  • Reference
    D6585
  • In stock
    10 Items
  • EAN13
    8717748363312
