Cavo ibrido DMX/Power powerCON TRUE1 & XLR 3 pin IP65 1.5m - DAP FP15150
Cavo ibrido DMX/Power powerCON TRUE1 & XLR 3 pin IP65 1.5m - DAP FP15150

Cavo ibrido DMX/Power powerCON TRUE1 & XLR 3 pin IP65 1.5m - DAP FP15150

DAP
€118.37
Tax included
1.5 m - blue
Share

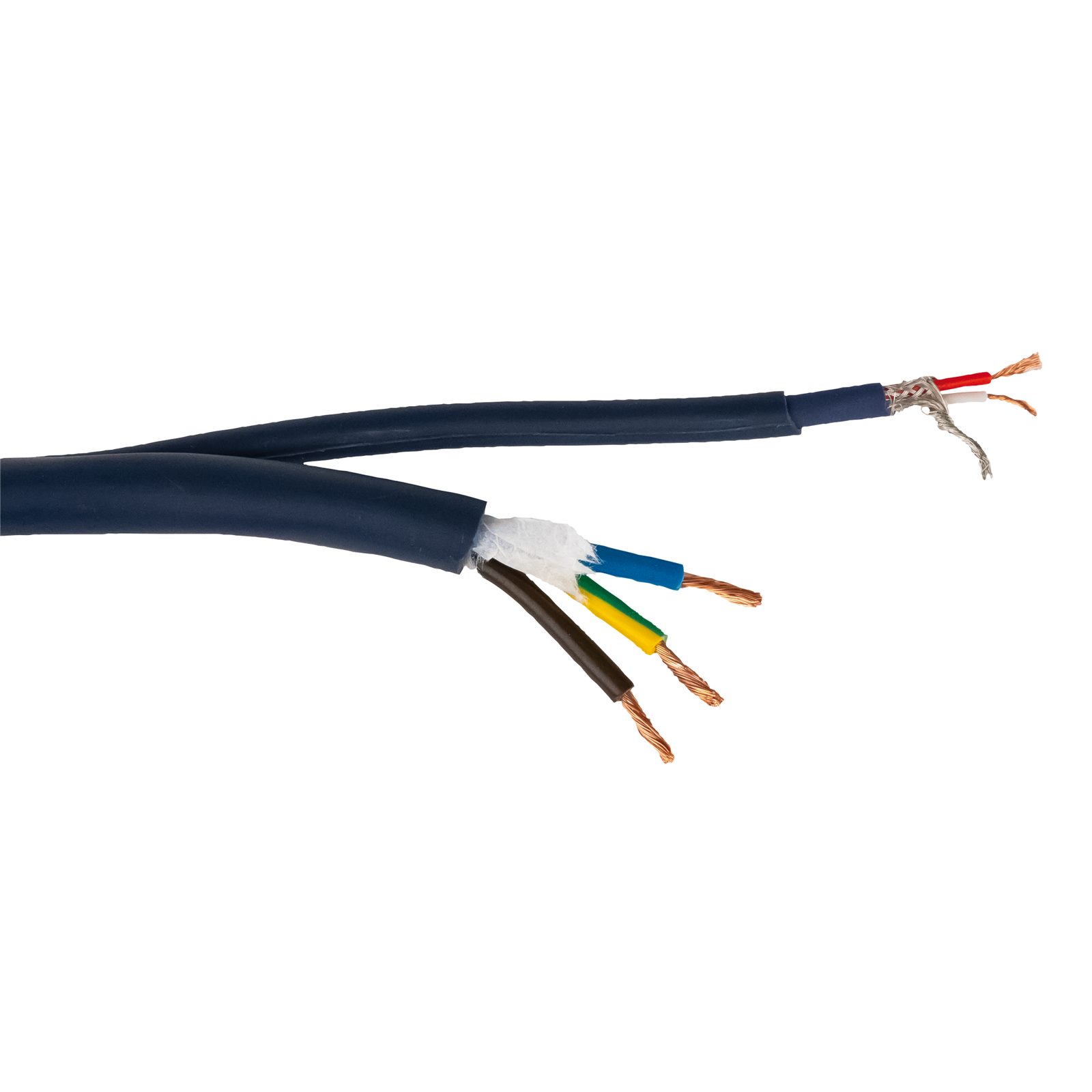

The DAP FP-15 is a two-in-one cable for attaching your lighting fixtures to both your DMX console and the main power supply. It has both a powerCON TRUE1 (male/female) and a 3-pin XLR cable connector (male/female). Equipped with an IP65 rating, this cable is suitable for outdoor venues.

The FP-15 is called a hybrid cable since it has a double connection. One for power and the other for DMX communication. The advantage of powerCON TRUE1 is that they can be connected and disconnected under load.

This hybrid powerCON TRUE1 cable is available in the sizes: 150 cm, 3 m, 6 m, 10 m and 15 m.

  • 2-in-1 combi cable
  • Suitable for DMX supported lighting fixtures
  • IP65
  • 3-pin Neutrik XLR connectors
  • powerCON TRUE1 connectors
  • Available in different lengths
Rated Current (A)16 A
Flashover Voltage30 V
Impedance110 Ω
Connector 1powerCON TRUE1 TOP In (Female)
Connector 2powerCON TRUE1 TOP Out (Male)
DMX Connector InXLR 3P
DMX Connector OutXLR 3P
Brand Connector 1Neutrik
Cable Length1.5 m
Pins ( power )3
Pins ( data )3
Outer Cable Diameter11 mm
Outer Isolation TypePVC
Weight0.37 kg
IP RatingIP65
MaterialCopper
ColourBlue
Contact TypeBrass
Filler MaterialCotton / Paper

  • Brand
  • Reference
    FP15150
  • In stock
    10 Items
  • EAN13
    8717748489005
