PowerCore Server Monitor 6 distributors - Showgear E 623050

PowerCore Server Monitor 6 distributors - Showgear E 623050

Name: PowerCore Server Monitor 6 distributors - Showgear E 623050
Brand: SHOWGEAR
SKU: E623050
Price: 292.85 EUR
Availability: OutOfStock

SHOWGEAR

€292.85

Tax included

The PowerCore Server Monitor can monitor up to 6 PowerCore distributors simultaneously. The OLED display shows real-time information about voltage and current consumption.

Non disponibile

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

The Showgear PowerCore Server can monitor up to 6 PowerCore power distributors simultaneously, using the MdbuS protocol. The OLED display provides real-time information about voltage and current consumption of all connected distributors, which can also be recorded using the log function. The threshold parameters can be set for voltage, current and frequency, with visual alerts that are activated when the parameters are exceeded. The server connection to distributors can be made with a simple XLR cable to 3 pin. You can also connect a device like a tablet or a laptop to the server via IP to monitor performance remotely.

The PowerCore server can be powered via PoE or USB-C (cable not included). The 19

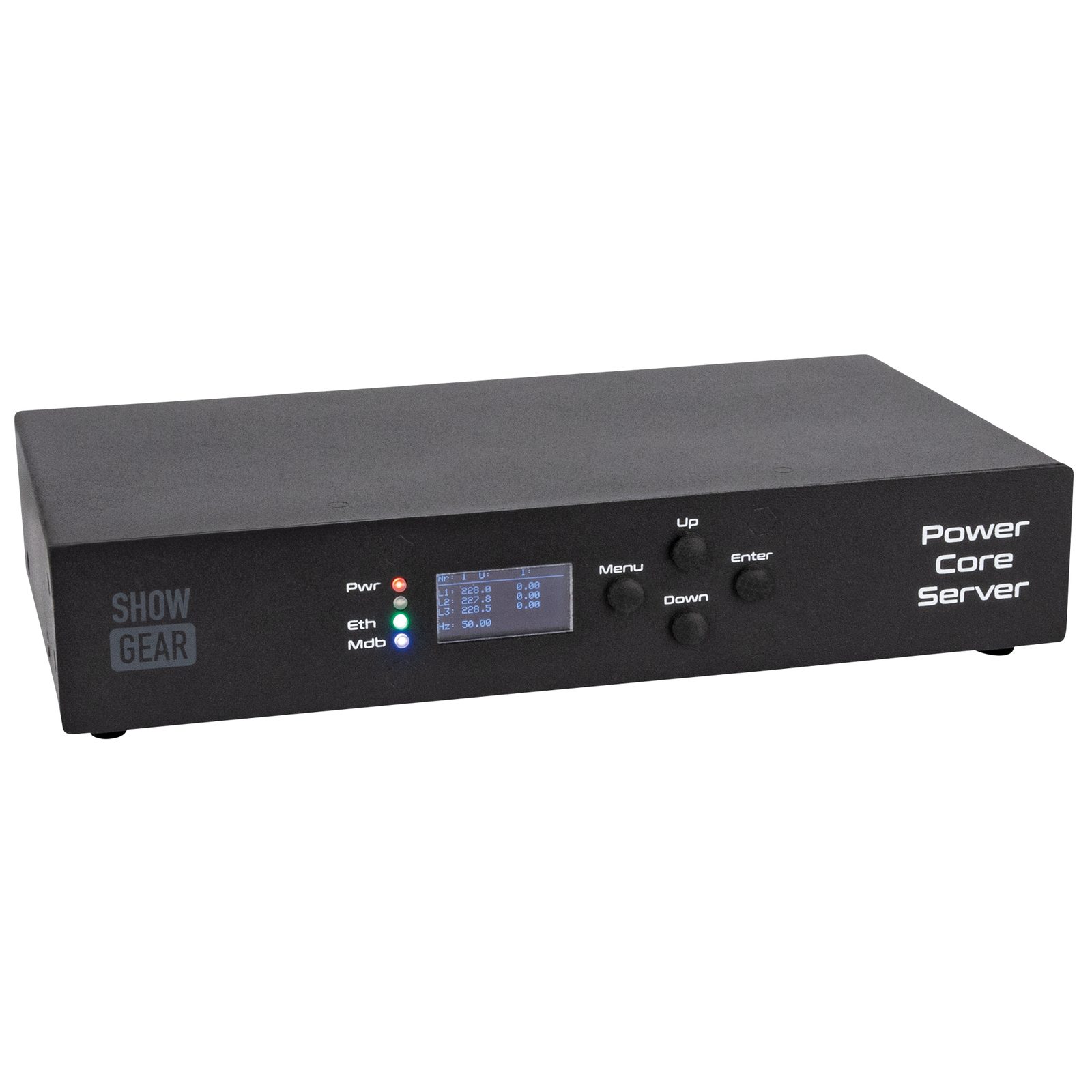

OLED display
Remote IP monitoring (telephone, tablet, laptop)
MdbuS Protocol
Powered by USB-C and PoE
Log and threshold functions

Display	OLED
Data input connection	RJ 45
Data output connection	RJ 45 / XLR 3 P
Power consumption	3 W
Feeding	5 V DC
Power over Ethernet (PoE)	IEEE-802.3 af
Power input connection	RJ 45 / USB-C
Length (mm)	141 mm
Height (mm)	50 mm
Width (mm)	482 mm
Weight	1.6 kg
IP Grade	IP 20 (for indoor use only)
Housing	Aluminium / Metal
rack unit	1 U
Color	Black
Maximum ambient temperature	40 °C
Minimum ambient temperature	- 5 °C
