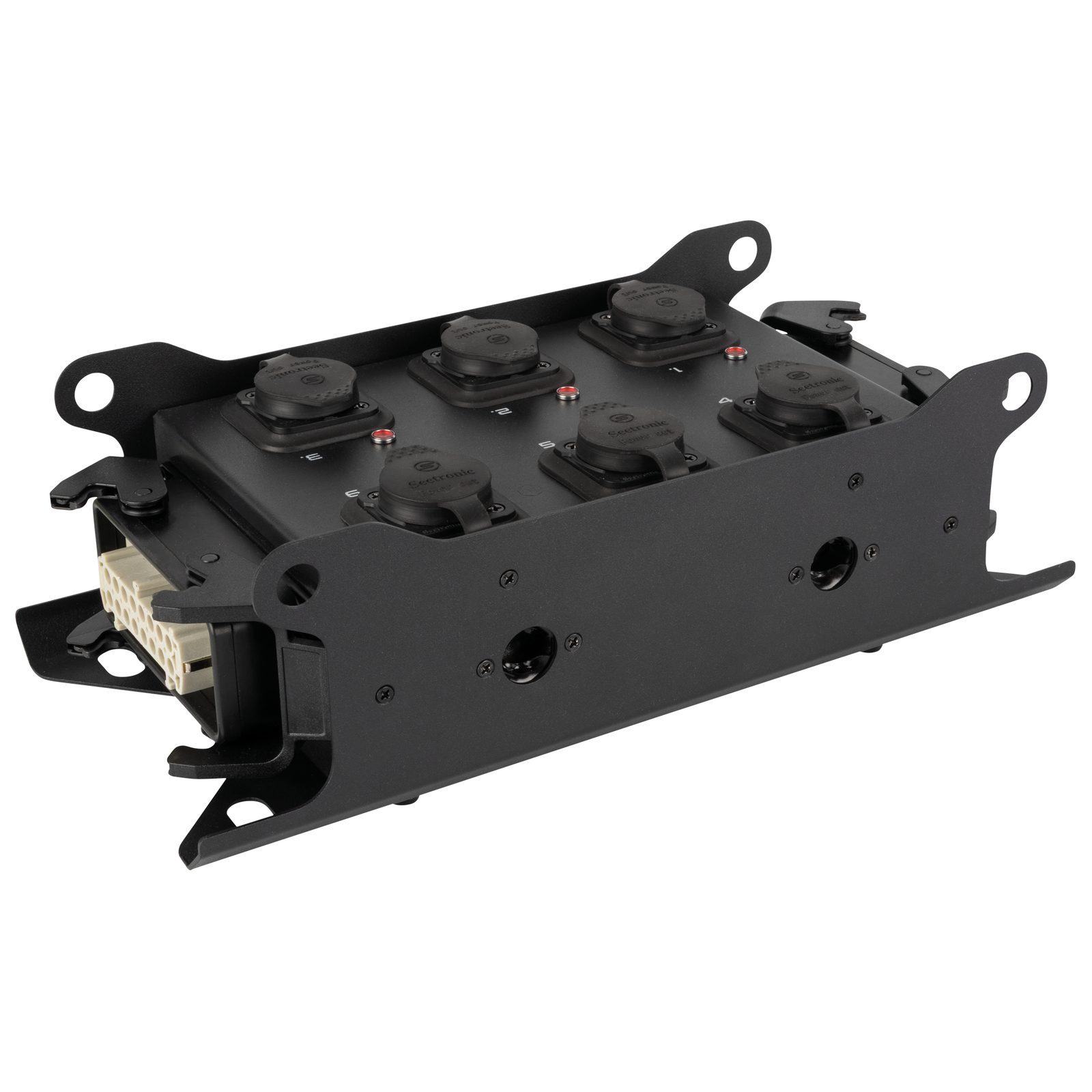

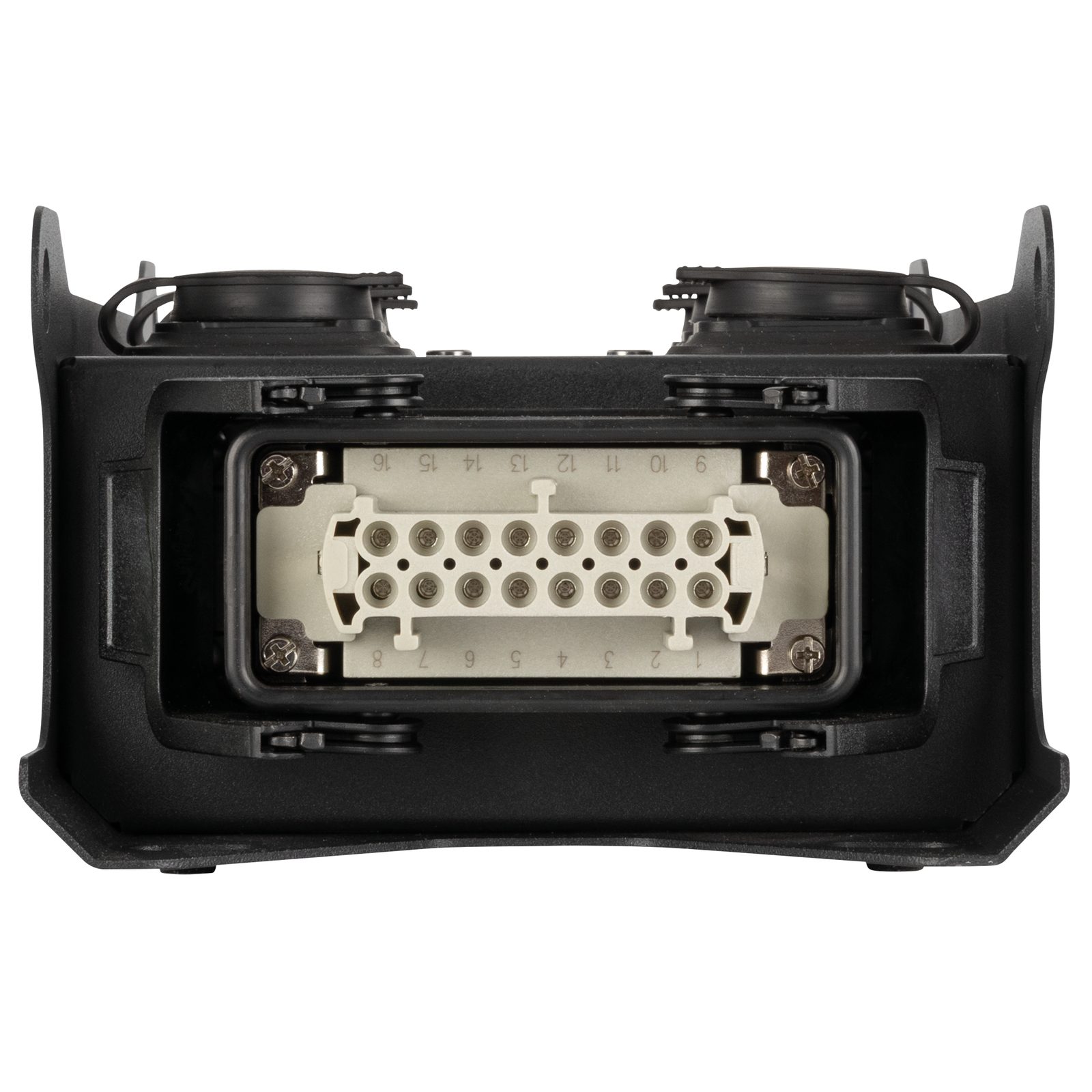

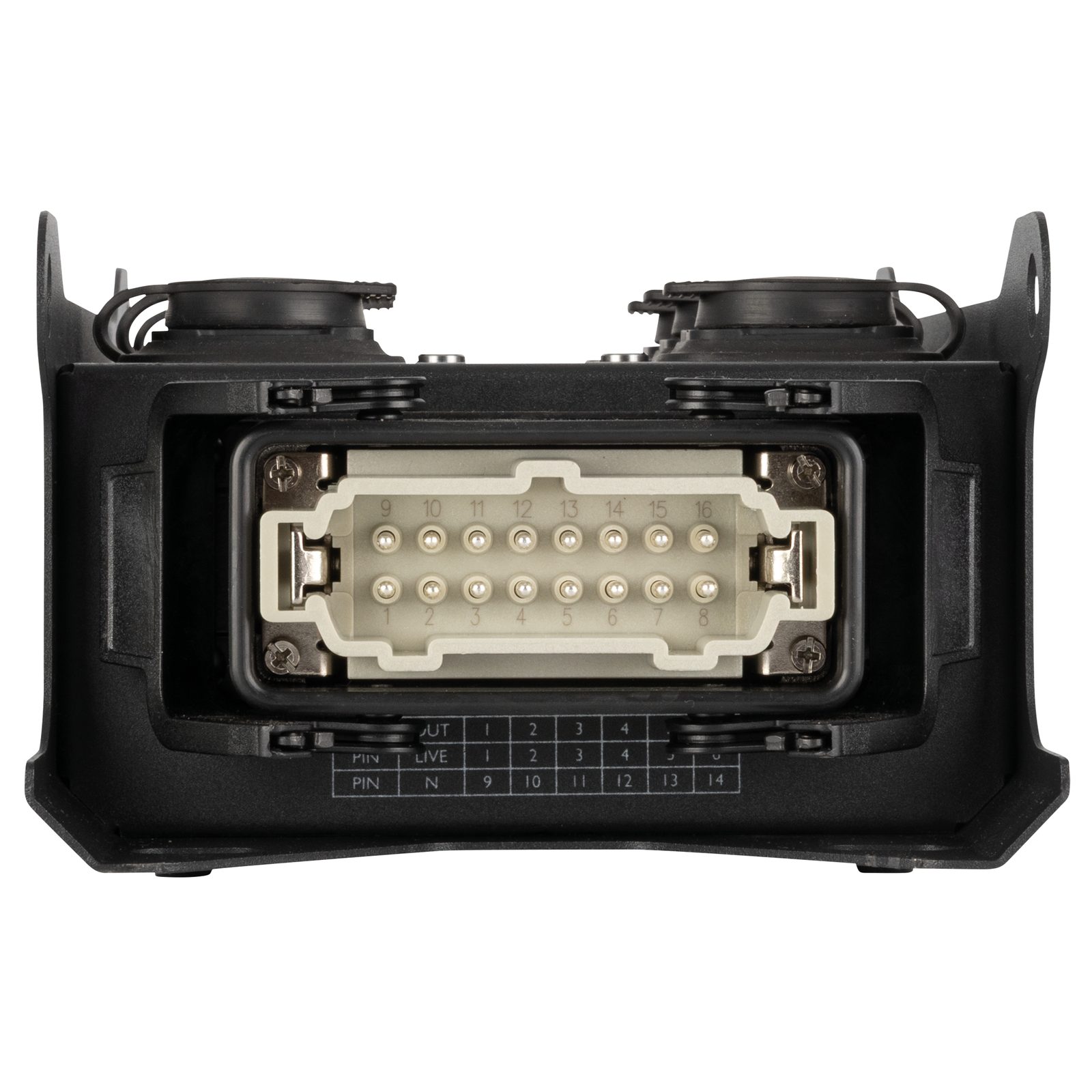

The Showgear PowerCore 2m.6p is a breakout power box with two Multipin H16 connectors (male/female) and 6 high-quality Power Pro True outlets from Seetronic. Its loop-through design connects all 8 channels from input to output, while channels 1-6 power the Power Pro True outlets. Each outlet includes a voltage indication LED for quick and convenient status checks. It is designed for seamless integration with the Showgear PowerCore series and is compatible with all PowerCore units equipped with a Multipin H16 output connector. It is also compatible with Harting HAN16 and other power distributor brands that use the 1-9 standard (pin 1+9 is channel 1, pin 2+10 is channel 2, etc.)
For flexible installation, the PowerCore 2m.6p offers multiple mounting holes for permanent setups and a quick-lock mounting point for fast, tool-free attachment using the optional PowerCore Quick Lock Bracket.
- 2 Multipin H16 connectors (1 in, 1 out) with loop-through functionality

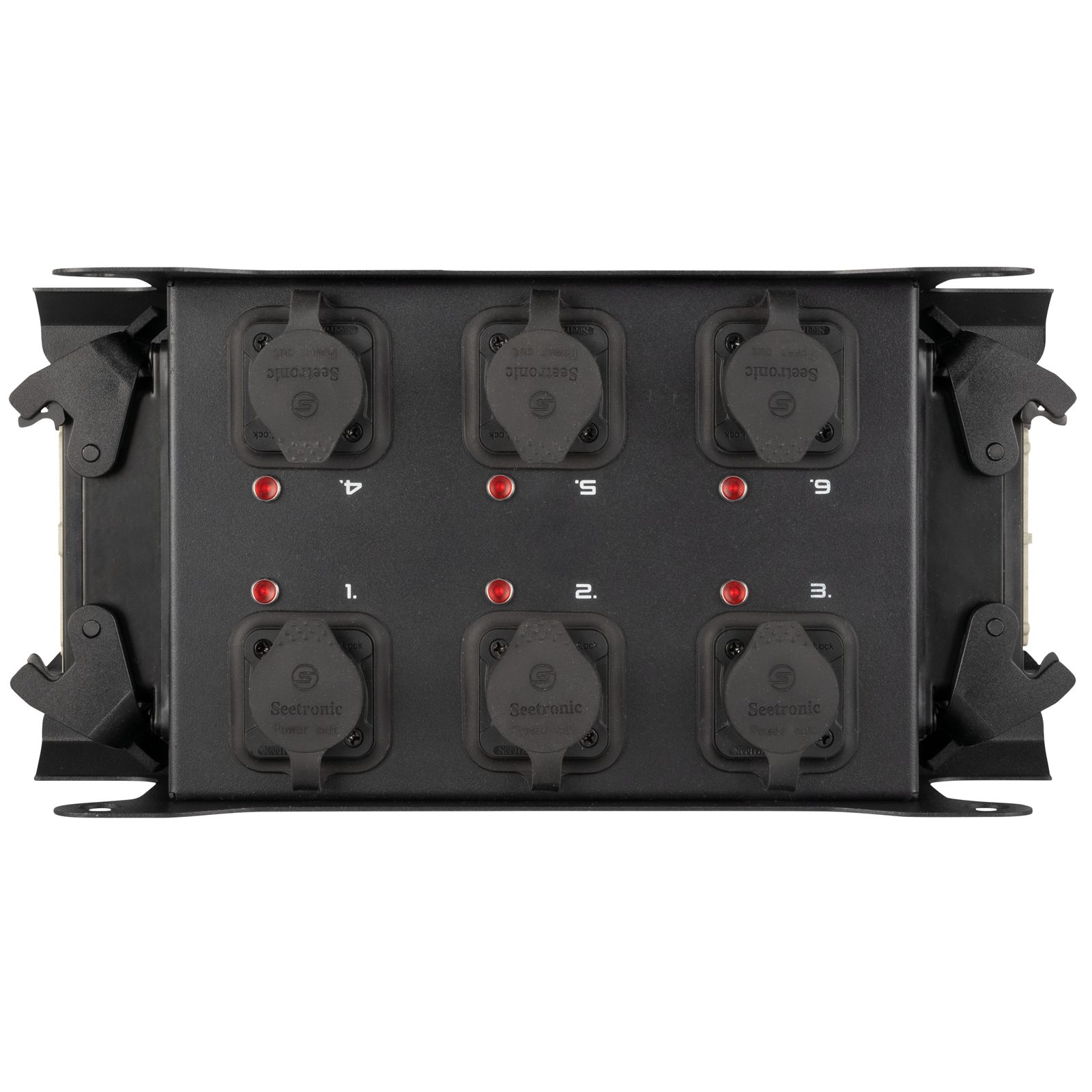

- 6 Power Pro True outlets from Seetronic
- Voltage indication LED on each output
- Compatible with Multipin H16 and Harting HAN16
- Quick-lock mounting option for easy installation
| Power Supply | 230 V AC 50/60 Hz |
|---|
| Rated Current (A) | 16 A |
|---|
| Power Connector In | Multipin H16 |
|---|
| Power Connector Out | Multipin H16 / Power Pro True |
|---|
| Length (mm) | 310 mm |
|---|
| Height (mm) | 102 mm |
|---|
| Width (mm) | 150 mm |
|---|
| Weight | 2.4 kg |
|---|
| IP Rating | IP20 (indoor use only) |
|---|
| Material | Metal |
|---|
| Colour | Black |
|---|
| LED Indicators | Power |
|---|
| Maximum Ambient Temperature | 40 °C |
|---|
| Minimum Ambient Temperature | -5 °C |
|---|
| Mounting Options | Quick-Lock / Wall |
|---|
| Fixed Mounting Option | 11 mm |
|---|
| Safety Attachment | Yes |
|---|
