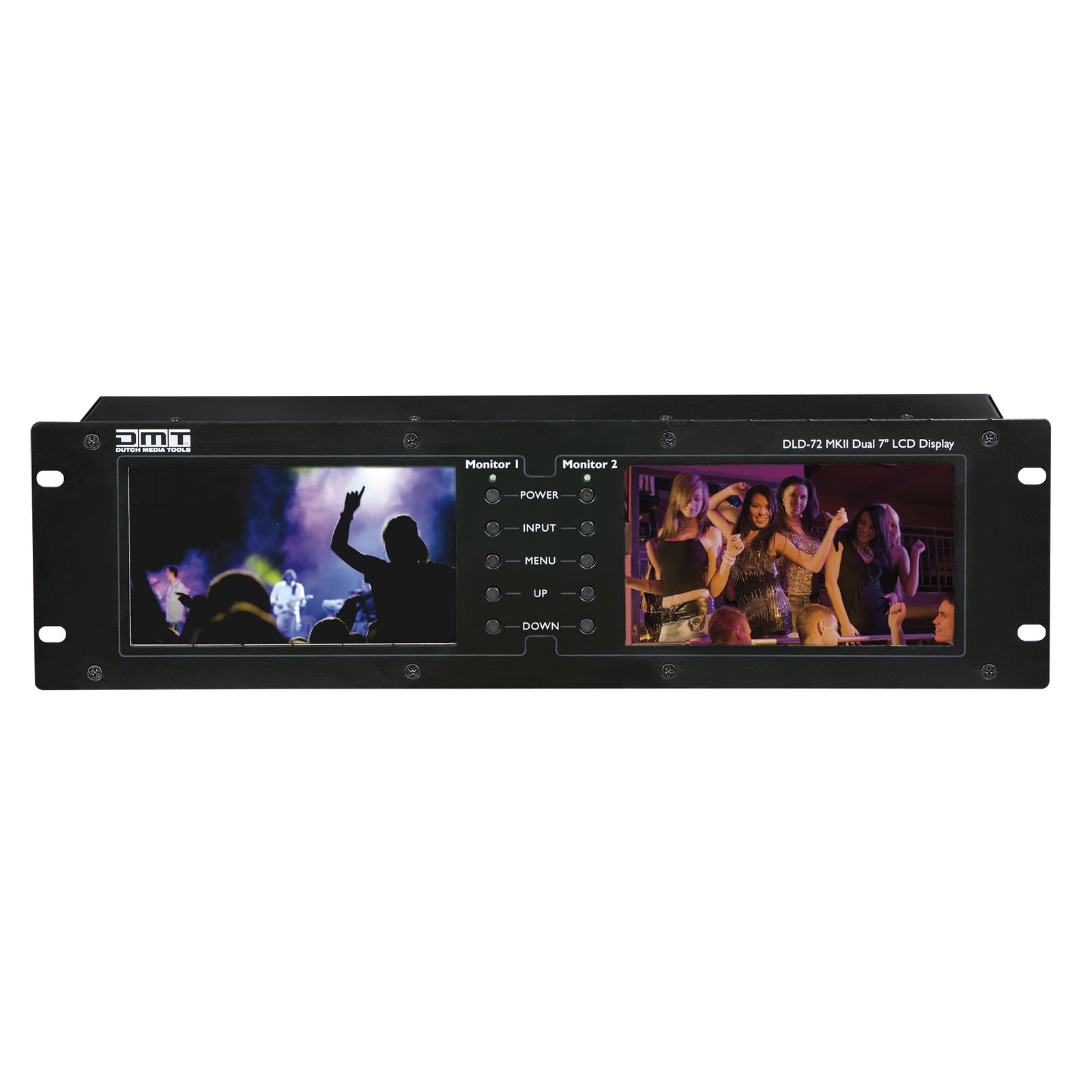

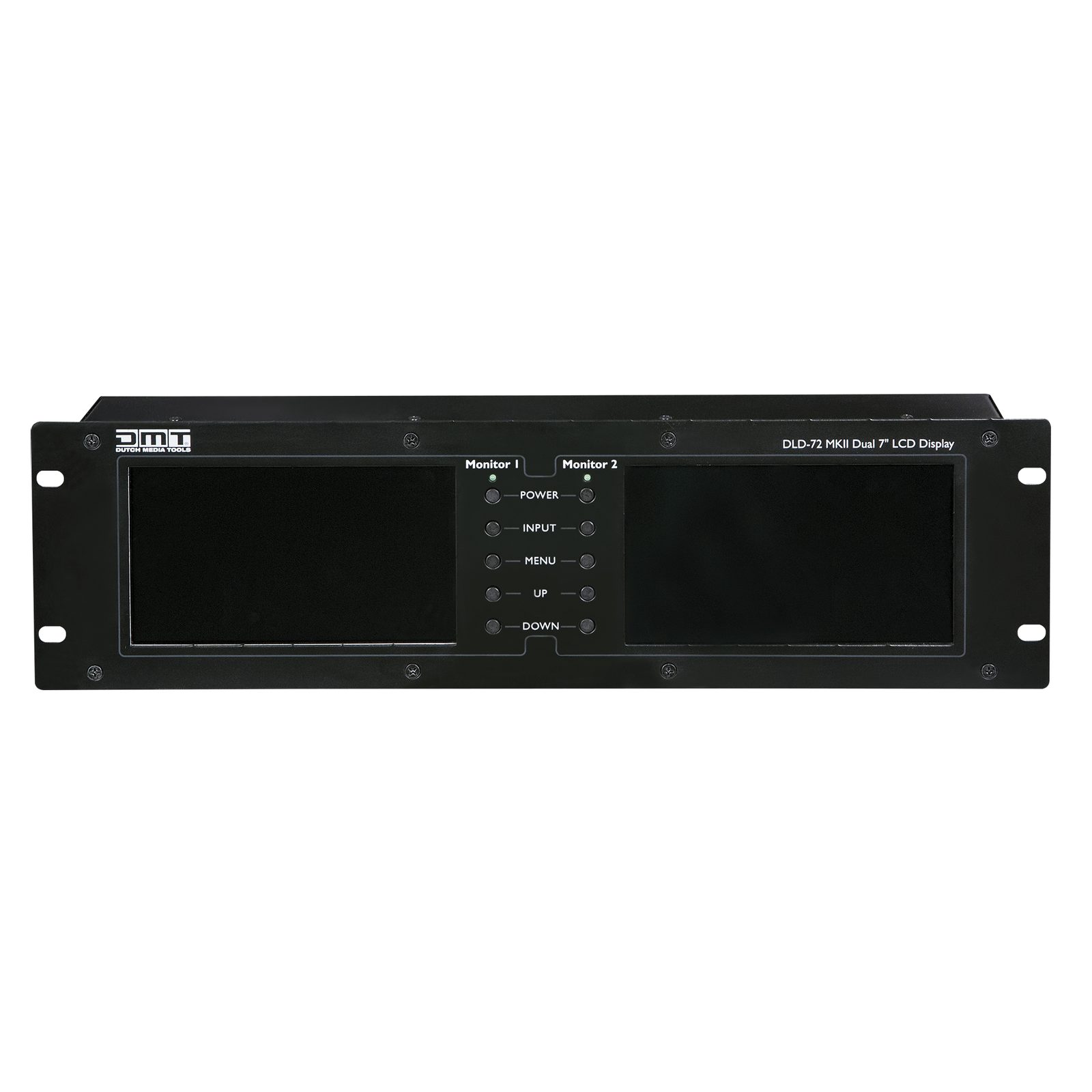

Doppio Monitor 7" per Rack con Ingressi HDMI/VGA/CVBS - DMT DLD-72 MKII

Doppio Monitor 7" per Rack con Ingressi HDMI/VGA/CVBS - DMT DLD-72 MKII

DMT

€411.96

Tax included

Dual 7" display with HDMI link - rack mount version

The DMT DLD-72 MKII is a professional rack mount double monitor system. It can be used for VJ monitoring, surveillance systems and any other multimedia setup where monitoring is necessary. It can be used for VGA, CVBS and HDMI sources. Because of the link outputs it is possible to make a daisy chain setup with the DLD-72 MKII. The built-in distributor guarantees a HDMI signal without signal loss. Both screens are individual with separate menus to set your desired settings for each screen.

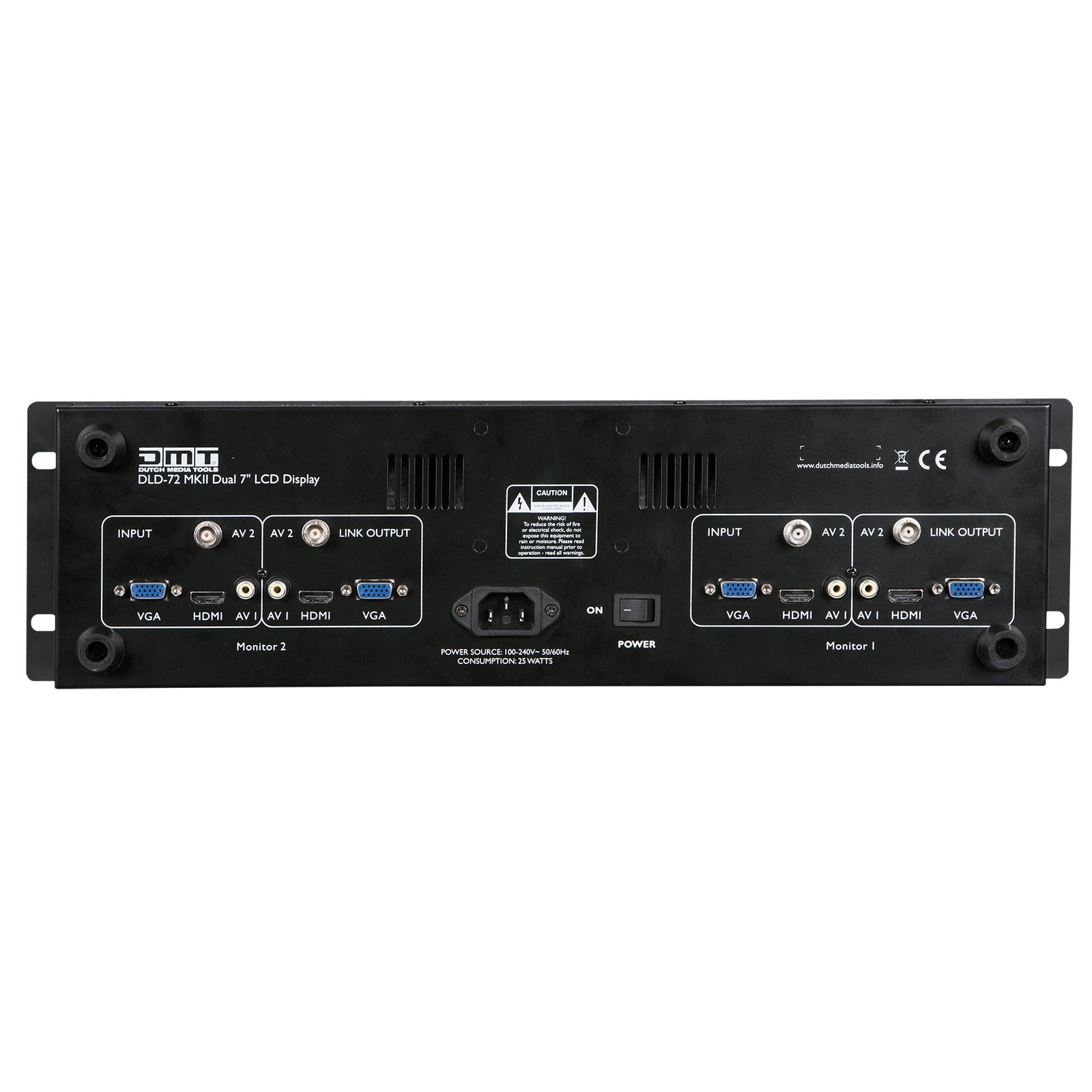

BNC, VGA, RCA & HDMI Inputs
Link outputs
7” TFT
Individual screen settings

Type of input connector	HDMI 1.3
HDMI 1.3	2
VGA (In)	2
CVBS Input Impedance	75 Ω
Analogue Video Input	BNC / RCA
Type of output connector	HDMI 1.3 (Loop)
HDMI 1.3 (Loop)	2
VGA (Out)	2
CVBS Output Impedance	75 Ω
Analogue Video Output	BNC / RCA
Display	TFT
Display Resolution (Horizontal)	800 px
Display Resolution (Vertical)	480 px
Display Size	7"
Maximum Input Resolution	1920 x 1080
Power Supply	100-240 V AC 50/60 Hz
Power Consumption	25 W
Power Connector In	IEC
Height (Including Handles)	133 mm
Width (Including Handles)	482.6 mm
Width (Without Handles)	440 mm
Depth (Without Handles)	78 mm
Weight	2.4 kg
Flightcase Size	19"
Rack Units	3 U
IP Rating	IP20 (indoor use only)
Housing	Steel
Colour	Black
Cooling	Convection
Maximum Ambient Temperature	40 °C
Minimum Ambient Temperature	0 °C
Maximum Surface Temperature	70 °C
Included Cables	IEC cable
