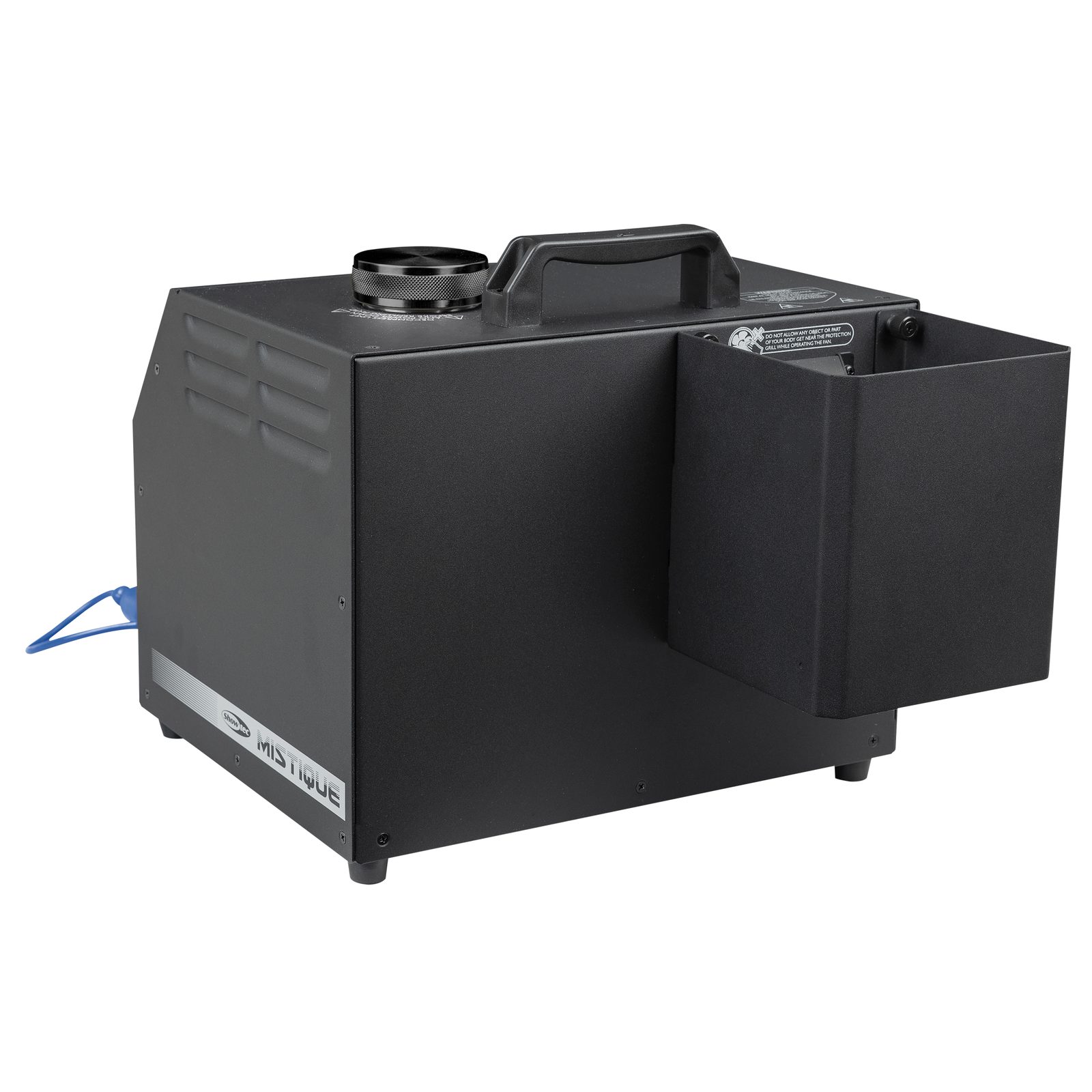

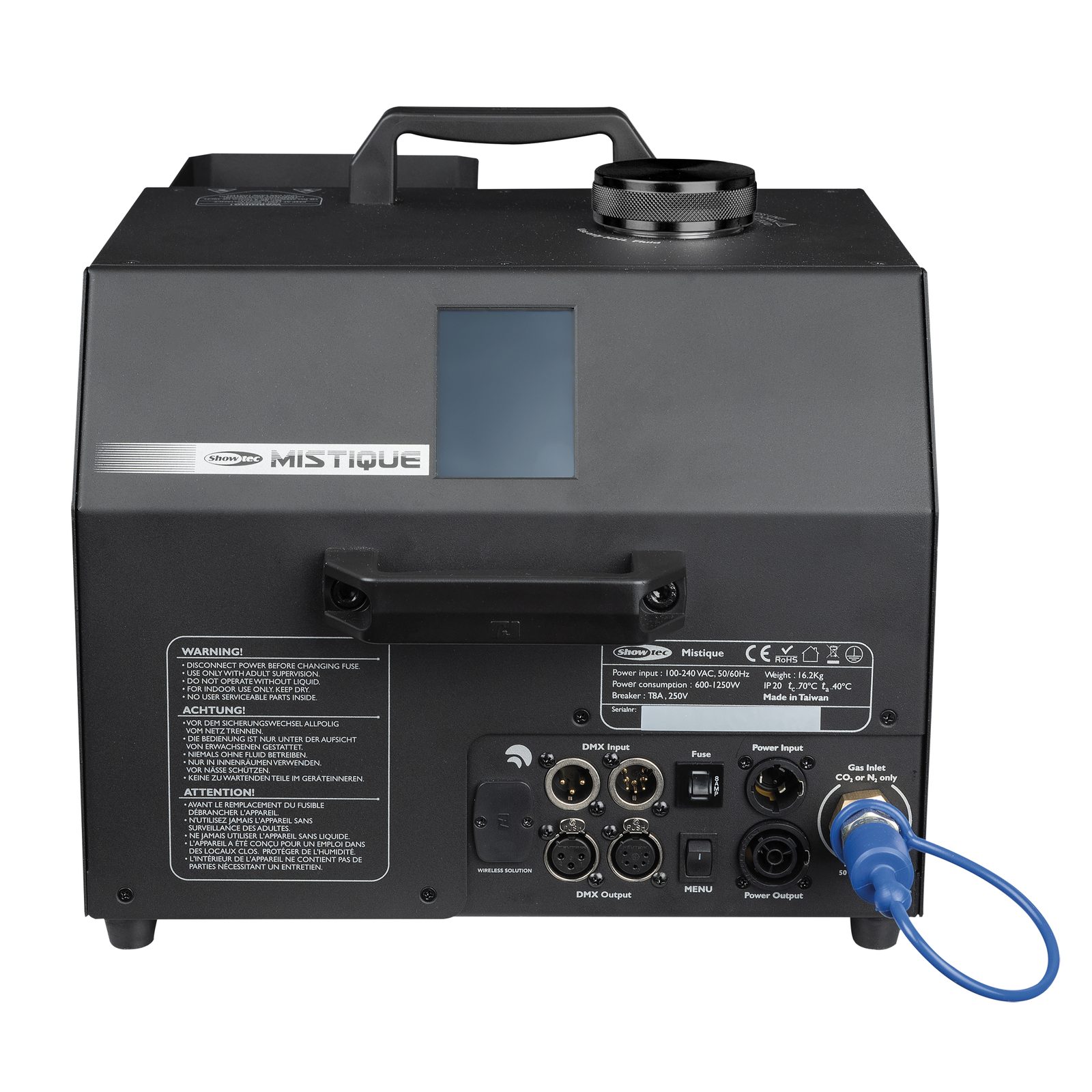

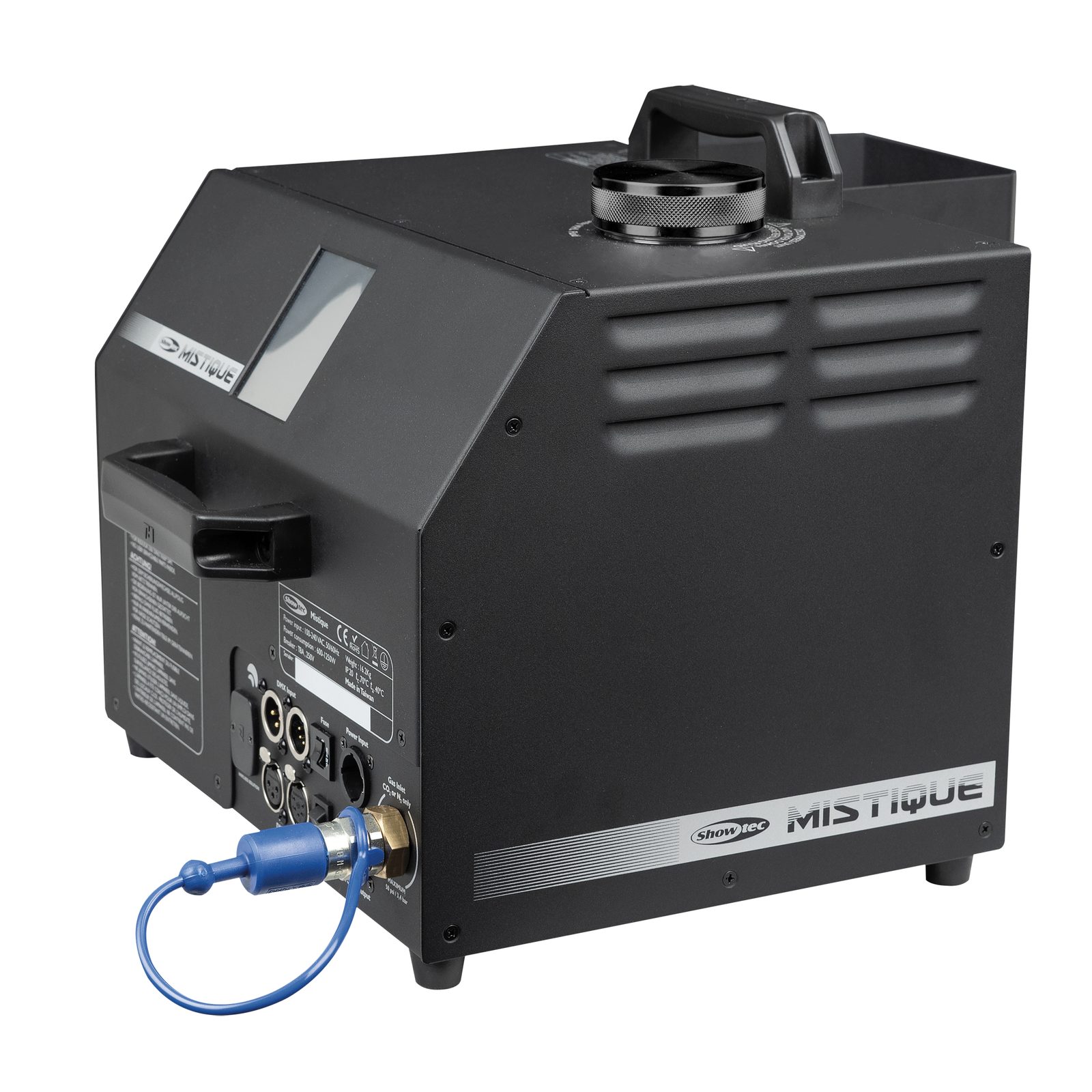

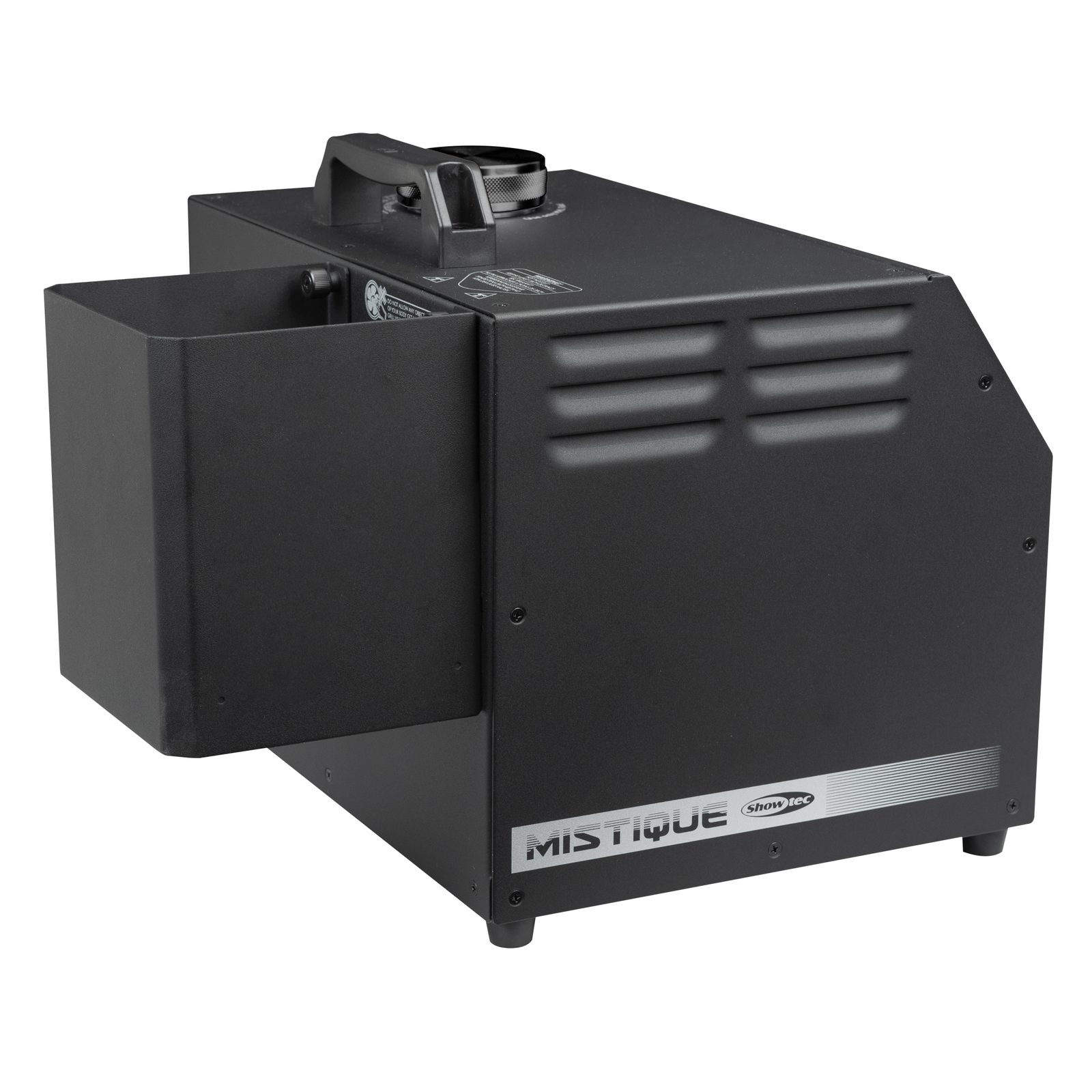

Hazer CO₂ 1250 W silenzioso - Showtec Mistique 60769
The best special FX are the ones which are almost invisible but in the meantime create the perfect mood for your event. Presenting the Showtec Mistique CO₂ Hazer. This hazer produces an extremely fine haze due to the combination of low pressurised CO₂ and a high quality oil-based Mistique dedicated Hazer-liquid. The corresponding smoke particles of the Mistique are so fine that they don’t cloud the stage, leave no residue on equipment or on stage, do not interfere with lighting plans and have a long-lasting effect. For TV-applications especially the Showtec Mistique CO₂ Hazer embodies the perfect solution to many challenges. It produces a haze without disturbing any filming going on. The units are extremely silent because there is no pump to generate any kind of noise. The pressure of the CO₂ is enough to create the desired effect on stage. Another advantage of the fine haze is its complete transparency. Only its effect is visible without adding any kind of unwanted colour to the stage. Showtec did call the hazer “Mistique” for a reason and seeing is believing.
Note: Do not fill the fluid tank more than 75 %. Be careful not to exceed the maximum fluid level, this can lead to pressure errors or damage the device.
- Even and thin haze ensures no visible cloudy effect on stage
- 120 ml/min
- Customizable output direction gives extra flexibility
- Extreme silent operation due to CO₂ supply
- Output and fan speed remote controllable by DMX and W-DMX
- Fast and easy setup with Q-lock CO₂ hose system
- Very low fluid consumption and long lasting smoke
- Self-cleaning system
| Power Supply | 100-240 V AC 50/60 Hz |
|---|---|
| Power Consumption | 1250 W |
| Power Connector In | powerCON TRUE1 |
| Power Connector Out | powerCON TRUE1 |
| DMX Connector | XLR 3P In/Out / XLR 5P In/Out |
| DMX Connector In | XLR 3P / XLR 5P |
| DMX Connector Out | XLR 3P / XLR 5P |
| Cable Length | 1.5 m |
| Warm-up Time | 6 min |
| Output Capacity | 140 m³/min |
| Output Direction | Up |
| Housing | Metal |
| Colour | Black |
| Fluid Consumption | 120 ml/min |
| Fluid Tank Capacity | 2.5 L |
| Gas Consumption/hour | 0.36 kg/h |
| Gas Pressure Minimum | 3.4 bar |
| Gas Pressure Maximum | 4.1 bar |
| Length (mm) | 503 mm |
| Height (mm) | 310 mm |
| Width (mm) | 334 mm |
| Weight | 17 kg |
| IP Rating | IP20 (indoor use only) |
| Control Mode | DMX / Manual / Timer |
| DMX Channels | 1 / 3 / 5 |
| Wireless | Wireless DMX |
| Display | Touch |
| Gas Connection | Quick-Lock |
| Gas Type | CO₂ / N₂ |
| Maximum Ambient Temperature | 45 °C |
| Minimum Ambient Temperature | 5 °C |
| Included Cables | powerCON TRUE1 cable |
