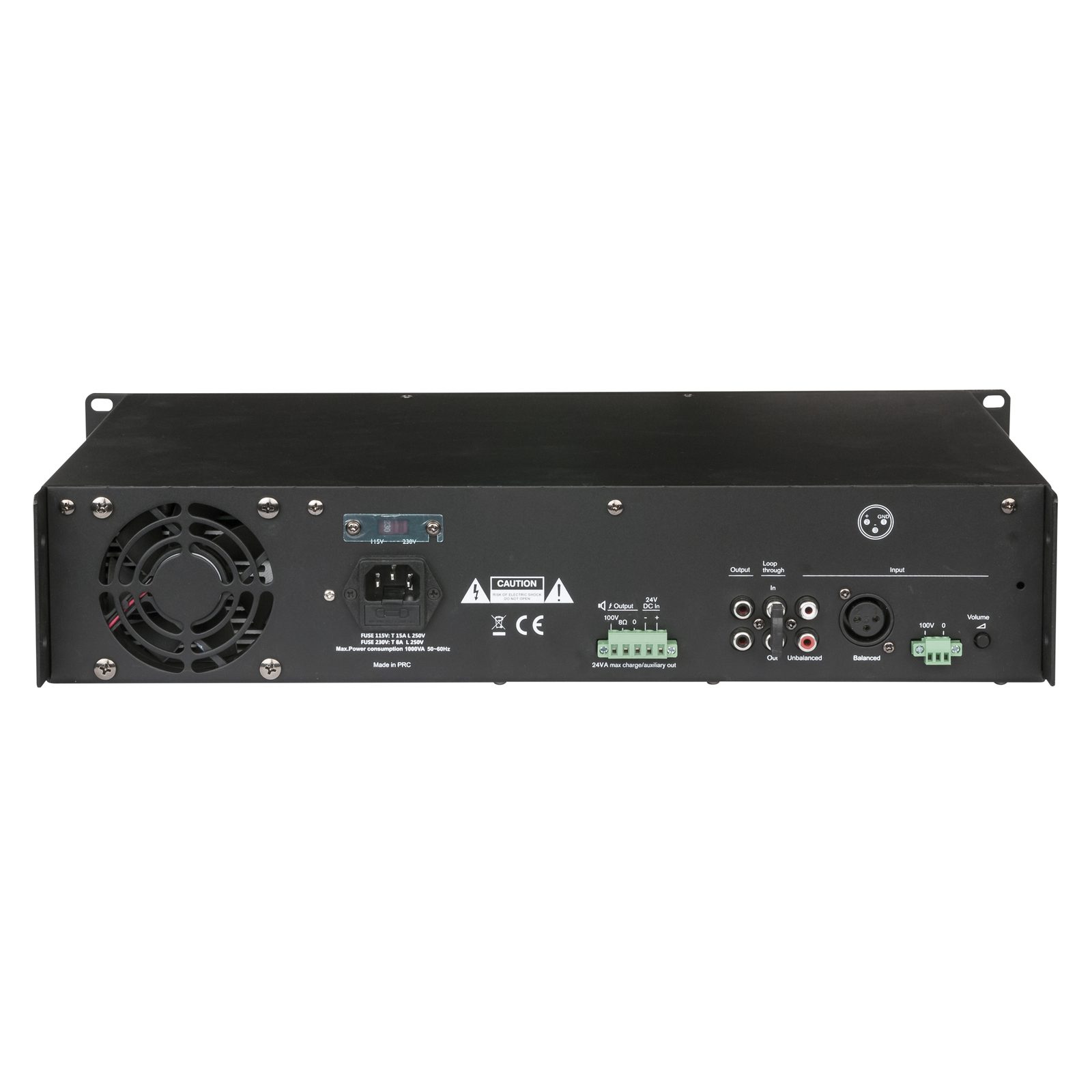

Amplificatore mono PA-500 500W 100V - DAP D6161
The DAP PA-500 is a 500 watt, 100 V plain amplifier. It is a reliable work horse that can be used for many applications. Inputs can be connected with terminals, balanced XKR or unbalanced RCA connectors. A loop through is available to connect external audio processing like equalizing enhancing or feedback killers. The PA-500 can extend a consisting DAP 100 V PA system or used for mobile rental applications. It can also be combined with line mixers is a situation where 100 V is an extension on a commercial audio installation.
These amplifiers are designed for PA systems with applications such as announcement, intercommunication, background music and broadcasting in convention-halls, shopping centers, dining rooms, auditoriums and recreation areas. These desk top amplifiers have an integrated protective circuit to withstand overload or short-circuits of output. This results in very high reliability and easy installations without extra audio processors. It is a complete range from simple amplifiers till matrix amplifiers with built-in tuner and media player.
- 500 W RMS
- Loop through connection
- RCA, XLR, Terminal input
- 24 V Back up power input
| Power Amplifier RMS Output | 500 W |
|---|---|
| Output Channels | 1 |
| Output Mode | Parallel |
| Output Connector | Terminal |
| Main Outputs | 2 |
| Main Output Connector | RCA |
| Mono Inputs | 2 |
| Mono Input Connector | 3-pin XLR / Terminal |
| Stereo Inputs | 1 |
| Stereo Input Connector | RCA |
| Transformer | 100 V |
| Phantom Power | No |
| Power Supply | 240 V AC 50/60 Hz |
| Backup Power Supply | 24 V DC |
| Power Consumption | 1050 W |
| Power Connector In | IEC |
| Height (mm) | 483 mm |
| Width (mm) | 88 mm |
| Depth (mm) | 330 mm |
| Rack Units | 2 U |
| Weight | 16.4 kg |
| Electronic Protection | Overload / Short circuit |
