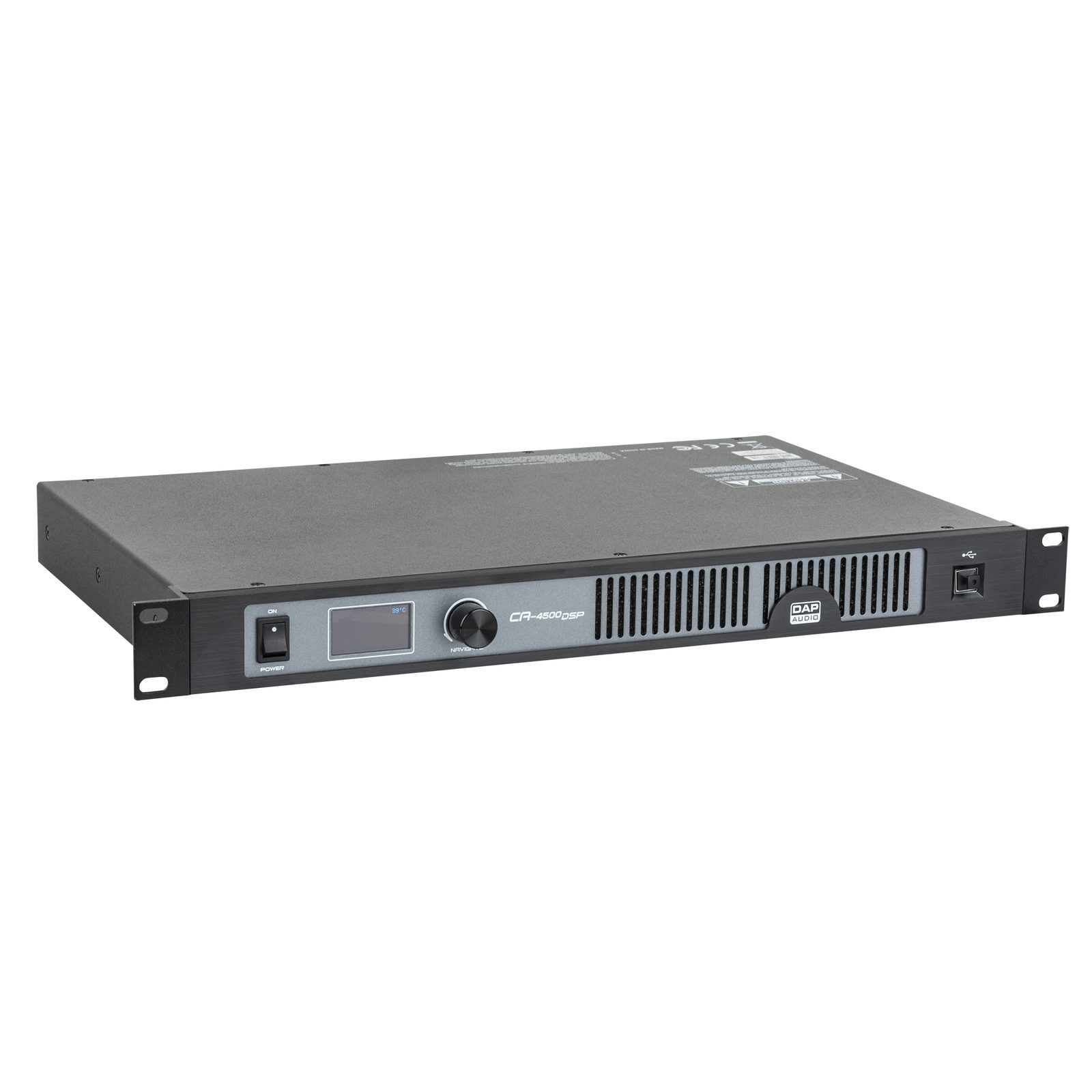

The DAP CA-4500 DSP is a high power digital 4-channel amplifier with 500 W in 4 Ohm and four 500 watt speakON outputs. It can drive a 70/100 V speaker system and can deliver two channels of 1000 watt each in bridge mode. This amplifier is especially suitable for the installation market.

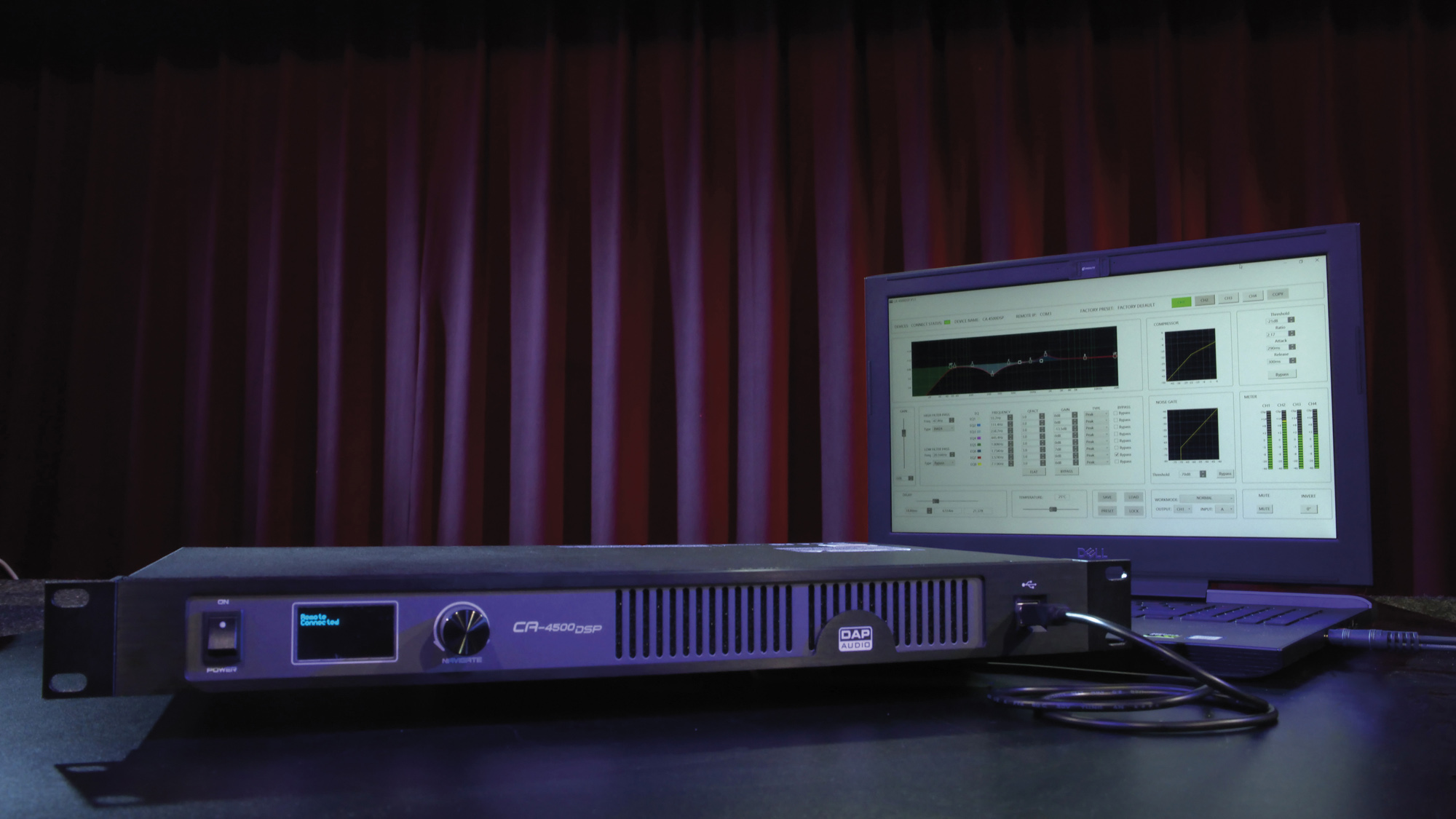

The CA-4500 includes a powerful DSP. All parameters, such as 8-band EQ settings, delay, compression, noise gate and more, are configurable manually or via included software on any Windows PC/laptop. Besides, all four inputs and output channels are freely routable.
This amplifier not only has many functionalities but is also safe to use thanks to advanced protection circuits, such as soft start technology and a clip limiter. All of this fits in a compact 19-inch design with a 1 unit height.
- Suitable for the installation market (70/100 V)
- Powerful digital DSP
- Bridge and stereo mode
- SMPS & Class D technology
- OLED display and PC configurable
- 1U suitable for 19" rack
| 2 ohms Stable | No |
|---|
| Output per Channel into 8 ohms at 1 kHz | 250 W |
|---|
| Output per Channel into 4 ohms at 1 kHz | 500 W |
|---|
| Bridge Output into 8 ohms at 1 kHz | 1000 W |
|---|
| Output Channels | 4 |
|---|
| Output Mode | 4-channel / Bridge / Mono / Stereo |
|---|

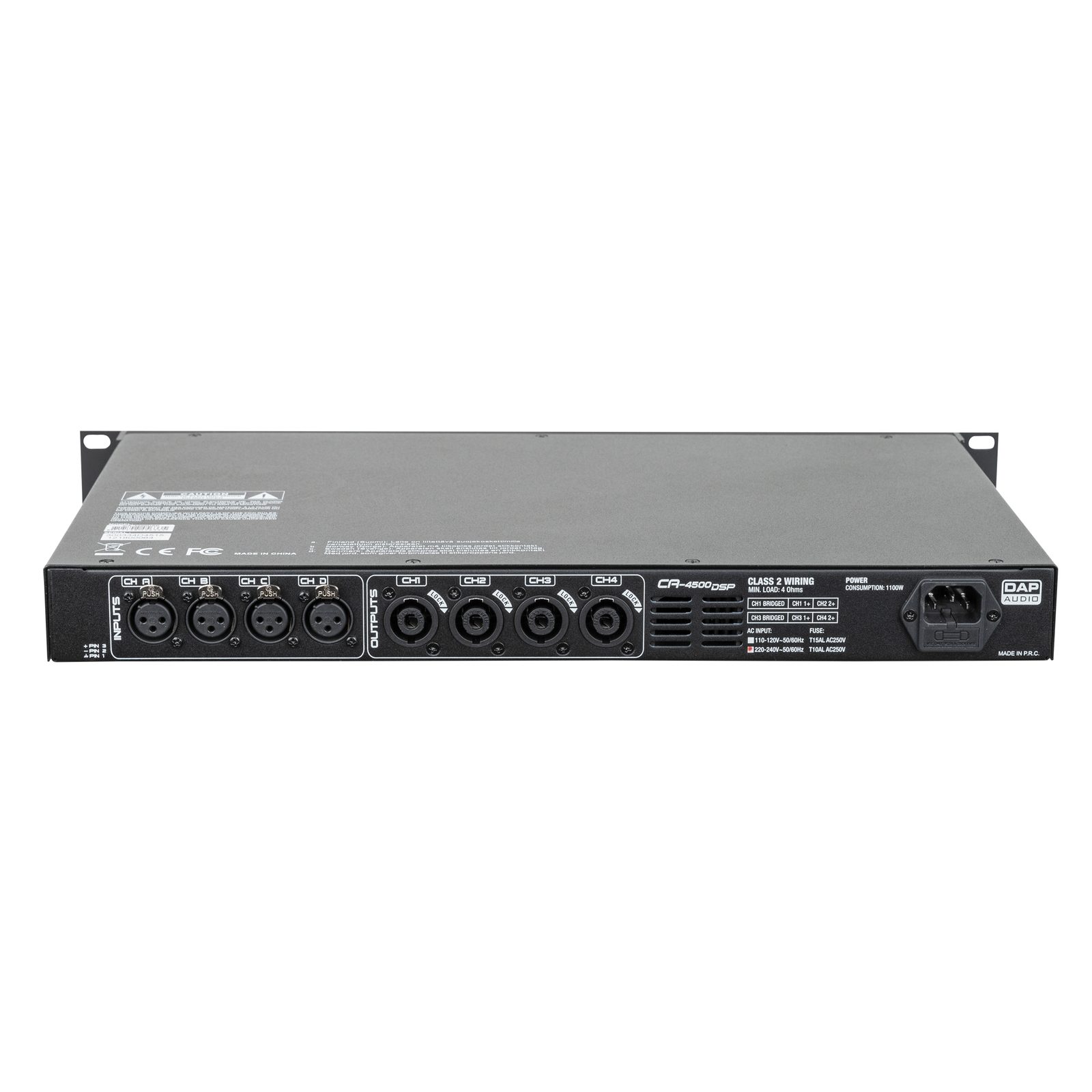

| Output Connector | Speaker Connector 4 pole |
|---|
| Mono Input Connector | 3-pin XLR |
|---|
| THD Level | < 0.15 % |
|---|
| Signal-to-noise Ratio | > 96 dB |
|---|
| Slew Rate | 25 V/μs |
|---|
| Amp Technology | Class D |
|---|
| Damping Factor | 180 :1 |
|---|
| Frequency Response Minimum | 20 Hz |
|---|
| Frequency Response Maximum | 20000 Hz |
|---|
| Parametric Input Equalizer | 8 Bands |
|---|
| Parametric Output Equalizer | 8 Bands |
|---|
| Crossover Filter Types | Bessel / Butterworth / Linkwitz Riley |
|---|
| Power Supply | 220-240 V AC 50 Hz |
|---|
| Power Consumption | 1741 W |
|---|
| Height (mm) | 44 mm |
|---|
| Width (mm) | 483 mm |
|---|
| Length (mm) | 285 mm |
|---|
| Rack Units | 1 U |
|---|
| Weight | 5.9 kg |
|---|
| Electronic Protection | Clip limiter (fixed) / DC voltage / Overheat / Overload / Short circuit / Softstart / Thermal |
|---|
