The DAP Evo range offers decent 4" to 8" wall speaker sets with multi-angle brackets that are easy to install and adjust, suitable for background music at public places, businesses and theme parks. They are available in three versions: active indoor, passive outdoor and 100 V outdoor. The speakers have different mounting options for both horizontal and vertical positioning and are available in black and white versions to suit any environment.
The active Evo speakers are equipped with a built-in Class D amplifier with 2-band equalizer and volume control. The RCA and balanced green terminal inputs allow a quick and economical installation. The passive Evo speakers are suitable for outdoor installations. They have an IP54 rating and are equipped with a cap to protect the connectors from heavy rainfall. The 100 volt Evo Speakers also have an IP54 rating and are suitable for both 70 and 100 volt installations with 5 power taps and a low impedance.
Interested in our DAP Evo series? Contact us now for free advice and get an offer you can't refuse or check out our product pages for more information.
The DAP EVO 4 is a set of two 4-inch passive installation speakers for producing an excellent sound quality of up to 110 dB at one meter distance. With a peak power of 80 watt each, these 2-way Hi-Fi speakers have a high load capacity. It is therefore a perfect full-range audio solution for many locations such as restaurants, retail stores and even clubs.
The EVO 4 fits nicely into any indoor and outdoor location due to its elegant design (available in black and white), strong ABS housing and IP54 rating for protection against heavy rainfall, dust ingress and splash water.

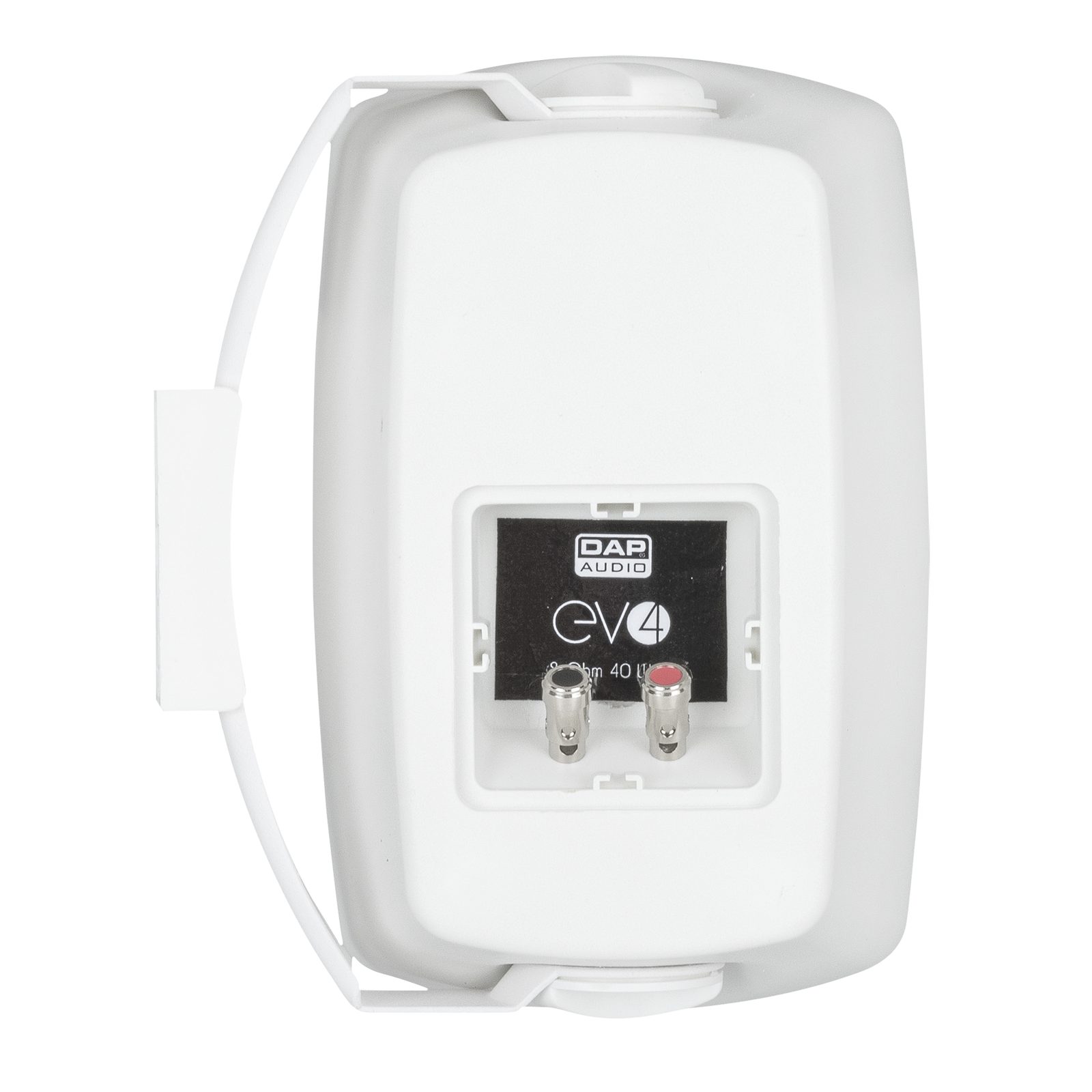

Installation can be done quickly and easily with a terminal connectors and included brackets suitable for either horizontal or vertical mounting. Please note that an external amplifier is required. The DAP CA-4150 is a suitable device for amplifying the EVO 4 speaker set.
- Full-range 2-way audio set for excellent Hi-Fi quality
- 40 W RMS, max SPL of 110 dB at 1 m each
- Suitable for outdoor use (IP54)
- Multi angled brackets (tiltable to up to 60 degrees)
- Quick and easy installation in either horizontal or vertical position
- Elegant ABS design available in black and white
- Perfect in combination with DAP CA-4150 Amplifier
| RMS Input Power | 40 W |
|---|
| Peak Input Power | 80 W |
|---|
| Passive Input Connection | Terminal |
|---|
| Speaker System | 2-way |
|---|
| Speaker Sensitivity (1 W/1 m) | 88 dB |
|---|
| Speaker Impedance | 8 Ω |
|---|
| Maximum SPL at 1 m | 110 dB |
|---|
| Frequency Response Minimum | 100 Hz |
|---|
| Frequency Response Maximum | 20000 Hz |
|---|
| Woofer Diameter | 4" |
|---|
| Woofer Voice Coil Diameter | 1" |
|---|
| Compression Driver Diameter | 1" |
|---|
| Compression Driver Voice Coil | 0.5" |
|---|
| Dispersion Angle (Horizontal) | 110° |
|---|
| Dispersion Angle (Vertical) | 90° |
|---|
| Height (mm) | 195 mm |
|---|
| Width (mm) | 126 mm |
|---|
| Length (mm) | 127 mm |
|---|
| Material | ABS |
|---|
| Colour | White |
|---|
| Weight | 1.8 kg |
|---|
| IP Rating | IP54 |
|---|
