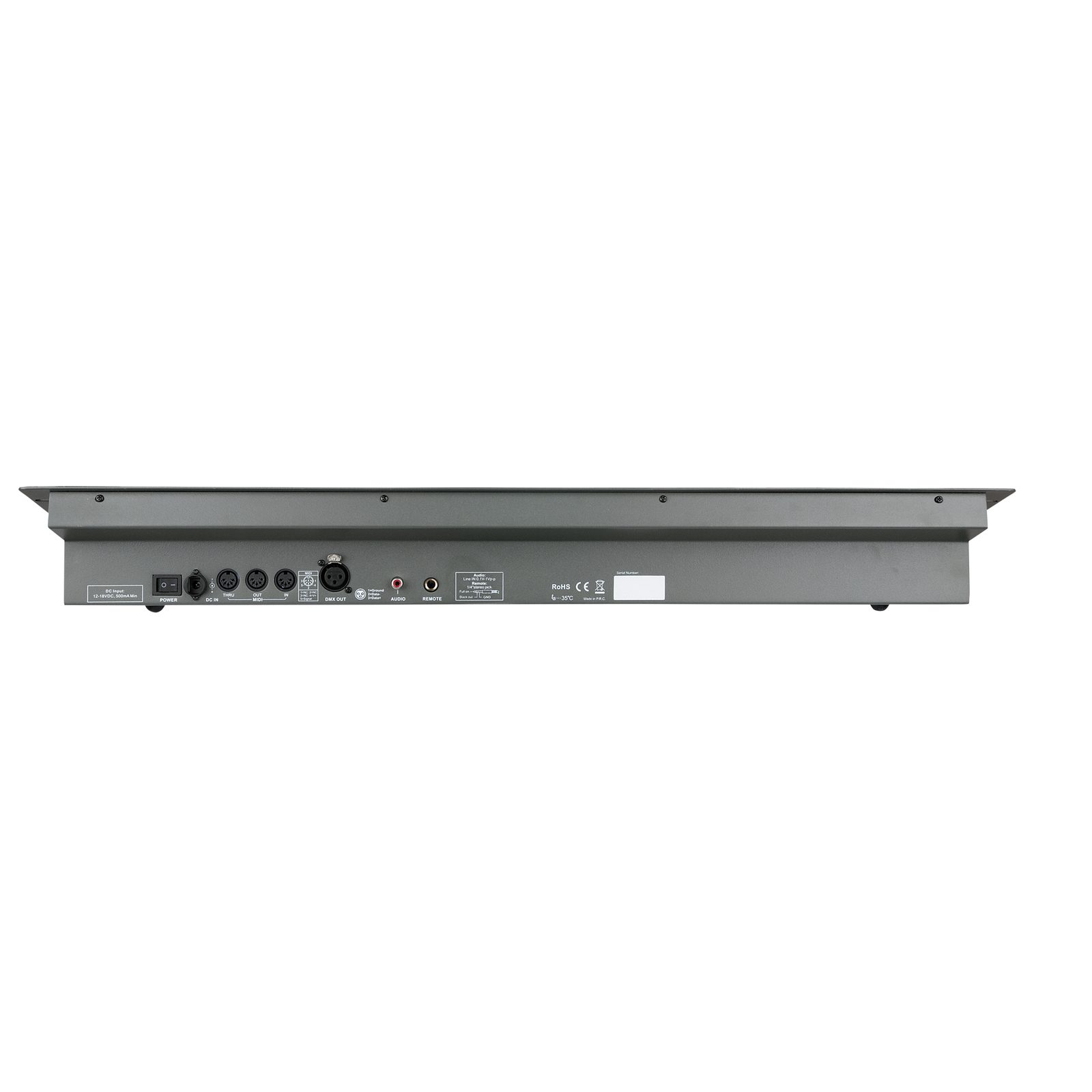

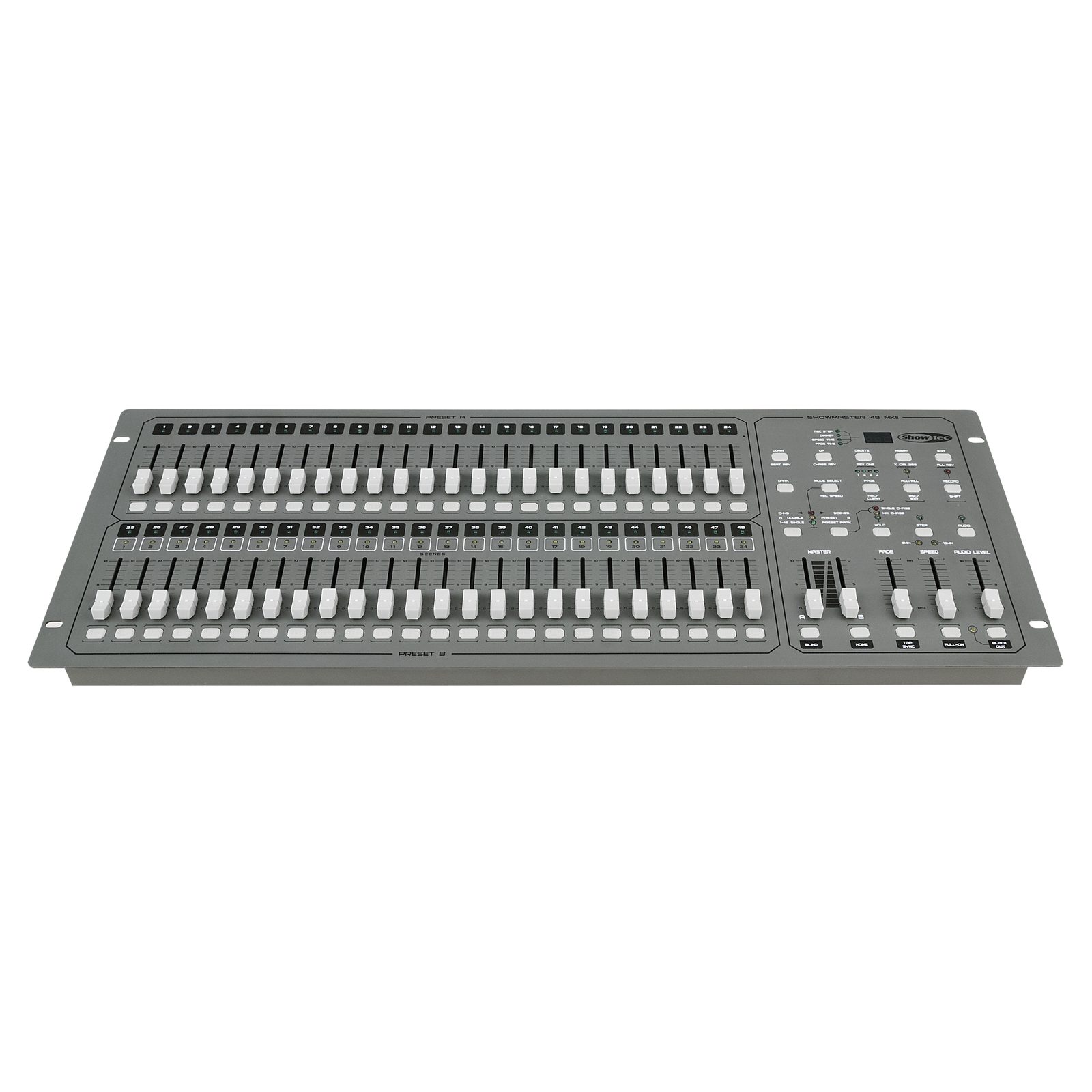

The Showmaster 48 MKII is the bigger brother of the "normal" Showmaster: with 48 channels instead of 24! The Showmaster 48 MKII is a 2-banks 24 fader, 1-bank 48 fader mixing console. The Showmaster 48 MKII controls DMX and has also the capability to be used with MIDI protocol to allow real-time programs. The Showmaster 48 MKII controls 2x24 channels (single bank) or 48 channels. The Showmaster 48 MKII can program 96 scenes or chases of 999 steps or a loop with a total of 23976 steps. Programs can be run automatically or by external or internal music input. It is also possible to control your lightshow by the built-in MIDI-interface to allow a real-time live-show to your music.
- 48 Multifunctional channel faders
- Up to 96 Scenes / Chases with max 999 steps
- Midi In & Out
- Remote black out/full on possibility
| Control Mode | Manual / MIDI / Sound |
|---|
| DMX Channels | 48 |
|---|
| Buttons | 68 |
|---|
| Chases | 96 |
|---|
| Faders | 53 |
|---|
| Memories | 23976 |
|---|
| Power Supply | 100-240 V AC 50/60 Hz (Power adapter) |
|---|
| Output voltage | 12 V DC |
|---|
| Power Consumption | 6 W |
|---|
| Power Connector In | Low Voltage DC plug |
|---|
| DMX Connector Out | XLR 3P |
|---|
| MIDI Connector | Yes |
|---|
| Audio Triggers | 2 |
|---|
| Adapter type | AC-DC adapter |
|---|
| Input voltage | 100-240 V AC, 50/60 Hz |
|---|
| Width (mm) | 710 mm |
|---|
| Depth (mm) | 267 mm |
|---|
| Height (mm) | 90 mm |
|---|
| Weight | 6.2 kg |
|---|
| Rack Units | 6 U |
|---|
| IP Rating | IP20 (indoor use only) |
|---|
| Housing | Metal / Plastic |
|---|
| Colour | Grey |
|---|
| LED Indicators | Operation mode / Output level / Signal |
|---|
| Maximum Ambient Temperature | 40 °C |
|---|
| Minimum Ambient Temperature | 0 °C |
|---|
| Included Cables | None |
|---|
| Included Accessories | Adapter |
|---|
