Scheda ingresso H Series 1x ST2110 25G - 4096x2160@60Hz, SFP28 - NOVASTAR 101649

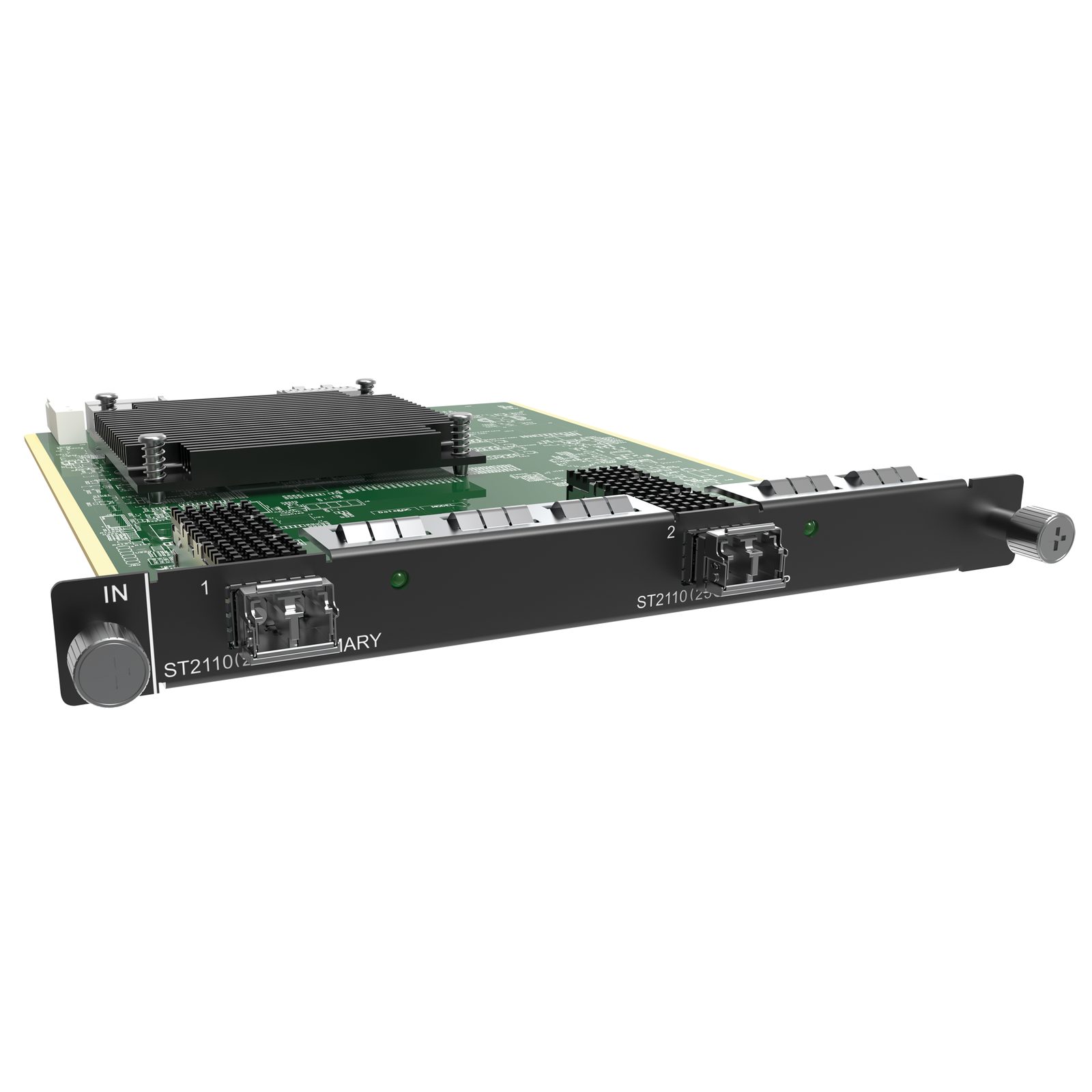

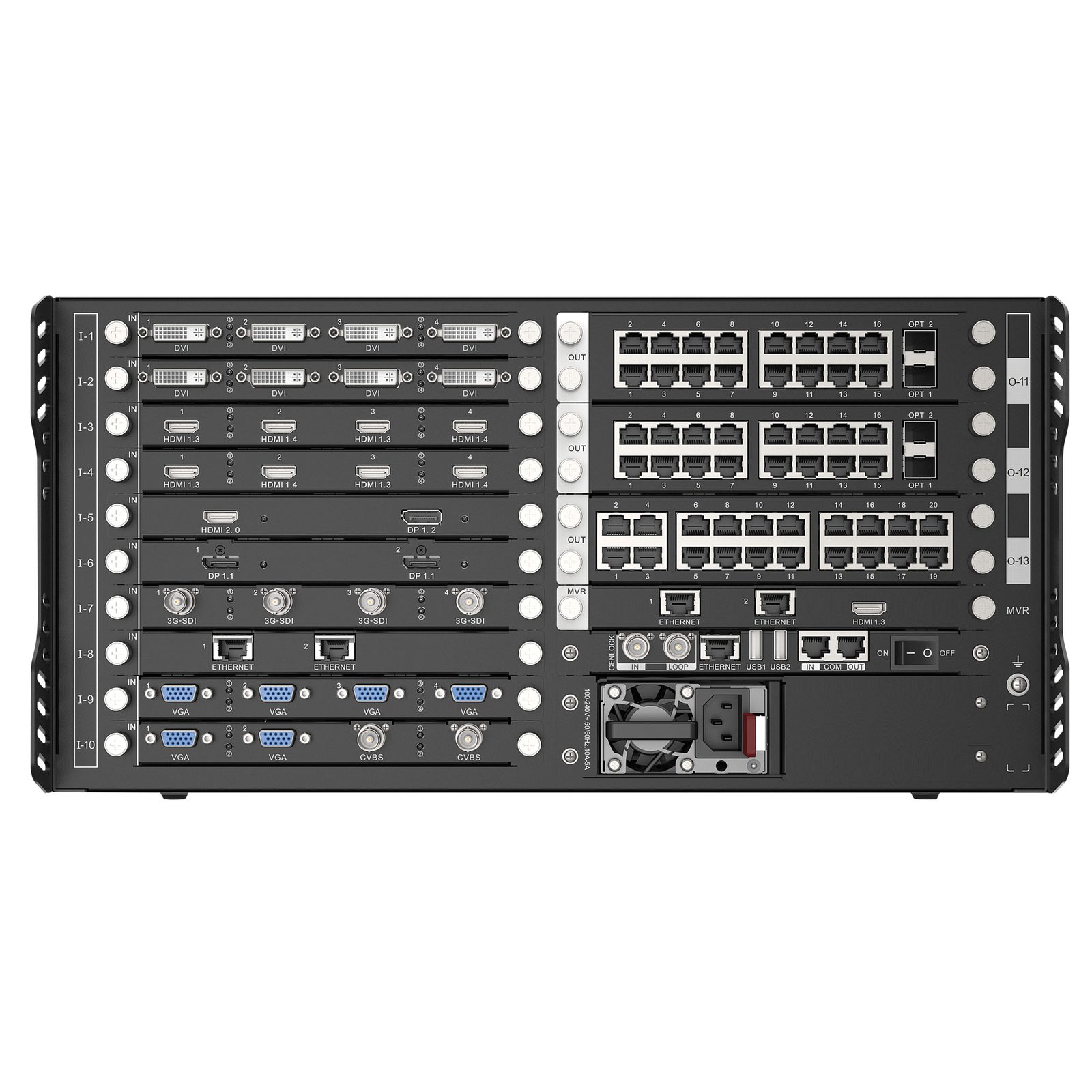

The Novastar H Series 1x ST2110 (25G) Input Card is an input card for the Novastar H Series main frames. It accepts a video signal with a resolution of up to 4096x2160 @ 60 Hz via a 25G SFP28 interface, enabling ‘Video over IP’ over distances of up to 10 km. This allows the LED display controller to be integrated into standard IP systems, providing flexible configuration options such as switching between input sources at broadcast control or production centres.

Two Single Mode 25G SFP modules are included.

• Supports SMPTE 2110
• Maximum input resolution 4096x2160 @ 60 Hz
• Primary and backup ports with status LEDs
• Supports Single Mode and Multi Mode fibre transmission
• 25G Single Mode SFP modules included
