Processore LED TU15 PRO Android 11 2.6Mpx 4xRJ45 - Novastar 101608
The Novastar TU15 PRO is an extensive playback control processor for LED screens. It is an all-in-one device that offers an integrated, stand-alone solution for driving LED screens, intended for applications in board rooms like document presentations, video playback and online meetings, without the need for additional hardware.
The TU15 PRO uses an Android 11-based OS that supports third-party apps. It enables screen mirroring from Windows, MacOS, iOS and Android for standard FHD (1080p) video up to 60 fps. It can playback media from USB. HEVC, H.265, H.264 and 4K are supported.

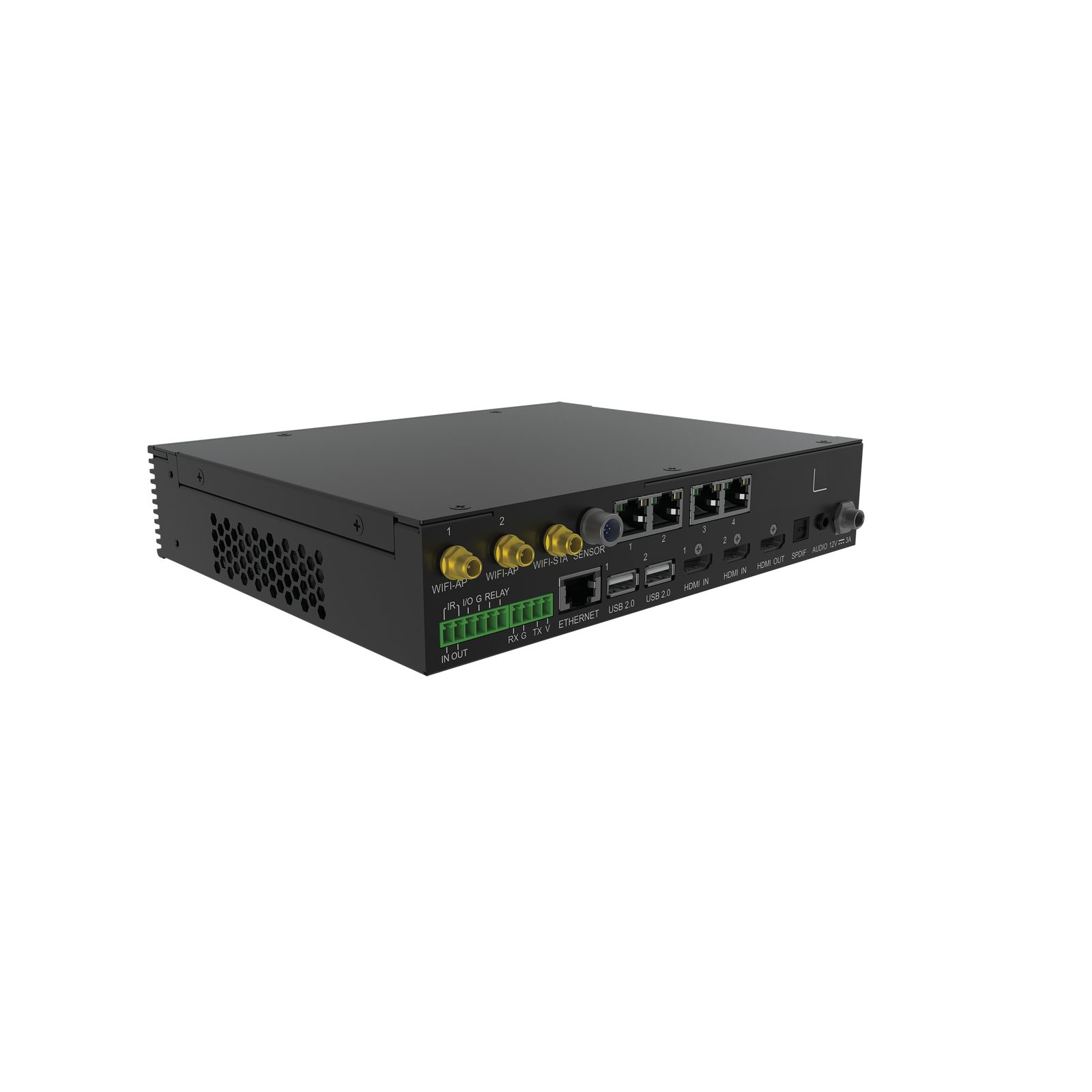

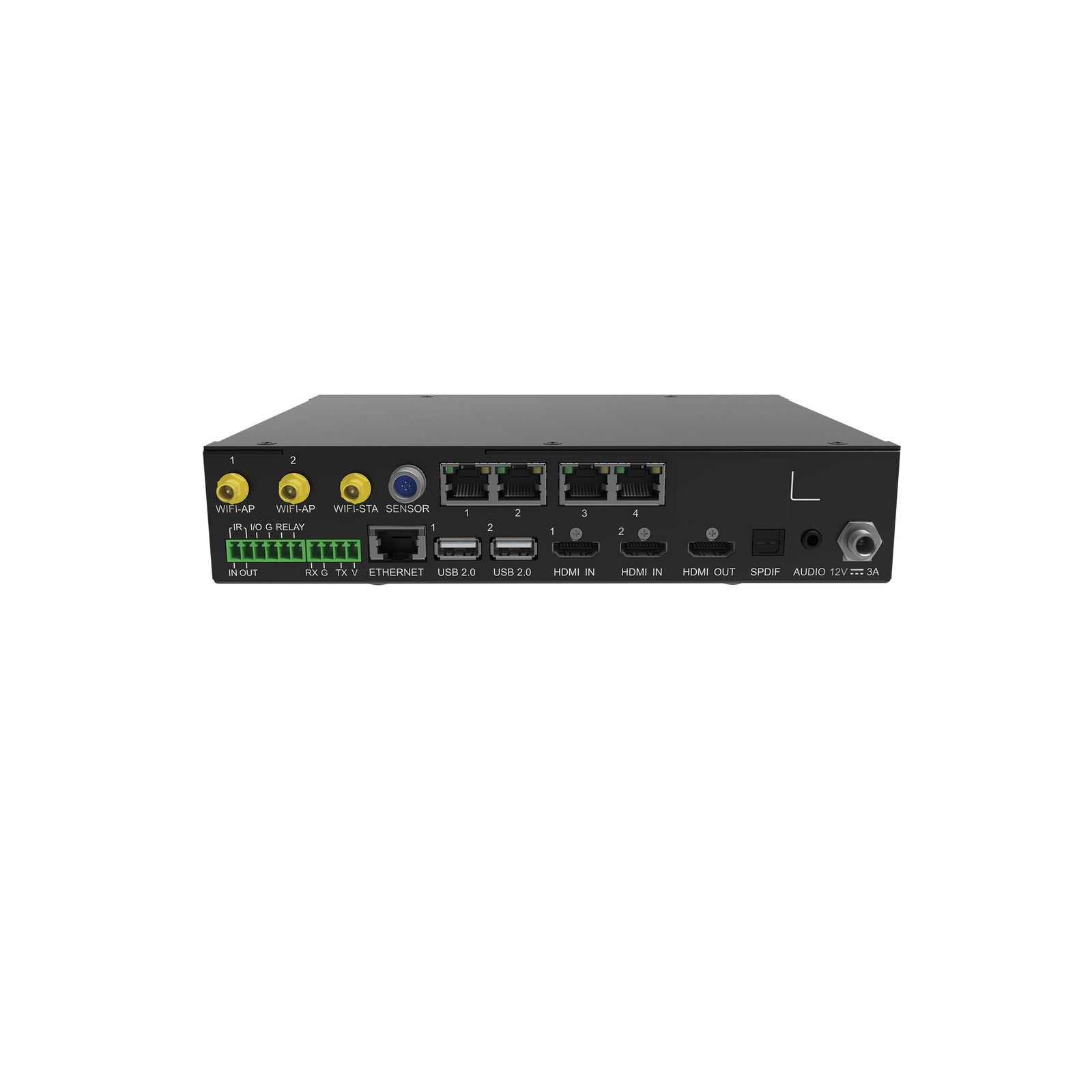

It has two HDMI 1.3 inputs, three USB 2.0 inputs for mouse, keyboard USB drive and other common USB devices, an Ethernet connection for control through NovaLCT software, and inputs for a light sensor and a remote control. It offers four RJ45 (1 Gb) pixel control outputs for up to 2,600,000 pixels (max 4096 width, max 1920 height), an HDMI out with 1080p support, S/PDIF and analogue audio out. The RS232 and relay control ports allow users to seamlessly integrate the TU15 PRO into any setup. Three antennas ensure stable Wi-Fi and Bluetooth reception.
- LED processor with scaling function
- Controls up to 2,600,000 pixels
- Wireless screen mirroring
- Internal media player
- Remote control included
- Light sensor input
| HDMI 1.3 | 2 |
|---|---|
| RS-232 | 1 |
| Light Sensor Port | 1 |
| Main Outputs | 1 |
| HDMI 1.3 (Out) | 1 |
| Internal Media Player | Yes |
| Operating Memory | 4 GB |
| Internal Storage Space | 32 GB |
| Local Content Upload | Ethernet / USB |
| Scaling Function | Yes |
| Maximum Loading Capacity | 2.6 Mpx |
| Maximum Input Resolution | 2048 x 1152 |
| Control Options | Ethernet / IR / RS232 / Wi-Fi |
| Power Supply | 12 V DC |
| Power Consumption | 21 W |
| Power Connector In | Low Voltage DC plug |
| Data Connector In | HDMI / Phoenix / RJ45 / USB A |
| Data Connector Out | HDMI / Phoenix / RJ45 / USB A |
