Nuovo

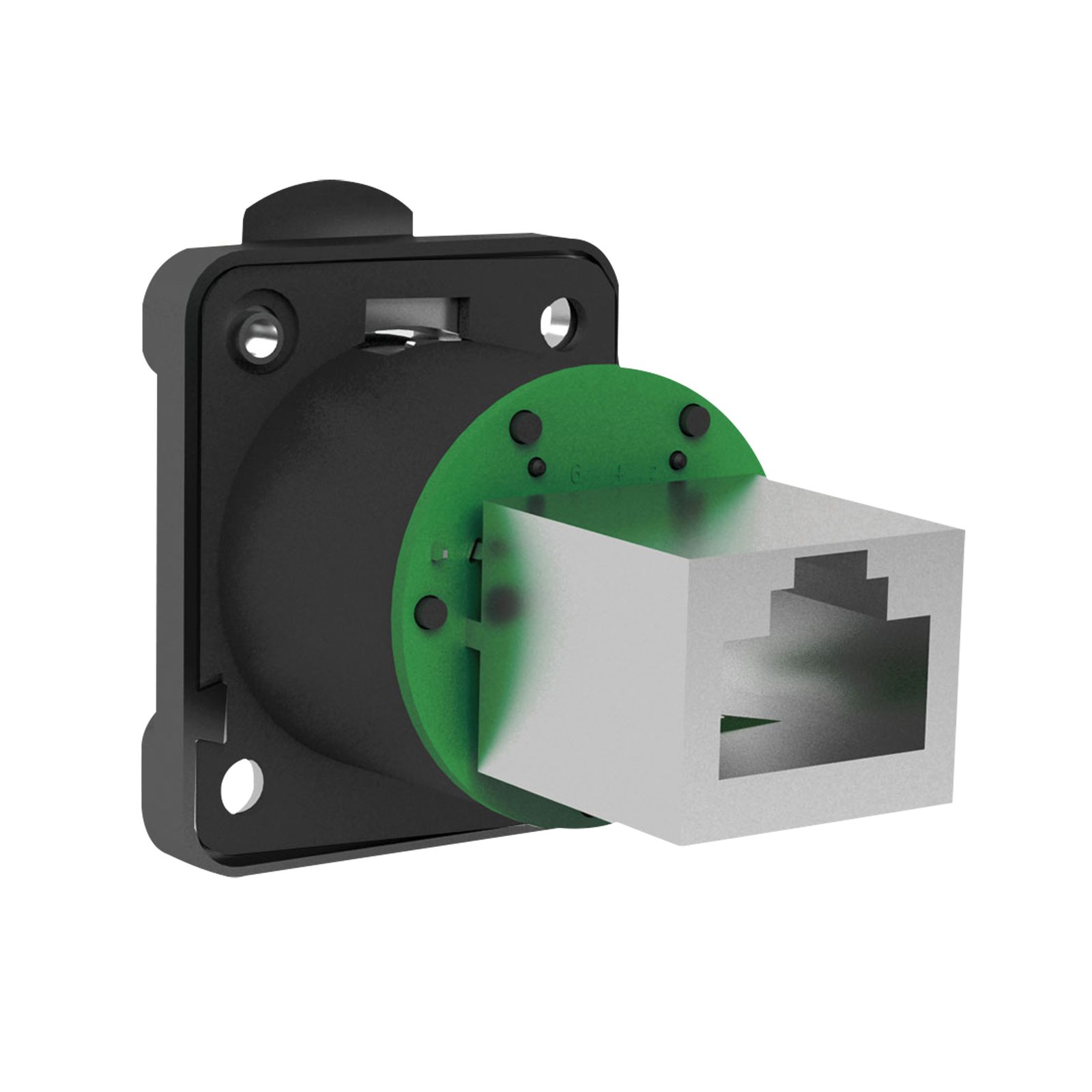

Presa passacavo RJ45 per telaio IP20 alloggiamento zinco nero - Seetronic SE8FDNH13B

Name: Presa passacavo RJ45 per telaio IP20 alloggiamento zinco nero - Seetronic SE8FDNH13B
Brand: SEETRONIC
SKU: SE8FDNH13B
Price: 9.07 EUR
Availability: InStock

SEETRONIC

9,07 €

Tasse incluse

Feedthrough locking receptacle

This RJ45 chassis connector fits D-size holes and installs from the front or the rear. On the back, this feedthrough connector has an RJ45 socket that accepts an RJ45 connector. It is suitable for up to CAT5e-supported network speeds (1 Gigabit) and has a latch locking system on the front. It has a zinc diecast shell and uses gold-plated contacts.

Feedthrough type (RJ45 on front and back)
Up to 1 Gigabit network speed (Cat5e)
Gold-plated contacts
Mounts from the front or rear

Length (mm)	39.1 mm
Height (mm)	33.1 mm
Width (mm)	27.7 mm
Weight	0.01 kg
IP Rating	IP20 (indoor use only)
Housing	Zinc
Colour	Black
Contact Resistance	10 < mΩ
Locking Device	Latch
Contact Type	Bronze
Shield Resistance	0.5 Ω/km
Maximum Ambient Temperature	80 °C
Minimum Ambient Temperature	-30 °C
PCB Mount	No
